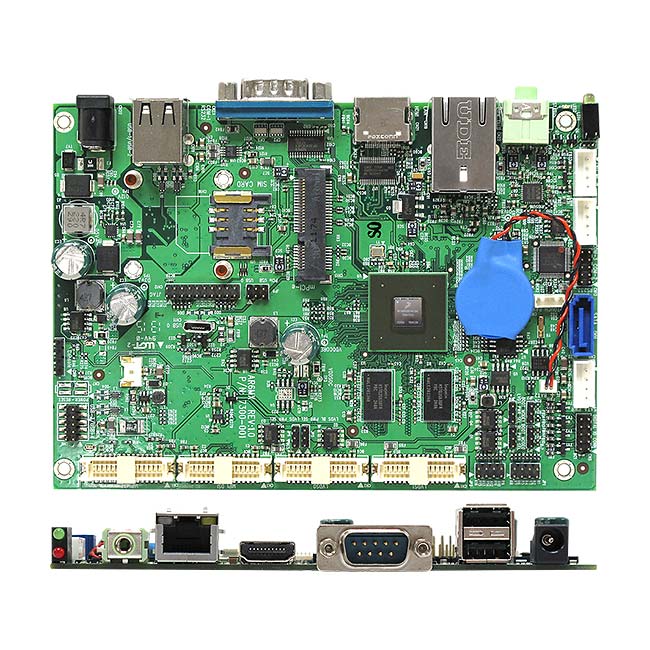

The AR6MXQ is a Full Feature Quad Core ARM Motherboard which provides an ideal platform to test performance and scalability prior to engaging in BCM’s quick turn custom design services for a feature specific product design. Please contact BCM sales to obtain information regarding our OEM/ODM ARM solutions BCMSales@bcmcom.com.
In addition to the common smart phone and tablet products, ARM-based computing devices can be found in a growing number of embedded applications such as set-top-boxes, machine input devices, POS, Kiosk, intelligent machinery, in-vehicle PC, compact digital signage and media players, hand-held game consoles, smart Human Machine Interface (HMI) devices, home automation, and machine-to-machine (M2M) devices, just to name a few.
| System |
| CPU |
NXP® i.MX6 Cortex A9 Quad Core 1.0 GHz |
| System Memory |
1 GB onboard DDR3 Memory |
| Touch Screen Interface |
Resistive Touch Controller Onboard |
| Storage |
4 GB eMMC Onboard |
| Bluetooth & WiFi |
Optional Through Mini PCIe Module |
| Audio |
Wolfson® WM8960 Ultra Low Power Audio Codec |
| Ethernet |
Micrel® KSZ9031 Gigabit Ethernet |
| Expansion |
1 x SD Card Slot
1 x Mini PCIe |
| OS Support |
| Android |
Android JB 4.3.1
Android KK 4.4.2
Android L5.0.1
Check Latest Version |
| Linux |
Ubuntu 12.04
Linux Ubuntu 14.04.2 kernel 3.10.53
Linux Ubuntu 14.04.3 kernel 3.14.28
Check Latest Version |
| Other |
Linux Yocto kernel 3.10.53
Check Latest Version |
| Display |
| Video Interface |
LVDS, MIPI-CSI |
| Video Processing Unit |
OpenGL® ES 2.0 and OpenVG™ 1.1 Hardware Accelerators & Multi-Format HD1080p Video Decoder and HD720p Video Encoder Engine |
| External I/O |
| Audio Interface |
1 x Line-Out |
| USB |
2 x USB Connectors |
| COM |
1 x RS-232 |
| HDMI |
1 x HDMI Connector |
| LAN |
1 x RJ-45 Connector |
| DC-in |
1 x Barrel Type Connector |
| Internal I/O |
| LVDS |
2 x LVDS Header |
| Image Capture Interfaces |
1 x MIPI-CSI Header, 1 x MIPI-DSI Header |
| USB |
1 x 2x5 USB Headers (2 Ports) and 1 x Micro USB OTG connector |
| COM (Serial Port) |
1 x RS-232 and 1 x TTL |
| DIO |
1 x 2x5 GPIO Pin Header |
| MIO |
1 x Front Panel Pin Header,1 x SATA and 1 x SATA Power Connector |
| Mechanical and Environment |
| Power |
9V ~ 24V DC Input |
| Operating Temperature |
0 ～ 50°C |
| Storage Temperature |
-20 ～ 80°C |
| Operating Humidity |
5 ～ 90％ Relative Humidity, Non-condensing |
| Form Factor |
Single Board Computer |
| Dimensions (L) x (W) |
5.7 in x 4 in |
| Certification Information |
CE, FCC Class B |
| Weight |
0.44 lbs |
* All product specifications and product images are subject to change without notice. Last update: 2/11/2016
Product Change Notice (PCN)
| Date |
Description |
Download |
| 08/28/2018 |
PCN for including a warning insert into each carton in order to comply with California Proposition 65 regulations. |
|
| Model Name |
Description |
| AR6MXQ |
NXP® i.MX6 Cortex A9 Quad Core 1.0 GHz ARM Motherboard |
