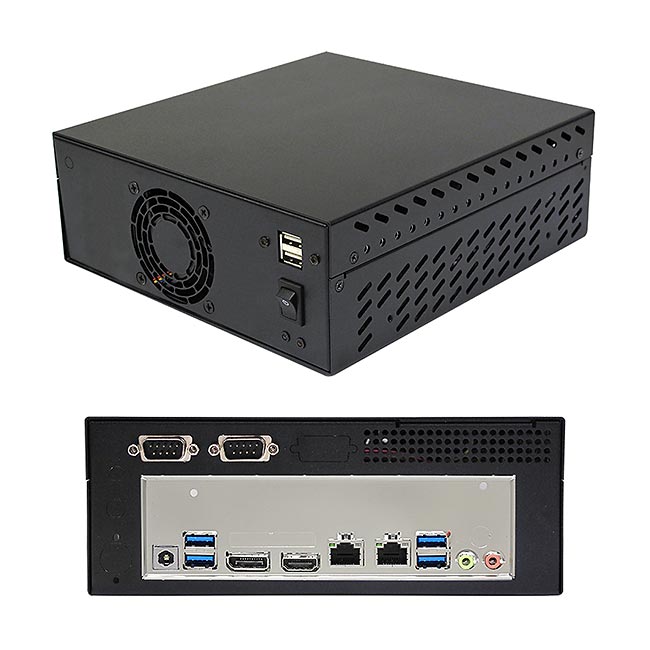

BI260-110HD Intel H110 mini-ITX Barebone BOX Computer

BI260-110HD

Intel H110 mini-ITX Barebone BOX Computer

  • Motherboard: MX110HD Mini ITX Motherboard
  • Value line cost effective industrial computer
  • Intel LGA1151 socket supports 6th/7th generation 14nm Intel Kaby Lake¹ /  Skylake Core i7/i5/i3 and Celeron processors
  • 2 x COM Ports
  • 4 x USB 3.0 and 2 x USB 2.0
  • 1 x Displayports and 1 x HDMI
  • 1 x Full and Half Size mini-PCIe with mSATA Support, 1 x
    Half-Size mini-PCIe
  • 19V DC Input
  • Kaby Lake processors support OS Win 10 and above; support Win 7 with external video cards
Related Motherboard Inside
System
CPU Intel LGA1151 socket supports 6th/7th generation 14nm Intel Kaby Lake¹ /  Skylake Core i7/i5/i3 and Celeron processors
System Chipset Intel® H110 PCH
BIOS AMI UEFI BIOS 16MB (128Mb) Flash ROM
System Memory 2 x 260-pin So-DIMM sockets support up to 32 GB Dual Channel DDR4 @ 1.2V, 2133MHz Non-ECC memory modules
Video Intel® Integrated Graphic Engine
Audio Codec Realtek HD Audio support 7.1 channel sound playback
Ethernet LAN 1: Intel® I219 Gigabit (10/100/1000 Mb/s) LAN
LAN 2: Intel® I210 Gigabit (10/100/1000 Mb/s) LAN
Expansion 1 x Full/Half Size mini-PCIe with mSATA Support (SATA III)
1 x Half Size mini-PCIe
System Fan 1 x 60mm
System Indicator 1 x Power LED, 1 x HDD LED, 1 x Momentary Switch
Storage 1 x 2.5” SSD/HDD Drive Bay
External I/O
Audio Line-out, Mic-in
LAN 2 x RJ-45
Display Interface 1 x DisplayPort and 1 x HDMI
USB 4 x USB 3.0 and 2 x USB 2.0
COM (Serial Port) 2 x COM
Power Input 1 x DC-in
Mechanical and Environment
Power Type 19V DC-in
Power Adapter Input: 100 ~ 240V / 50 ~ 60Hz
Output: 90W Adapter (19V @ 4.73A)
Operating Temperature 0 ～ 40°C
Storage Temperature -20 ～ 60°C
Relative Humidity 20% ~ 90% Relative Humidity, Non-condensing
Exterior Color Black
Dimensions 8.587” L x 8.00” W x 3.007” H (218.10mm L x 203.20mm W x 73.68mm H)
Certification Information CE, FCC Class A
Weight 4.25 lbs

* All product specifications and product images are subject to change without notice. Last update: 2021/04/20

Document
Datasheet
Driver Description
Note The BI260-110HD is equipped with the MX110HD mini-ITX motherboard inside. Please check MX110HD product page for drivers and manual.
Date Description Download
Note The BI260-110HD is equipped with the MX110HD mini-ITX motherboard inside. Please check MX110HD product page for Product Change Notice.
Model Name Description
BI260-110HD Barebone: Intel® H110 Mini ITX Barebone System. Memory and HDD are not included.
