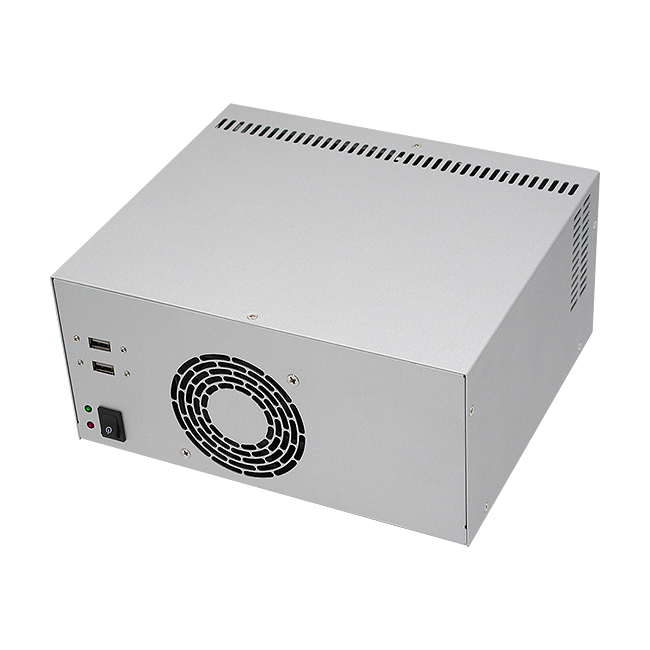

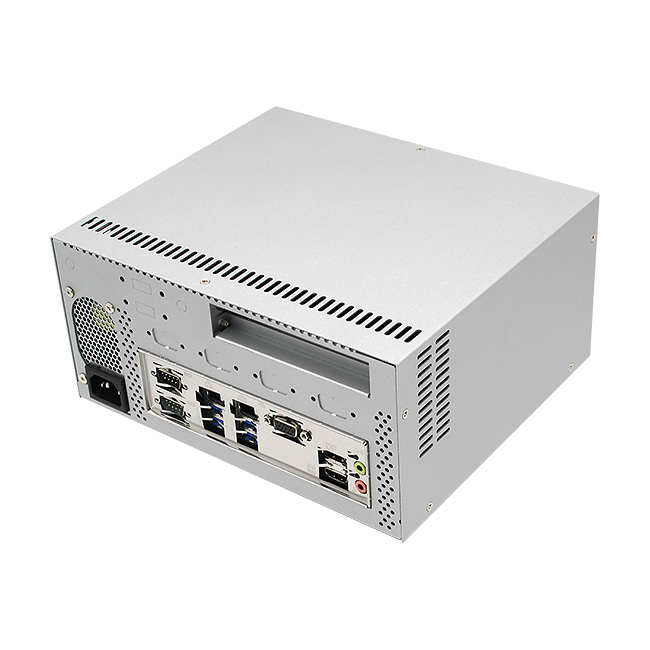

BI360-310H Intel H310 mini-ITX Barebone Industrial Computer BI360-310H Intel H310 mini-ITX Barebone Industrial Computer BI360-310H Intel H310 mini-ITX Barebone Industrial Computer

BI360-310H

Intel® H310 Mini ITX Barebone Industrial Computer Supports 8th/9th Gen Intel® Core Processors

  • Motherboard: MX310H mini-ITX Motherboard
  • Socket LGA 1151 supports 8th/9th Generation Intel® Core™/Pentium®/ Celeron® Processors*
  • Intel® H310 PCH
  • 2 x SoDIMM supports up to 32GB Dual Channel DDR4 2400 MHz System Memory
  • Rich Expansion Interface: 1 x PCIe x16, 2 x M.2, 1 x mini-PCIe with mSATA Support
  • Display Interface: 1 x HDMI, 1 x DP++, 1 x VGA
  • 4 x USB 3.1 Gen 1 Ports, 2 x USB 2.0
  • 2 x COM, 4 x SATA III
  • Optional 1 x COM, Optional 2 x USB 2.0
  • ATX Power Input
  • TPM 2.0
Related Motherboard Inside
System
CPU Supports 8th Gen LGA1151 Intel® Core-i™, Pentium, and Celeron processors* up to 65W TDP
Supports 9th Gen LGA1151 Intel® Core-i™, Pentium, and Celeron processors* with 6 cores or less & up to 65W TDP
Supports 8 Core 9th Gen LGA 1151 Intel® Core-i™ processors* up to 35W TDP
* Processor IccMax <= 138A.
System Chipset Intel® H310 PCH
BIOS AMI® UEFI 128Mb SPI BIOS
System Memory 2 x SoDIMM Up to 32GB Dual Channel DDR4 2400MHz Horizontal Type Memory Sockets
Video Intel® Integrated HD Graphic (CPU Dependent)
# of Display Dual Display via HDMI, DisplayPort (supports DP++), VGA, and/or LVDS
Audio Codec Realtek HD Audio support 7.1 channel sound playback
Ethernet LAN 1: Intel® I219-V PHY LAN Controller
LAN 2: Intel® I211-AT PCIe LAN Controller
Expansion 1 x PCIe x 16 Slot
1 x M.2 Type M 2260, 2280 Slot (with PCIe x2 & SATA III)
1 x M.2 Type A/E 2230 (with USB & PCIe x1)
1 x Full Size mini-PCIe with mSATA Support
System Fan 1 x 80mm
System Indicator 1 x Power LED, 1 x HDD LED, 1 x Momentary Switch
Storage 1 x 2.5” SSD/HDD Drive Bay
TPM Infineon® SLB 9665 TPM 2.0 Controller
Supported OS Win 10

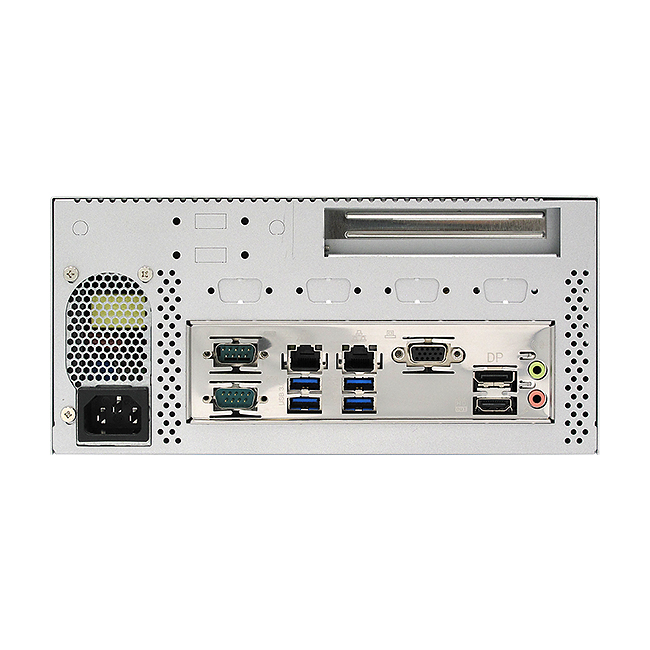

External I/O
Display Interface 1 x HDMI
1 x DisplayPort (supports DP++)
1 x VGA
USB Rear: 4 x USB 3.1 Gen 1 Ports
Front: 2 x USB 2.0
Optional: Additional 2 x USB 2.0 (Rear I/O)
Audio 1 x Line-out
1 x Mic-in
LAN 2 x RJ-45
COM (Serial Port) 2 x RS-232/422/485
Optional: Additional 1 x RS-232 (Rear I/O)
Power Input ATX
Internal I/O
LVDS 1 x LVDS Header
1 x Backlight Locking Type Header
SATA 2 x SATA III Connectors (Red)
2 x SATA III Connectors (Black) (Shared with mSATA/M.2)
I2C 1 x I2C
Mechanical and Environment
Power Adapter Input: 100-240V, 4-2A, 60-50Hz
Output: 220W
Operating Temperature 0 ～ 40°C （32 ～ 104°F）
Storage Temperature -20 ～ 60°C （-4 ～ 140°F）
Exterior Color Silver
Mounting Desk Mount
Dimensions 8.00” L x 9.335” W x 4.493” H (203.20mm L x 237.11mm W x 114.13mm H)
Certification Information CE, FCC Class A
Weight 7.50 lbs

* All product specifications and product images are subject to change without notice. Last update: 01/11/2023

Document
Datasheet
Driver Description
Note The BI360-310H is equipped with the MX310H mini-ITX motherboard inside. Please check MX310H product page for drivers and manual.
Date Description Download
Model Name Description
BI360-310H Intel® H310 Barebone Computer. CPU, memory and HDD are not included.
