Product End of Life (EOL) Notification

THIS PRODUCT IS ON THE PHASE-OUT LIST. BCM is accepting last time buy (LTB) orders through September 15, 2021. At BCM’s discretion, last time by orders may be scheduled to ship through January 31, 2022 with a non-cancellable and non-returnable (NCNR) PO. For NCNR orders BCM may require an advanced deposit covering material costs. For a replacement product please consider OFT-07W03 / OFT-10W02(POE) / OFT-10W03 / OFT-15W03 (EOL estimated in 2024) or OFT-07W04 / OFT-10W04 / OFT-15W04 (currently under development). For detail, please CLICK HERE to read the official release.

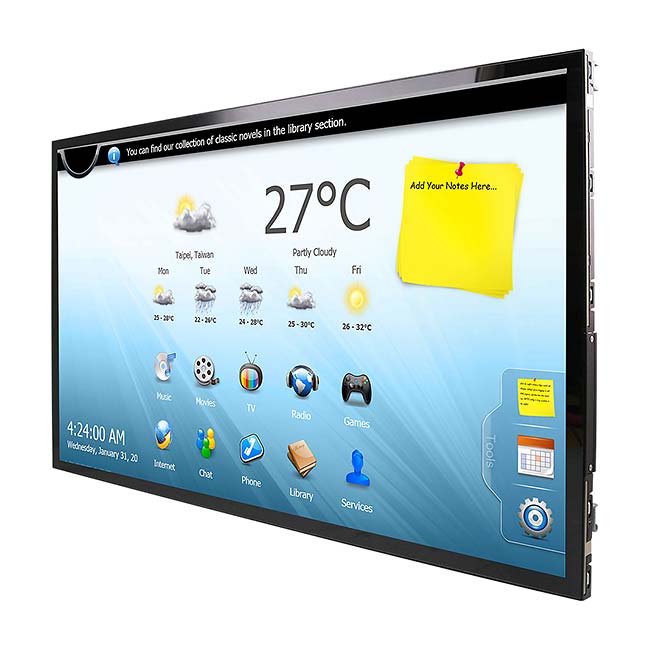

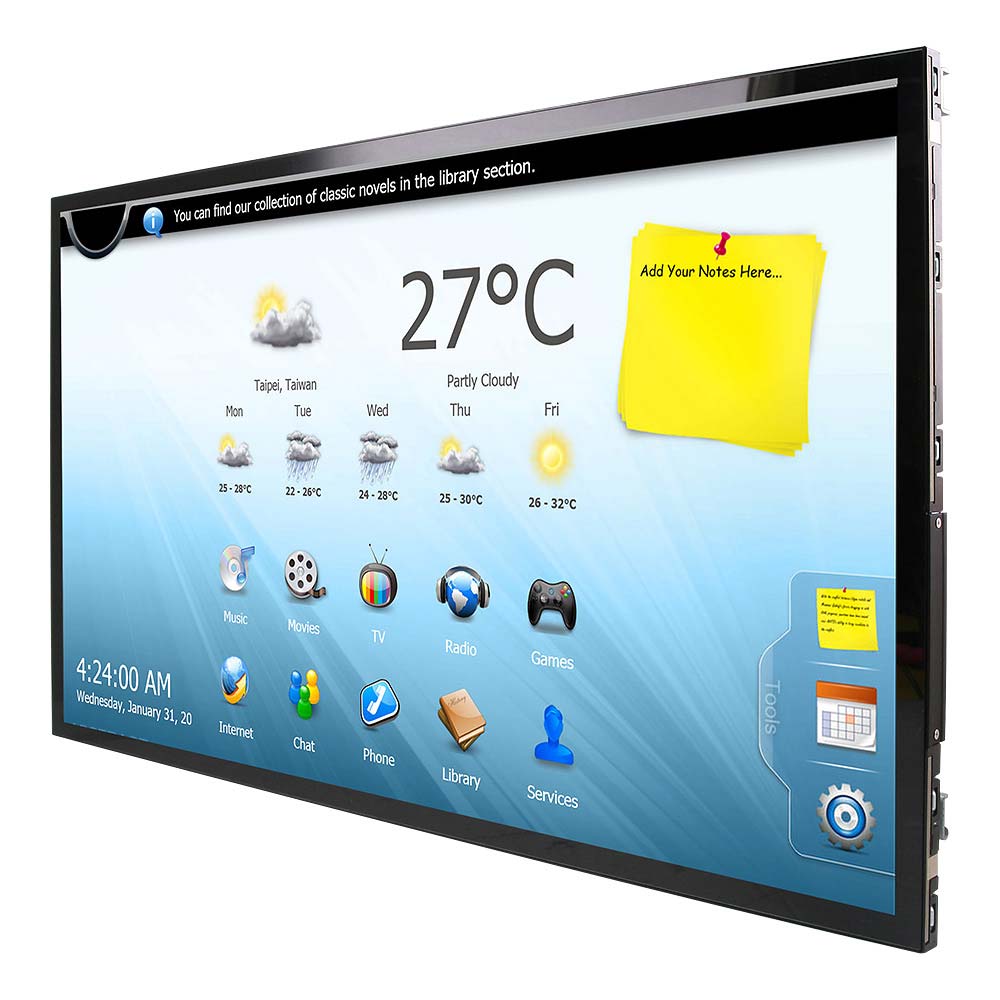

OFT-21W01 21 inch Thin Open Frame Tablet with Touch Screen OFT-21W01 21 inch Thin Open Frame Tablet with Touch Screen OFT-21W01 21 inch Thin Open Frame Tablet with Touch Screen

OFT-21W01

21" Intel Atom Quad Core Open Frame Tablet

Built based on the Intel BayTrail-T/CR Z3735F Quad Core processor providing high performance but lower cost and only 2W power consumption.

  • 21 inch PCAP Touch Screen
  • Intel® Atom™ Processor Z3735F 1.33GHz Quad Core Processor onboard
  • Flat screen with PCAP touch giving users fast touch response

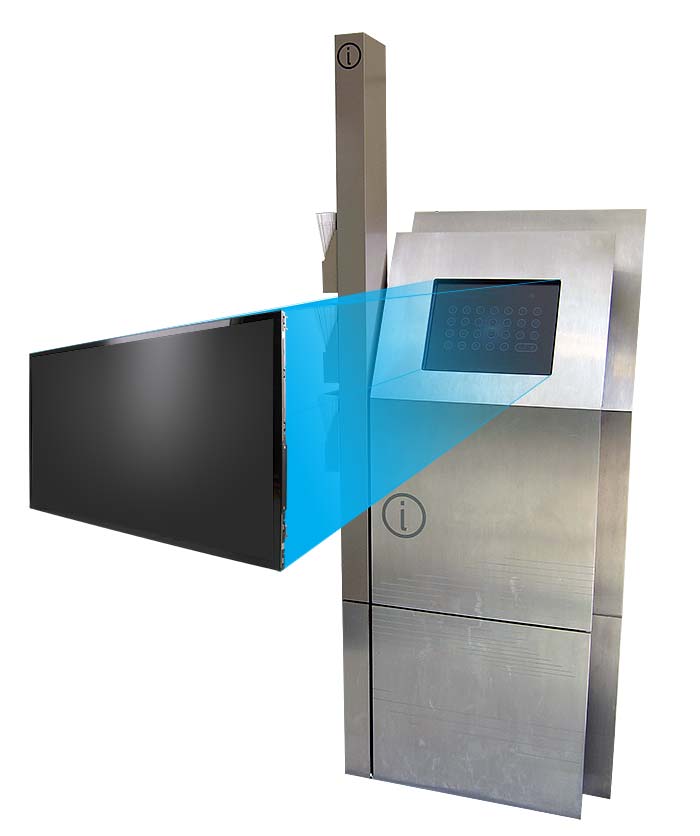

  • Easy installation for In-Wall & Kiosk Applications
  • 2GB DDR3L RAM and 32GB eMMC Onboard
  • 10/100 Ethernet (PXE Boot)
  • Touch board interface (Power/ Brightness/ Volume/ LED)
  • 16Bit programmable GPIO
  • Wi-Fi (802.11b/g/n) & Bluetooth 4.0
  • 12V-24V DC Input
  • RS232(TX/RX) or RS485
  • Supported OS: MS Windows, Android, Linux
OFT Optimized for Tablet Computing

Slim and Touch Interface

Intel Atom quad-core processor onboard. Optimized for tablet computing. High performance with cost effective solution. Plug-in and play. Slim and fanless operation design.

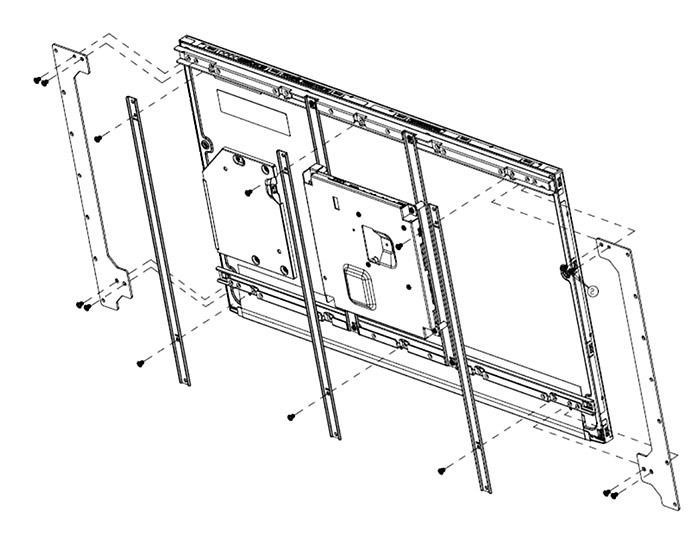

Easy Mounting with Kits

Mounting brackets are optional items. These mounting brackets speed up wall mount or kiosk enclosure integration in just a few steps.

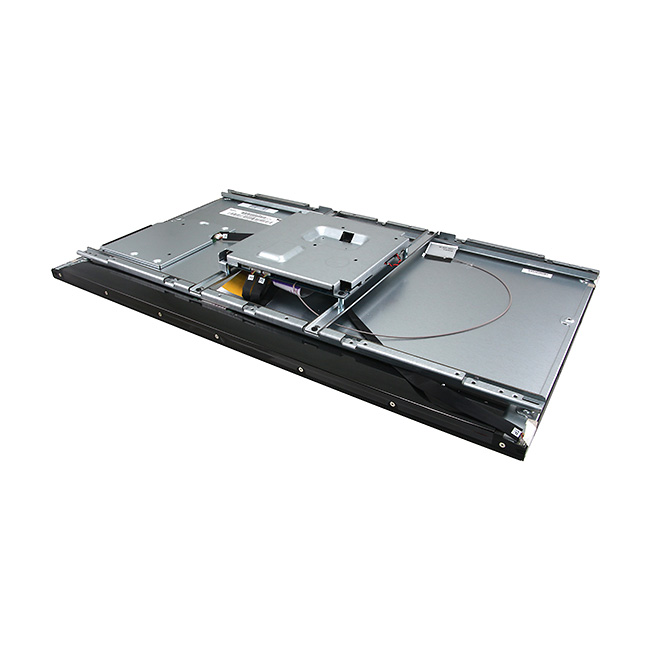

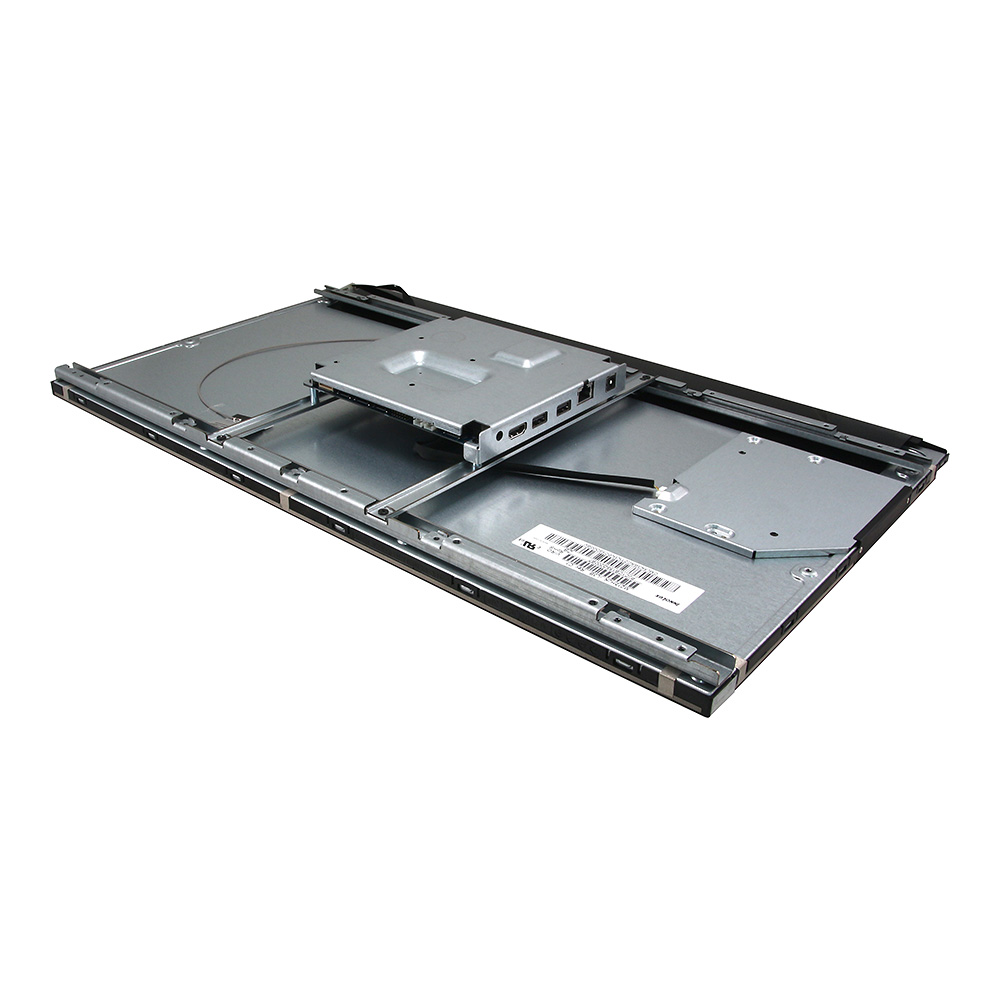

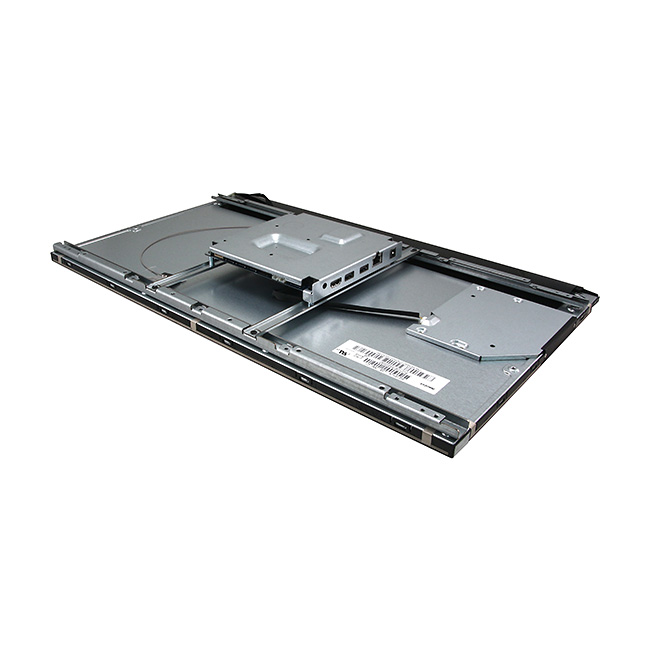

OFT Front and Back View

Faster Time-to-Market Integration

A faster Time-to-Market solution for almost all types of applications that requires touch screen, CPU, memory, storage, Wi-Fi and Bluetooth in one unit.

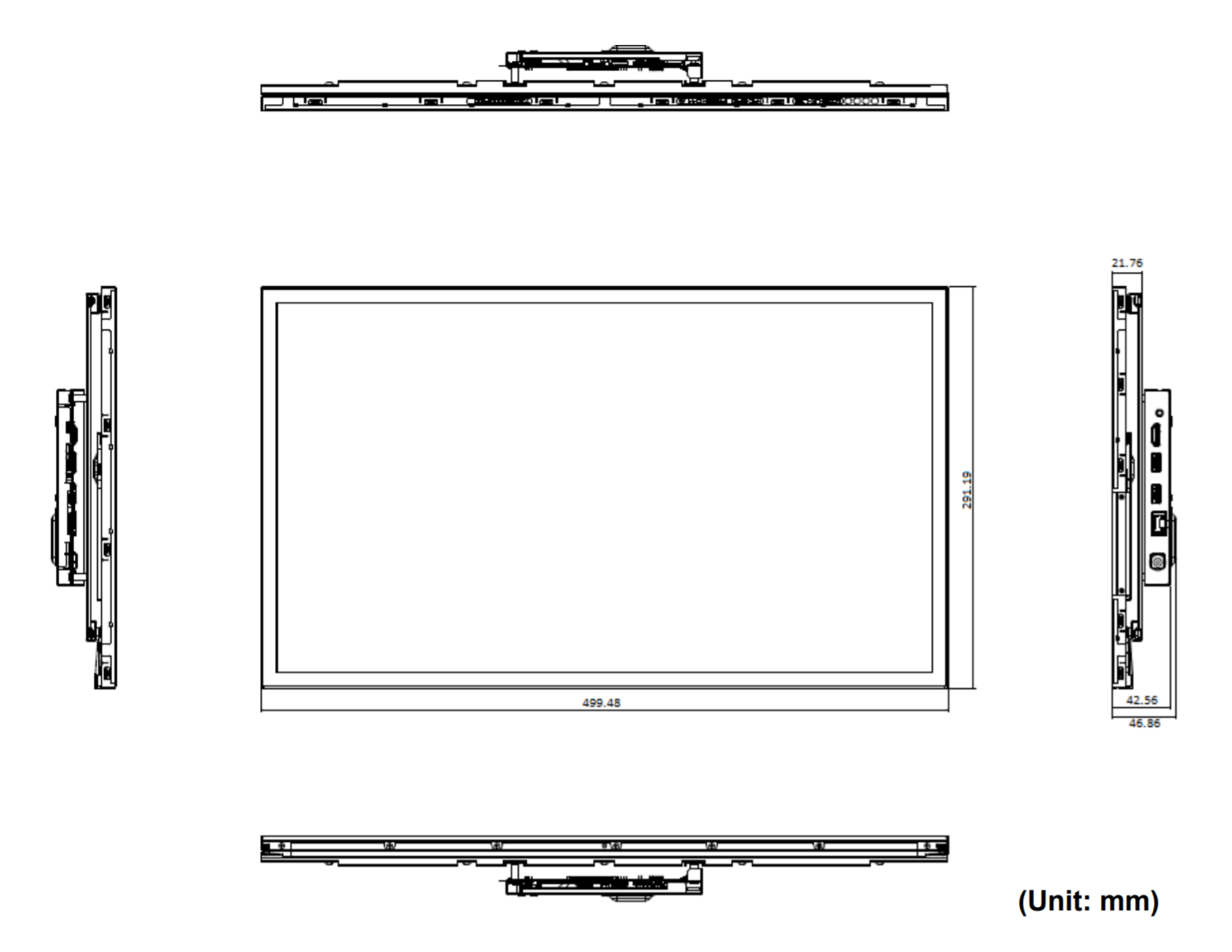

OFT-21W01 System Dimensions

OFT-07W01 System Dimensions
System
CPU Intel® Atom™ Processor Z3735F 1.33GHz Quad Core Processor onboard
System Chipset SoC
System Memory 2GB DDR3L RAM
Storage 32GB eMMC Onboard
Wi-Fi Wi-Fi (802.11b/g/n) & Bluetooth 4.0
Multiple Display Windows/ Linux support extended mode
Android support clone mode only
OS Support Windows 10(32 bit)
Android 4.4(64 bit)
Android 5.1(64 bit)
Ubuntu 16.04(64 bit)
Panel Display
LCD Size 21.5"
Display Type LCD
Resolution 1920 x 1080
Luminance 250cd/m²
View Angle(H+-/V+-) 178°/178°
Touch Type PCAP
External I/O
Audio 1 x Head phone jack
LAN 1 x 10/100 Ethernet
Display Interface 1 x HDMI
USB 2 x USB 2.0
1 x micro-USB Client (Android only)
Power Input 1 x DC Jack
SD 1 x Micro SD slot
Internal I/O
GPIO 1 x 16 bit GPIO interface
USB 1 x USB interface
eDP/LVDS 1 x eDP & Dual channel 24bit LVDS
1 x backlight control & power
Audio 2 x speaker interface (1.2W stereo)
1 x A-MIC interface
Touch 1 x Touch Button connector
I2C 1 x I2C interface(optional)
DC 1 x input 4-pin header
COM (Serial) 1 x RS232(TX/RX) or RS485
Mechanical and Environment
Power Requirement 12 to 24V DC Input
Power Type DC Jack, DC input 4pin header
Operating Temp 0°C ~ 40°C
Storage Temp -20°C ~ 60°C
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Mounting Mounting Bracket Kits
Certification Information CE, FCC Class A
Product Dimension 19.67” x 11.47” x 1.85” (500 x 292 x 47 mm)
Product Weight 3.6 kg/ 7.94 lbs
Packaging Dimension 23.3” x 17.8” x 5.3” (593 x 452 x 135mm)
Packaging Weight 9.95 lbs

* All product specifications and product images are subject to change without notice. Last update: 2020/1/9

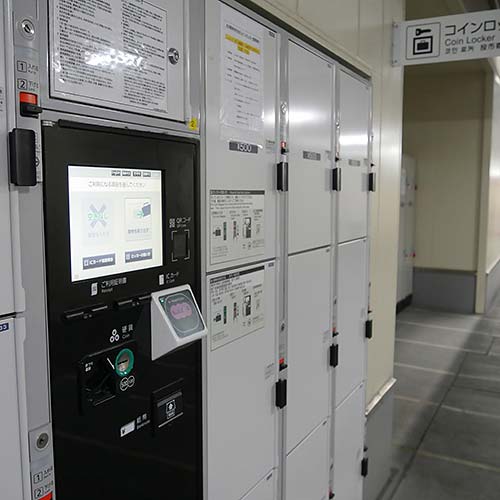

OFT for Industrial Control Interface

Open Frame Tablets for Industrial Control Interface

The OFT-21W01 21 inch open frame tablet is a quick time-to-market solution for industrial control applications that requires larger touch screen with high quality display, quad core processor performance, thin and fanless operation, and easy mounting integration.

15 inch OFT for Fitness Equipment

21" OFT for Fitness Equipment

The next generation fitness equipment provides users the smarter and more modern and high-tech fitness experience. OFT-15W01 and OFT-21W01 are ideal solutions for these types of applications due to its all-in-one fanless and easy mounting integration features. Contact our sales team for more information.

Document
OFT Series Brochure
Quick Reference Guide
Date Description Download
08/10/2021 End of life (EOL) notification for BCM OFT Series (generation 1) and replacement options.
Model Name Description
OFT-21W01 21 inch Intel Atom Z3735F Open Frame Tablet. Power adapter and power cord are NOT included.
