Product End of Life (EOL) Notification

THIS PRODUCT IS ON THE PHASE-OUT LIST. BCM is accepting last time buy (LTB) orders through June 30, 2019. At BCM’s discretion, last time by orders may be scheduled to ship through December 31, 2019 with a non-cancellable and non-returnable (NCNR) PO. For a replacement product please consider our MX110H, MX110HD, MX170QD, RX110H, RX170Q, MX310H, MX370QD, RX370Q, BC370Q, ESM-KBLH. For detail, please read Official Release.

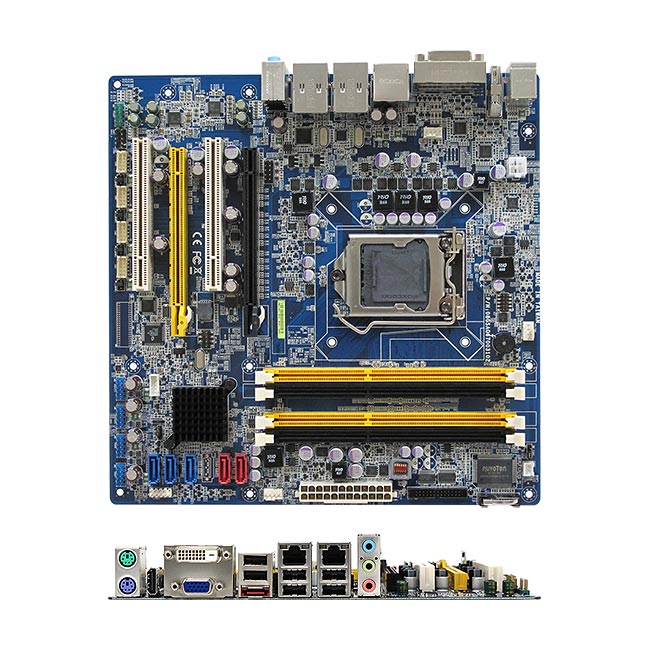

RX67Q Intel Q67 Micro ATX Motherboard

RX67Q

Intel Q67 Micro ATX uATX Motherboard

  • Socket H2 LGA 1155 supports 2nd generation Intel® Core™ i7/i5/i3 processors with integrated graphics
  • Intel® Q67 Chipset PCH platform
  • Supports up to 32 GB dual channel 1066/1333 MHz DDR3 system memory
  • Dual display: DVI-D, VGA, HDMI connectors
  • Optional 18/24-bit Dual Channel LVDS (see RX67QV)
  • 1 x PCIe x16, 1 x PCIe x4, 2 x PCI slots
  • 3 x SATA II, 2 x SATA III (6.0 Gb/s)
  • LPT
  • eSATA
  • Intel® Active Management Technology 7.0
  • TPM 1.2

The RX67Q uATX motherboard adopts the Intel® Q67 desktop platform supporting the 2nd generation Intel® Core™ i7/i5/i3 processors. This powerful combination provides efficient performance and is able to handle high-definition content or multi-tasking applications on multiple displays.  The onboard video output can support two independent displays from the combinations of DVI, VGA and HDMI.  Additional PCIe x16 graphic cards provides additional four video outputs.  The RX67Q's built-in multi-monitor functions can be enabled through the BIOS setting; therefore, the board is able to support a total of six independent displays.

The earlier generations of Intel® computing platform can use either the onboard graphics or the add-on graphics at one time. Choosing to use the add-on graphic cards will make the onboard graphics disabled automatically. The multi-monitor feature was developed starting from the Intel® Q6/Q5 series motherboards, which will give great benefits for digital signage, medical imaging, gaming, and video surveillance applications.

System
CPU Socket H2 LGA 1155 supports 2nd/3rd generation 32nm/22nm Intel® Core™ i7, Core™ i5, Core™ i3 processors (Ivy Bridge / Sandy Bridge processor) up to 95W
System Chipset Intel® Q67 Chipset
System Memory Four 240-pin DIMM slots support up to 32 GB dual channel 1066/1333 MHz DDR3 SDRAM memory modules
Audio Realtek ALC892 HD Audio Codec
Ethernet LAN1: Intel® 82579LM PHY Gigabit Ethernet Controller
LAN2: Intel® 82574L PCIe Gigabit Ethernet Controller
BIOS AMI 32 Mb SPI BIOS
I/O Chip Nuvoton® NCT6776F
Expansion 1 x PCI Express x16 Slot
1 x PCI Express x4 (x16 Physical Slot)
2 x PCI Slots
Watchdog Timer Reset: 1 sec. ~ 255min. and 1sec. or 1min./step
H/W Status Monitor Monitoring System Temperature, Voltage, with Auto Throttling Control
TPM Supported by Infineon SLB9635TT 1.2
Display
Graphics Engine Intel® Integrated Graphics
Display Interfaces HDMI, DVI-D, VGA connectors
Display Capability Supports multi-monitors
External I/O
KB/MS 1 PS/2 Keyboard, 1 PS/2 Mouse
Audio Line-in, Line-out, Mic-in, Front Audio Header
USB 6 x USB and 1 x eSATA
LAN 2 x RJ45
VGA 1 x DB-15
DVI 1 x DVI-D
HDMI 1 x HDMI
Internal I/O
USB 4 x USB 2.0 (8 Ports)
COM (Serial Port) 4 x RS-232 with voltage selectioin
SATA 3 x SATA II (3.0 Gb/s) and 2 x SATA III (6 Gb/s) (Red header)
MIO 1 x 8-bit GPIO, 1 x LPT, 1 x Front Audio, 1 x Amplifier Header, 1 x SPDIF Header, 1 x Front Panel Header, 1 x 4-pin CPU Fan Header, 2 x 4-Pin-Chassis Fan Header, 2 x LAN Status LED Headers
Mechanical and Environment
Power Type 1 x Std. 24 pin ATX Connector, 1 x 4 pin ATX 12 Connector
Operating Temperature 0 ～ 60°C （32 ～ 140°F）
Storage Temperature -20 ～ 80°C （-4 ～ 176°F）
Operating Humidity 5 ～ 90％ Relative Humidity, Non-condensing
Storage Humidity 0 ～ 90％ Relative Humidity, Non-condensing
Form Factor Micro ATX (uATX)
Dimensions (L) x (W) 9.6" (L) x 9.6" (W)
Weight 1.45 lbs

* All product specifications and product images are subject to change without notice. Last update: 10/04/2013

BCM RX67Q Industrial Micro ATX Motherboard is Certified Compatible with Systium® Model 52603-00R MotherBoard Ready Platform

BCM RX67Q Industrial Micro ATX Motherboard is Certified Compatible with Systium® Model 52603-00R MotherBoard Ready Platform

BCM Advanced Research (BCM), a leading design manufacturer of industrial motherboards and systems, announced that its RX67Q industrial motherboard has been certified by Systium® as compatible with its Model 526 chassis providing a solid building-block foundation for OEMs and system integrators looking to shave development costs and time-to-market with the newest generation Intel® Core™ i7/i5/i3 technology.

BCM’s RX67Q uATX motherboard supports 2nd generation Intel® Core™ i7/i5/i3 processors and DDR3 dual channel system memory delivering powerful system and graphic performance. The board also provides rich expansion slots and I/O interfaces including two PCI, one PCIe x16 and one PCI x4, DVI-D, HDMI, VGA, two SATAIII (6.0 G/bs), three SATAII (3.0 G/bs), fourteen USB ports, four COM ports, dual Gigabit Ethernet ports and one eSATA connector. The RX67Q features Multi-Monitor support allowing the system to run onboard graphics plus additional graphics card devices simultaneously for up to six independent displays.

BCM RX67Q Industrial mATX motherboard now supports the Multi-Monitors feature running six independent displays simultaneously using its onboard graphics and a PCIe graphics card

BCM RX67Q Industrial mATX motherboard now supports the Multi-Monitors feature running six independent displays simultaneously using its onboard graphics and a PCIe graphics card

Irvine, California, September 28, 2011 – BCM Advanced Research, an Associate member of the Intel® Embedded Alliance and a leading industrial motherboards & systems supplier, introduced the multi-monitor feature provided by our RX67Q industrial Micro ATX motherboard. The board is able to run six independent displays simultaneously while running the onboard graphics and a PCIe graphics card.

The RX67Q mATX motherboard adopts the Intel® Q67 desktop platform supporting the 2nd generation Intel® Core™ i7/i5/i3 processors. This powerful combination provides efficient performance and is able to handle high-definition content or multi-tasking applications on multiple displays. The onboard video output can support two independent displays from the combinations of DVI, VGA and HDMI. Additional PCIe x16 graphic cards provides additional four video outputs. The RX67Q's built-in multi-monitor functions can be enabled through the BIOS setting; therefore, the board is able to support a total of six independent displays....

BCM targets August to begin shipping production units of the RX67Q mATX motherboard featuring Intel Q67 Chipset and 2nd Generation Core family processors designed for Performance Driven Embedded Computing Systems

BCM targets August to begin shipping production units of the RX67Q mATX motherboard featuring Intel Q67 Chipset and 2nd Generation Core family processors designed for Performance Driven Embedded Computing Systems

Irvine, California, July 26, 2011 – BCM Advanced Research, an Associate member of the Intel® Embedded Alliance and a leading industrial motherboards & systems supplier, today announced it expects to make available production units of its RX67Q industrial Micro ATX motherboard by the end of August 2011. The RX67Q is designed for mainstream performance driven systems such as gaming, medical imaging or diagnostics, interactive Kiosks, high end digital signage, and complex surveillance applications. BCM expects allocation for the RX67Q to be tight initially but will free up by late September or early October as backorders are fulfilled and distributors begin to sock up.

Two-Chip Platform Supports 2nd Generation 32nm Intel® Core™ i7/i5/i3 Processors The RX67Q is designed based on Intel’s two-chip platform – the Sandy Bridge. Its newest socket LGA1155 provides scalable performance by supporting the latest 2nd generation 32nm technology Intel® Core™ i7/i7 vPro/i5/i5 vPro/i3 processors with integrated graphics engine. When paired with the Intel® Q67 chipset, this desktop industrial motherboard delivers advanced data security features as well as the latest in remote manageability. ....

Document
Datasheet
Manual
Quick Installation Guide (Quick Start Guide)
BIOS Version Revision Note Download
V1.12 BIOS Update for Meltdown and Spectra Issue. For P/N: 71315
V1.07 BIOS for RX67Q Part Number 71315-C ONLY
Driver Description
Pre-install Install this first if OS is WinXP & SP2 or earlier
Chipset Intel(R) Chipset Device Software
Video Intel Graphics Driver - Win XP 32-bit
  Intel Graphics Driver - Win XP 64-bit
Audio Realtek HD Audio Driver
Ethernet Intel(R) Network Connections Software - Win 7 32-bit
  Intel(R) Network Connections Software - Win 7 64-bit
  Intel(R) Network Connections Software - Win XP 32-bit
  Intel(R) Network Connections Software - Win XP 64-bit
  Linux Base Driver for Intel Network Connection
Others Infineon TPM Professional Package
  Intel Rapid Storage Technology (RAID)Software
Date Description Download
09/18/2018 End of Life notification for multiple BCM products based on the Intel® product families formerly referenced as Sandy Bridge and Ivy Bridge. In the EOL document you will find important information regarding the BCM model names to be discontinued as well as key last time order dates and last time delivery dates.

EOL Product List: MX67QMD, MX67QMD-LC, BI255-67QMD, MX61H, BOX-MX61H series, BC206C, BC67Q, RX61H, RX67Q series, BC77Q, ESM-QM77 series and EMX-QM77. Multi_Product_EOL_Notification_Sandy_Bridge_Ivy Bridge_091818.pdf
08/28/2018 PCN for including a warning insert into each carton in order to comply with California Proposition 65 regulations.
04/24/2018 BIOS change notification addressing the Meltdown and Spectre security issue previous communicated by BCM in a product security bulletin sent out in January of this year  http://www.bcmcom.com/download/PCN/BCM_Product_Security_Bulletin_Meltdown-Spectre_011818.pdf

Please contact your BCM representative with any questions pertaining to this PCN.
04/16/2014 PCN for the RX67Q uATX motherboard to address a location issue.
05/30/2013 BIOS PCN for the RX67Q micro ATX motherboard. This is a minor cosmetic change fixing a typo in the BIOS boot-up display message.
03/06/2013 Product Change Notice (PCN) pertaining the BCM BC67Q industrial ATX motherboard.  This change will be implemented in all BC67Q standard products late Q2 or early Q3 2013.   This notice reflects a major BIOS change adding BIOS support for the new Intel 3rd generation iCore processors (Ivy Bridge) in addition to the 2nd generation iCore processors (Sandy Bridge).  This change provides  significant advantages for our customers as it adds support for a full generation of CPUs not available when the BC67Q was released.  A few of those advantages are:
  • The performance advantage 3rd generation iCore Ivy Bridge processors have over 2nd  iCore Sandy Bridge processors
  • Greater flexibility and efficiency having two generations of processors to choose from and further extending the “sweet spot” lifecycle of the RX67Q
  • Gen 3 PCIe support
  • Utilizing the Ivy Bridge graphics performance because the graphics engine is integrated into the Ivy Bridge CPU
  • Utilizing the Ivy Bridge memory performance because the memory controller is integrated into the Ivy Bridge CPU
02/25/2013 Product Change Notice (PCN) pertaining the BCM RX67Q industrial micro-ATX motherboard.  This change will be implemented in all RX67Q standard products late Q2 or early Q3 2013.   This notice reflects a major BIOS change adding BIOS support for the new Intel 3rd generation iCore processors (Ivy Bridge) in addition to the 2nd generation iCore processors (Sandy Bridge).  This change provides  significant advantages for our customers as it adds support for a full generation of CPUs not available when the RX67Q was released.  A few of those advantages are:
  • The performance advantage 3rd generation iCore Ivy Bridge processors have over 2nd  iCore Sandy Bridge processors
  • Greater flexibility and efficiency having two generations of processors to choose from and further extending the “sweet spot” lifecycle of the RX67Q
  • Gen 3 PCIe support
  • Utilizing the Ivy Bridge graphics performance because the graphics engine is integrated into the Ivy Bridge CPU
  • Utilizing the Ivy Bridge memory performance because the memory controller is integrated into the Ivy Bridge CPU
Model Name Description
RX67Q Intel Q67 Micro ATX Motherboard
Accessories Included 1 x Dual COM Port Cable, 2 x SATA Cables, 1 x I/O Shield, 1 x Driver CD (Manual/Drivers), 1 x User’s Quick Start Card
182000000044    2.00mm pitch 11.8” length Parallel cable w/ full height bracket
183000000006    2.00mm pitch 12” length Serial cable
182437200040    2.54mm pitch 14” length Dual port USB cable w/ full height bracket
