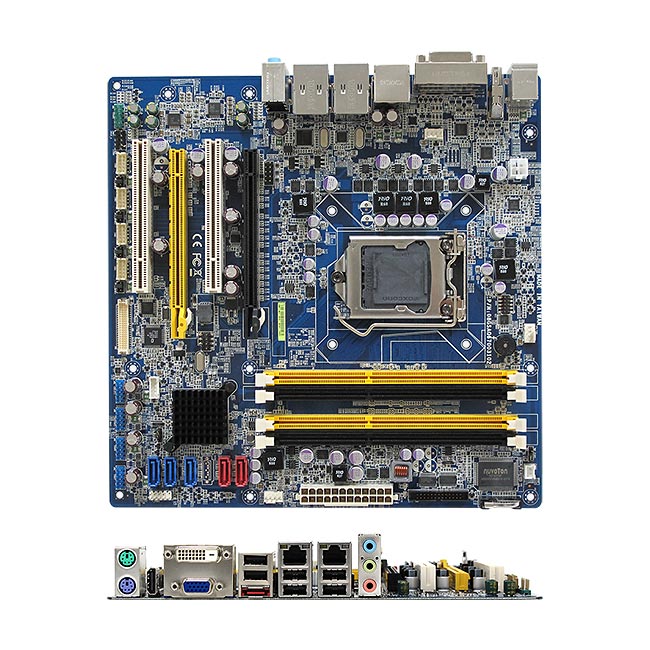

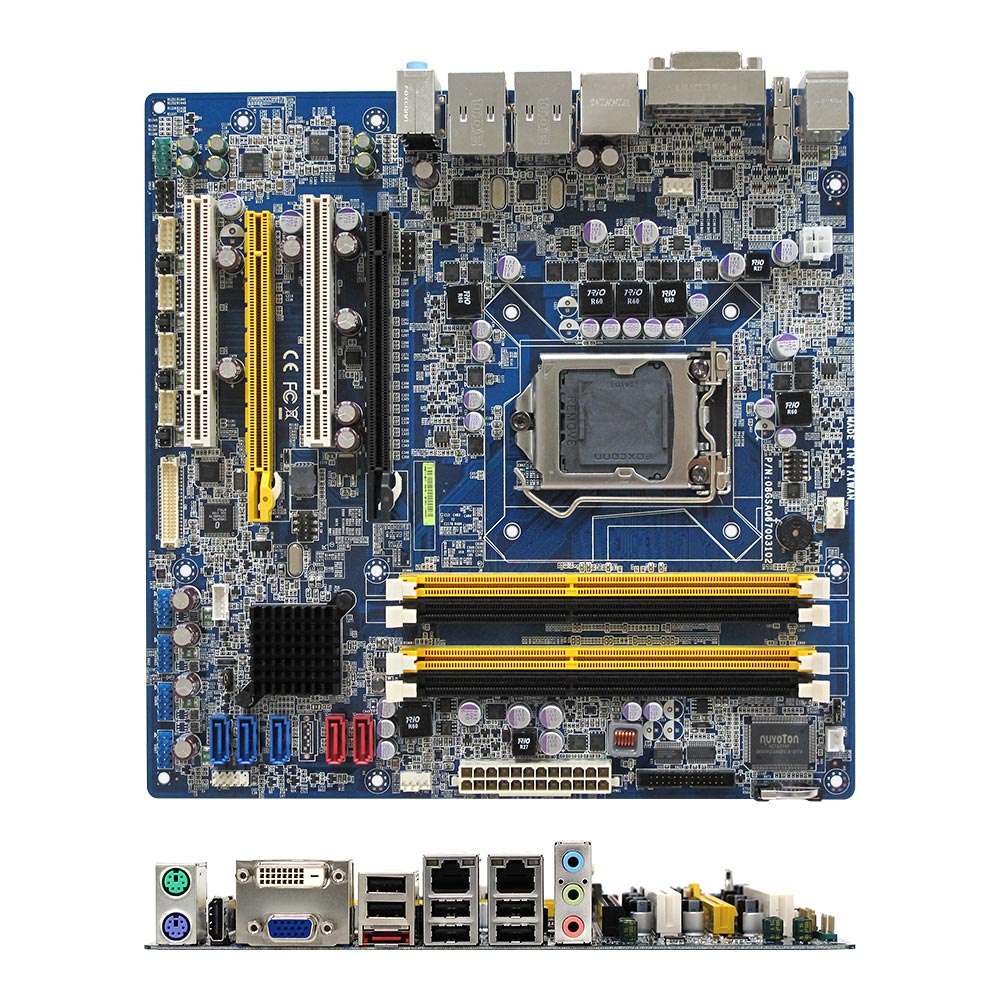

RX67QV Intel Q67 Micro ATX Motherboard with LVDS connector onboard

RX67QV

Intel Q67 Micro ATX uATX Motherboard with LVDS Onboard

  • Socket H2 LGA1155 supports the 22nm/32nm Intel® Core™ i7/i5/i3 processors with integrated graphics
  • Intel® Q67 Chipset PCH platform
  • Supports up to 32 GB 1066/1333 MHz DDR3 system memory
  • Dual display: DVI-D, VGA, HDMI, 18/24-bit LVDS
  • LVDS Connector Onboard
  • 1 x PCIe x16, 1 x PCIe x4, 2 x PCI slots
  • 2 x SATA III (6.0 Gb/s)
  • 3 x SATA II (3.0 Gb/s)
  • 1 x eSATA
  • LPT Onboard
  • 14 x USB
  • 4 x COM
  • Intel® Active Management Technology 7.0
  • TPM 1.2

Providing an onboard LVDS connector on a desktop motherboard has many advantages for OEMs. It provides the performance and price advantage of a desktop system over more costly mobile technology platforms that typically provide LVDS connectivity. This is ideal for Kiosk, ATM, Gaming, or POS applications where connecting to flexible open frame LVDS display may have unique advantages. Also, OEMs that previously used ADD2 cards in a desktop PCIex16 slot to provide an internal LVDS connection can no longer do so as that feature is no longer supported on the new Intel® Q67/Q57 desktop chipsets supporting the Intel® Core™ i7/i5/i3 processors. High-end medical imaging devices, x-ray or ultrasound machines, manufacturing equipment, or customer facing display machines with an operator often require a small display console for the operator, a small touch-screen for the machine inputs, or small machine status display, where having an onboard LVDS connection on the motherboard to drive that small display is an ideal solution.

System
CPU Socket H2 LGA 1155 supports 22nm/32nm Intel® Core™ i7, Core™ i5, Core™ i3 processors
System Chipset Intel® Q67 Chipset
System Memory Four 240-pin DIMM slots support up to 32 GB dual channel 1066/1333 MHz DDR3 SDRAM memory modules
Audio Realtek ALC892 HD Audio Codec
Ethernet LAN1: Intel® 82579LM PHY Gigabit Ethernet Controller
LAN2: Intel® 82574L PCIe Gigabit Ethernet Controller
BIOS AMI 32 Mb SPI BIOS
I/O Chip Nuvoton® NCT6776F
Expansion 1 x PCI Express x16 Slot
1 x PCI Express x4 (x16 Physical Slot)
2 x PCI Slots
Watchdog Timer Reset: 1 sec. ~ 255min. and 1sec. or 1min./step
H/W Status Monitor Monitoring System Temperature, Voltage, with Auto Throttling Control
TPM supported by Infineon SLB9635TT 1.2
Display
Graphics Engine Intel® Integrated Graphics
Display Interfaces HDMI, DVI-D, VGA and LVDS
Display Capability Supports multi-monitors
External I/O
KB/MS 1 PS/2 Keyboard, 1 PS/2 Mouse
Audio Line-in, Line-out, Mic-in, Front Audio Header
USB 6 x USB and 1 x eSATA
LAN 2 x RJ45
VGA 1 x DB-15
DVI 1 x DVI-D
HDMI 1 x HDMI
Internal I/O
LVDS 1 x LVDS
USB 4 x USB 2.0 (8 Ports)
COM (Serial Port) 4 x RS-232
SATA 3 x SATA II (3.0 Gb/s) and 2 x SATA III (6.0 Gb/s) (Red header)
MIO 1 x 8-bit GPIO, 1 x LPT, 1 x Front Audio, 1 x Amplifier Header, 1 x SPDIF Header, 1 x Front Panel Header, 1 x 4-pin CPU Fan Header, 2 x 4-Pin-Chassis Fan Header, 2 x LAN Status LED Headers
Mechanical and Environment
Power Type ATX
Operating Temperature 0 ～ 60°C （32 ～ 140°F）
Storage Temperature -20 ～ 80°C （-4 ～ 176°F）
Operating Humidity 5 ～ 90％ Relative Humidity, Non-condensing
Storage Humidity 0 ～ 90％ Relative Humidity, Non-condensing
Form Factor Micro ATX (uATX)
Dimensions (L) x (W) 9.6" (L) x 9.6" (W)
Weight 1.45 lbs

* All product specifications and product images are subject to change without notice. Last update: 10/04/2013

BCM announces its RX67Q-LVDS, a Desktop Intel® Sandy Bridge Micro ATX motherboard with onboard 18/24-bit LVDS

BCM announces its RX67Q-LVDS, a Desktop Intel® Sandy Bridge Micro ATX motherboard with onboard 18/24-bit LVDS

Providing an onboard LVDS connector on a desktop motherboard has many advantages for OEMs. It provides the performance and price advantage of a desktop system over more costly mobile technology platforms that typically provide LVDS connectivity. This is ideal for Kiosk, ATM, Gaming, or POS applications where connecting to flexible open frame LVDS display may have unique advantages. Also, OEMs that previously used ADD2 cards in a desktop PCIex16 slot to provide an internal LVDS connection can no longer do so as that feature is no longer supported on the new Intel® Q67/Q57 desktop chipsets supporting the Intel® Core™ i7/i5/i3 processors. High-end medical imaging devices, x-ray or ultrasound machines, manufacturing equipment, or customer facing display machines with an operator often require a small display console for the operator, a small touch-screen for the machine inputs, or small machine status display, where having an onboard LVDS connection on the motherboard to drive that small display is an ideal solution....

BCM Advanced Research Announces industrial motherboard platforms based on the new Intel® Q67 chipset and Intel® QM67 Express chipset

BCM Advanced Research Announces industrial motherboard platforms based on the new Intel® Q67 chipset and Intel® QM67 Express chipset

Irvine, California, January 5, 2011 – BCM Advanced Research, an Intel® Embedded Alliance Associate member and a leading supplier of industrial motherboards and systems, is pleased to announced the launch of three industrial motherboards based on the Intel® Q67 chipset and Intel® QM67 Express chipset and the recently announced 2nd generation Intel® Core™ processor family.

The MX67QM and MX67QMD Mini ITX small form factor industrial motherboards are designed with the Intel® QM67 Express Chipset. These two platforms support 2nd generation Intel® Core™ i7 and Core™ i5 processors and are ideal for many embedded market segments. The main difference between these two small form factor industrial motherboards is the operating power. The MX67QM uses ATX power and the MX67QMD uses wide range DC power input ranging from 12-24V....

Document
Datasheet
Manual
Quick Installation Guide (Quick Start Guide)
Driver Description
Pre-install Install this first if OS is WinXP & SP2 or earlier
Chipset Intel(R) Chipset Device Software
Video Intel(R) Graphics Drivers
Audio Realtek HD Audio Driver
Ethernet Intel(R) Network Connections Software
Others The file contains the following:
a. Intel Active Management Technology (Intel AMT) Driver
b. TPM Driver
Date Description Download
09/18/2018 End of Life notification for multiple BCM products based on the Intel® product families formerly referenced as Sandy Bridge and Ivy Bridge. In the EOL document you will find important information regarding the BCM model names to be discontinued as well as key last time order dates and last time delivery dates.

EOL Product List: MX67QMD, MX67QMD-LC, BI255-67QMD, MX61H, BOX-MX61H series, BC206C, BC67Q, RX61H, RX67Q series, BC77Q, ESM-QM77 series and EMX-QM77. http://www.bcmcom.com/download/EOL/Multi_Product_EOL_Notification_Sandy_Bridge_Ivy Bridge_091818.pdf
04/16/2014 PCN for the RX67Q uATX motherboard to address a location issue.
05/30/2013 BIOS PCN for the RX67Q micro ATX motherboard. This is a minor cosmetic change fixing a typo in the BIOS boot-up display message.
03/06/2013 Product Change Notice (PCN) pertaining the BCM BC67Q industrial ATX motherboard.  This change will be implemented in all BC67Q standard products late Q2 or early Q3 2013.   This notice reflects a major BIOS change adding BIOS support for the new Intel 3rd generation iCore processors (Ivy Bridge) in addition to the 2nd generation iCore processors (Sandy Bridge).  This change provides  significant advantages for our customers as it adds support for a full generation of CPUs not available when the BC67Q was released.  A few of those advantages are:
  • The performance advantage 3rd generation iCore Ivy Bridge processors have over 2nd  iCore Sandy Bridge processors
  • Greater flexibility and efficiency having two generations of processors to choose from and further extending the “sweet spot” lifecycle of the RX67Q
  • Gen 3 PCIe support
  • Utilizing the Ivy Bridge graphics performance because the graphics engine is integrated into the Ivy Bridge CPU
  • Utilizing the Ivy Bridge memory performance because the memory controller is integrated into the Ivy Bridge CPU
Model Name Description
RX67QV Intel Q67 Micro ATX Motherboard w/ LVDS connector onboard
Accessories Included 2 x SATA Cables, 1 x I/O Shield, 1 x Driver CD (Manual/Drivers), 1 x User’s Quick Start Card
