Product End of Life (EOL) Notification

THIS PRODUCT IS ON THE PHASE-OUT LIST. BCM is accepting last time buy (LTB) orders through June 30, 2019. At BCM’s discretion, last time by orders may be scheduled to ship through December 31, 2019 with a non-cancellable and non-returnable (NCNR) PO. For a replacement product please consider our MX110H, MX110HD, MX170QD, RX110H, RX170Q, MX310H, MX370QD, RX370Q, BC370Q, ESM-KBLH. For detail, please read Official Release.

MX61H Intel H61 mini-ITX Motherboard supports Intel Core desktop processors Ivy Bridge and Sandy Bridge Processors

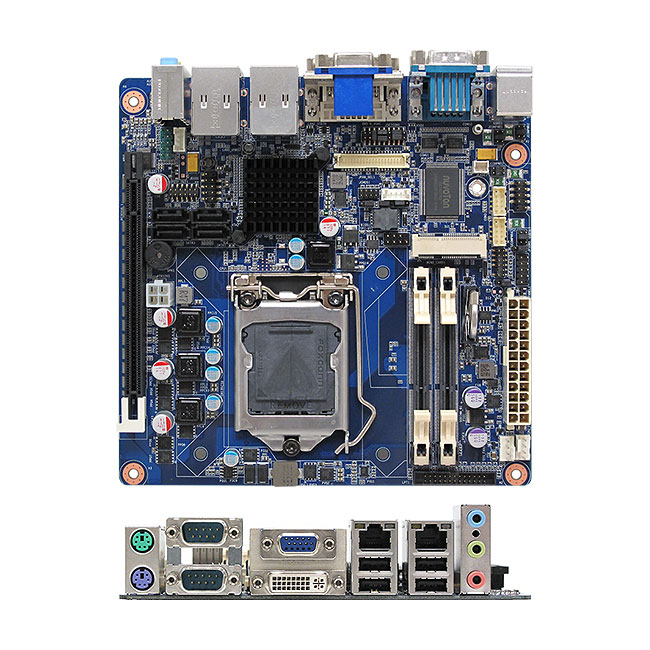

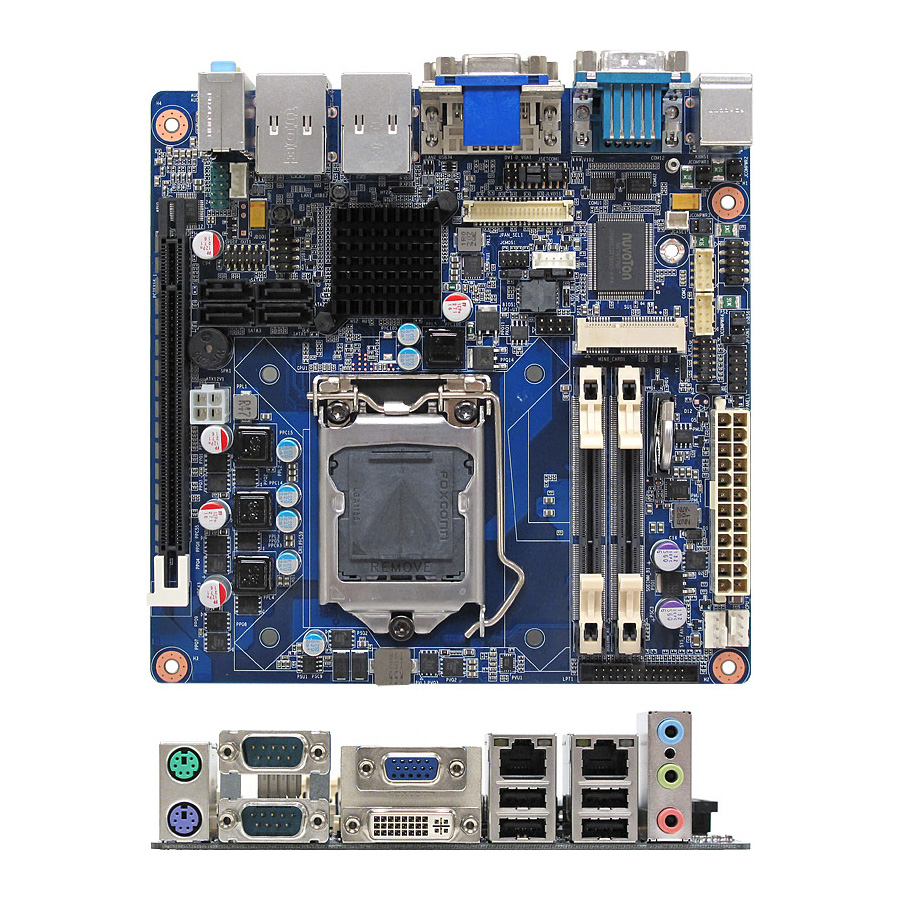

MX61H

Intel H61 mini-ITX Motherboard supports Intel Core Desktop Processors

  • Socket H2 LGA1155 supports 22nm/32nm Intel® Desktop Core™ i7/i5/i3 and Celeron® Processors
  • Intel® H61 PCH
  • Supports up to 16GB dual channel DDR3 SODIMM system memory
  • DVI, VGA
  • 18/24-bit LVDS
  • 4 x SATA II
  • 8 x USB
  • 4 x COM
  • 1 x 8-bit GPIO
  • 1 x LPT port onboard
  • 1 x PCIe x16
  • 1 x Mini PCIe

BCM launched two new Value-Line products offering significant savings based on the Intel® H61 Express Chipset in mini-itx and uATX form factors - MX61H and RX61H respectively. Both boards support Intel® Sandy Bridge (2nd generation) and Ivy Bridge (3rd generation) Core™ i7/i5/i3 desktop processors providing budget flexibility and performance scalability required by customers seeking to extend their industrial/embedded computing dollars in industries such as retail, self service kiosk, industrial automation, gaming, and digital signage.

System
CPU Socket H2 LGA1155 supports 22nm/32nm Intel® Desktop Core™ i7/i5/i3 and Celeron® Processors up to TDP 95W
System Chipset Intel® H61 PCH
System Memory Two SODIMM sockets support up to 16 GB dual channel 1066/1333 MHz DDR3 memory modules
Audio Realtek® ALC892 HD Audio
Ethernet LAN1: Realtek® RTL8111E Gigabit Ethernet Controller
LAN2: Realtek® RTL8111E  Gigabit Ethernet Controller
BIOS AMI® 32Mb SPI BIOS
I/O Chip Nuvoton NCT6776F
Expansion 1 x PCI Express x16
1 x Mini PCI Express
Watchdog Timer Reset: 1 sec. ~ 255min. and 1sec. or 1min./step
H/W Status Monitor Monitoring System Temperature, Voltage, with Auto Throttling Control
TPM TPM1.2 (Infineon® TPM chip 9635 TT 1.2 on board, optional)
Display
Graphics Engine Intel® HD Integrated Graphics
Display Memory DVMT Support up to 1.7GB Memory
Display Interfaces DVI-D, VGA, 18/24-bit Dual Channel LVDS
Display Capability Supports dual display
External I/O
KB/MS 1 PS/2 Keyboard, 1 PS/2 Mouse
Audio Line-in, Line-out, Mic-in, Front Audio Header
USB 4 x USB
COM (Serial Port) 1 x RS-232/422/485, 1 x RS-232
LAN 2 x RJ45
VGA 1 x DB-15
DVI 1 x DVI-D
Internal I/O
LVDS 1 x LVDS
USB 2 x USB Headers (4 USB Ports)
COM (Serial Port) 2 x RS-232 Headers
SATA 4 x SATA II
MIO 1 x 8-bit GPIO Header, 1 x 4-pin Fan Header, 1 x 4-pin Chassis Fan Header, 1 x Front Audio , 1 x Front Panel, 1 x Amplifier Header, 1 x LPT
Mechanical and Environment
Power Type 20+4 Pin ATX Standard
Operating Temperature 0 ～ 60°C （32 ～ 140°F）
Storage Temperature -20 ～ 80°C （-4 ～ 176°F）
Operating Humidity 5 ～ 90％ Relative Humidity, Non-condensing
Storage Humidity 0 ～ 90％ Relative Humidity, Non-condensing
Form Factor Mini ITX
Dimensions (L) x (W) 6.7” (L) x 6.7” (W)
Weight 0.88 lbs

* All product specifications and product images are subject to change without notice. Last update: 2/21/2014

BCM Advanced Research announces two new embedded Value-Line products supporting 2nd (Sandy Bridge) and 3rd (Ivy Bridge) generation Intel® Core™ i7/i5/i3 desktop processors

Irvine, California, July 26, 2012 - BCM has launched two new Value-Line products offering significant savings based on the Intel® H61 Express Chipset in mini-ITX and uATX form factors. Distributors and customers are urged to check their Q3 pricing guides to understand the full extent of the savings these Value-Line products offer.

The MX61H and RX61H support both the Intel® Sandy Bridge (2nd generation) and Ivy Bridge (3rd generation) Core™ i7/i5/i3 desktop processors providing budget flexibility and performance scalability required by customers seeking to extend their industrial/embedded computing dollars in industries such as retail, self service kiosk, industrial automation, gaming, and digital signage....

Document
Datasheet
Quick Installation Guide (Quick Start Guide)
Manual
BIOS Version Revision Note Download
V1.02 BIOS Update for Meltdown and Spectra Issue. For P/N: 71391
V1.00 MX61H (71391) BIOS V1.00
Driver Type Description
ReadMe.txt ReadMe file for installing drivers for the MX61H motherboard

Chipset Intel Chipset Software Installation Utility drivers
Video Intel(R) Graphics drivers
Audio Realtek HD Audio Driver
Ethernet Intel(R) Network Connections Software
Others Intel(R) Management Engine
  Microsoft .NET Framework 3.5
  Intel Turbo Boost Technology Monitor
Date Description Download
09/18/2018 End of Life notification for multiple BCM products based on the Intel® product families formerly referenced as Sandy Bridge and Ivy Bridge. In the EOL document you will find important information regarding the BCM model names to be discontinued as well as key last time order dates and last time delivery dates.

EOL Product List: MX67QMD, MX67QMD-LC, BI255-67QMD, MX61H, BOX-MX61H series, BC206C, BC67Q, RX61H, RX67Q series, BC77Q, ESM-QM77 series and EMX-QM77. Multi_Product_EOL_Notification_Sandy_Bridge_Ivy Bridge_091818.pdf
08/28/2018 PCN for including a warning insert into each carton in order to comply with California Proposition 65 regulations.
04/24/2018 BIOS change notification addressing the Meltdown and Spectre security issue previous communicated by BCM in a product security bulletin sent out in January of this year  http://www.bcmcom.com/download/PCN/BCM_Product_Security_Bulletin_Meltdown-Spectre_011818.pdf

Please contact your BCM representative with any questions pertaining to this PCN.
08/25/2016 In order to comply with the latest product labeling regulatory requirements for shipping products with a Lithium battery installed, please find the attached packaging change notice from BCM covering multiple products.  This label is required to make transporters aware that the contents they are transporting do contain Lithium batteries.  This notification may result in the transporter requesting additional data for goods that will require air transport.

For Products: MX67QMD, MX67QMD-LC, MX255D, MX87QD, MX280NI, MX81H, MX81H-VS, MX1900J, MX110H, MX67QM, MX67QM-QC, MX61H, RX77Q, RX61H-U, RX87Q, RX87Q-TK, RX170Q, RX110H, RX67QV, RX67QV-LC, RX67QS, RX67Q, BC67Q, BC77Q, BC77Q-P, BC87Q, QS3845E, Others
04/15/2014 PCN for the MX61H miniITX motherboard to increase compatibility with a broader range of 5V LVDS panels.
02/27/2014 PCN for the MX61H to adjust the brightness of the LAN indicator LED in the S5 power state.
Model Name Description
MX61H Intel H61 Mini ITX Motherboard
Accessories Included 1 x Dual COM Port Cable, 2 x SATA Data Cable with Latch, 1 x I/O Shield, 1 x Driver DVD, 1 x Quick Start Guide
182000000044 2.00mm pitch 11.8” length Parallel cable w/ full height bracket
183000000006    2.00mm pitch 12” length Serial cable
182437200040    2.54mm pitch 14” length Dual port USB cable w/ full height bracket
