ARM Motherboards (for OEM Only)

ARM motherboards, unlike the x86 platform with CISC architecture, utilize the RISC (Reduced Instruction Set Computing) architecture. RISC architecture brings several notable features, including ultra-low power consumption, high mobility, compact form factor design, and cost-effectiveness. It is important to note that low cost and low power do not equate to low performance, as ARM's RISC architecture delivers efficient and powerful performance in various applications.

Rockchip® ARM Motherboards

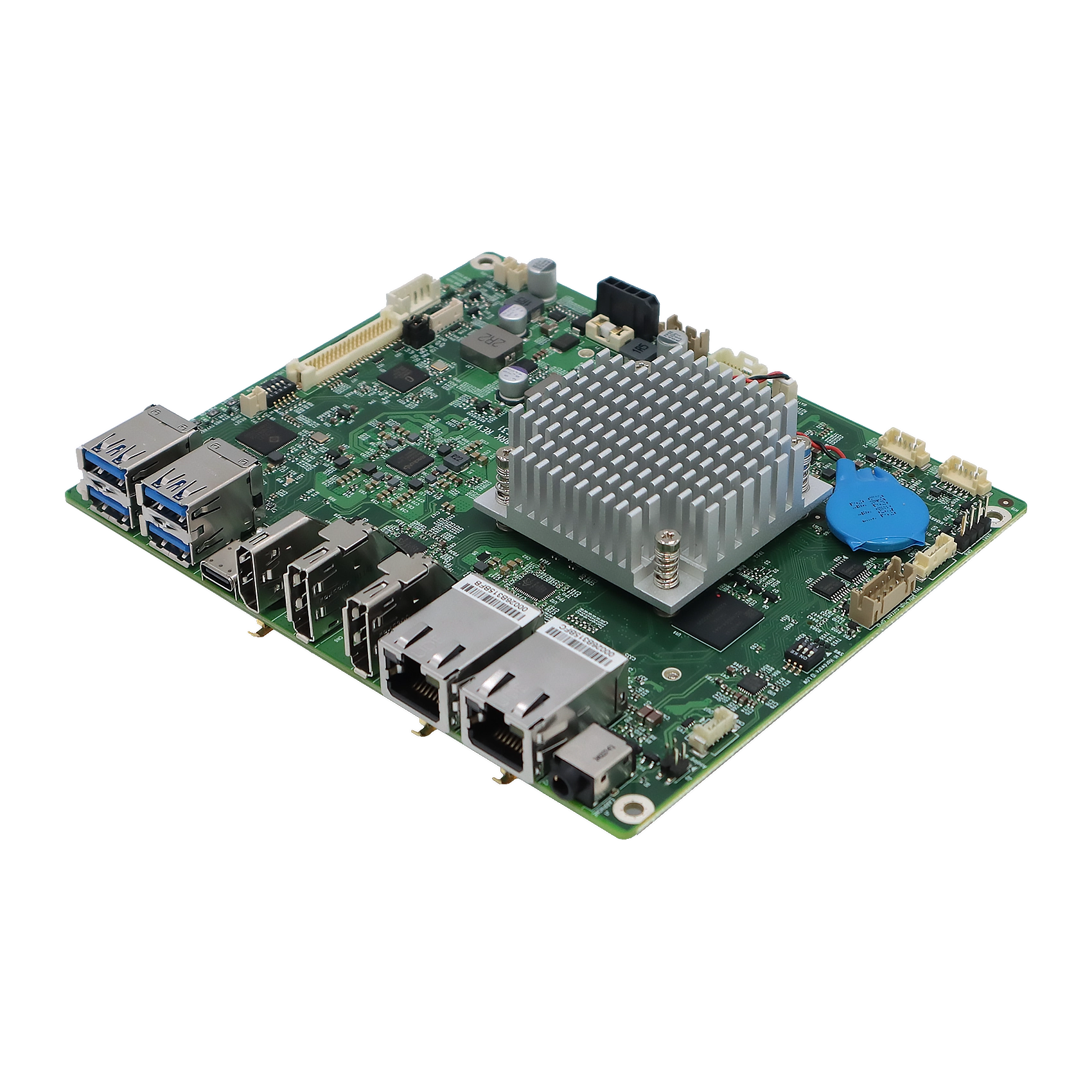

AR3588RK
AR3588RK

Rockchip® RK3588 SoC Cortex-A76 & Cortex-A55 Quad Core ARM SBC

HDMI Input, 2xDP, LVDS/eDP
4xUSB 3.1, 2xUSB 2.0, 1xUSB3 Type C, 2xLAN, 3xCOM
M.2 M-Key, E-Key, MicroSD Socket
Android, Linux
AR3399RK
AR3399RK

Rockchip® RK3399 Dual Core Cortex-A72 + Quad Core Cortex-A53 (6-Core) SoC

HDMI, LVDS, MIPI-CSI
2xUSB 3.0, 2xUSB 2.0, 1xUSB 3.0 Gen 2 Type C OTG Connector, 1xLAN, 1xCOM, I2C, I2S, GPIO
2xM.2, MicroSD Card Socket
Android 9, Linux Kernel 4.4

NXP i.MX8M ARM Motherboards

AR8MXMM
AR8MXMM

NXP i.MX8M Mini 4x Cortex®-A53 cores and 1x Cortex-M4 core 400MHz processor. Optional i.MX8M Nano

1xLVDS, 1xMIPI-CSI
1xUSB Type C OTG, 2xUSB, 1xLAN, 2xCOM, 2xI2C, I2C Touch Panel Connector, 8-bit GPIO
16GB eMMC Flash, 1xM.2, 1xMicro SD Card Socket
Android, Linux, Yocto, 5V DC Input
AR8MXMQ
AR8MXMQ

NXP i.MX8M Mini 4x Cortex®-A53 cores and 1x Cortex-M4 core 400MHz processor

2xMIPI-CSI, 1xMIPI-DSI, 1xHDMI, 1xLVDS
2xUSB 3.0, 1xUSB OTG Type-C, 1xI2C, Optional I2S, Digital I/O
SIM Card, Micro SD Card Socket
Android, Linux, Yocto, 12V-24V DC-in
SMA-X8I SMARC Module
SMA-X8I
Coming Soon

NXP i.MX8M Mini SMARC Module, 1GB RAM, 8GB eMMC, 8MB QSPI

Supports LVDS or MIPI Display
Supports 3 x PCIe
Supports Wi-Fi 2.4G+5G + BT 4.1 (Optional)
Android 10, Linux Yocto 3.0
REV-SA03 SMARC Carrier Board
REV-SA03 Coming Soon

Carrier Board for SMARC Module

MIPI-CSI, MIPI-DSI, LVDS
USB 2.0 Type A, USB 2.0 4P Header, USB Type C
M.2 for Wi-Fi, LTE, Storage, Micro SD Socket & SIM Socket

NXP i.MX6 ARM Motherboards

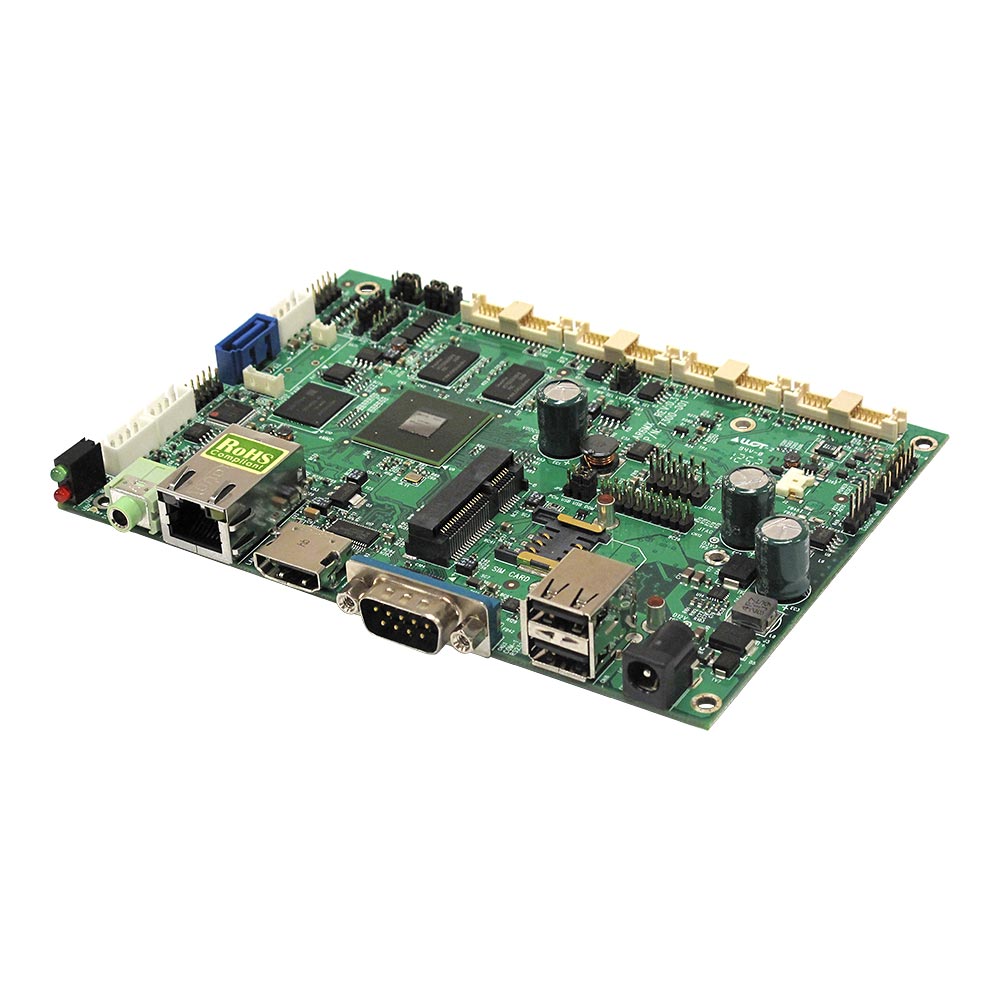

AR6MXQ
AR6MXQ

NXP® i.MX6 Cortex A9 Quad Core 1.0 GHz

1xHDMI, 2xLVDS, 1xMIPI-CSI, 1xMIPI-DSI
4xUSB, 1xMicro USB OTG, 1xLAN, 2xCOM
4GB eMMC Flash, 1xMicro SD Card Socket, 1x mini-PCIe
Android, Linux, 9V - 24V DC

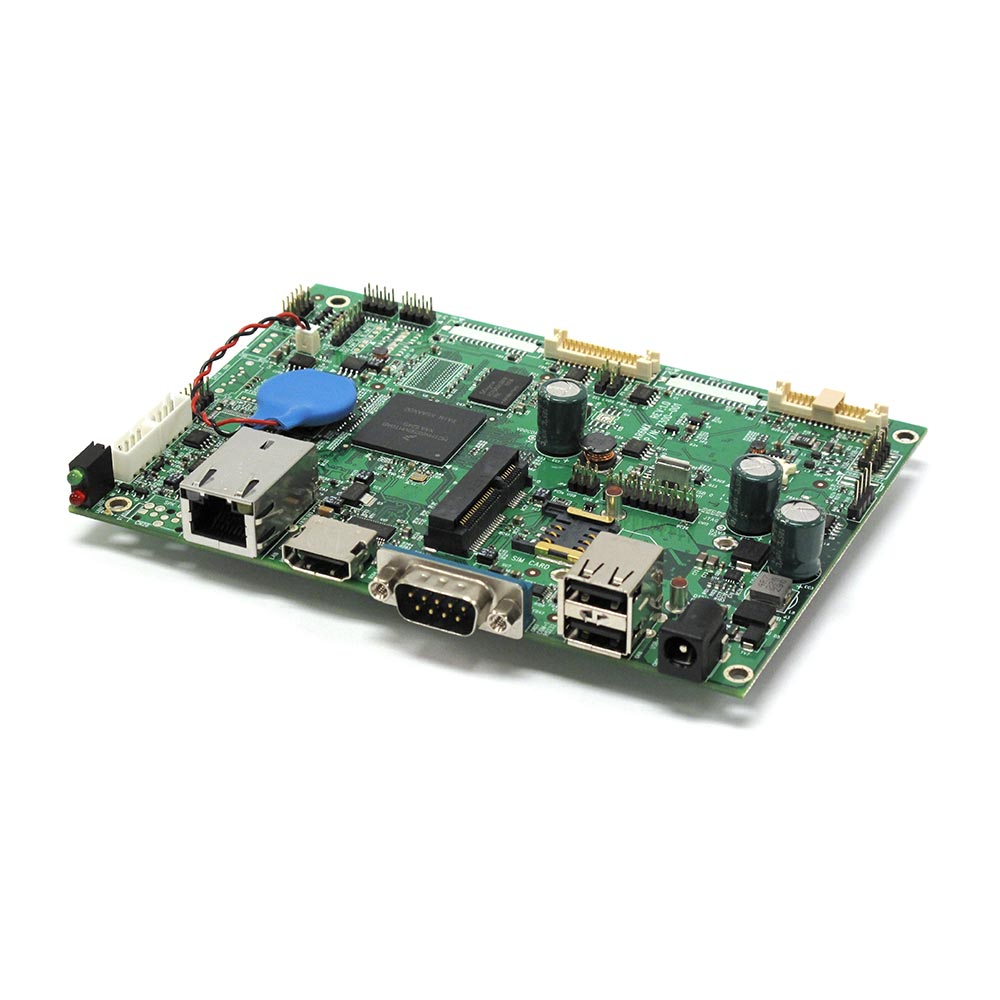

AR6MXS
AR6MXS

NXP i.MX6 Cortex A9 Solo Core 1.0 GHz

1xHDMI, 1xLVDS, 1xMIPI-CSI
4xUSB, 1xMicro USB OTG, 1xLAN, 2xCOM
4GB eMMC Flash, 1xMicro SD Card Socket, 1x mini-PCIe
Android, Linux, 9V - 24V DC
AR6MXCS
AR6MXCS

NXP i.MX6 Cortex A9 Solo Core 1.0 GHz Processor

1xHDMI, 1xLVDS
3xUSB 2.0, 1xMicro USB OTG, 1xLAN, 2xCOM
1xMicro SD Card Socket, 1x mini-PCIe
Linux, 5V DC

NXP i.MX6 SMARC Modules & Carrier Board

SMA-IMX6 Series
SMA-IMX6 Series

NXP i.MX6 ARM Cortex A9 Solo/Dual Lite/Dual/Quad CPU up to 1GHz

DDR3L 512MB-2GB, 4-64GB eMMC
Broadcom BCM54610 10/100/1000
3 PCIex1, MLB150, 12 GPIOs, SDIO, SATA, 3 SPI, 3 I2C, I2S, SPDIF, WDT, 2 CAN, JTAG, MIPI
Standard Temp, Extended Temp
REV-SA01
REV-SA01

SMARC Modules Carrier Board in 3.5 inch SBC Form Factor

1xHDMI, 1xVGA, 1xLVDS
3xUSB, 1xMini-USB, 2xLAN, 2xCOM, 1xSATA
1x mini-PCIe, 1x SIM Card Socket, 1x SD Card Socket
2xCAN Bus, 1xGPIO
