Micro ATX (uATX) Motherboards

Micro ATX (mATX), with its compact 9.6"x9.6" form factor, bridges the gap between ATX and Mini ITX sizes. Similar to ATX, it exclusively supports desktop processors, providing a reliable performance foundation. However, unlike Mini ITX, which offers flexibility for both mobile and desktop processors based on the design platform, mATX strikes a balance between performance and expandability. With its 4 or fewer expansion slots comprising a combination of PCI and PCI Express, along with rich I/O interfaces, mATX proves to be an ideal choice for budget-conscious and space-sensitive applications that demand efficient functionality.

12th/13th/14th Gen Intel® Platform

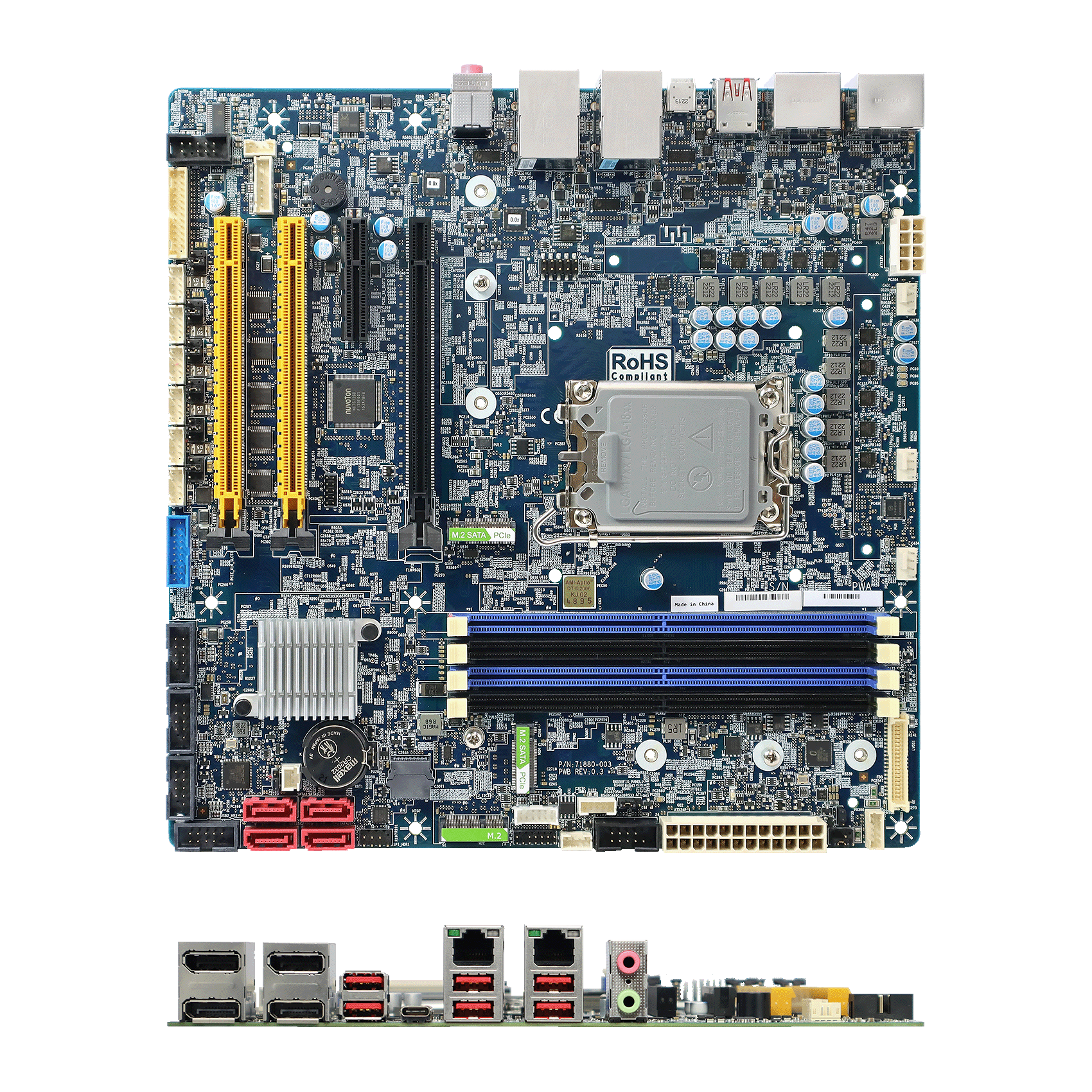

RX680R Micro ATX
RX680R

Intel® R680E PCH, LGA1700 supports 12th/13th/14th Gen Intel® Core™ Processor

4xDP, LVDS
8xUSB 3.2 Gen 2x1, 8xUSB 2.0, 4xSATA III RAID
Gen 5 PCIe x16, Gen 4 PCIe x4, Gen 3 PCIe x4, M.2 M-Key NVMe, M.2 E-Key CNVi
TPM 2.0, Win 10/11, Linux
RX610H Micro ATX
RX610H

Intel® H610E PCH, LGA1700 supports 12th/13th/14th Gen Intel® Core™ Processor

1xHDMI, 2xDP
6xUSB 2.0, 6xUSB 3.2
Gen 5 PCIe x16, Gen 3 PCIe x1, M.2 M-Key NVMe, M.2 E-Key CNVi
TPM 2.0, Win 10/11, Linux

9th/8th Gen Intel® Platform

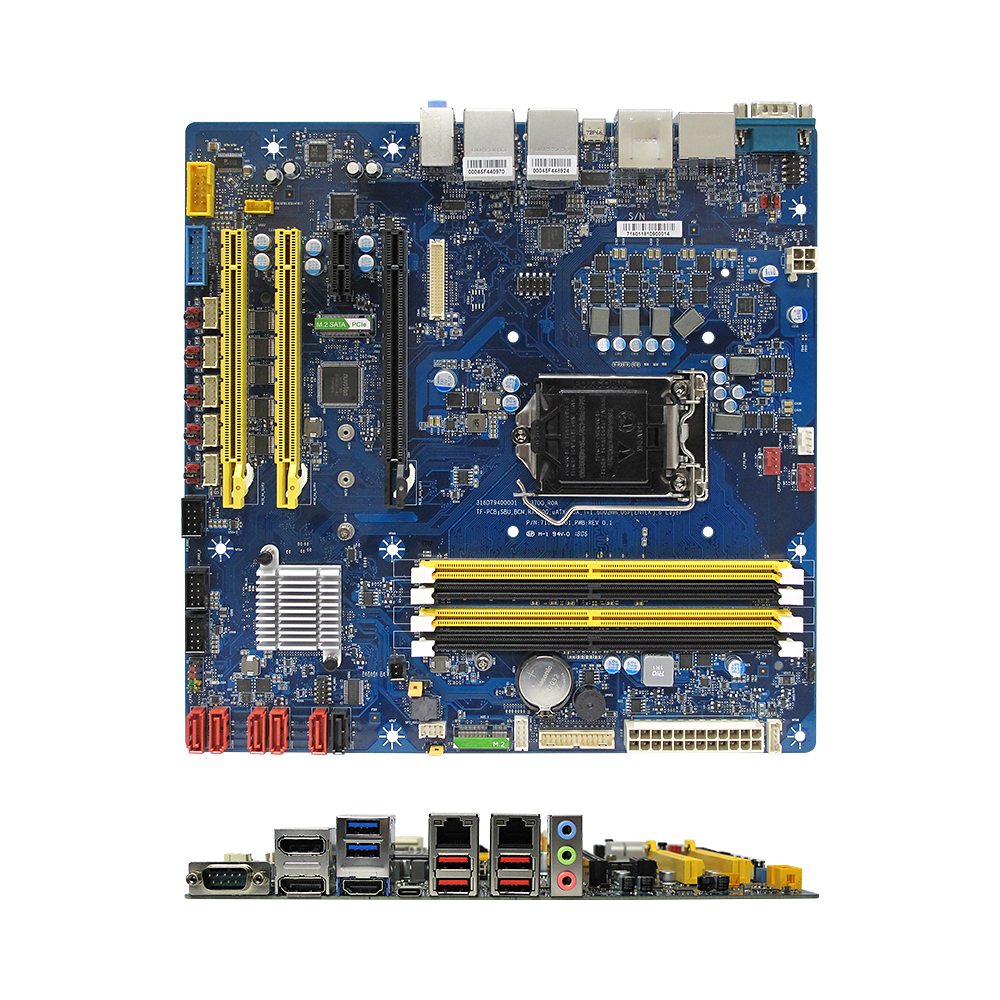

RX370Q Intel® Q370 uATX Motherboard supports 8th/9th Gen Intel® Core-i/Pentium/Celeron Processors
RX370Q

Intel® Q370 PCH supports Intel® Core-i™, Pentium, and Celeron Processors*

1xHDMI, 2xDP++
High Reliability Gold Plating Connectors
9xUSB 3.0, 6xUSB 2.0, 2xLAN, 6xCOM, 6xSATA III (RAID)
1xPCIe x16, 2xPCIe x4, 1xPCIe x1, 2xM.2
TPM 2.0, Intel® AMT, Intel® RST, Intel® PTT

7th/6th Gen Intel® Platform

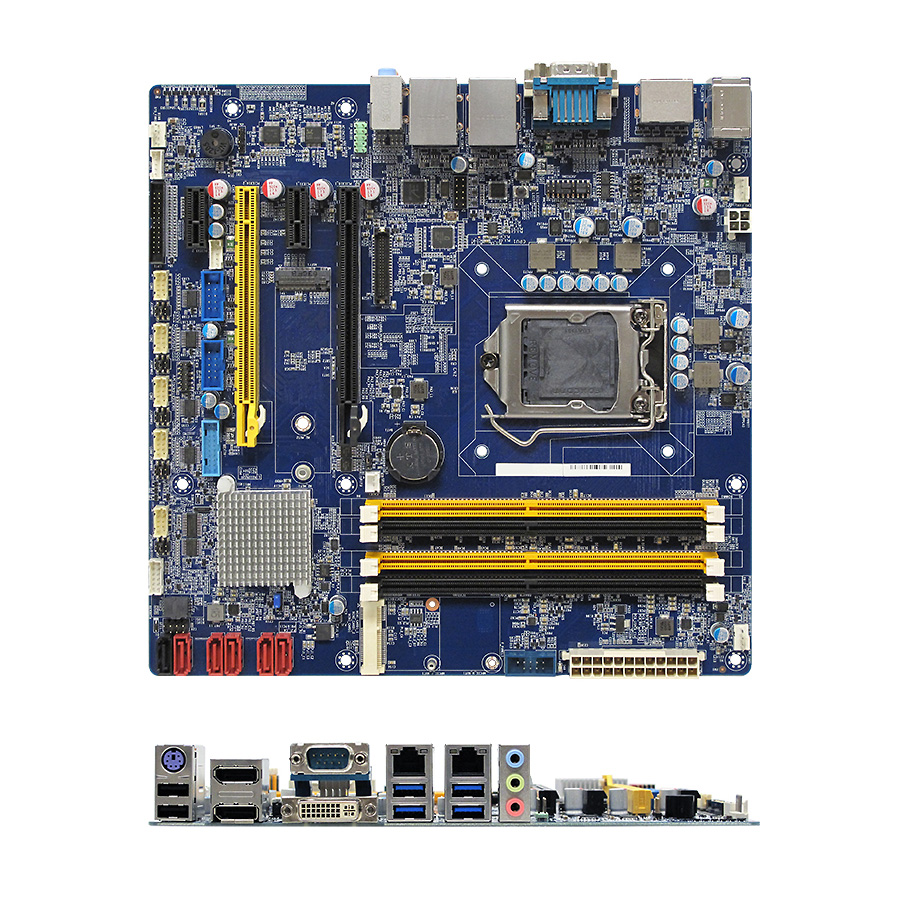

RX170Q Intel® Q170 uATX Motherboard supports 7th/6th Gen Intel® Core-i/Pentium/Celeron Processors
RX170Q

Intel® Q170 PCH supports Intel® Core-i™, Pentium, and Celeron Processors*

2xDP++, 1xDVI-D
High Reliability Gold Plating Connectors
6xUSB 3.0, 7xUSB 2.0, 2xLAN, 6xCOM, 6xSATA III (RAID)
1xPCIe x16, 1xPCIe x4, 1x mini-PCIe, 1xM.2
TPM 2.0 (optional), Intel® AMT 11

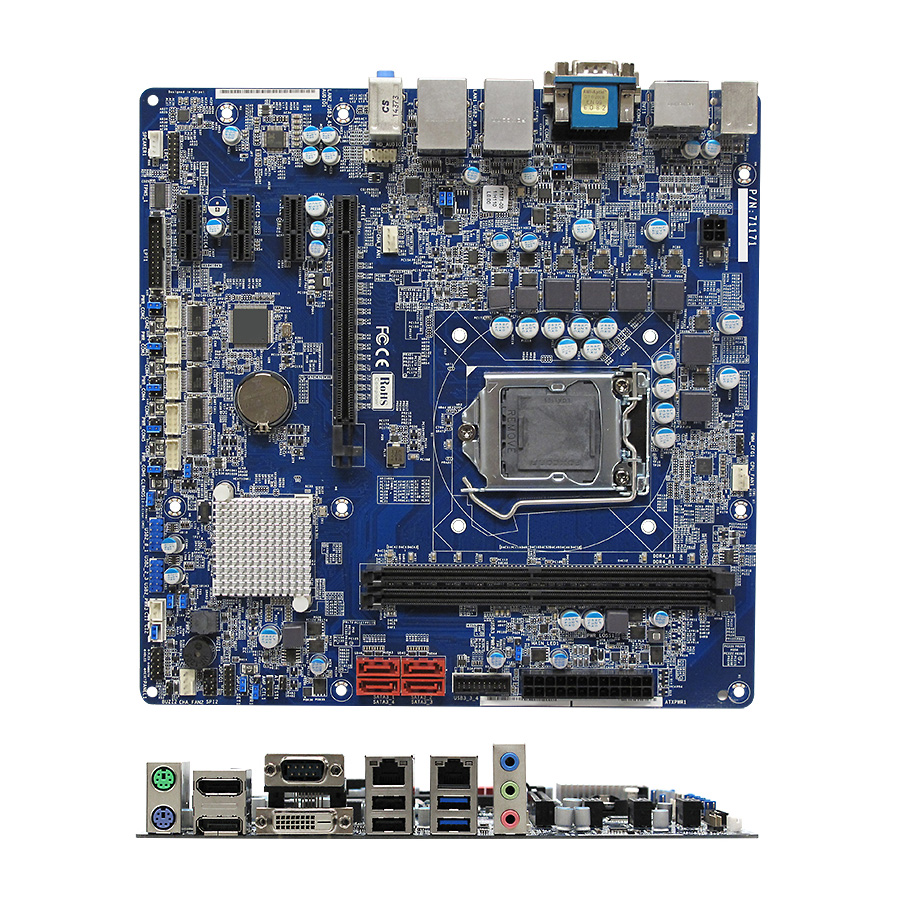

RX110H Intel H110 Micro ATX Motherboard
RX110H

Intel® H110 PCH supports Intel® Core-i™ and Celeron Processors*.

2xDP++, 1xDVI-D
4xUSB 3.0, 6xUSB 2.0, 2xLAN, up to 6xCOM, 4xSATA III (RAID)
1xPCIe x16, 3xPCIe x1
TPM 2.0, Intel® AMT 11
