3.5 inch Single Board Computers (SBC)

A 3.5" SBC (Single Board Computer) is a compact and complete computer solution designed for space-constrained applications. With its small form factor measuring approximately 5.7" x 4" in the industrial standard, the 3.5" SBC integrates the necessary components like CPU, memory, and storage on a single board. While it may not offer extensive expansion slot interfaces or peripheral functions, it provides a range of I/O interfaces such as USB, Ethernet, serial ports, and display outputs. This makes it an ideal choice for compact applications that prioritize space efficiency without requiring extensive expansion capabilities.

13th Gen Intel® Platform

ECM-RPLP
ECM-RPLP

13th Gen Intel® Core™ i7/i5/i3 Raptor Lake P Mobile Processor onboard

Triple Displays,
2 x DP++, LVDS
Thunderbolt 4,
7xUSB, 4xCOM,
2xLAN (2.5GbE)
2xDDR5,
M.2 E,M,B-Keys
12V-24V DC,
Fanless

12th Gen Intel® Platform

ECM-ADLS, Alder Lake 3.5 inch SBC
ECM-ADLS

3.5” SBC, LGA1700 socket supports 12/13th* Gen Intel® Core™ Processor, Intel® Q670E/H610E PCH

Triple Displays,
1xDP++, 1xHDMI, LVDS/eDP
4xUSB3.2, 4xUSB2.0, 2x2.5GbELAN, 2xCOM
1xDDR5 4800MT/s,
M.2 E&M-Key
+12V DC-in

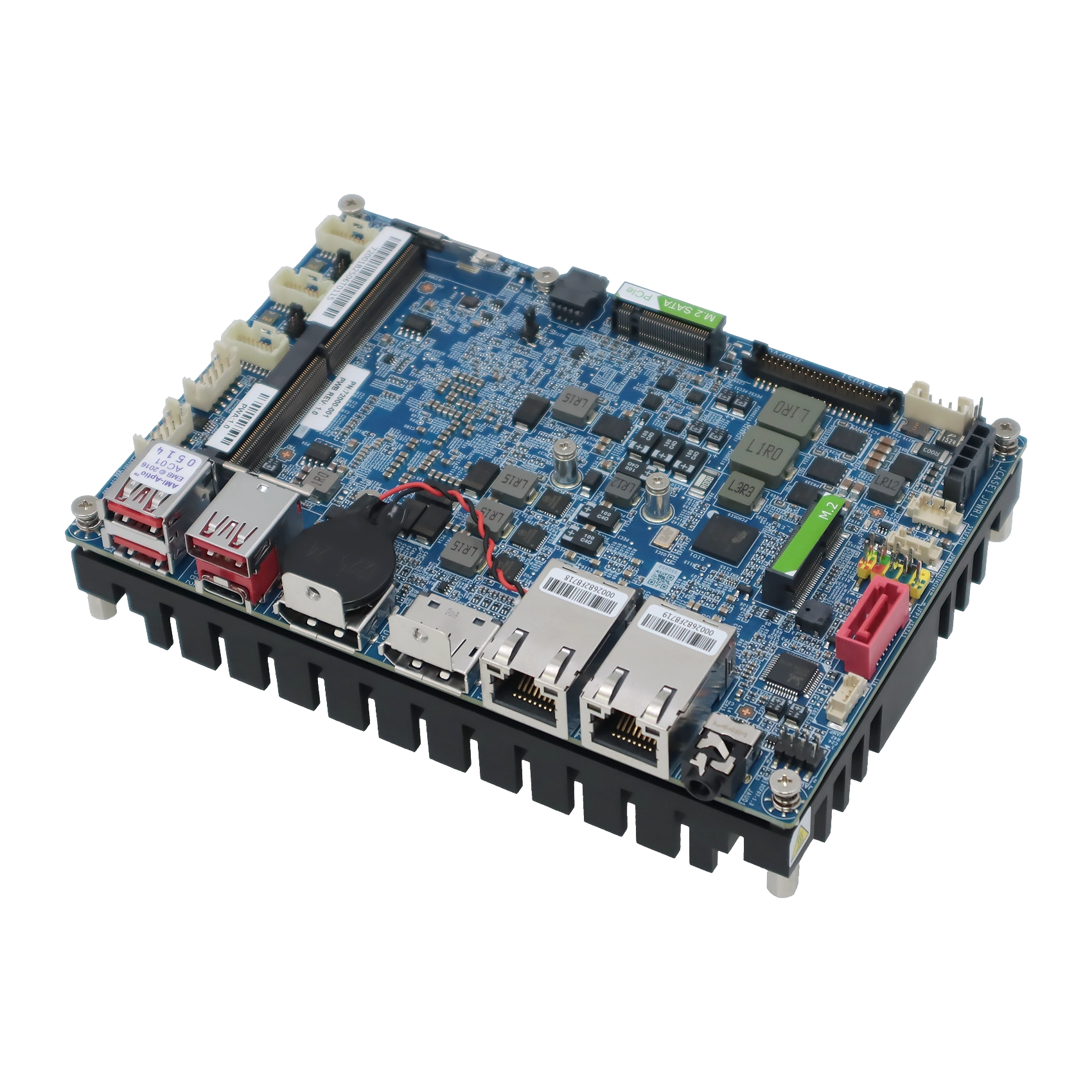

ECM-ADLN-N97
ECM-ADLN-N97

3.5” SBC, 12th Gen Intel® Processor N97, Quad-core, Fanless Operation, Low-profile Design

Triple Displays,
2xDP, LVDS/eDP
4xUSB3.2, Type-C OTG, 2x2.5GbELAN
1xDDR5 4800MT/s,
M.2 E&B-Key
12V-24V DC,
Fanless

11th Gen Intel® Platform

ECM-TGU
ECM-TGU

Intel® Tiger Lake U Core™ SoC i7/i5/i3 & Celeron® BGA Processor Onboard 3.5” SBC

Triple Display, 2xDP++
1x2.5GbE LAN, 2x1GbE LAN, 4xUSB 3.1 Gen 2, 4xUSB 2.0, 6xCOM
M.2 B-Key, M.2 E-Key
TPM 2.0
ECM-EHL
ECM-EHL

Intel® Elkhart Lake 3.5” Micro Module, Wide Temp, Wide Range DC

Triple Display, DP 1.4a , HDMI 2.0b, eDP 1.3
1x2.5GbE LAN, 1x1GbE LAN, 2xUSB 3.0, 4xUSB 2.0, 4xCOM
M.2 B-Key, M.2 E-Key
TPM 2.0

9th/8th Gen Intel® Platform

ECM-3455J
ECM-3455J

Intel® Celeron J3455 Quad Core SoC 1.5GHz up to 2.3GHz, Fanless Heatspreader

1xHDMI, 1xLVDS
4xUSB 3.0, 2xUSB2.0, 2xLAN, 2xCOM, I²C
1xM.2, 1x mini-PCIe, 1xSATA III
TPM 2.0 Onboard, 9V-36V DC-in for IPC, Industrial Control Applications
ECM-WHL
ECM-WHL

Intel® Whiskey Lake Core™ i7/i5/i3/Celeron® processors

2xHDMI, 1xLVDS
4xUSB 3.1 Gen.2, 2xLAN
2xM.2, 1xSATA III
TPM 2.0 Onboard
ECM-CFS
ECM-CFS

Intel® Q370/H310 PCH supports Intel® Core™ i7/i5/i3, Pentium®, Celeron® processors

2xHDMI, 1xLVDS
2xUSB 2.0, 4xUSB 3.1
mini-PCIe, 1x mSATA, 2xSATA III
Optional TPM 2.0

7th Gen Intel® Platform

ECM-KBLU
ECM-KBLU

Intel® Kaby Lake-U Core™ i7/i5/i3 Processor

2xHDMI, 1xLVDS
4xUSB 3.0, 2xLAN, 1xCOM
mini-PCIe, 1xM.2, 1xSATA III
Optional TPM 2.0
