AIB-NW01-NA Coming soon

NVIDIA Jetson Orin Nano 4GB/8GB
Up to 40 TOPS AI Performance
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 up to 1.5 GHz CPU Performance
512-core /1024-core NVIDIA Ampere architecture GPU
4GB/8GB LPDDR5 system memory on module
128GB NVMe SSD onboard
M.2 M-Key 2242/2280, B-Key 3042 (5G/LTE), E-Key 2230 (Wi-Fi/BT)
Dual GbE LAN ports
1 x OTG, 4 x USB 3.0, 2 x RS232/485 serial ports
1 x HDMI
1 x Phoenix DC-in, Power button
Optional OOB module
Wall Mount bracket (optional)
Fanless Operation

System
Module	NVIDIA Jetson Orin Nano 4GB/8GB
AI Performance	Jetson Orin Nano 4GB: 20 TOPS Jetson Orin Nano 8GB: 40 TOPS
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 up to 1.5 GHz
GPU	Jetson Orin Nano 4GB: 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores up to 625MHz Jetson Orin Nano 8GB: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores up to 625MHz
System Memory	4GB 64-bit LPDDR5 34 GB/s 8GB 128-bit LPDDR5 68 GB/s
Storage	128GB NVMe SSD
Expansion	1 x M.2 M-Key 2242/2280 (NVMe SSD) 1 x M.2 B-Key 3042 (SIM Card Socket, 5G/LTE) 1 x M.2 E-Key 2230 (Wi-Fi/BT)

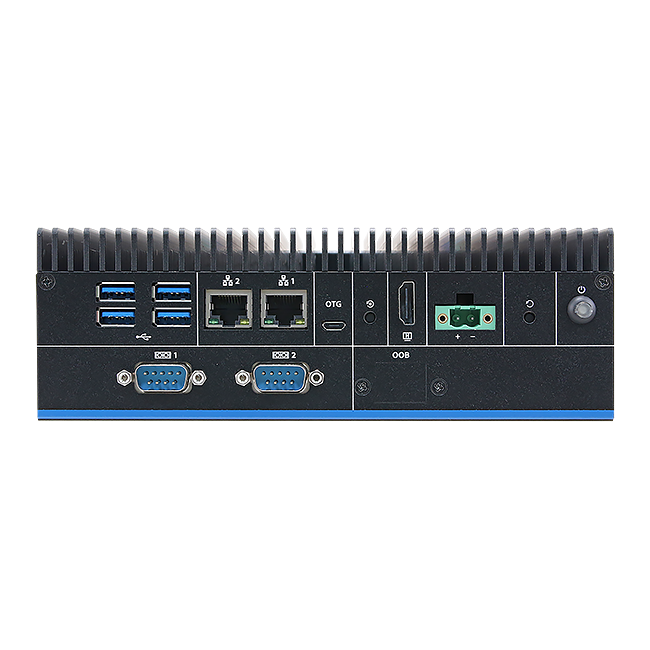

External I/O	2 x RJ45 Gigabit Ethernet LAN Ports 1 x DC Phoenix 1 x HDMI 2.0 Out 1 x Micro USB OTG 1 x Power LED 1 x Reset 2 x RS232/485 DB9 4 x USB 3.0 6 x Antenna Knockouts
OS Support	Ubuntu 20.04, Jetpack 5.1.1
Mechanical and Environment
Power Requirement	12V-24V Wide Range DC-In
Operating Temperature	Wide Temp: -20°C ~ 60°C (-4°F ~ 140°F)
Storage Temperature	-40°C ~ 80°C (-40°F ~ 176°F)
Mounting	Mounting Bracket (optioinal)
Certification Information	CE, FCC Class A
Other Features	Fanless, shock resistance and anti-static
Dimensions	7.72" x 4.92" x 2.6" (196 x 125 x 66.1 mm)
Weight	TBD

* All product specifications and product images are subject to change without notice. Last update: 02/29/2024

Please Note - By downloading the files from BCM website, you agree to accept the terms and conditions.

Document
Datasheet

Model Name	Description
AIB-NW01-NA-4GB	NVIDIA Jetson Orin Nano, 4GB system memory, 128GB NVMe SSD
AIB-NW01-NA-8GB	NVIDIA Jetson Orin Nano, 8GB system memory, 128GB NVMe SSD
