Certified Embedded Computing Solutions for In-Vehicle, Railway, Marine and the in-door/out-door Digital Signage.
Key features of our ITS-oriented products include multiple industry standard certifications, such as the E-Mark (European) and ISO 7637-2 for In-Vehicle; EN 50155, EN 50121 and EN 45545 for Railway; IEC 60945 for Marine applications. Additional features include multiple external accessible SIM card slots; GPS onboard; rich expansion slots capable to support multiple comprehensive add-on modules (4G/5G/WiFi/CANBus) simultaneously; 9-36V wide voltage DC input, -40°C ~70°C wide temperature support; power management and ignition control; and MIL-STD shock and vibration protection. Select products are Microsoft Azure and Intel® Edge Software Hub Certified. Products are manufactured at our TS 16949 (Automotive Electronics) certified factories in Taiwan and are ensured to have at least 7-10 years product lifecycle and exceptional customer support.
Contact BCMSales@bcmcom.com for more information.
Highlighted Products:

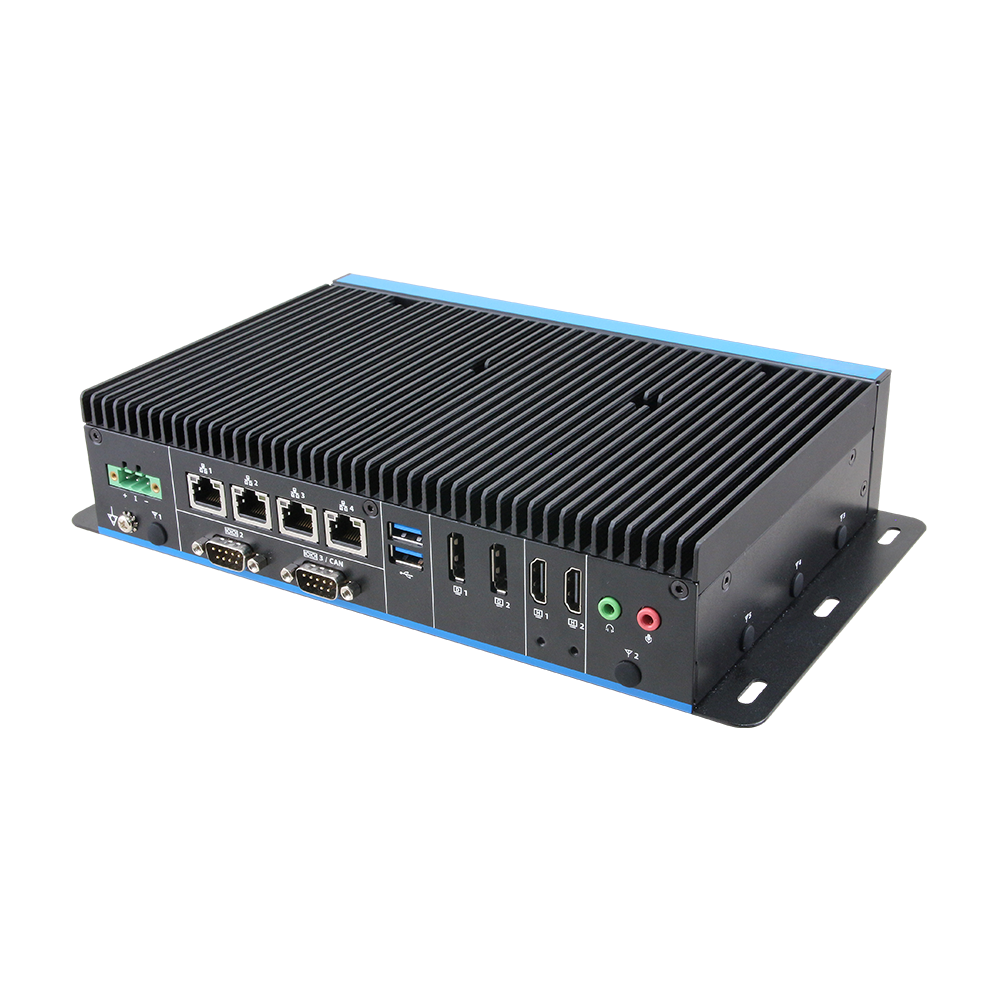

Rugged Fanless Vehicle Telematics System
VMS-RPPS 13th Gen Intel® Core™ 7/5/3/Celeron® Platform
- 13th Gen Intel® Core™ 7/5/3/Celeron® Processor, PS-series Platform
- Integrated Intel® Iris® Xe/UHD Graphics (CPU Dependent)
- 2 x 262-pin SO-DIMM sockets support up to 64GB DDR5 5200MHz
- Onboard GPS module, Support RAID 0/1, TPM 2.0, iAMT
- 4 x Intel® Ethernet Controllder I226-IT (2.5 Gigabit), 4 x RJ45 LAN Ports
- Supports 4 Independent Displays via 2 x SP++ 1.4 and 2 x HDMI 2.0
- 9~60Vdc Input, with Ignition Control & Vehicle Power Management
- 3 x Expansion, 1 x Full Size mini-PCIe, 1x M.2 E-Key, 1x M.2 B-Key
- 3 x Storage, 1 x M.2 M-Key, 2 x 2.5” External Drive Bay
- 2 x SIM Card Slots (External Accessible with Dust Protection Cover)
- 1 x 10-bits GPIO, 2 x COM Ports
- 8 x Antenna Mounting with Dust Protection Covers
- E-Mark, ISO7637-2, CE, FCC A Certified
For Railway Systems
VMS-EHLR is designed for Railway Systems and based on the Intel® Elkhart Lake Atom X6425E processor onboard.
- EN 50155, EN 50121-3-2 Certified
- EN 45545 Certified
- Military grade MIL-STD 810G/H certified
- 2 x external SIM card slots
- 1 x 2.5” front access & M.2 B-Key SSD slots
- Supports 3 independent displays
- 8-bit 2.5KV isolated GPIO CANBus H/L
- 4 x M12 waterproof connectors for DC-in, USB 2.0 and 2 x LAN ports
Digital Paper (e-Ink) Solutions
for in-door/out-door and In-Vehicle Digital Signage Systems
The 25 inches (4-Color) and 42 inches (Black & White) Digital Paper for digital signage solutions. Digital Paper (ePaper) is a lightweight, slim, paper-like digital display featuring low power consumption. The revolutionary display technology enables your digital content and always stays on the screen even when the power source is removed. Avalue-BCM provides customization service such as PCAP touch screen/thickness of cover glass/PMMA for Panel protection, WiFi/BT/EtherCAT for connection, air bonding/optical bonding for bonding types, and Windows 10 IoT/android & Lunux/API for OS system.
Application Example
Passenger Counting & Heat Map
Improving the efficiency of operations is always top priority task of the public transport operators. Our systems works to capture the most complete and accurate passenger counting data on per-bus, per-door basis. The passenger counter algorithm analysis the height, shape, number of passangers who are passing the front/rear door of a vehicle.
Download ITS Brochure
To learn more about our products and services for ITS Applications.
