AR6MXS-LCD

AR6MXS NXP i.MX6 Solo Core Motherboard with 10” Touch Display & Enclosure
1 GB onboard DDR3 Memory
4 GB eMMC onboard
Dual Display: 1 x HDMI
SD/eMMC Card Slot (Bootable)
1 x Mini PCIe Socket supports both full and half length
Mini PCIe cards
3 x USB and 2 x COM, 2 x SMA, 1 x OTG
9V - 24V Wide Range DC Power
Fanless Operation

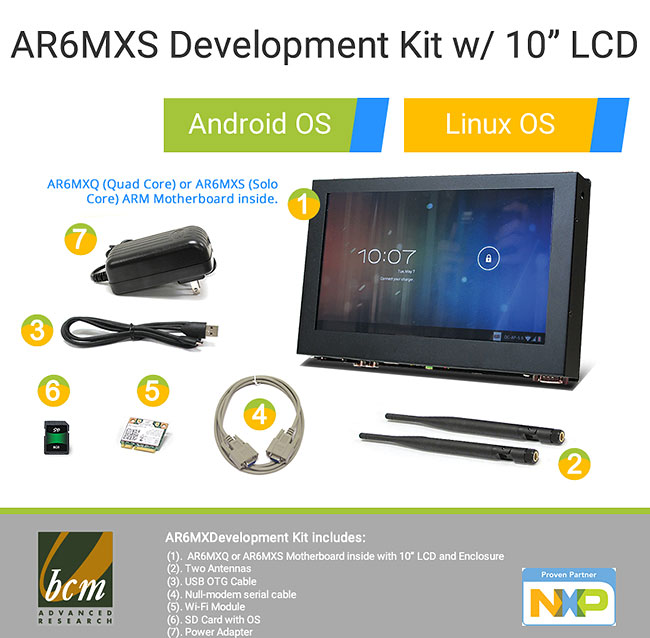

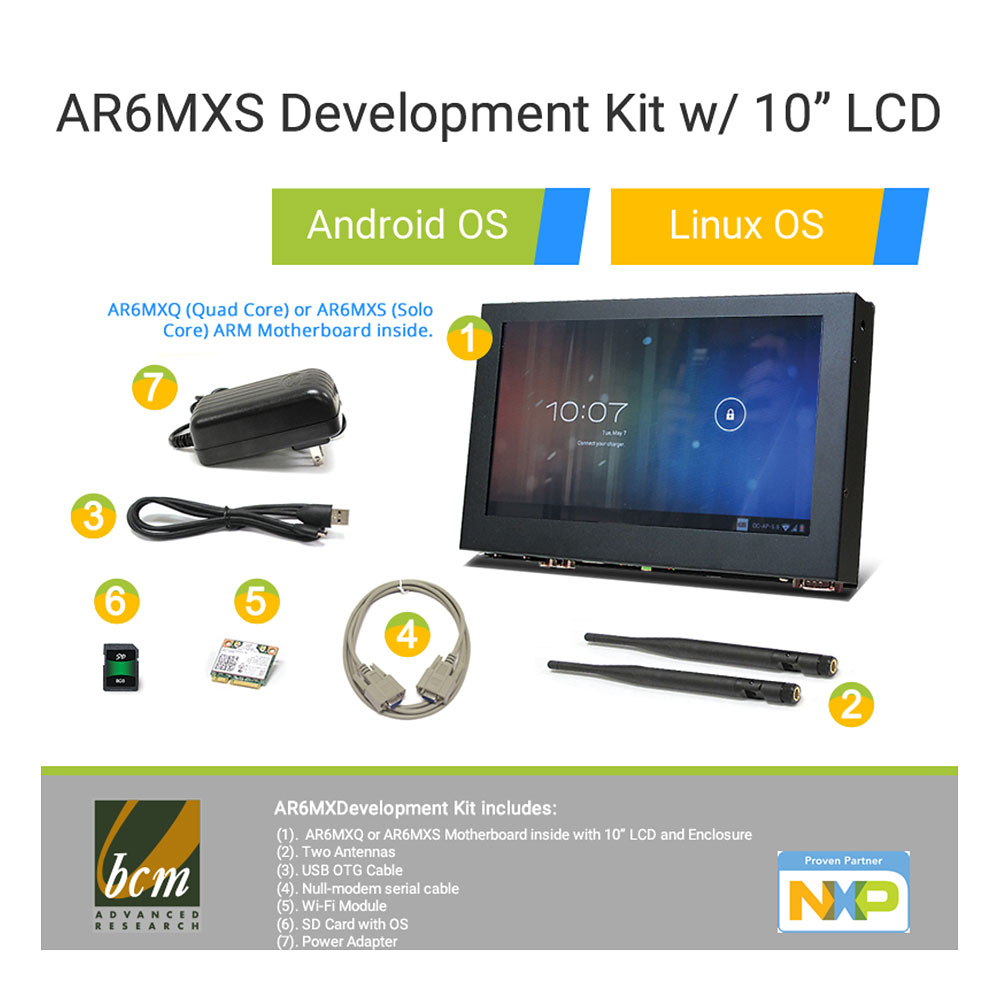

Kit comes with AR6MXS motherboard, a 10 inch touch LCD, enclosure, power adapter, Null-modem Serial Cable, USB OTG Cable, SD card with pre-loaded OS, Wi-Fi module, two antennas

System
CPU	NXP i.MX6 ARM Cortex A9 Solo Core 1.0 GHz Processor onboard
System Memory	1 GB onboard DDR3 Memory
Storage	4 GB eMMC onboard
Expansion	1 x SD Card Slot 1 x Mini PCIe
Panel Display
LCD Size	10.1” LCD
Display Type	WSVGA
Resolution	1024 x 600
Pixel Pitch	0.2175(H) x 125.28 (V)
Luminance	400cd/m2
Contrast Ratio	400
Viewing Angle	45 (L) 45 (R) 15 (U) 35 (D)
Response Time	16 ms
Backlight	LED
Touch Screen	PCAP Touch
External I/O
Audio	1 x Line-out
LAN	1 x RJ-45 Connector
Display Interface	1 x HDMI Connector
USB	3 x USB Connectors
COM (Serial Port)	2 x COM Ports
Power Input	1 x DC-in
WiFi	2 x SMA Jacks
OTG	1 x OTG Connector
System Indicator	1 x Power LED, 1 x HDD LED
Mechanical and Environment
System Power Requirement	9V ~ 24V DC Input
Power Adapter	12V DC
Power Type	DC
Operating Temperature	0 ~ 40°C
Storage Temperature	-20 C to 60°C
Relative Humidity	5％～ 80％ Relative Humidity, Non-condensing
Exterior Color	Black
Mounting	VESA
Dimensions (W) x (H) x (D)	10.25” x 6.375” x 1.25”
Weight	2.75 lbs

* All product specifications and product images are subject to change without notice. Last update: 2/11/2016

Please Note - By downloading the files from BCM website, you agree to accept the terms and conditions.

Model Name	Description
AR6MXS-LCD-LX	AR6MXS Development Kit with 10” LCD, enclosure and Linux OS. The kit comes with a 10 inch touch LCD, enclosure, power adapter, Null-modem Serial Cable, USB OTG Cable, SD card with pre-loaded OS, Wi-Fi module, two antennas
AR6MXS-LVD-AN	AR6MXS Development Kit with 10” LCD, enclosure and Android OS. The kit comes with a 10 inch touch LCD, enclosure, power adapter, Null-modem Serial Cable, USB OTG Cable, SD card with pre-loaded OS, Wi-Fi module, two antennas
