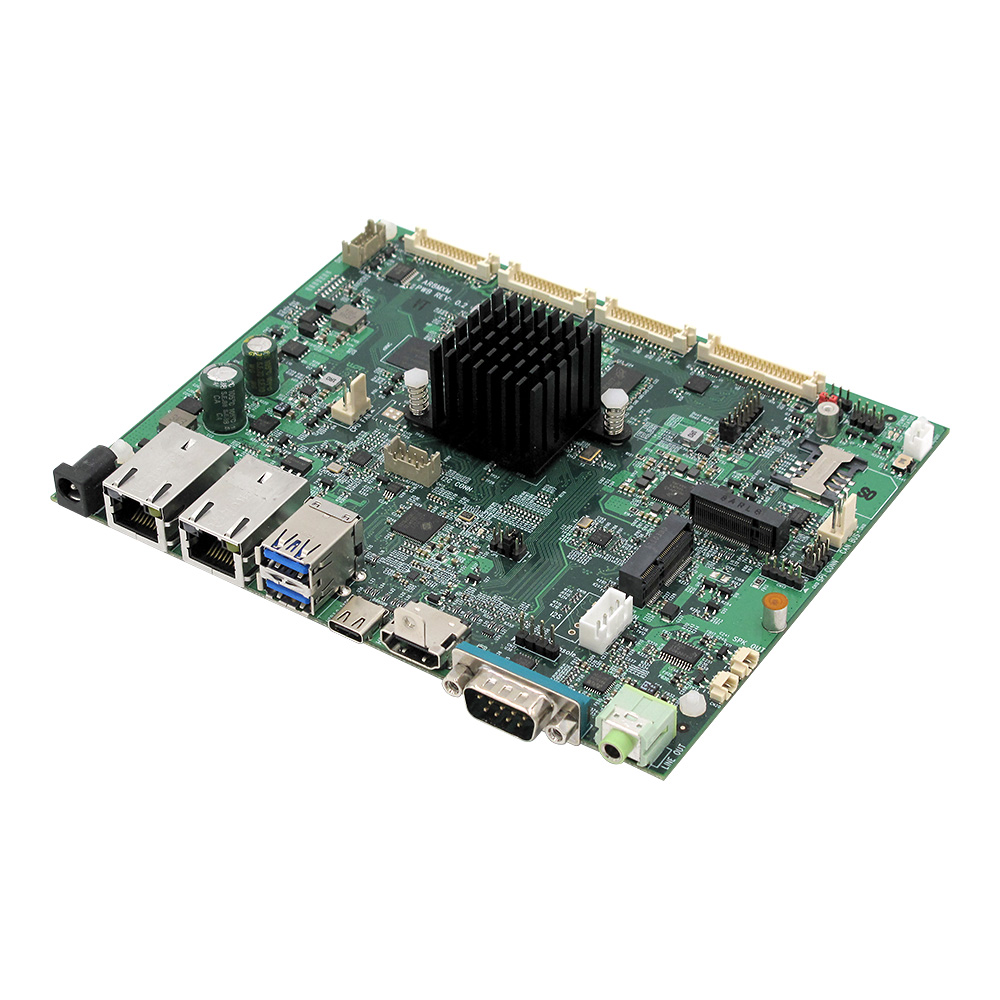

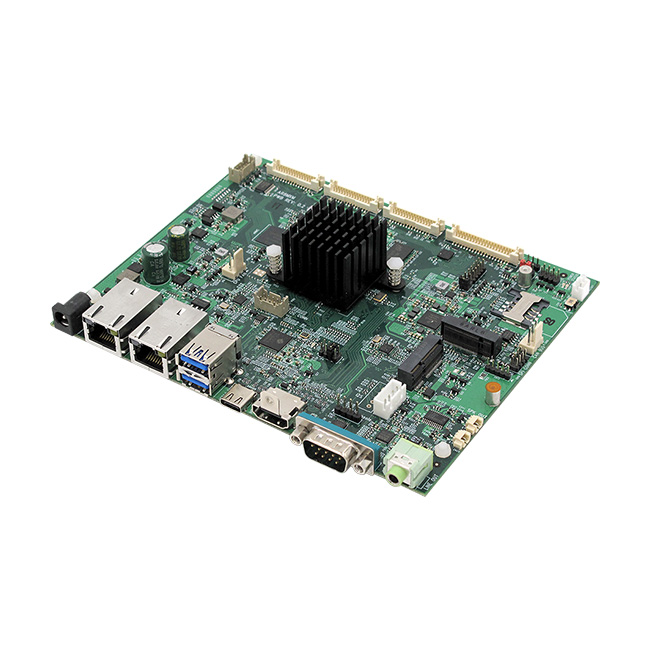

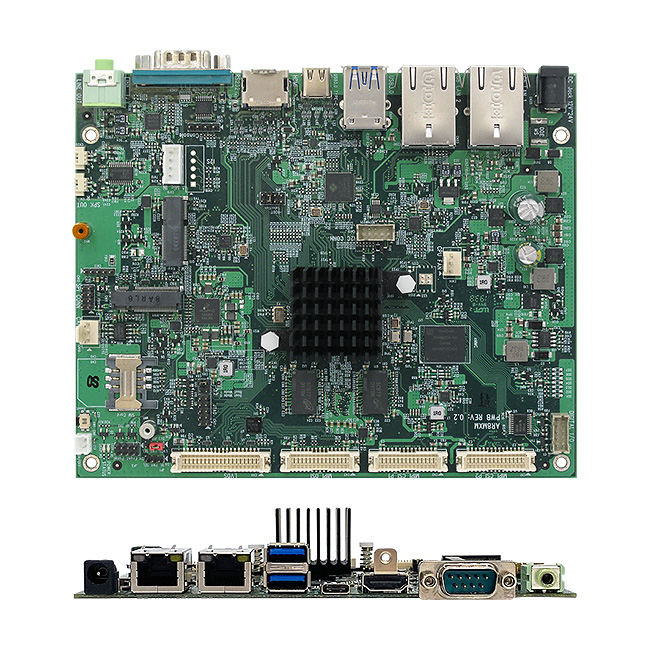

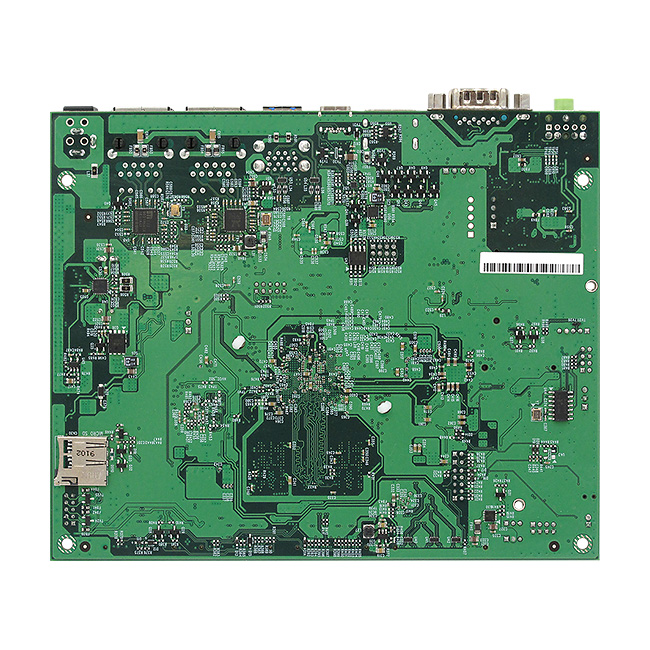

The AR8MXMQ is a new NXP i.MX 8M RISC-based SBC featuring NXP's Cortex-A53 Cortex M4 Quad Core/Dual Core, QuadLite processor architecture up to 1.5 GHz. The processor supports full 4K Ultra HD video resolution as well as HDR and is coupled with professional audio fidelity @384KHz for each audio channel. The multicore processing performance along with the ready to use SBC form factor provides rich expansion including two M.2 connectors, one SIM card socket, two MIPI-CSI, one MIPI-DSI, LVDS, and HDMI 2.0. delivering exceptional video, audio, and voice processing for many non-x86 applications such as building automation, fleet management, touch panel interfaces, and mobile computing devices.
The AR8MXMQ measures (160mm x 130mm) and runs on Android, and Yocto operating systems.
| System |
| CPU |
NXP i.MX 8M Cortex A53/ Cortex M4, Quad Core Processor up to 1.5 GHz
BTO: Dual Core or QuadLite Processor |
| System Memory |
2 GB Onboard DDR4 Memory (expandable up to 4 GB Max) |
| Storage |
1 x MicroSD Card Slot
Onboard 16GB eMMC Flash |
| Audio |
Chipset:Wolfson® WM8960 Ultra Low Power Audio Codec
Amplifier: TI® TPA2008D2 3-W Stereo Class-D Audio Amplifier |
| Ethernet |
LAN 1: Micrel® KSZ9031 Gigabit Ethernet
LAN 2: Realtek® RTL8119G PCIe Gigabit Ethernet |
| Expansion |
1 x 2230 M.2 E Key for Wi-Fi/BT (PCIe & USB Channel)
1 x 3042 M.2 B Key for 3G/4G Module (USB Only)
1 x SIM Card Slot for 3G/4G Module |
| OS Support |
| Supported OS |
Android 9
Linux Yocto 3.0 (Zeus), 5.4.70 kernel
Linux Ubuntu 18.04, 4.14.98 kernel |
| Display |
| Video Processing Unit |
Vivante® GC7000Lite Integrated Graphic |
| Video Interface |
1 x LVDS
1 x HDMI 2.0 Output, 4K@60 capable |
| LVDS |
TI® SN65DSI84 MIPI-DSI to LVDS Converter |
| External I/O |
| Display |
1 x HDMI |
| USB |
2 x USB 3.0 Type A Connectors
1 x USB OTG Type-C connector |
| COM |
1 x RS-232 DB9 COM port |
| LAN |
2 x RJ-45 |
| Audio |
1 x Line-out |
| DC |
1 x Barrel Type Connector |
| Internal I/O |
| Display |
2 x MIPI-CSI Headers
1 x MIPI-DSI Header
1 x LVDS Header |
| USB |
1 x USB 2.0 Header (1 Port) Shared with M.2 B Key |
| Audio |
1 x Mic-in Header
2 x Speaker Header (Through Audio AMP) |
| MIO |
1 x CAN Bus Header, 1 x I2C Headers, 1 x I2S Header, 1 x SPI
Header, 1 x Digital I/O, 1 x Front Panel Pin Header |
| Mechanical and Environment |
| Power |
12V ~ 24V DC Input |
| Operating Temperature |
0° ~ 60°C (32° ~ 140°F) |
| Storage Temperature |
-20° ~ 80°C (-4° ~ 176°F) |
| Operating Humidity |
5% ~ 90% Relative Humidity, Non-condensing |
| Form Factor |
Single Board Copmuter |
| Dimensions (L) x (W) |
6.3” x 5.125” (160mm x 130mm) |
| Certification Information |
CE, FCC Class B |
| Weight |
7 oz |
* All product specifications and product images are subject to change without notice. Last update: 2021/06/09
| Model Name |
Description |
| AR8MXMQ |
NXP® i.MX 8M Cortex A53/ Cortex M4, Quad Core ARM Motherboard |
