| System |
| CPU |
Intel® Core™ Ultra 5 Processor 125U (15W) - with Heatsink
Intel® Core™ Ultra 5 Processor 125H (28W) - with Cooler
Formerly Meteor Lake-U & H platform |
| System Memory |
1 x 262-pin DDR5 5600MHz SODIMM socket supports up to 48GB |
| I/O Chipset |
EC iTE IT5782VG |
| BIOS |
AMI BIOS, 256Mbit SPI Flash ROM |
| Expansion |
1 x M.2 M-Key 2280 (1 x PCIe Gen4 x4) for NVME SSD
1 x M.2 B-Key 2242/3042/3052 with 1 x PCIe x1 Gen 2 or SATA, USB 3.2 Gen1x1, USB 2.0 with 1 x Nano SIM card slot for WWAN+GNSS
Note: Only one SIM card supported. I2S and PCM not supported.
1 x M.2 E-Key 2230 for Wi-Fi module (1 x PCIe x1 & USB 2.0) |
| Storage through |
1 x M.2 M-Key 2280 (1 x PCIe Gen4 x4) for NVME SSD
1 x M.2 B-Key 2242/3042/3052 with 1 x PCIe x1 Gen 2 or SATA, USB 3.2 Gen1x1, USB 2.0 with 1 x Nano SIM card slot for WWAN+GNSS
1 x SATA III connector |
| H/W Status Monitor |
CPU & system temperature monitoring Voltages monitoring |
| TPM |
TPM 2.0 |
| OS Support |
Windows 11 64-bit, Linux |
| Display |
| Chipset |
Intel® Xe LPG Graphics |
| Interface |
1 x DP 1.4a: 7680 x 4320@30 Hz
1 x USB Type C support DP: 4096 x 2160@60Hz
1 x HDMI 2.0b: 4096x2160@60Hz
1 x LVDS/eDP: 1920 x 1080 Dual channel 18/24-bits LVDS |
| Multi-Display |
Support 4 Independent Displays |
| Audio |
| Audio Codec |
Realtek HD Audio |
| Amplifier |
2 x 2W 4Ω Amplifier |
| Ethernet |
| LAN Chipset |
1 x Intel® Gigabit Ethernet Controller I226-LM (2.5 GbE)
1 x Intel® Gigabit Ethernet Controller I226-V (2.5 GbE) |
| Interface |
2 x 10/100/1000/2.5G Base-TX GbE Compatible |
| LAN Port |
2 x RJ45 |

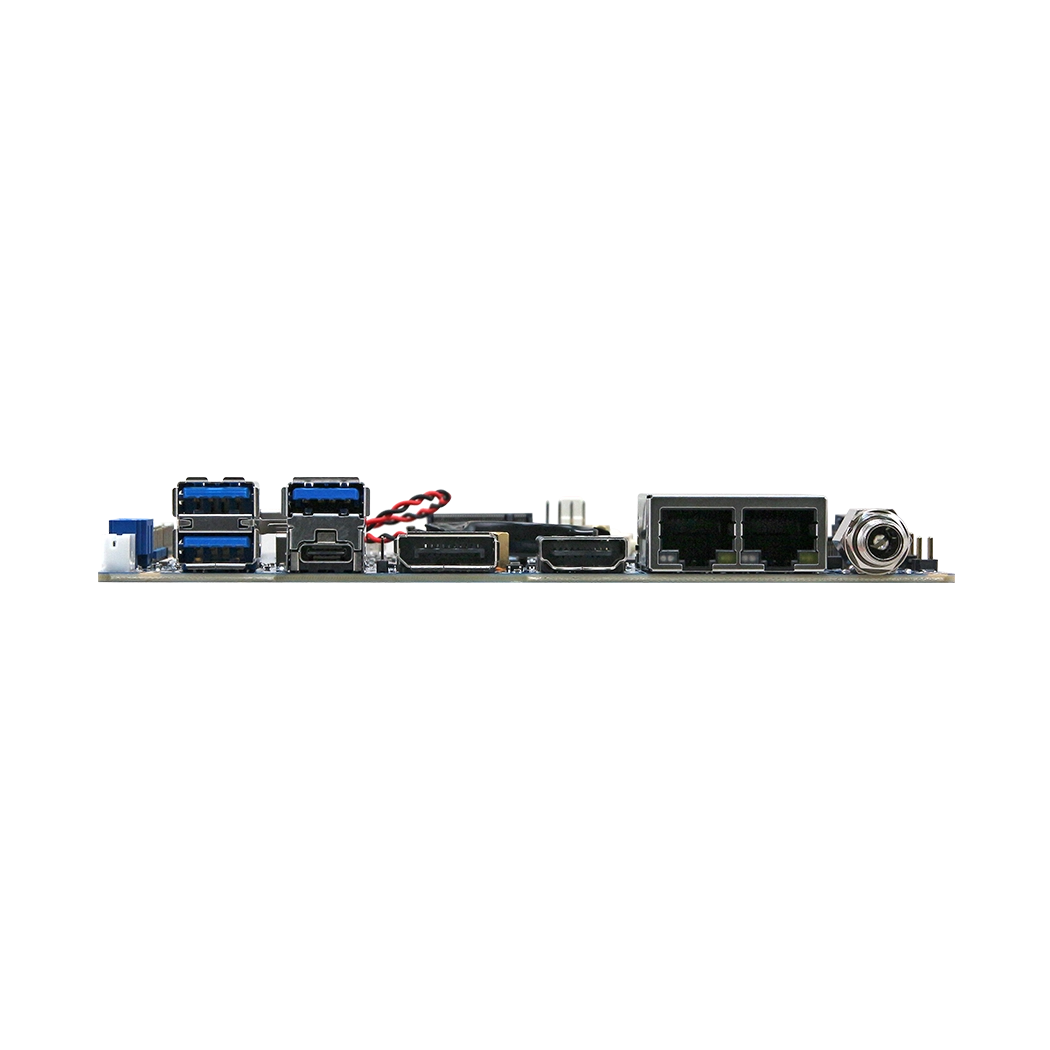

| External I/O |
| Display |
1 x DP 1.4a, 1 x HDMI 2.0b |
| USB |
2 x USB 3.2 Gen 2 x1
1 x USB 3.2 Gen 1 x1
1 x USB Type-C 5V 3A
|
| LAN |
2 x RJ45 |
| DC-in |
1 x DC Jack (lockable) |
| Internal I/O |
| Display |
1 x LVDS/eDP |
| USB |
2 x USB 2.0 Headers for 4 x USB 2.0 Ports |
| COM |
6 x COM Port Headers |
| Audio |
2 x 6-pin Hheaders for Line-in, Line-out, Mic-in |
| SATA |
1 x SATA III, 1 x 4-pin SATA Power Connector |
| GPIO |
1 x 8-bits GPIO Header |
| DC-in |
1 x 4-pin DC-in Connector |
| Mechanical and Environment |
| Power Requirement |
+12V ~ +24V Wide Range DC-In |
| Operating Temperature |
0°C ~ 60°C (32°F ~ 140°F) with 0.5m/s air flow |
| Storage Temperature |
-40°C ~ 75°C (-40°F ~ 167°F) |
| Operating Humidity |
40°C @ 95% Relative Humidity, Non-condensing |
| Regulatory/Compliance |
CE, FCC Class B, RoHS Compliant |
| Form Factor |
3.5" Single Board Computer (SBC) |
| Dimensions |
5.7" x 4" (146mm x 102mm) |
| Weight |
0.44lbs (0.2kg) |
