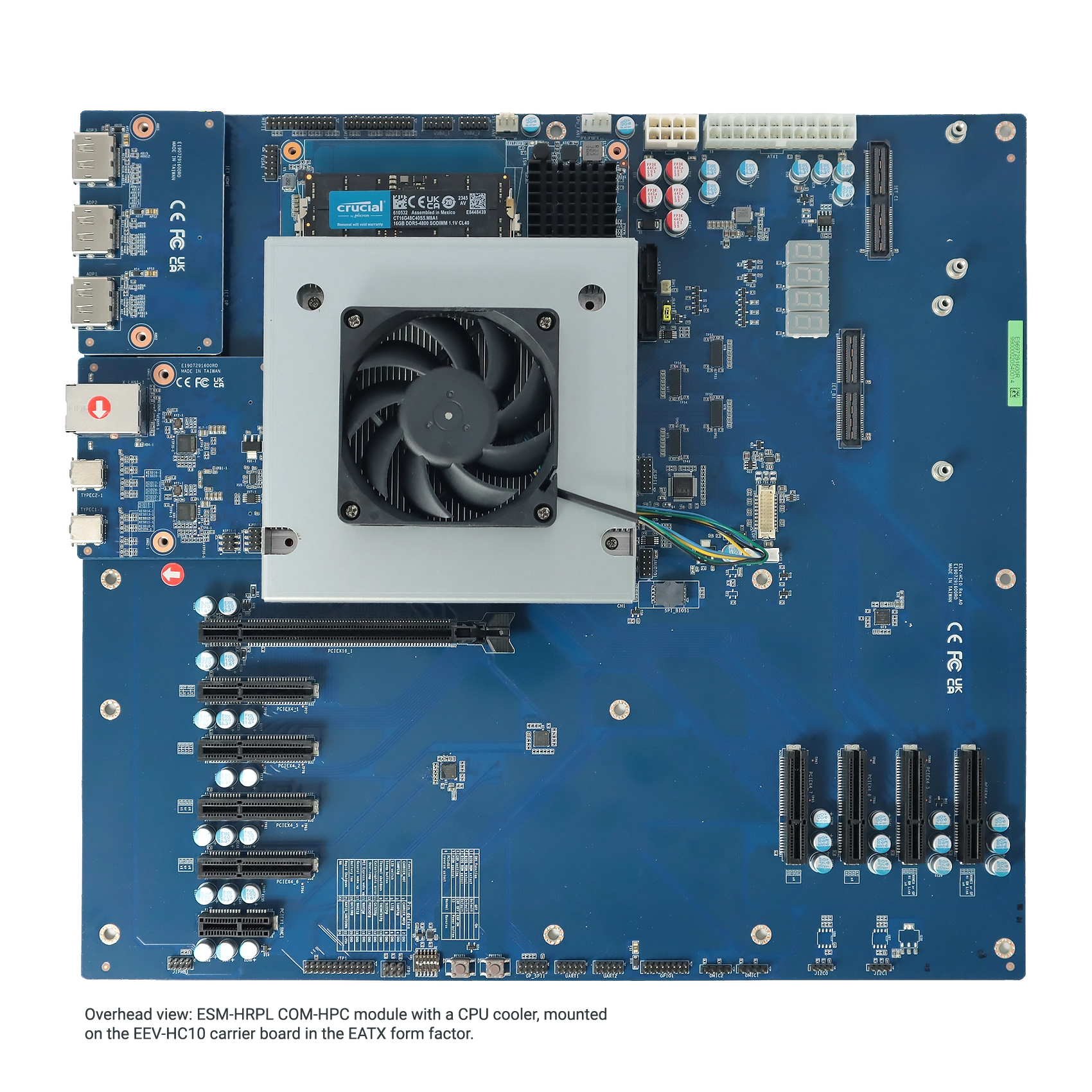

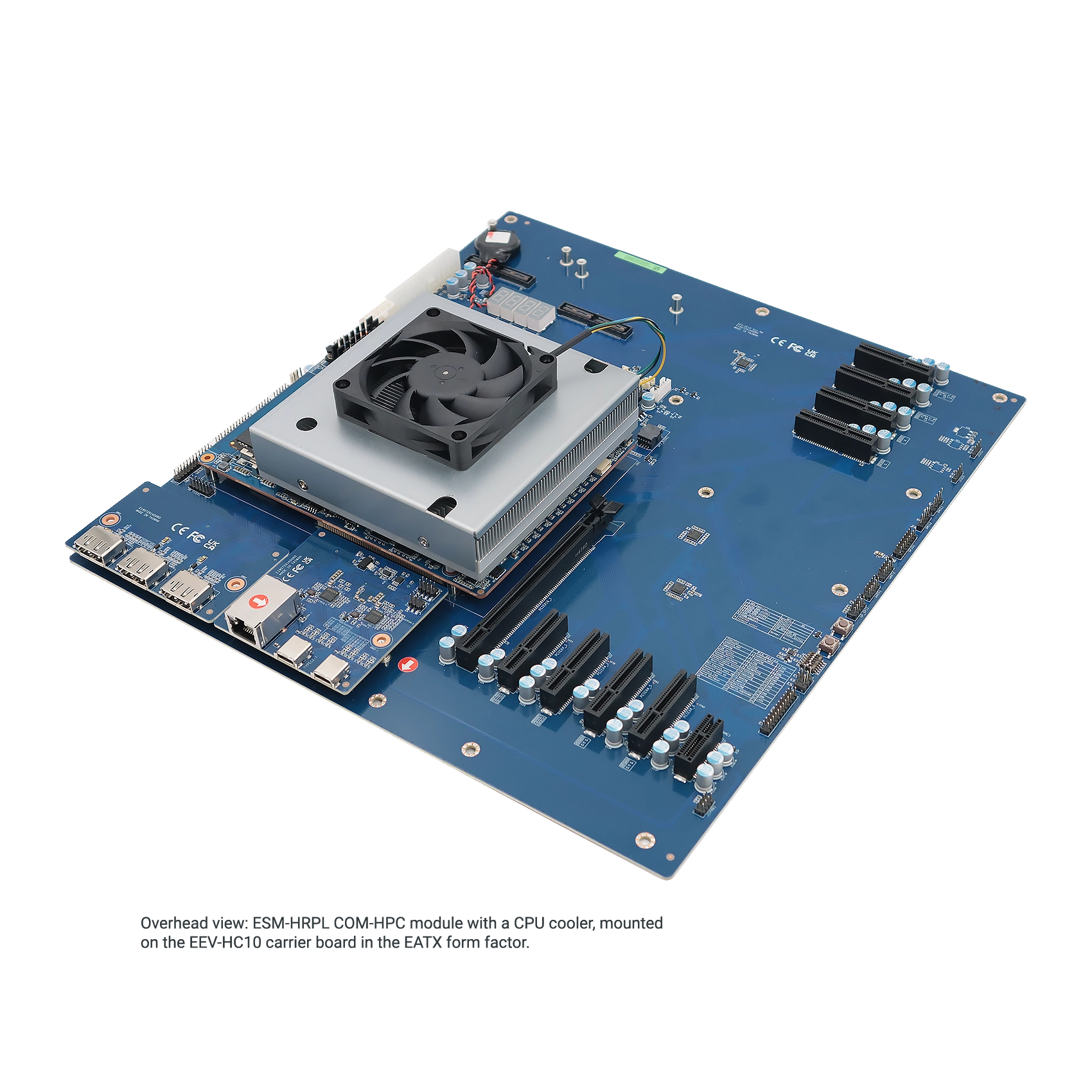

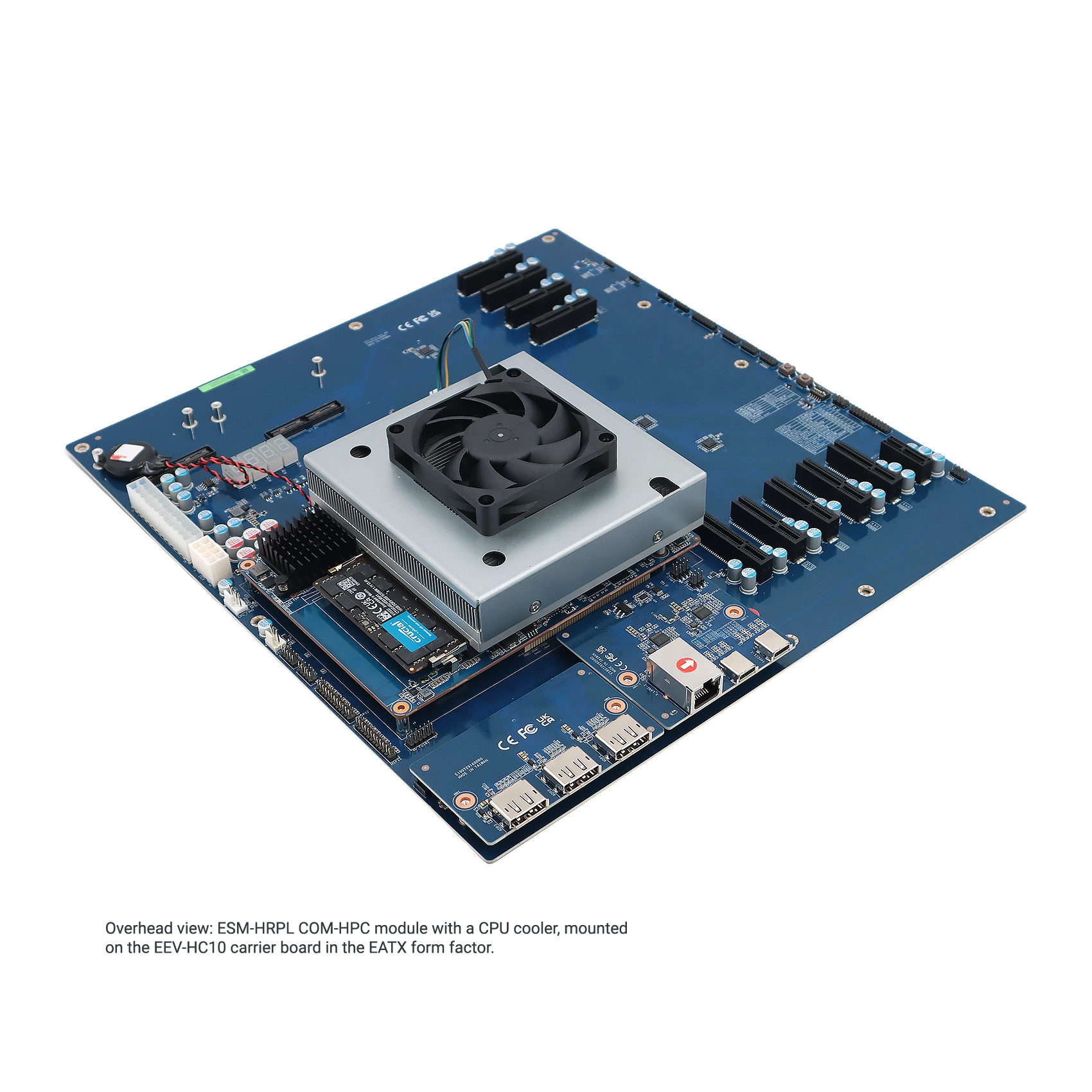

ESM-HRPL COM-HPC module on EEV-HC10 EATX Carrier Board

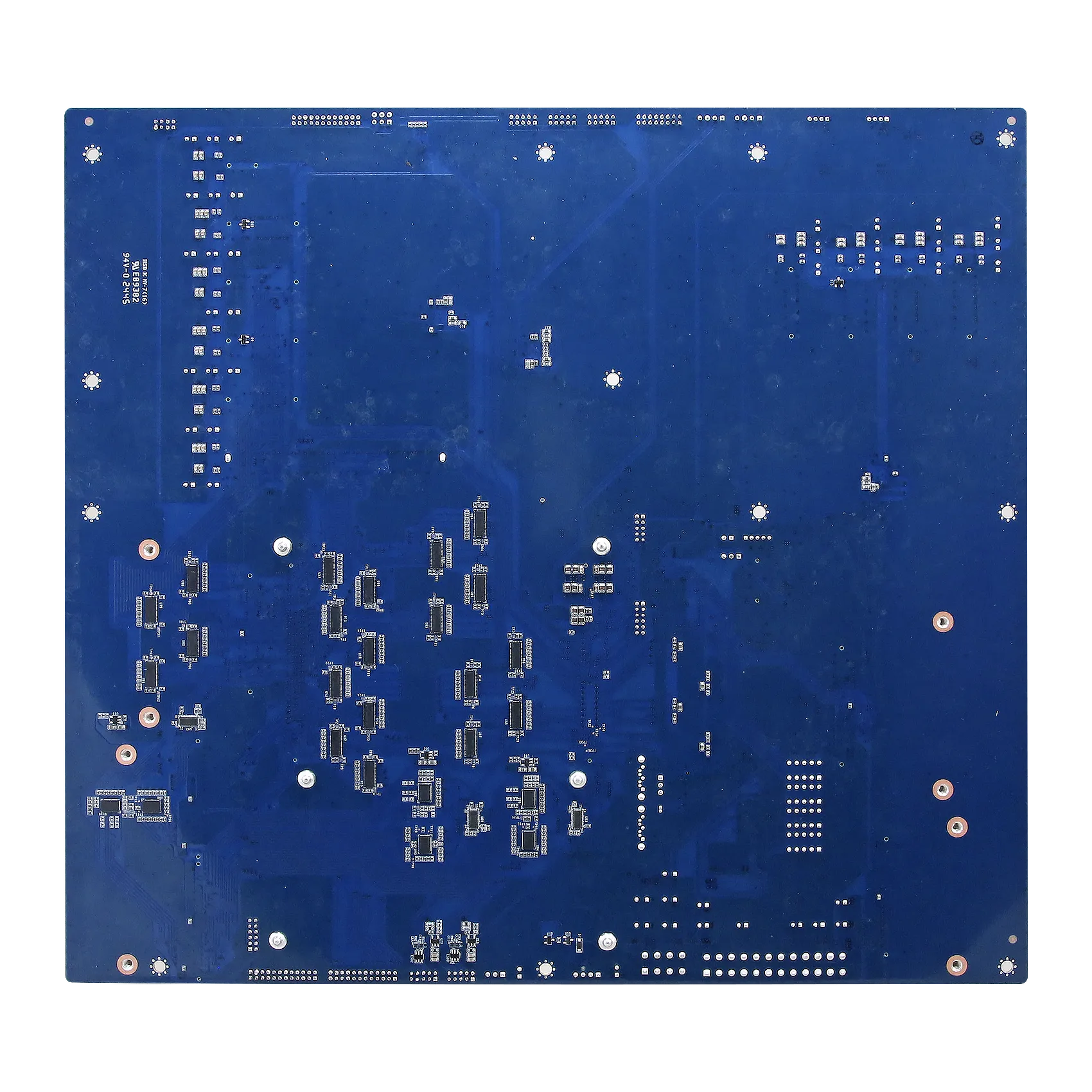

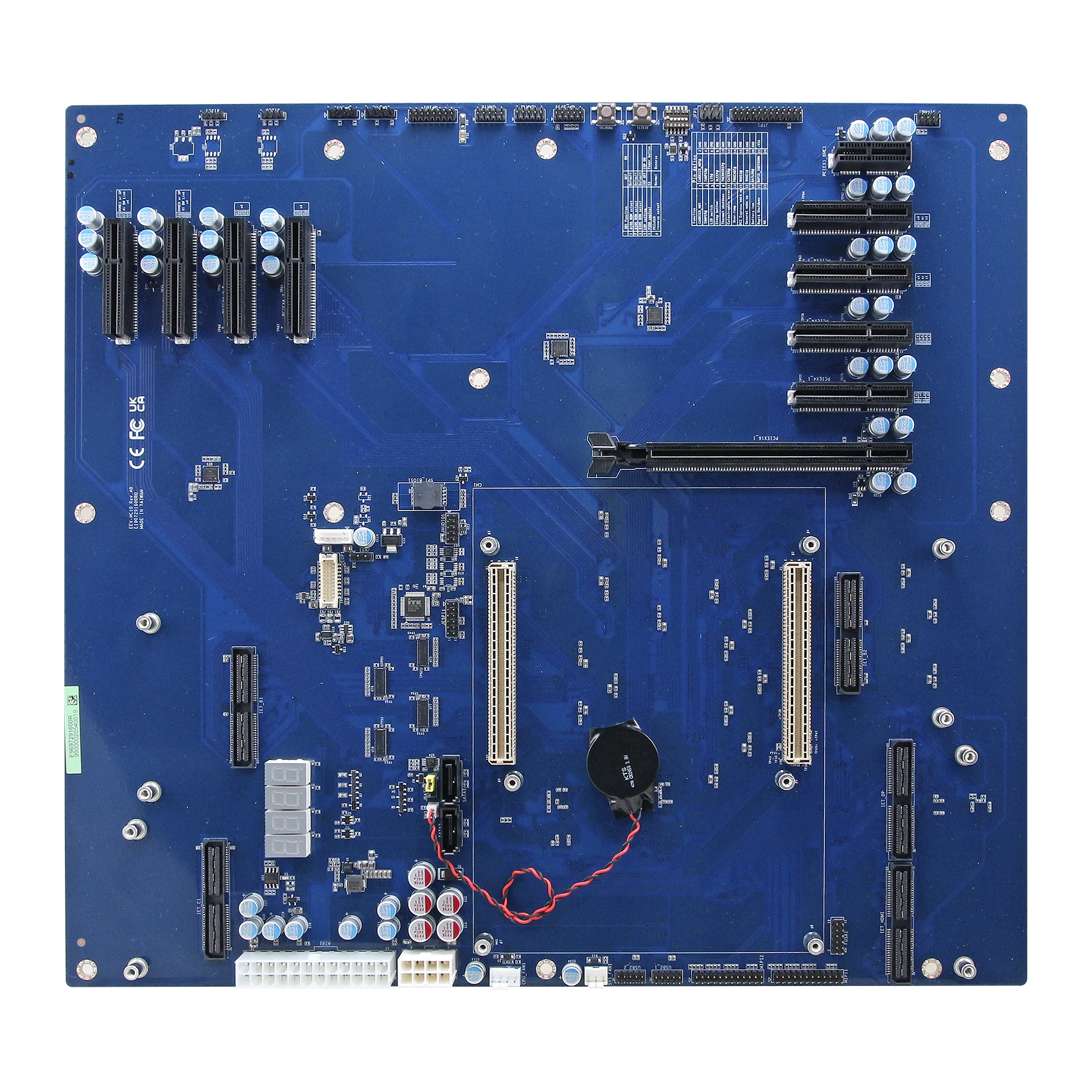

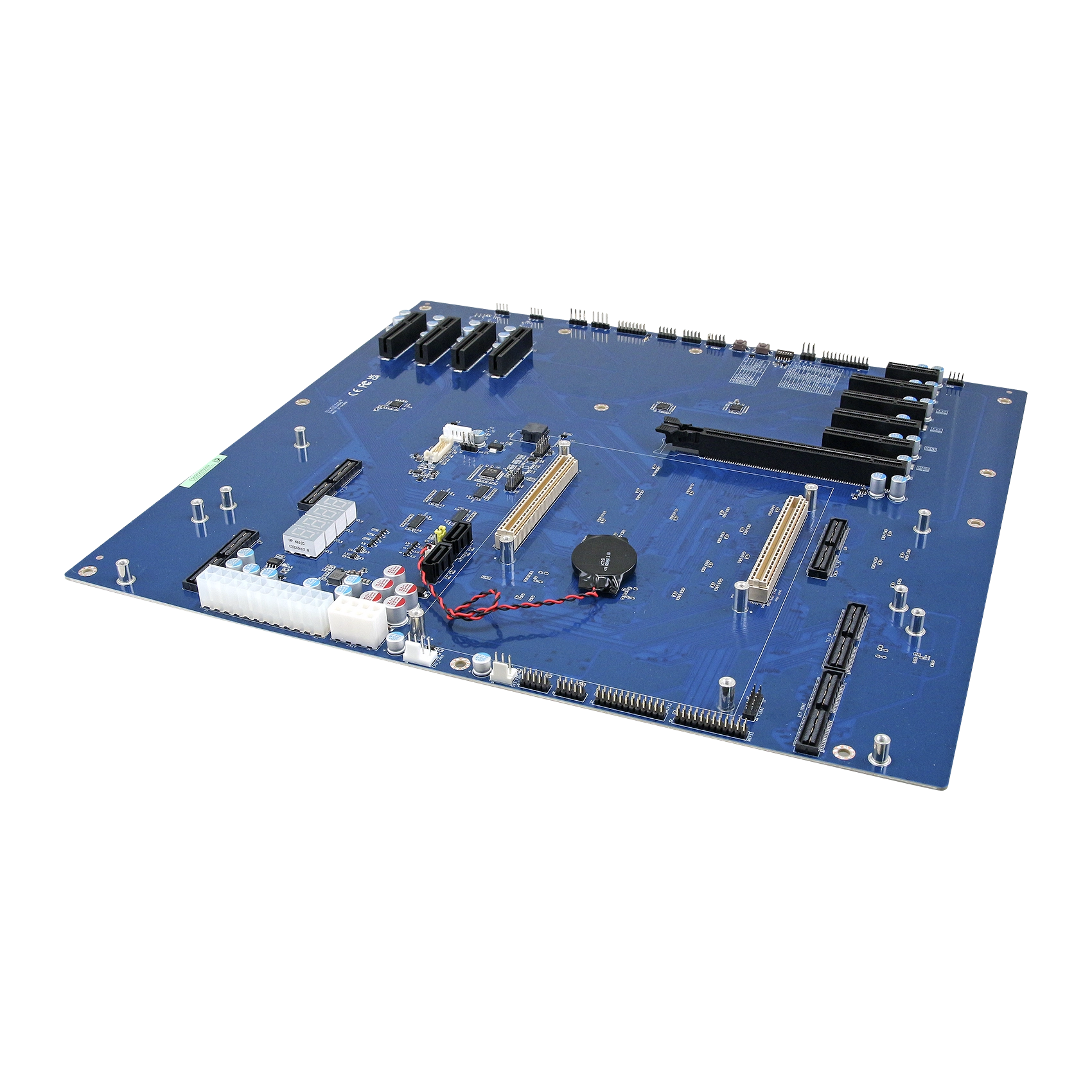

EEV-HC10

EATX Form Factor Carrier Board for COM-HPC Module

EATX form factor (12” x 13”, 305 x 330mm)
PICMG® COM-HPC® Revision 1.2, COM-HPC client pin-out, size A (95x120mm), B (120x120mm), and C (160x120mm) compatible
Unmanaged COM-HPC Carrier (C.U.)
1 x PCIe x16 Gen5, 8 x PCIe x4 , 1 x PCIe x1 for BMC
Flexible external I/O interfaces via IET modules - more DP/HDMI, USB, USB Type C, LAN ports
12-bit GPIO
2 x Serial Port/UART

Compatible COM-HPC Module

I/O
Expansion	1 x PCIe x16 Gen5 socket 8 x PCIe x4 sockets 1 x PCIe x1 socket for BMC
USB	4 x USB3.2 Gen2x2 (Type C) by 2 x IET module 4 x USB2.0 by pin header
SATA	2 x SATAIII
Video	Via IET Modules: 3 x DDI configurable to DP2.1 or HDMI 2.1b by 2 x IET modules 1 x eDP
Audio	Line-out, Mic-in
LAN	Via IET Modules: 2 x 10 or 25 Gigabit Ethernet connector by 1 x IET module 2 x 2.5 Gigabit Ethernet connector by 2 x IET modules
COM Port/UART	2 x Serial Port
DIO	1 x 12-bit GPIO
Mechanical and Environment
Operating Temperature	0°C ~ 60°C (32°F ~ 140°F) with 0.5m/s air flow
Storage Temperature	-20°C ~ 75°C (-4°F ~ 167°F)
Operating Humidity	40°C @ 95% Relative Humidity, Non-condensing
CE, FCC, RoHS Compliant	CE, FCC, RoHS Compliant
Form Factor	Extended ATX (EATX)
Dimensions (L) x (W)	12” x 13” (305 x 330mm)

* All product specifications and product images are subject to change without notice. Last update: 05/21/2025
