EMS-MTH EMS-MTH EMS-MTH EMS-MTH

EMS-MTH

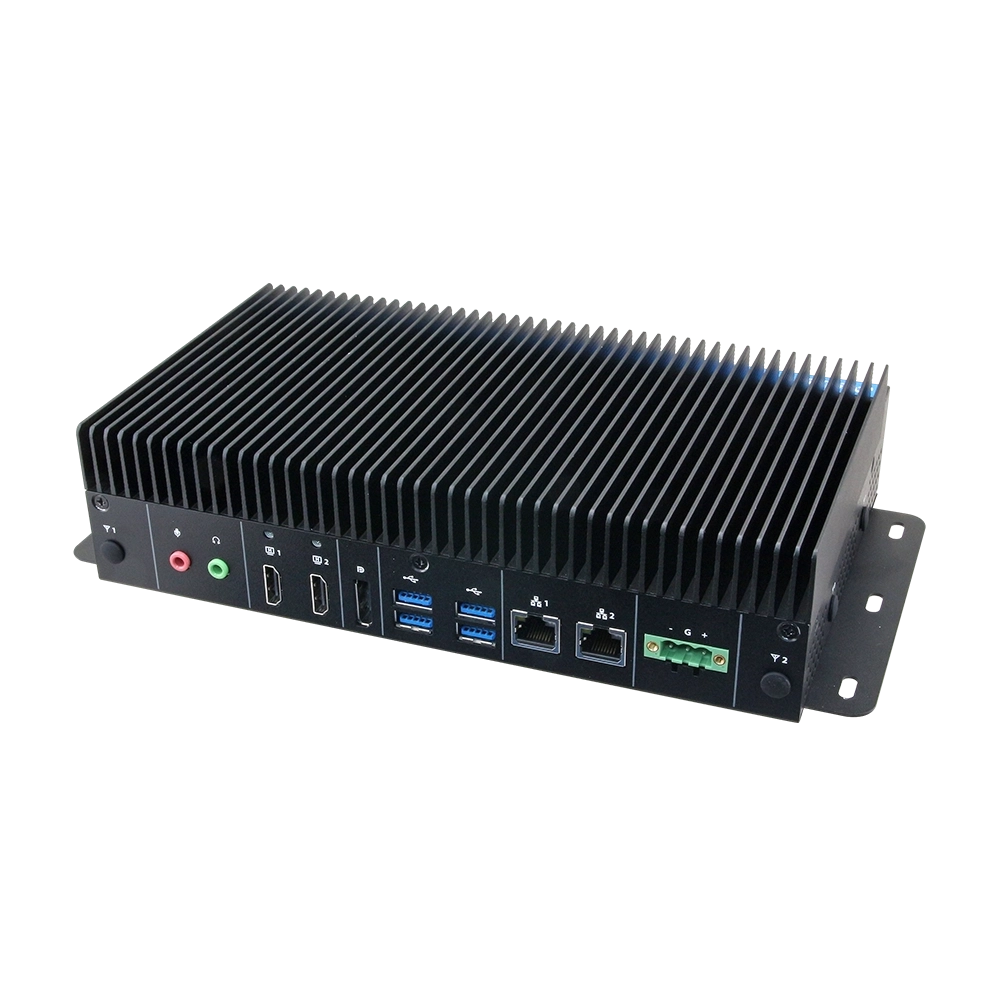

Intel® Core™ Ultra 7/5 Processor (Meteor Lake-H Platform) Fanless Rugged Embedded System

  • Intel® Core™ Ultra 7, Core™ Ultra 5 BGA (28W) Processor, Meteor Lake-H Platform
  • Integrated Intel® Xe LPG Graphics
  • 2 x SO-DIMM sockets support up to 64GB DDR5 5600MT/s
  • 2 x DP++ 1.4, 1 x HDMI 2.0b, supports 3 independent displays
  • Dual Intel I226-IT (2.5GbE) LAN ports
  • Support 5G (Sub-6G) module, M.2 NVMe SSD Gen4 x4
  • Fanless operation Temperature from -40°C ~ 50°C
  • Wide range DC power input from +9~36V
  • TPM 2.0, iAMP (selected CPU), IP50
  • Flexible IO interfaces via IET interface (1 x DDI, 4 x PCIe Gen4x1, 3 x USB2.0, 1 x SMBus, eSPI)

System
CPU Intel® Core™ Ultra 7 Processor (28W)
Intel® Core™ Ultra 5 Processor (28W)
Meteor Lake-H Platform, 28W Processor Base Power (PBP)
System Memory 2 x 262-pin SO-DIMM sockets support up to 64GB DDR5 5600MT/s
BIOS AMI uEFI BIOS 256 Mbit SPI Flash ROM
I/O Chip EC ITE IT5782
Audio Codec Realtek HD Audio
Ethernet 2 x Intel® Ethernet Controller I226-IT , 10/100/1000/2500 Base-Tx GbE Compatible
Expansion 1 x M.2 B-Key (2242/3042/3052), supports SATA3 / PCIe Gen4x1 / USB 3.2 + SIM slot
1 x M.2 E-Key (2230) for Wi-Fi & BT Moduel (PCIe Gen4x1 / USB 2.0)
1 x IET interface (1 x DDI, 4 x PCIe Gen4x1, 3 x USB2.0, 1 x SMBus, eSPI)
Storage through 1 x M.2 M-Key 2280 (1 x PCIe Gen4x4), supports NVMe
1 x M.2 B-Key 2242, supports SATA (share with expansion slot)
Watchdog Timer H/W Reset, 1sec. ~ 65535sec.
H/W Status Monitor CPU & system temperature monitoring and voltages monitoring
TPM dTPM 2.0
iAMT Supported by selected CPU
Supported OS Win 10 64-bit, Win 11 64-bit, Linux
Display
Chipset Integrated Intel® Xe LPG Graphics
Resolution DP++ 1.4: 4096x2304 @ 60Hz
HDMI 2.0b: 4096x2304 @ 60Hz
Multiple Display Supports 3 Independent Displays

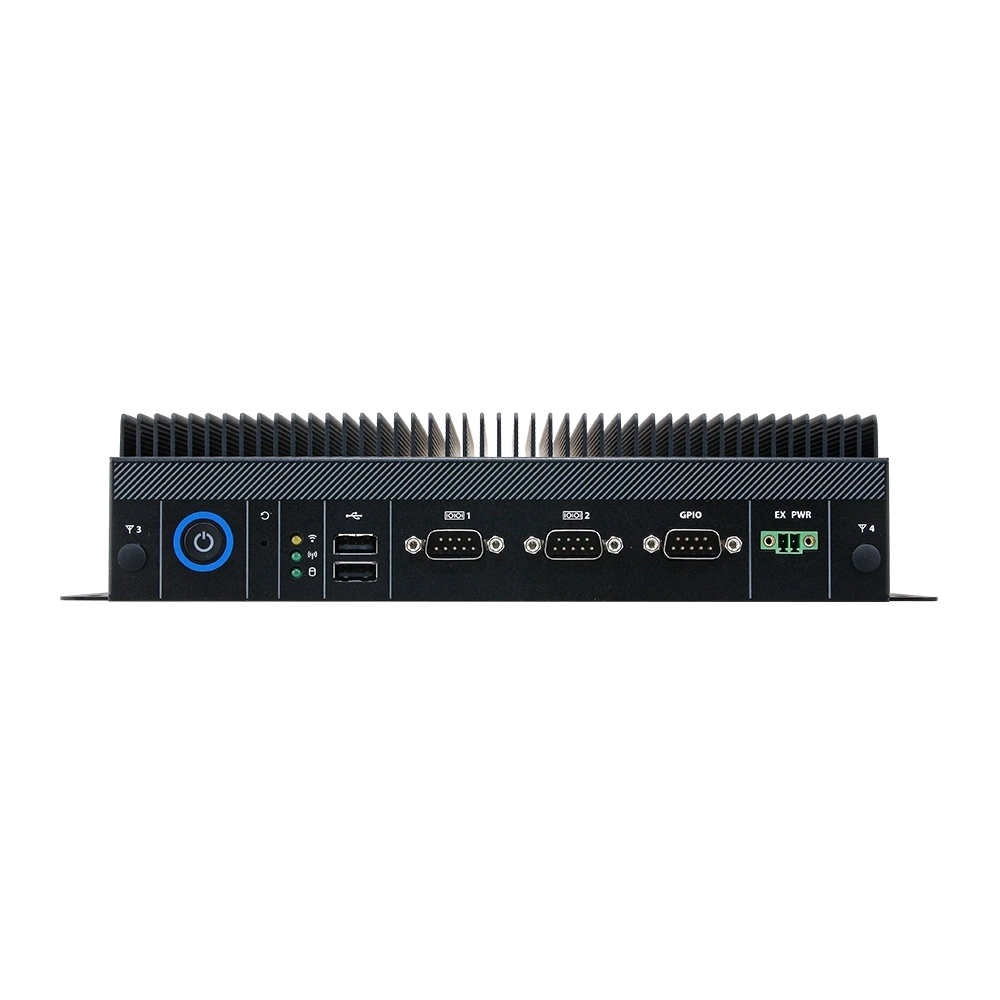

External I/O - Front
Power Switch 1 x Push Button for Power on/off
Reset Button 1 x Push Button for Reset
Wire-Control Power On/Off 1 x 2-Pin Terminal Block for wire-control power on/off
USB 2 x USB 2.0
COM Port 2 x RS232/422/485
GPIO 1 x 8-bit GPIO (DB9)
SIM Card Slot 1 x Internal SIM slot
Antenna 2 x Antenna with dust covers
LED Indicators 1 x Power LED (Blue)
1 x Storage LED (Yellow)
1 x LTE LED (Green)
1 x Wi-Fi LED (Green)

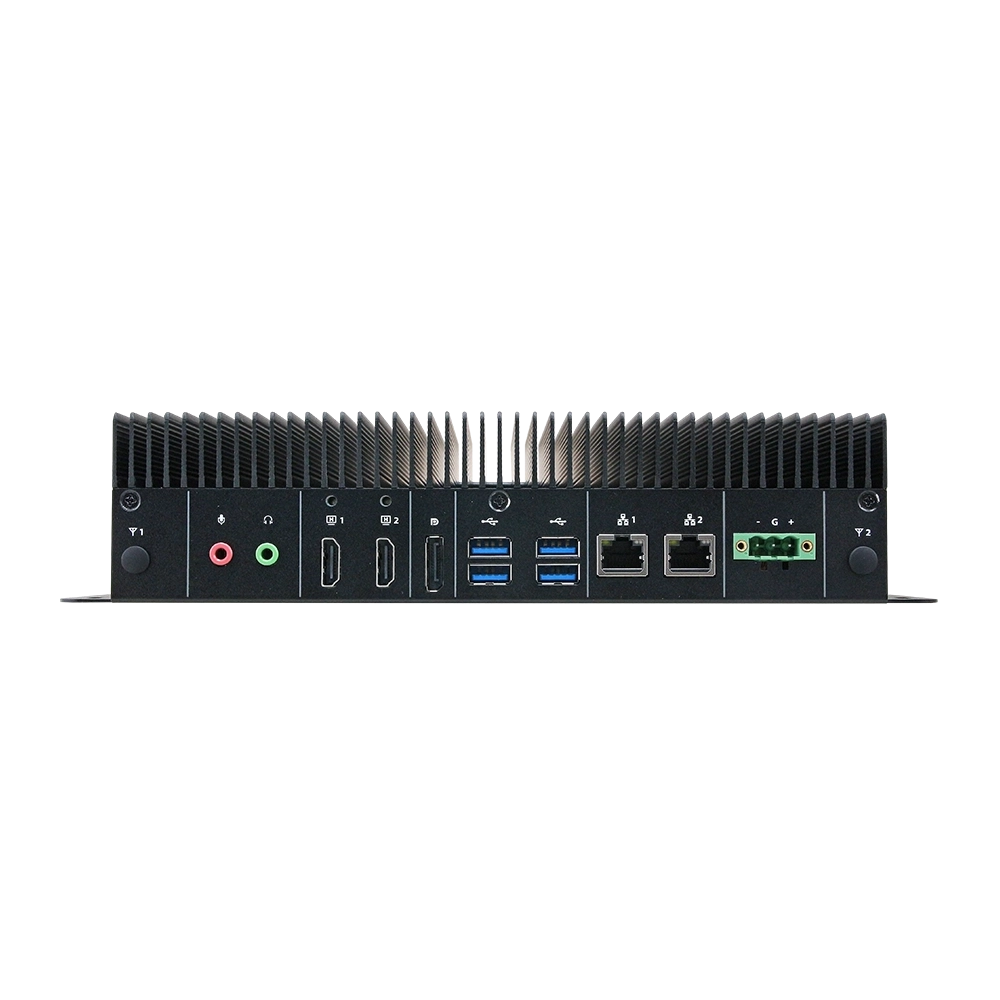

External I/O - Rear side
Display 1 x DP++ 1.4
2 x HDMI 2.0b
USB 4 x USB 3.2 Gen.1 (5Gbp/s)
LAN 2 x RJ45
Audio 1 x Line-out, 1 x Mic-in
Antenna 2 x Antenna with dust covers
DC Input 1 x 3-pin Phoenix connector
External I/O - Right side
Antenna 2 x Antenna with dust covers
External I/O - Left side
Antenna 2 x Antenna with dust covers
Power Requirement
DC Input +9V to +36V Wide Range DC Input
DC-in Connector 3-pin Phoenix connector
ACPI Single power ATX Support S0,S3, S4, S5
ACPI 5.0 Compliant
Power Mode AT/ATX (ATX by default)
Mechanical and Environment
Operating Temperature -40°C ~ 50°C (w/SSD) ambient w/ air flow
Storage Temperature -30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity

95% Relative Humidity @ 40°C, non-condensing
IP Rating IP 50
Regulatory/Compliance CE Class B, FCC Class B, UKCA, IP50
Mounting Kit Standard: Wall Mount Kit
Optional: Din Rail Mount Kit
Dimensions Standard: 9.45" x 5.91" x 2.32" (240 x 150 x 59mm)
Optional: 9.45" x 5.91" x 3.35" (240 x 150 x 85mm) (with IET Module)
Weight 5.07 lbs (2.3 kg)

* All product specifications and product images are subject to change without notice. Last update: 08/10/2025
