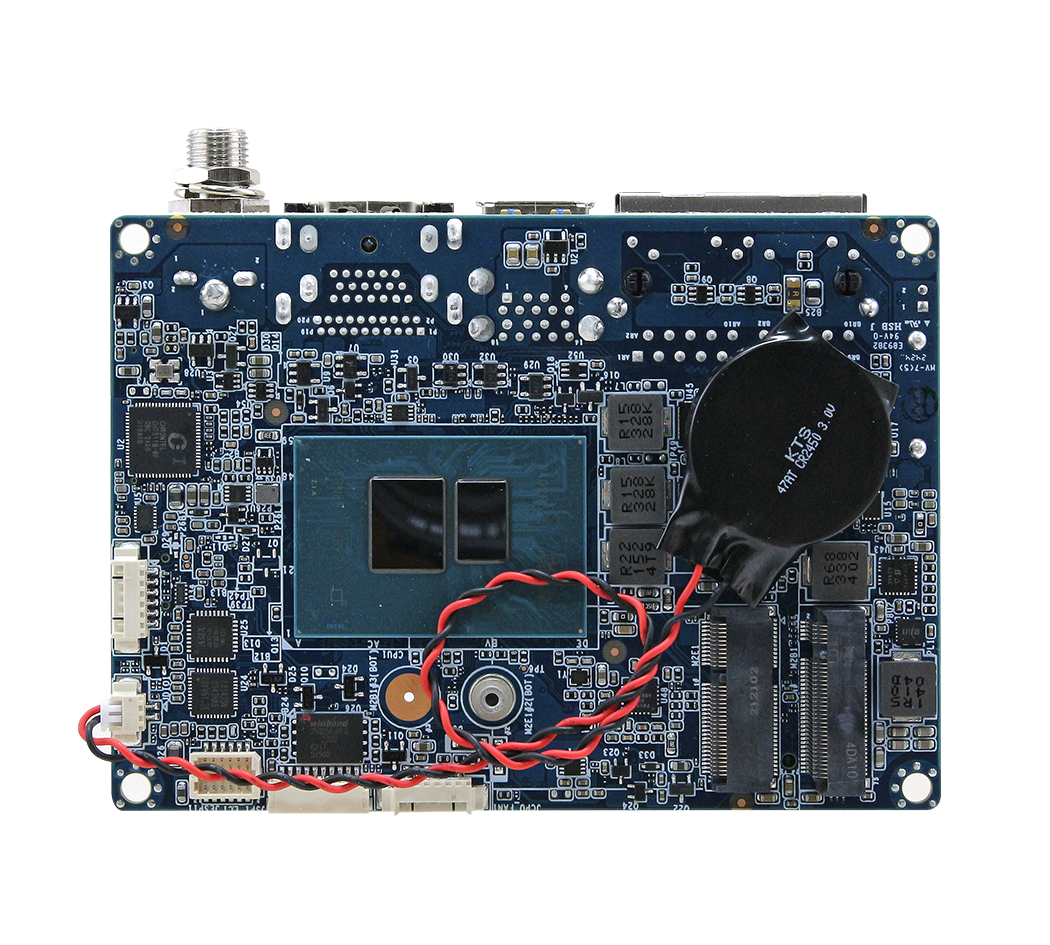

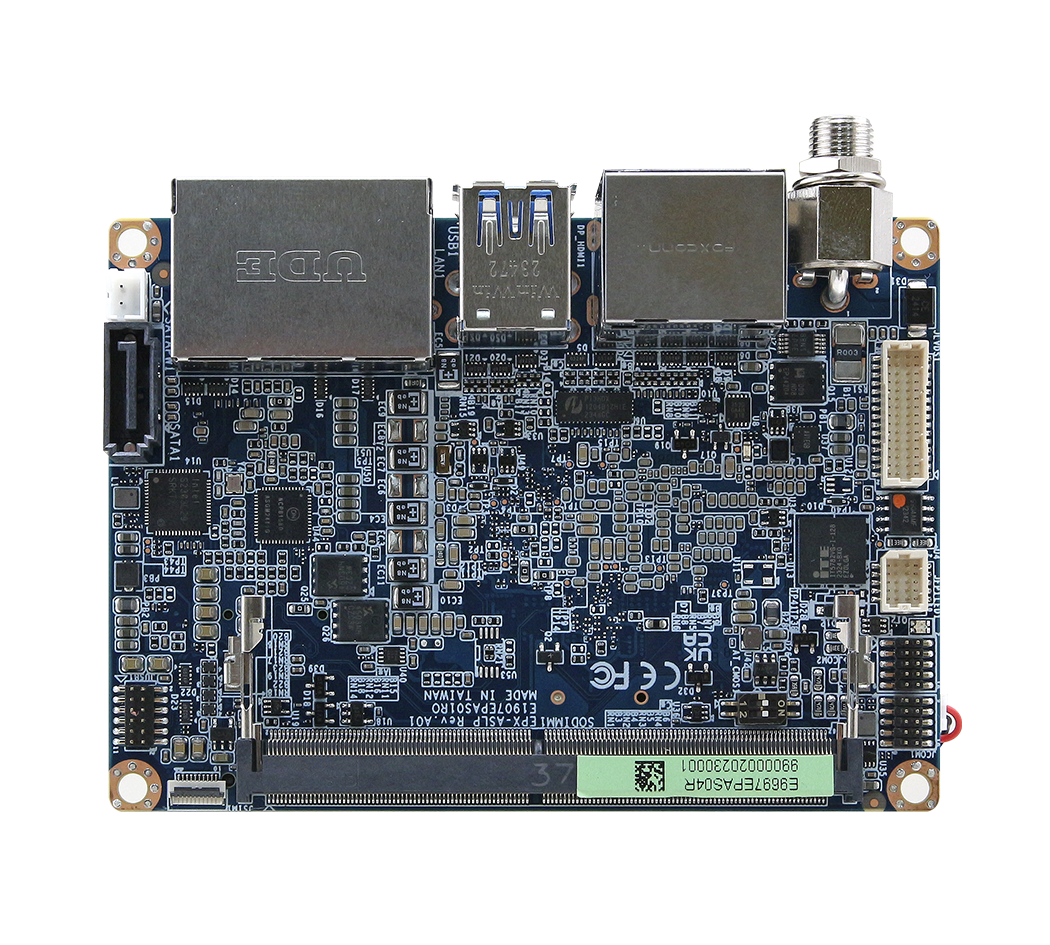

EPX-TWLP 2.5in SBC Pico ITX EPX-TWLP 2.5in SBC Pico ITX EPX-TWLP 2.5in SBC Pico ITX EPX-TWLP 2.5in SBC Pico ITX

EPX-TWLP

2.5" SBC Pico-ITX built with the Intel® Processor N150 & N250 Onboard

  • Intel® Processor N150 or N250 Onboard
  • 6W Low Power Processor Base Power
  • Twin Lake Platform
  • 1 x DDR5 4800MHz SO-DIMM socket, supports up to 16GB
  • Supports 3 Indenpendent Displays: DP 1.4a, HDMI 2.0b, 1 x 1CH LVDS
  • Dual LAN: Intel® Ethernet Controllers I226-V (2.5GbE)
  • M.2 B-Key, M.2 E-Key
  • 1 x RS-232, 1 x RS-232/422/485
  • DC in +12V

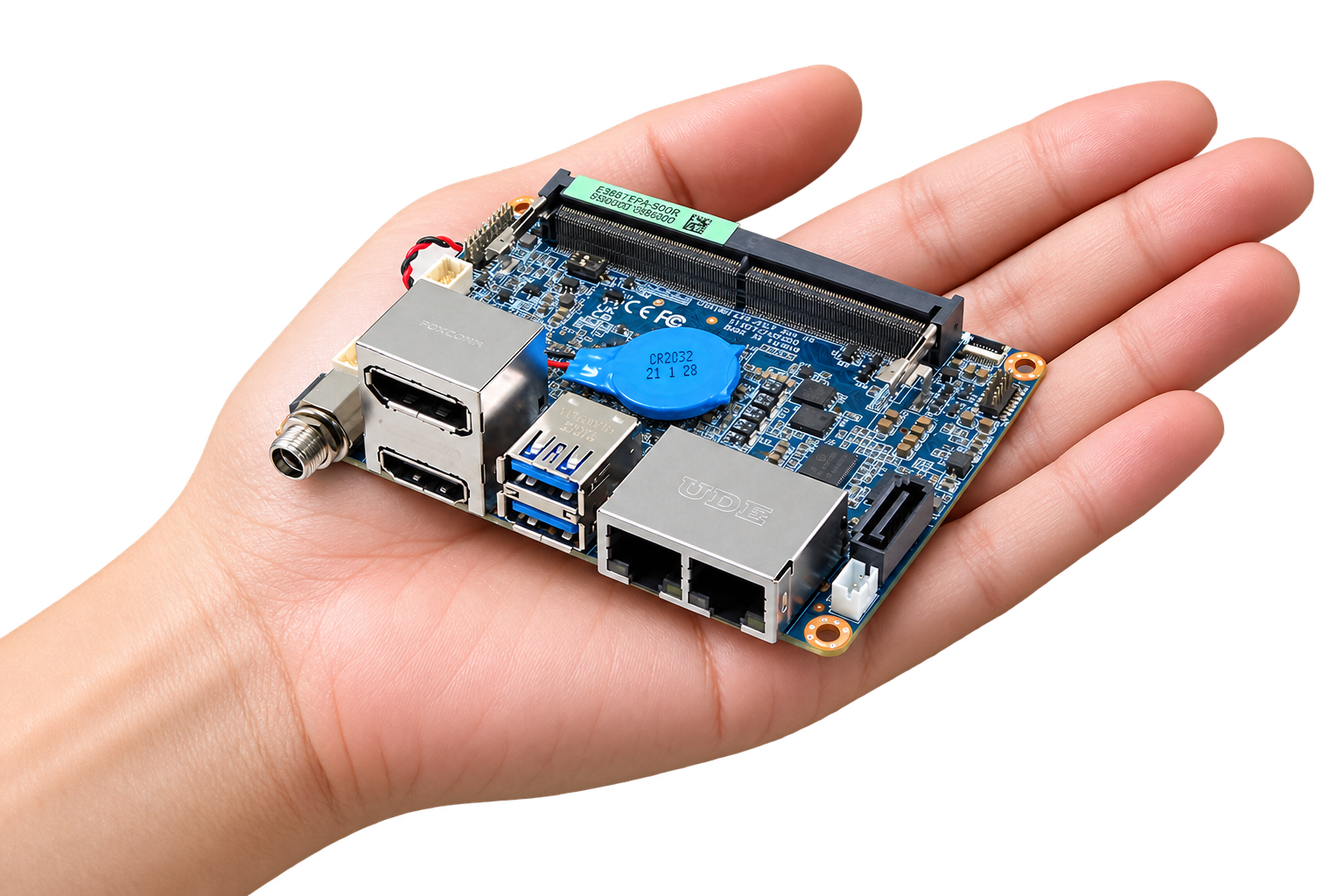

  • Ultra Small Form Factor: 3.94" x 2.83" (100mm x 72mm)

System
CPU Intel® Processor N150, 6M Cache, up to 3.60 GHz
Intel® Processor N250, 6M Cache, up to 3.80 GHz
System Memory 1 x 262-pin DDR5 4800MHz SODIMM socket, supports up to 16GB
Audio HD Audio
Ethernet 2 x Intel® Ethernet Controller I226-V (2.5 GbE)
I/O Chip EC IC: IT5782 or Equivalent
Fintek_F81435N or Equivalent for COM port
BIOS AMI BIOS, 256Mbit SPI Flash ROM
Expansion 1 x M.2 B-Key 2242/3042 with (1 x PCIe x1 or USB3.2 GEN1) or (1 x SATA III + USB3.2 GEN1), USB2.0, SIM Slot for SSD/LTE/IO Cards) *Default: SATA
* 1 x 10Pin FPC connector for Micro SIM card adapter
* Micro SIM card to SIM card adapter by optional
1 x M.2 Key-E 2230 support WiFi module, USB 2.0 Signal, PCIe x1 Signal
Storage 1 x M.2 B-Key
1 x SATA III
Watchdog Timer H/W Reset: 1Sec. ~ 65535Sec./Min. and1 Sec. or 1Min./Step
H/W Status Monitor CPU temperature monitoring
Voltages monitoring
CPU fan speed control
TPM Support fTPM
Supported OS Windows 11, Linux
Display
Graphics Engine Intel® Graphics
Display Interfaces HDMI 2.0b Max resolution 4096 x 2160@60Hz
DP 1.4a Max resolution 4096 x 2160@60Hz
LVDS 1366 x 768 Single channel 18/24-bits
Multi-Display Supports 3 Indenpendent Displays

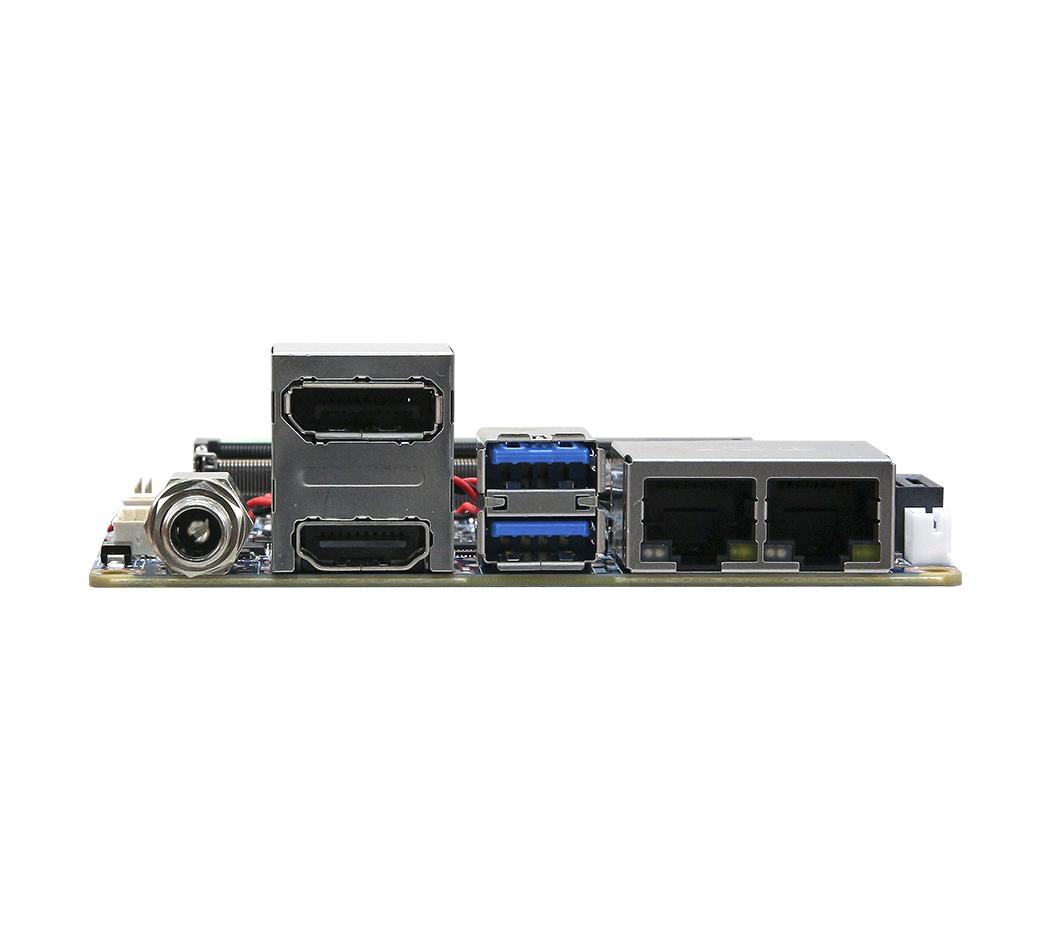

External I/O
Display 1 x DP, 1 x HDMI
LAN 2 x RJ45
USB 2 x USB 3.2 Gen2
DC-in Lockable DC Jack
Internal I/O
Display LVDS
USB 4 x USB 2.0
COM 1 x RS-232
1 x RS-232/422/485
GPIO 1 x 4-bit GPIO
SATA 1 x SATA III
Mechanical and Environment
Power Type DC in +12V
Operating Temperature 0°C ~ 60°C (-4°F ~ 140°F) with 0.5m/s Air Flow
Storage Temperature -40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Form Factor Pico-ITX
Dimensions 3.94” x 2.83” (100mm x 72mm)
Certification CE, FCC, RoHS Compliant
Weight approx. 0.66lbs (0.3Kgs)

* All product specifications and product images are subject to change without notice. Last update: 09/11/2026

Document
Datasheet - Contact Tech Support
Manual - Contact Tech Support
BIOS Version Revision Note Download
Coming Soon
Drivers Download
Coming Soon
Date Description Download
Model Name Description
EPX-TWLP-N150-A1R Intel® Processor N150, 2.5 Pico ITX SBC Motherboard
EPX-TWLP-N250-A1R Intel® Processor N250, 2.5 Pico ITX SBC Motherboard
