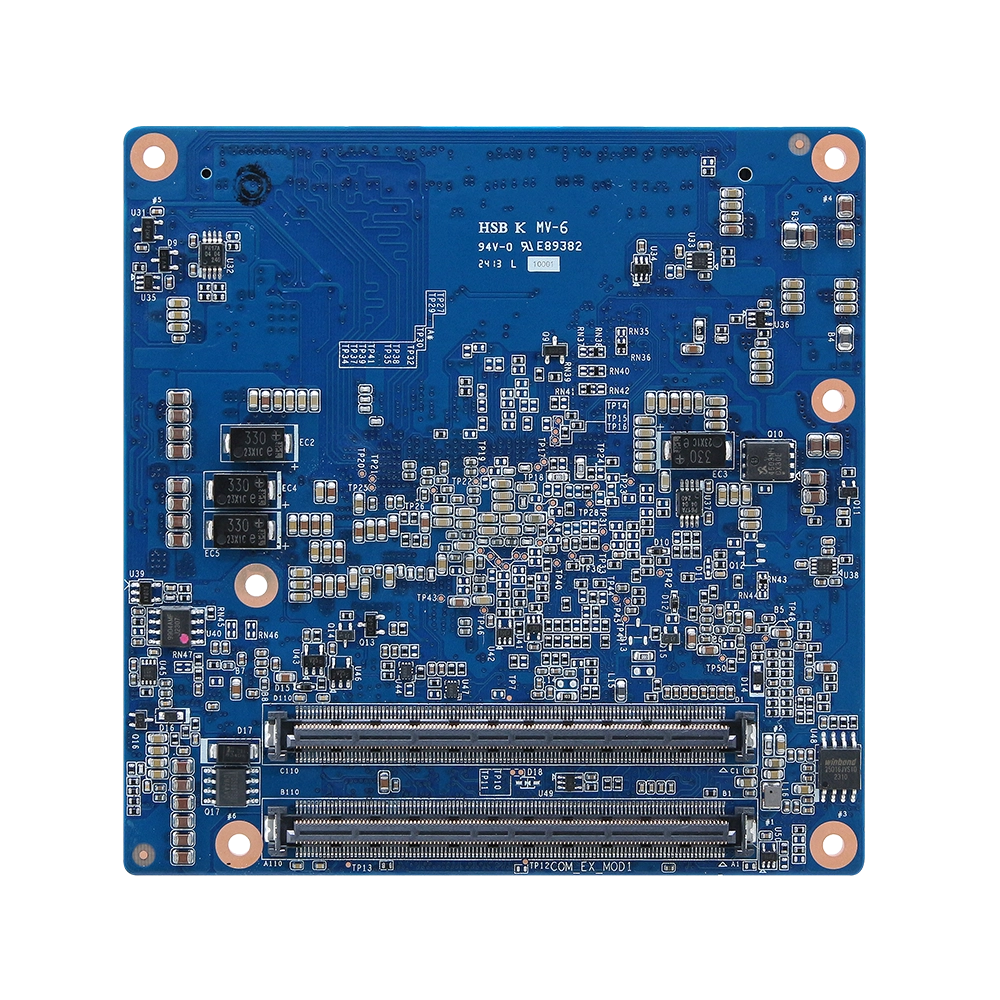

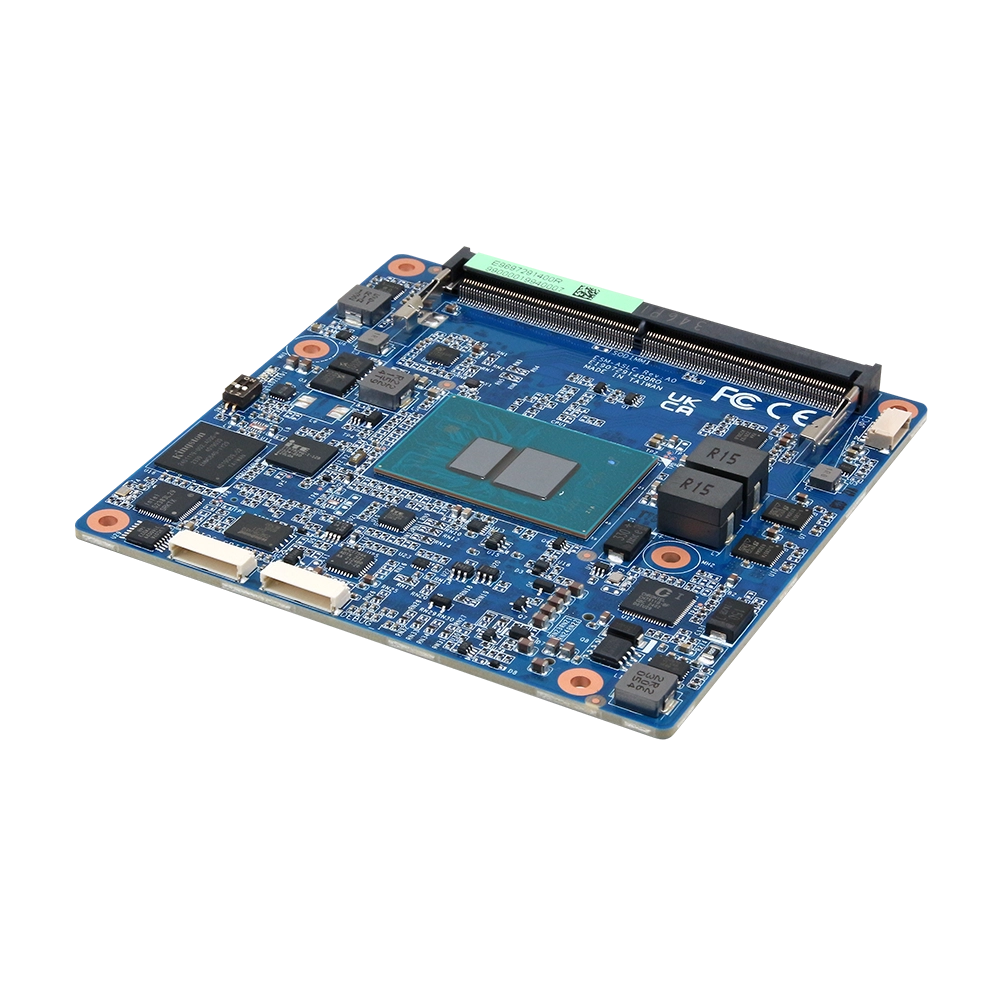

ESM-ASLC

Compact Type6 COMe Module with Intel® Atom™ x7000RE Series Processors. Wide Temp.

  • PICMG COM R3.1 Type 6 module with Intel® Atom™ x7000RE Processors
  • Formerly Intel® Amston Lake Platform
  • 1 x 262-pin DDR5 4800MHz SO-DIMM socket supports up to 16GB
  • Supports In-Band ECC memory protection (selected SKUs)
  • 1 x Intel® Ethernet Controller I226-IT (2.5GbE)
  • DC in +9V ~ +19V
  • Supports extended temp: -40°C ~ 80°C (-40°F ~ 176°F)
  • Optional onboard TPM 2.0
  • COMe Type 6 Compact Size: 3.74" x 3.74” (95 x 95 mm)
  • Extended Temp: -40°C ~ 80°C (-40°F ~ 176°F)
System
CPU Intel® Atom™ x7000RE Series Processors
System Memory 1 x 262-pin DDR5 4800MHz SO-DIMM socket supports up to 16GB
Select SKUs support In-Band ECC memory protection
BIOS AMI uEFI BIOS, 256 Mbit SPI Flash ROM
I/O Chipset EC ITE IT5782VG-I-128/BX or Equivalent
Ethernet Intel® Ethernet Controller I226-IT (2.5GbE)
Audio Intel® HD Audio Integrated on CPU
Storage eMMC 5.1 Up to 128GB (Optional)
Watchdog Timer H/W Reset, 1Sec. ~ 65535Sec. and 1Sec./Step
H/W Status Monitor CPU temperature monitoring
Voltages monitoring
CPU fan speed control
Expansion 4 x PCIe Gen3 x1 or 1 x PCIe Gen3 x4 or 2 x PCIe Gen3 x1
TPM Onboard TPM 2.0 (Optional)
OS Support Microsoft® Windows 11 64-bit
Linux
Display
Chipset Intel® UHD Graphics
Resolution 1 x HDMI 2.0b: 1920x1080 as Default or 4096x2160 @ 60Hz set by Bios.
*VBT1 use Vbios for Full HD/ no display audio. VBT3 use Vbios for output 4K/ support display audio
1 x DP 1.4a: 3840x2160 @60Hz
1 x LVDS (via eDP-to-LVDS): 1920x1080 @60Hz
LVDS via CH7511B or 1 x eDP 1.4b(Optional): 3840x2160 @60Hz
Multi-Display Support 3 Independent Display
LVDS CH7511B (eDP to LVDS)
DDI 3 x DDI
DDI1: 2 CH LVDS (via eDP-to-LVDS) or eDP(By BOM Optional)
DDI2: DDI Signal
TCP0: DDI2 signal or Type C signal
I/O
USB 8 x USB2.0, 2 x USB3.2 Gen 2x1 or
8 x USB2.0, 4 x USB3.2 Gen 2x1 or
8 x USB2.0, 4 x USB3.2 Gen 2x1
COM Port 2 x UART (RX/TX Only)
GPIO 1 x 8-bit GPIO
SATA 2 x SATA III or N/A
MIO 1 x SMBus
1 x LPC
1 x eSPI (W-B 10Px1 1.0mm 90D for debug conn)
1 x I2C
1 x SPI
Mechanical and Environment
Power Requirement +9 ~ +19V
Power Type AT/ATX
Operating Temperature Extended Temp: -40°C ~ 80°C (-40°F ~ 176°F)
Storage Temperature -40°C ~ 75°C (-40°F ~ 167°F)
Operating Humidity 40°C @ 95% Relative Humidity, Non-condensing
Form Factor COM Express Modules
Dimensions (L) x (W) 3.74” x 3.74” (95 x 95 mm)
Weight 0.16lbs (0.07kg)

* All product specifications and product images are subject to change without notice. Last update: 02/10/2025

Document
Datasheet
Manual
Driver Description Operating System Download
Intel(R) Chipset 10.1.19502.8391 Windows 11 64bit
Intel(R) Graphics 101.5081 Windows 11 64bit
Intel(R) CSME 2341.5.37.0 Windows 11 64bit
Intel(R) LAN Driver Windows 11 64bit
Model Name Description
ESM-ASLC-X13RE Intel Atom® x7213RE COM Express Module 95*95 mm Type 6
ESM-ASLC-X33RE Intel Atom® x7433RE COM Express Module 95*95 mm Type 6
ESM-ASLC-X35RE Intel Atom® x7835RE COM Express Module 95*95 mm Type 6
ACC-ESMASLC-CL Cooler for ESM-ASLC W/FAN H=60mm. Wide Temp
