This is an OEM Only product.

This product is marked as "OEM Only". OEM products are designed for OEMs with ongoing and consistent order requirements and subject to minimum order quantities. Evaluation units are available without such restrictions. BCM has multiple stocking distributors that may be able to work with OEMs to streamline product deliveries. Please contact BCMSales@bcmcom.com Sales for more information.

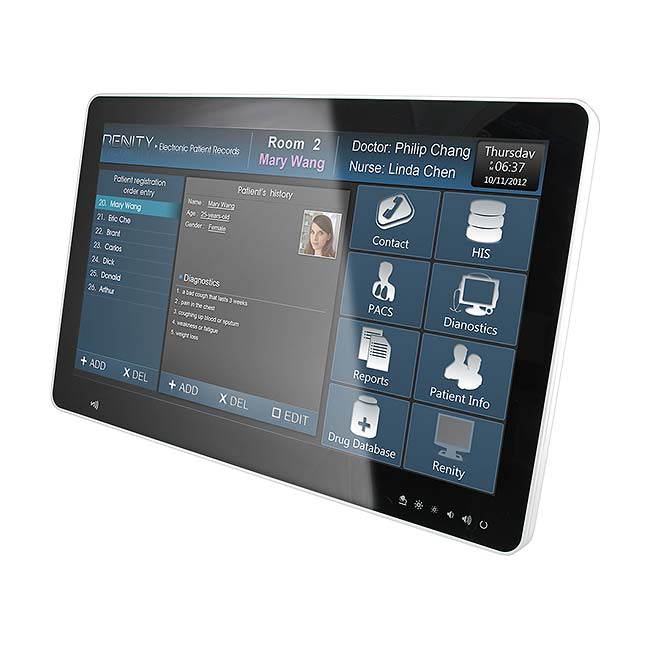

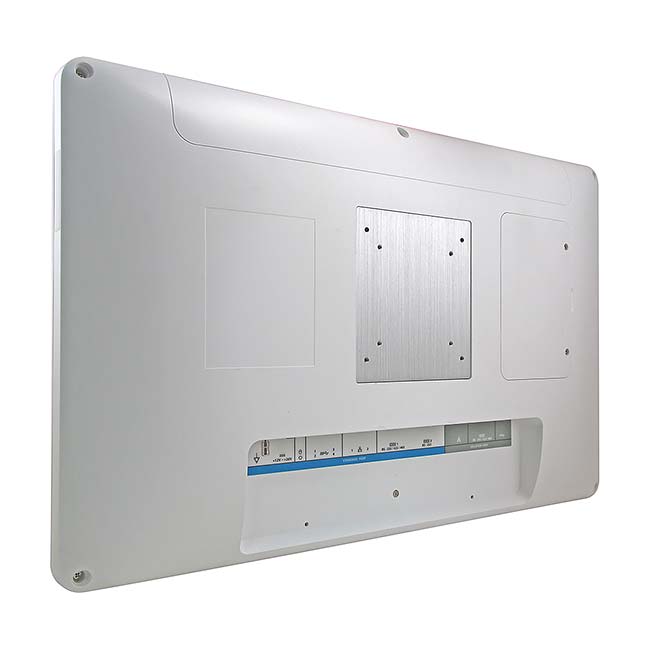

HID-2132 21 inch Medical Panel PC, Intel Core i7/i5/i3 Celeron 3955U Skylake Processor Onboard HID-2132 21 inch Medical Panel PC, Intel Core i7/i5/i3 Celeron 3955U Skylake Processor Onboard HID-2132 21 inch Medical Panel PC, Intel Core i7/i5/i3 Celeron 3955U Skylake Processor Onboard

HID-2132

21.5" Slim design Multi-touch Medical Panel PC

  • 21.5” 16:9 1080P Display with PCAP Multi touch
  • Onboard 6th Gen. Intel® Core™ i7/ i5 / i3/ Celeron Processor
  • Support 1x 260 pin SO-DIMM up to 16GB DDR4 SDRAM
  • Anti-Microbial Finish
  • 4x USB3.0, 1x RS-232/422/485, 1x RS-232, 2x Intel® Gigabit LAN
  • iAMT 11.0 support (for i7/i5 CPU)
  • Dual LED Reading Light Bar
  • Stylish Front OSD keypad touch control button
  • Front Panel IP65 & Fanless Design
  • Ultra-slim design only at 45.5mm thickness
  • 5-kV Isolation USB/ COM/ LAN ports by IET module
  • Built-in NFC module
System
CPU 6th Generation Intel® Core™ i7-6600U, i5-6300U, i3-6100U, or Celeron 3955U Processor
System Chipset Intel® SoC Integrated
System Memory 1 x 260-pin DDR4 SODIMM (non ECC) support up to 16GB
I/O Chip EC IT8528E
Wireless Communication 802.11 b/g/n
Watchdog Timer H/W Reset, 1sec. ~ 65535sec. and 1sec./step
H/W Status Monitor Monitoring System Temperature & Voltage
TPM Infineon TPM 2.0 (SLB 9665 TT2.0)
iAMT iAMT 11.0 support for i7/i5 CPU
Expansion 1 x Full size mini-PCIe slot (for mSATA & PCIe & USB2.0 signal)
Storage 1 x 2.5" Drive Bay
OS Information Win 7
Win 8.1
10, Linux
Display
Chipset Intel® HD Graphics 520
Panel
LCD Size 21.5" Full HD
Resolution 1920x1080
Pixel Pitch 0.24795 (H) x 0.24795 (V)
Contrast Ratio 3000
Luminance 250 cd/m2
Viewing Angle 89(U), 89(D), 89(L), 89(R)
Response Time 18ms
Backlight LED
Touch Type Projective Capacitive
Touch Light Transmission 86%
Touch Controller USB touch (EETI EXC3188)
Ethernet
Chipset 1 x Intel® I210-AT Gigabit Ethernet Controller
1 x Intel® I219-LM Gigabit Ethernet Controller
1 x Isolation 5-kV Intel® I210-AT (by IET Module)
Interface 10/100/1000 Base-Tx GbE compatible
LAN Port 2 x RJ-45
1 x RJ-45 (by IET module)

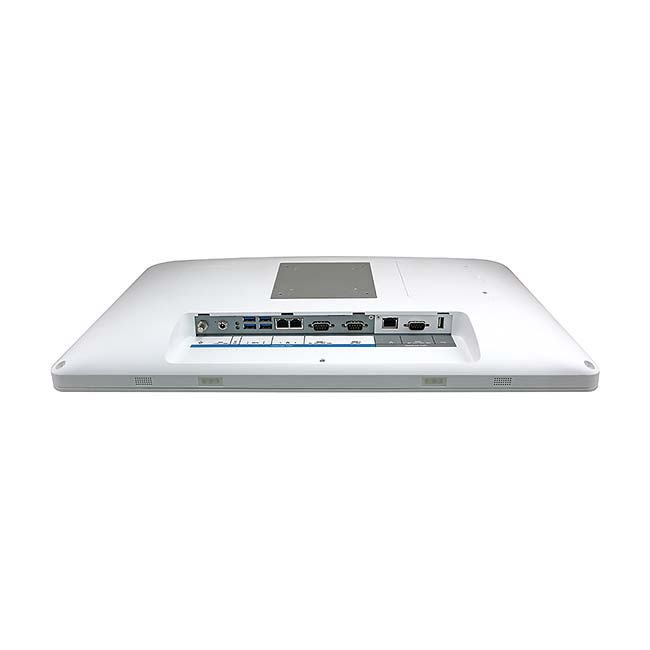

I/O
USB 4 x USB 3.0
2 x USB 2.0 (by pin header)
1 x Isolation 5-kV USB2.0 (by IET module)
SATA 1 x SATA III
COM Port 1 x RS-232/422/485
1 x RS-232
1 x Isolation 5-kV RS-232/422/485 (by IET Module)
Other Dual LED Reading Light Bar
I/O Cover
Optional MSR/SCR Module with MOQ apply
Optional Smart Backup Battery Module
Optional WIFI/BT module (by mini-PCIe)
Optional Handset & 1D Barcode Scanner
Power Requirement
Power Connector Lockable DC Jack, +12V~+26V
Power Mode AT/ATX (ATX is default setting)
Battery 1100mAh 4S1P (by optional)
Battery Operating Time max. 20 mins backup operation
Adapter Medical Grade
Input: 100~240 Vac/50~60Hz;
Output: 90W Adapter (19V/4.74A Adapter)
Mechanical and Environment
Operating Temp 0°C ~ 40°C (32°F ~ 104°F)
Storage Temp -30°C ~ 70°C (-22°F ~ 158°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Weight 13.89 lbs / 6.3 Kgs
Dimension (L x W x H) 21.24" x 13.49" x 1.8" (539.6 x 342.6 x 45.5 mm)
IP Rating Front IP65
Vibration Test With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
System Fan Fanless
Construction - Front White Plastic
Construction - Rear White Plastic
Finishing Anti-Microbial
Color White
Certification CE :
IEC/EN60601-1-2

FCC :
Part 15 Class B

UL60601-1:
AAMI /ANSI ES60601-1:2005/(R)2012 and A1:2012,C1:2009/(R)2012 and A2:2010/(R)2012

CB:
IEC 60601-1/A1:2012 & EN 60601-1/A1:2013 (Ed 3.1)
EN 60601-1:2006+A11:2011+A1:2013+A12:2014

* All product specifications and product images are subject to change without notice. Last update: 08/01/2023

Document
Datasheet
Manual
Model Name Description
HID-2132-610-A2R 21.5" FHD PCT Panel PC, Intel Core i3-6100U, Medical Grade, White Plastic Antibacterial, 8GB MMY, 4 x USB 3.0, 2 COM, NFC, SPK, Reading Light, Power Adapter

Please contact BCMSales@bcmcom.com for custom requirements.
