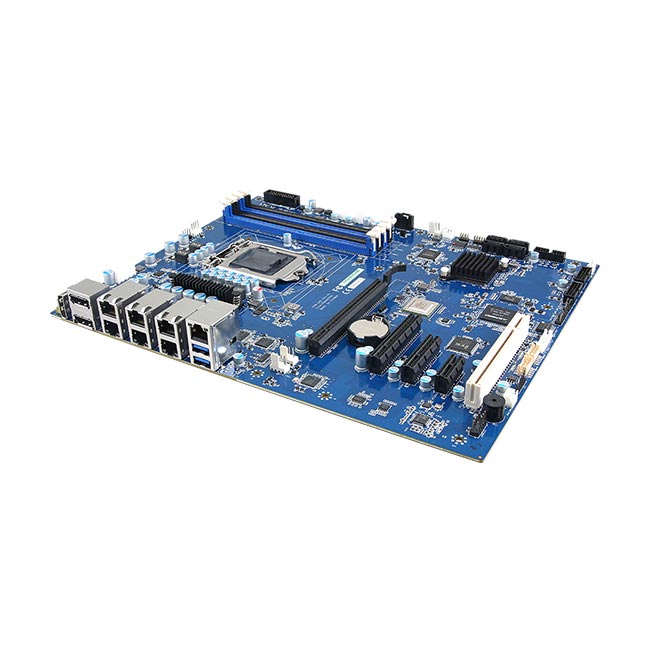

HPM-246UA High Performance Computer ATX Motherboard HPM-246UA High Performance Computer ATX Motherboard

HPM-246UA

Intel® 8/9th Gen. Core™ i7/i5/i3/Pentium®/Celeron®/Xeon® E Processor ATX Motherboard With Intel® C246 Chipset(CPU TDP support up to 95W TDP)

  • Intel® 8/9th Gen. Core™ i7/i5/i3/Pentium®/Celeron®/Xeon® E Processor ATX Motherboard With Intel® C246 Chipset(CPU TDP support up to 95W TDP)
  • 4 x 288-pin DDR4 2400/2666MHz DIMM socket, supports up to 128GB (ECC memory supported by CPU)
  • 4 x SATA III , 6 x USB3.2 Gen1
  • 1 x PCIe Gen3 x16 slot, 1 x PCIe Gen2 x8 slot, 1 x PCIe Gen3 x4 slot, 1 x PCIe Gen3 x1 slot and 1 x PCI 3.0 x1 slot
  • 2 x USB3.2 Gen 2
  • 7 x RJ45  (LAN 1 port shared with IPMI 2.0), 3 x DP++
  • IPMI 2.0 with AST 2500 BMC controller onboard
  • ATX Power

BCM HPC Product Features

Competitive

  • Extended Lifecycle (at least 5 years plus)
  • Revision Controlled

IPC Reliability

  • Lifetime RTC Battery Capacity
  • Highest Reliability (50K MTBF, 60°C Temp, 15u Gold Connectors)

Remote Accessibility

  • IPMI 2.0: Out Of Band (OOB) BIOS & Firmware Updates
  • IPMI customization

Up to 7 Ethernet plus Rich High Speed PCI/PCIe Interfaces

  • Up to 7 x 1GbE Ethernet ports, one shared with IPMI (IPMI 2.0 support)
  • 4 x DIMM sockets support up to 128GB (ECC memory supported by CPU)
  • PCIe Gen3 x16, x4, x1
  • PCIe Gen2 x8
  • PCI 3.0
HPM-621DE supports 12 DDR4 RDIMM/LRDIMM
IPMI 2.0

IPMI Support

IPMI Advantages:

  • Reducing high cost for downtime and repair
  • Reducing TTM and development cost for platform management
  • Enabling “Always Accessible” management
  • Enabling cross-platform manageability across server classes
  • Enabling secure remote management
  • Multi-OS Support

IPMI Features:

  • Server Hardware Monitoring
  • Remote Power Control
  • Remote Control
  • Out Of Band (OOB) BIOS & Firmware Updates
  • Asset Tracking

Applications

Using Intel® Xeon® processor performance delivers server and common use condition for stringent embedded/ IoT use cases. Suit best for multi threaded applications or multi function devices such as:

  • Vision Inspection System for Smart Manufacturing: AOI (Automatic Optical Inspection) application in manufacturing processes for improving productivity and in-line quality control.
  • Precision Medical Diagnosis Systems such as MRI and CT Scan. Medical imaging systems require quick, accurate results from processing complex algorithms.
HPM-621DE for Medical Imaging Systems and AOI
System
CPU Intel® LGA1151 Socket Supports 8th/9th Generation Core™ i7/ i5/ i3 / Pentium®/Celeron®/ Xeon® E Process
System Chipset Intel® C246 Chipset
System Memory 4 x 288-pin DDR4 2666MHz DIMM supports up to 128GB (ECC memory supported by CPU)
I/O Chip Nuvoton® NCT6106D
BIOS AMI uEFI BIOS, 256Mbit SPI Flash ROM
Watchdog Timer H/W Reset, 5~255 seconds/5~255 minutes
H/W Status Monitor CPU temperature monitoring, Voltages monitoring, CPU fan speed control
IPMI IPMI 2.0 with AST 2500 BMC controller onboard
TPM Onboard Infineon SLB9665 supports TPM 2.0
Supported OS Windows : Windows 10 IOT Enterprise, Windows Server 2016, Windows Server 2019
Linux SUSE
Expansion
PCI Express Full Version:
1 x PCI 3.0
1 x PCIe 3.0 x16 slot
1 x PCIe 2.0 x8 slot
1 x PCIe 3.0 x4 slot
1 x PCIe 3.0 x1 slot

Lite Version:
1 x PCI 3.0
1 x PCIe 3.0 x16 slot
1 x PCIe 3.0 x4 slot
1 x PCIe 3.0 x1 slot
Display
Graphics Engine Intel® 8th/9th Generation CPU integrated
Resolution DP: 4096 x 2304 @ 60Hz
HDMI : 4096 x 2160 @ 30Hz
Multiple Display Supports 3 Independent Display
Digital Display Interface 3 x DP++
Ethernet
Chipset Full Version: 7 x Intel® I210-AT Gigabit Ethernet Controllers
Lite Version: 3 x Intel® I210-AT Gigabit Ethernet Controllers
LAN Full Version: 7 x RJ45 (LAN 1 port shared with IPMI 2.0)
Lite Version: 3 x RJ45 (LAN 1 port shared with IPMI 2.0)
Audio
Chipset Realtek HD Audio support 7.1 channel sound playback
External I/O
USB 2 x USB 3.2 Gen 2
LAN 7 x RJ45 (LAN 1 port shared with IPMI 2.0)
Display 3 x DP++
Internal I/O
USB 6 x USB 3.2 Gen1
COM 2 x RS232
SATA 4 x SATA III
VGA VGA connector from BMC output
Power Requirement
Power Requirement 1 x Std. 24 pin ATX Connector
1 x 8 Pin SSI 12V Connector
ACPI Support S0, S5
Power Type ATX Mode
Mechanical and Environment
Operating Temperature 0 ~ 60°C (32 ~ 140°F) for M/B level
Storage Temperature -25 ~ 70°C （-13 ～ 158°F）
Operating Humidity 40% ~ 95% relative humidity, non-condensing
Form Factor ATX
Dimensions (L) x (W) 12" x 9.6" (304.8 x 243.84mm)
Weight 1.45lbs (0.7 kg)

* All product specifications and product images are subject to change without notice. Last update: 2021/12/21

Document
Datasheet
Manual - 3rd Edition, 08/17/2021
BIOS Version Revision Note Download
Driver Type Download
Date Description Download
Model Name Description
HPM-246UA - Full Version Intel C246 ATX Motherboard, 1xPCIe 3.0 x16, 1xPCIe 2.0 x8, 1xPCIe 3.0 x4, 1xPCIe 3.0 x1, 7x1GbE,
1 x I/O Shield
HPM-246UA - Lite Version Intel C246 ATX Motherboard, 1xPCIe 3.0 x16, 1xPCIe 3.0 x4, 1xPCIe 3.0 x1, 3x1GbE,
1 x I/O Shield
