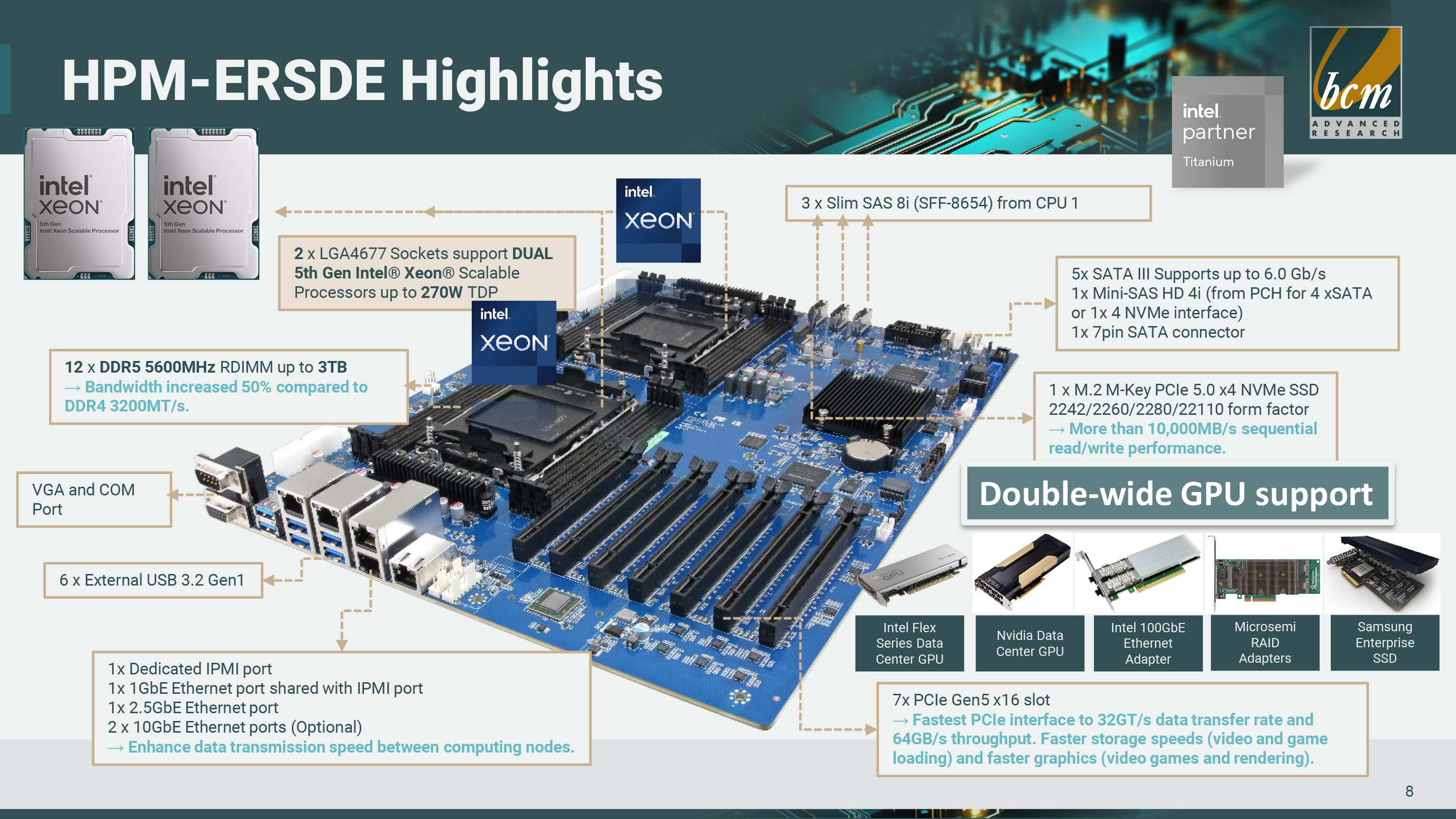

HPM-ERSDEA (w/10GbE, 4LAN) or HPM-ERSDEL (2LAN)
Server Motherboard with extended lifecycle supports dual 5th Gen Intel® Xeon® Scalable Processors up to 270W TDP
- 2 x LGA4677 Sockets support 2 x 5th Gen Intel® Xeon® Scalable Processors up to 270W TDP
- Intel® C741 Chipset
- 12 x DDR5 5600MHz RDIMM up to 3TB
- TPM 2.0 onboard
- IPMI 2.0 supported by AST 2600 BMC controller onboard
- 7 x Gen5 PCIe x16 slots support up to 4 double wide GPU cards
- 1 x Intel® I210-AT 1GbE and 1 x Intel® I226-LM 2.5GbE Ethernet Controller
- Optional 1 x Intel® X550-AT2 10GbE 2-Ports Ethernet Controller
- 5 x SATA III support RAID 0, 1, 5, 10
- 3 x Slim SAS 8i (SFF-8654) connectors
- 1 x Internal RS-232 port
- 6 x External USB 3.2 Gen 1
- 2 x Internal USB 3.2 Gen 1 & 2 x USB 2.0
- 1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor
- Supports Windows 10 IoT Enterprise, Windows 11, Windows Server 2019/2022, Ubuntu, and Red Hat Enterprise Linux
- 2.86mm PCB thickness
- 16.452” W x 12" H (417.88mm x 304.8mm)
Related Systems
A High-performance Server Motherboard with Extended Lifecycle
Minimum 5 years extended lifecycle, Revision Control to minimize BOM changes, extend 2-3 Technology Cycles / Refresh. Customers Benefit from Reduced R&D Cost / Refresh Cycles, Skipped Re-certification Costs. Built-in BMC/IPMI for Real-time System Remote Monitoring and Management.
Supports DUAL 5th Gen Intel® Xeon® Scalable Processor
Building on the success of the Sapphire Rapids series, Intel’s 5th Gen Xeon Scalable Processor, codenamed Emerald Rapids, offers higher clock speeds, expanded caches, enhanced memory support, maximized core count per socket, and improved overall performance.
A Processor Designed for AI, HPC, and more
Get impressive performance per watt gains across all your workloads, plus outsized performance and TCO in AI, database, networking, and HPC.
Speed time to insights with accelerated high-performance computing (HPC) up to 22% over the previous generation2 with 5th Gen Intel® Xeon® processors, featuring a larger last level cache, faster memory, and Intel® HPC Engines.
Life and material sciences High-performance research
Enable fast discoveries and more effective research. 5th Gen Intel® Xeon® processors with Intel® HPC Engines help researchers work fast to refine predictions and models and perform large-scale calculations for more accurate, longer simulations.
CAE and modeling Fast modeling
Get fast results for the computer-aided engineering applications that help you reduce costs, improve product safety and design, and speed time to market. 5th Gen Intel® Xeon® processors with Intel® HPC Engines meet a range of use cases with high performance, improved memory bandwidth with DDR5, and advanced I/O with PCIe 5.0 and CXL.
Computer vision
Deploy AI at the edge with fast image classification and object detection. Boost productivity and efficiency by detecting defects on the manufacturing line, identifying products in the store, measuring traffic on the street, and much more. 5th Gen Intel® Xeon® processors with Intel® Advanced Matrix Extensions (Intel® AMX) accelerate image classification for faster results. This built-in accelerator for AI and analytics can support more data streams and easily handle higher throughput SLAs in real time.
Machine learning
Incredibly fast machine learning on a CPU. Classical machine learning plays a crucial role in high-performance computing (HPC) and AI applications, from life sciences to finance to academic research. With large memory, fast cores, and Intel® Advanced Vector Extensions 512 (Intel® AVX-512), 5th Gen Intel® Xeon® processors deliver excellent machine learning training and inference performance.
More DDR5 DIMM Slots,
Gen5 PCIe Expansion Slots
12 x DIMM slots support DDR5 5600MHz RDIMM up to 3TB.
7 x Gen5 PCIe x16 Slots, support up to four double wide GPU cards.
High-speed Ethernet and Remote Monitoring/Management
Ethernet Chipset:
- 1 x Intel® I210-AT Ethernet Controller (1GbE)
- 1 x Intel® 226-LM Ethernet Controller (2.5GbE)
- 1 x Intel® X550-AT2 Ethernet Controller supports 2-Ports (10GbE each LAN port) - Optional
There are 5 x RJ45 LAN ports located at the rear I/O. 1 is Management LAN (MLAN), and 4 are Ethernet LAN ports. The Management LAN Port (MLAN) is for dedicated BMC/IPMI access only.
High-speed Storage Capabilities
- 5 x SATA III (Note: SATA 1~4 support RAID 0, 1, 5, 10) (1 x Mini-SAS HD 4i (from PCH for 4 x SATA or 1 x4 NVMe interface) & 1 x 7pin SATA connector)
- 3 x Slim SAS 8i (SFF-8654) connectors
- 1 x M.2 M-Key PCIe 5.0 x4 NVMe SSD, 2242/2260/2280/22110 Form Factor
OS Support
Supports enterprise and server class operation systems including:
- Windows 10 IoT Enterprise LTSC 2021
- Windows 11 IoT Enterprise
- Windows Server IoT 2019 with VT-d disabled
- Windows Server IoT 2022
- Ubuntu 20.04 LTS or later
- Red Hat Enterprise Linux (RHEL) 8.2 and later
IPMI Support
The IPMI (Intelligent Platform Management Interface) is a set of industry-standard specifications for hardware-based subsystems that provide management and monitoring capabilities independently of the host system's CPU, firmware, and operating system. Used together with a BMC (Baseboard Management Controller), IPMI allows a system administrator to perform many different monitoring and management tasks remotely without having to be physically located next to and connected to the system – such as power cycling a server, installing BIOS or firmware updates, and monitoring fan speeds and temperatures. BCM HPC solutions have built-in onboard BMC/IPMI technology with real-time system monitoring and provide preventive maintenance to minimize system downtime and field service cost.
IPMI Advantages:
- Reducing high cost for downtime and repair
- Reducing TTM and development cost for platform management
- Enabling “Always Accessible” management
- Enabling cross-platform manageability across server classes
- Enabling secure remote management
- Multi-OS Support
IPMI Features:
- Server Hardware Monitoring
- Remote Power Control
- Remote Control
- Out Of Band (OOB) BIOS & Firmware Updates
- Asset Tracking
Solution Brief IoT for Regulated Industries
BCM Delivers Fast, Extended Access to 4th Gen Intel® Xeon® Scalable Platform Innovations
Learn what benefits BCM can bring to the table for customers in regulated industries, including manufacturing, healthcare, digital safety, government, and avionics using our computing solutions with 5th Gen Intel Xeon Scalable processors.
The Example of Use Cases
Manufacturing
Robotics, assembly line defect detection, and quality control
Healthcare
Ultrasound, medical diagnostics, AI-enabled pathology or radiology
Digital Safety
Smart facilities, entry control and monitoring, checkpoint systems
Government/Aviation
Onboard computers and ruggedized field equipment
