HPM-ERSUAA (w/10GbE, 4LAN) or HPM-ERSUAL (2LAN)
ATX Server Motherboard supports Single 5th Gen Intel® Xeon® Scalable Processor up to 270W TDP
- Intel® LGA4677 socket supports 5th Gen Intel® Xeon Scalable Processor up to 270W TDP
- Intel® C741 Chipset
- 6 x DDR5 slots support 5600MHz RDIMM up to 1.5TB
- 4 x Gen5 PCIe x16 slots and 3 x Gen5 PCIe x4 slots
- TPM 2.0 onboard
- IPMI 2.0 supported by AST 2600 BMC controller onboard
- 1 x Intel® I210-AT 1GbE and 1 x Intel® I226-LM 2.5GbE Ethernet Controllers, 2 x RJ45 LAN ports
- Optional 1 x Intel® X550-AT2 10GbE Ethernet Controller supports 2 x RJ45 LAN ports, 10GbE each port
- 5 x SATA III (SATA 1~4 support RAID 0, 1, 5, 10)
- 4 x USB 3.2 Gen 1 port & 2 x USB 2.0 port at Edge I/O
- 4 x Internal USB 3.2 Gen 1 Ports
- 1 x M.2 M-Key PCIe 3.0 x4 NVMe SSD, 2242/2260/2280/22110 Form Factor
- 1 x VGA, 1 x COM Port
- Dimension: 12" x 9.6" (304.8mm x 243.84mm)
- 2.54mm PCB Thickness
- Two SKUs:
- HPM-ERSUAA: 4 x LAN Ports (1GbE + 2.5GbE + 2 x 10GbE)
- HPM-ERSUAL: 2 x LAN Ports (1GbE + 2.5GbE)

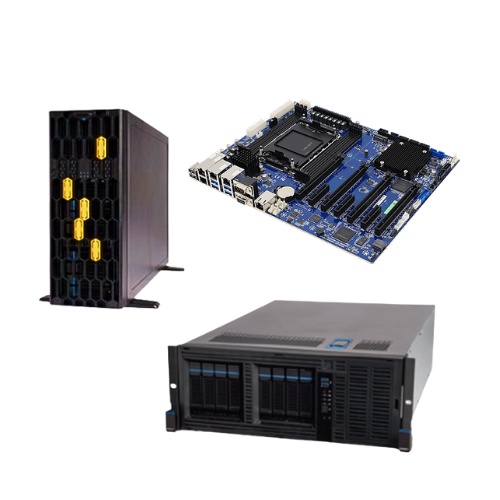

Chassis Solution
A High-performance Server Motherboard with Extended Lifecycle
Minimum 5 years extended lifecycle, Revision Control to minimize BOM changes, extend 2-3 Technology Cycles / Refresh. Customers Benefit from Reduced R&D Cost / Refresh Cycles, Skipped Re-certification Costs. Built-in BMC/IPMI for Real-time System Remote Monitoring and Management.

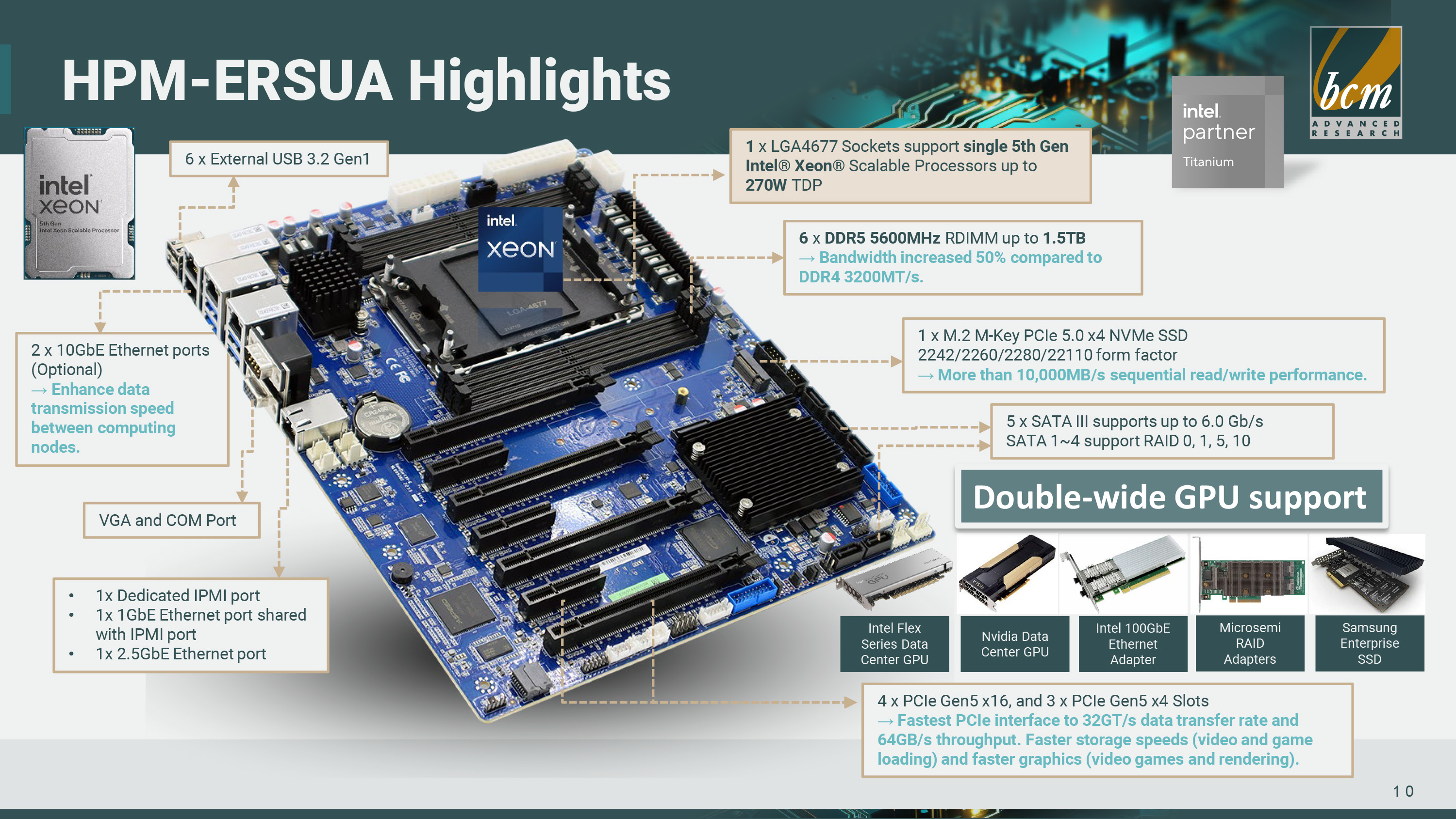

Supports the 5th Gen Intel® Xeon® Scalable Processor
Building on the success of the Sapphire Rapids series, Intel’s 5th Gen Xeon Scalable Processor, codenamed Emerald Rapids, offers higher clock speeds, expanded caches, enhanced memory support, maximized core count per socket, and improved overall performance.
High-speed memory support, Storage and Security
- 6 x DDR5 slots support 5600MT/s RDIMM up to 1.5TB
- 5 x SATA III (SATA 1~4 support RAID 0, 1, 5, 10)
- 8 x USB 3.2 Gen 1, 2 x USB 2.0
Gen5 PCIe Expansion and NVMe Capability
Gen5 PCIe support full height and double-wide GPU cards. M.2 supports next-gen media storage modules.
- 4 x PCIe Gen5 x16 Slots
- 3 x PCIe Gen5 x4 Slots
- 1 x M.2 M-Key Gen3 PCIe x4 NVMe SSD, 2242/2260/2280/22110 Form Factor
2.5/10GbE High-speed Ethernet
- 1 x Intel® I210-AT Ethernet Controller (1GbE) LAN
- 1 x Intel® I226-LM Ethernet Controller (2.5GbE) LAN
- 1 x Intel® X550-AT2 Ethernet Controller supports 2-Ports (10GbE each LAN port)
- HPM-ERSUAA: 4 x LAN Ports (1GbE + 2.5GbE + 2 x 10GbE)
HPM-ERSUAL: 2 x LAN Ports (1GbE + 2.5GbE)
There are 5 x RJ45 LAN ports located at the rear I/O. 1 is Management LAN (MLAN), and 4 are Ethernet LAN ports. The Management LAN Port (MLAN) is for dedicated BMC/IPMI access only.
The Example of Use Cases
Manufacturing
Robotics, assembly line defect detection, and quality control
Healthcare
Ultrasound, medical diagnostics, AI-enabled pathology or radiology
Digital Safety
Smart facilities, entry control and monitoring, checkpoint systems
Government/Aviation
Onboard computers and ruggedized field equipment
Faster Time-to-Market for SI, VAR and ISVs
We provide flexible volume per order and lab certification services making it easy for our system integrators (SI), value-added resellers (VAR), and independent software vendors (ISVs) customers to help get their products to market faster.
System Integrators, VARs, and ISVs now have a product capable to provide system level design, testing, for embedded computing products and also extending the products’ lifecycle to allow them and their customers to focus more on marketing their products and less time and expense re-qualifying and re-certifying their products every 2 to 3 years.
IPMI Support
The IPMI (Intelligent Platform Management Interface) is a set of industry-standard specifications for hardware-based subsystems that provide management and monitoring capabilities independently of the host system's CPU, firmware, and operating system. Used together with a BMC (Baseboard Management Controller), IPMI allows a system administrator to perform many different monitoring and management tasks remotely without having to be physically located next to and connected to the system – such as power cycling a server, installing BIOS or firmware updates, and monitoring fan speeds and temperatures. BCM HPC solutions have built-in onboard BMC/IPMI technology with real-time system monitoring and provide preventive maintenance to minimize system downtime and field service cost.
IPMI Advantages:
- Reducing high cost for downtime and repair
- Reducing TTM and development cost for platform management
- Enabling “Always Accessible” management
- Enabling cross-platform manageability across server classes
- Enabling secure remote management
- Multi-OS Support
IPMI Features:
- Server Hardware Monitoring
- Remote Power Control
- Remote Control
- Out Of Band (OOB) BIOS & Firmware Updates
- Asset Tracking
Optimized Server Solutions: CHENBRO’s RM133 1U Chassis with our HPM-ERSUA and HPM-SRAUA Server Grade ATX Motherboards
We are excited to offer our customers an optimized rackmount chassis solution that combines the reliability of our server-grade ATX motherboards, HPM-ERSUA and HPM-SRAUA, with the robustness of CHENBRO’s RM133 chassis. This synergy ensures high performance, durability, and seamless compatibility, providing a comprehensive chassis solution for your server needs. Experience the power of integrated technology designed to meet the demands of today’s data-driven world.
RM133 1U Chassis
Key Features:
- Drive options:
- 4 x 3.5” drives with a SAS/SATA backplane, or
- 10 x 2.5” HDD/SSD drives with a SAS/SATA backplane, or
- 10 x 2.5” HDD/SSD drives with an NVMe backplane
- Toolless drive trays for easy installation and maintenance
- 1U flex PSU or 1+1 redundant PSU
- 1 x full-height PCIe card, Gen4 x16
What's inside
Use Case
Use this configuration for Storage or Network Server applications. Using two of the Gen4 PCIe x16 SlimSAS 8i expansion cards (2-connectors per card) and connect up to eight 2.5" SSD/ NVMe storage drives (4 drives per card); or three expansion cards for up to ten SSD drives.
Please note that this is a custom configuration. The redundant power supply and the CPU fan can be replaced according to the customer’s preference.
