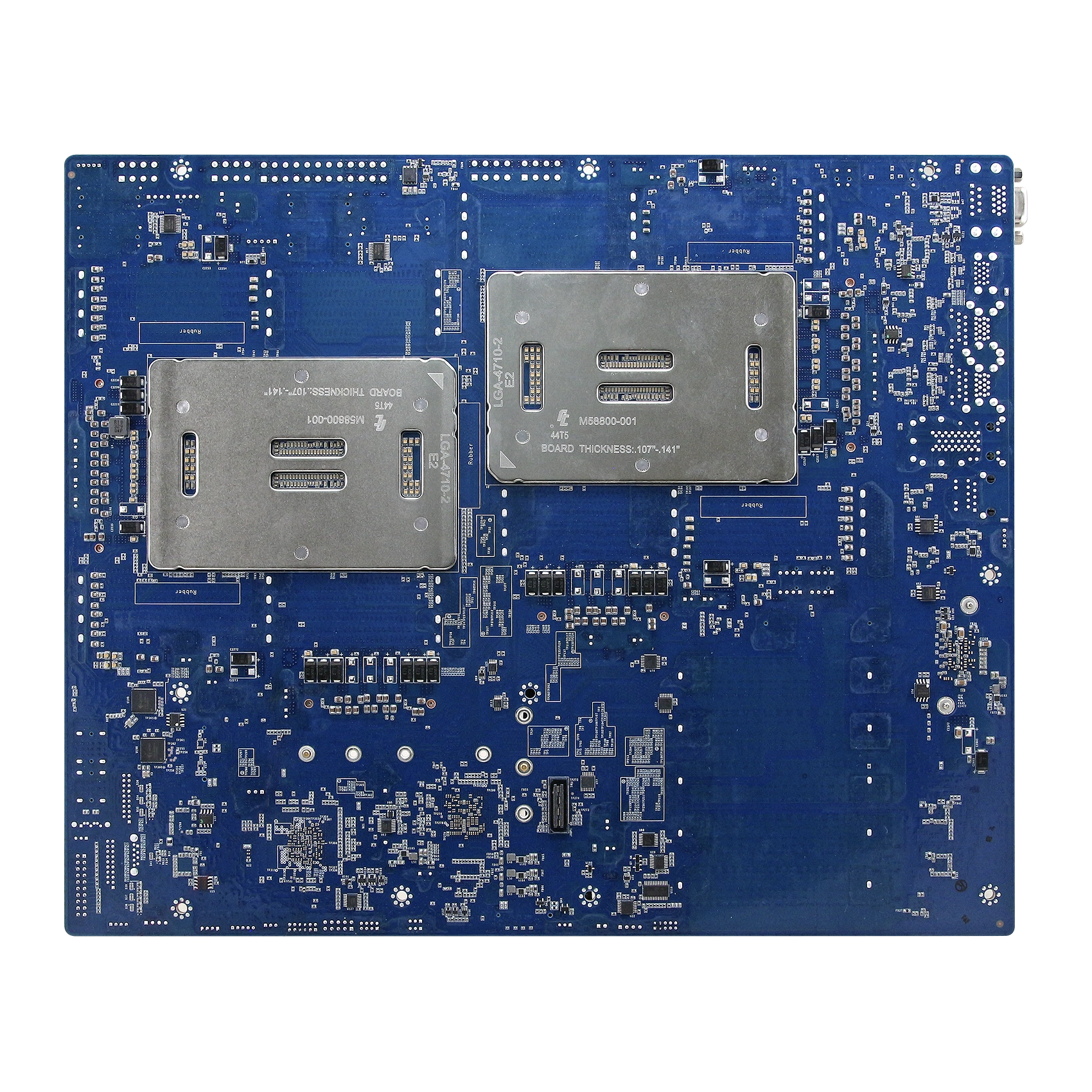

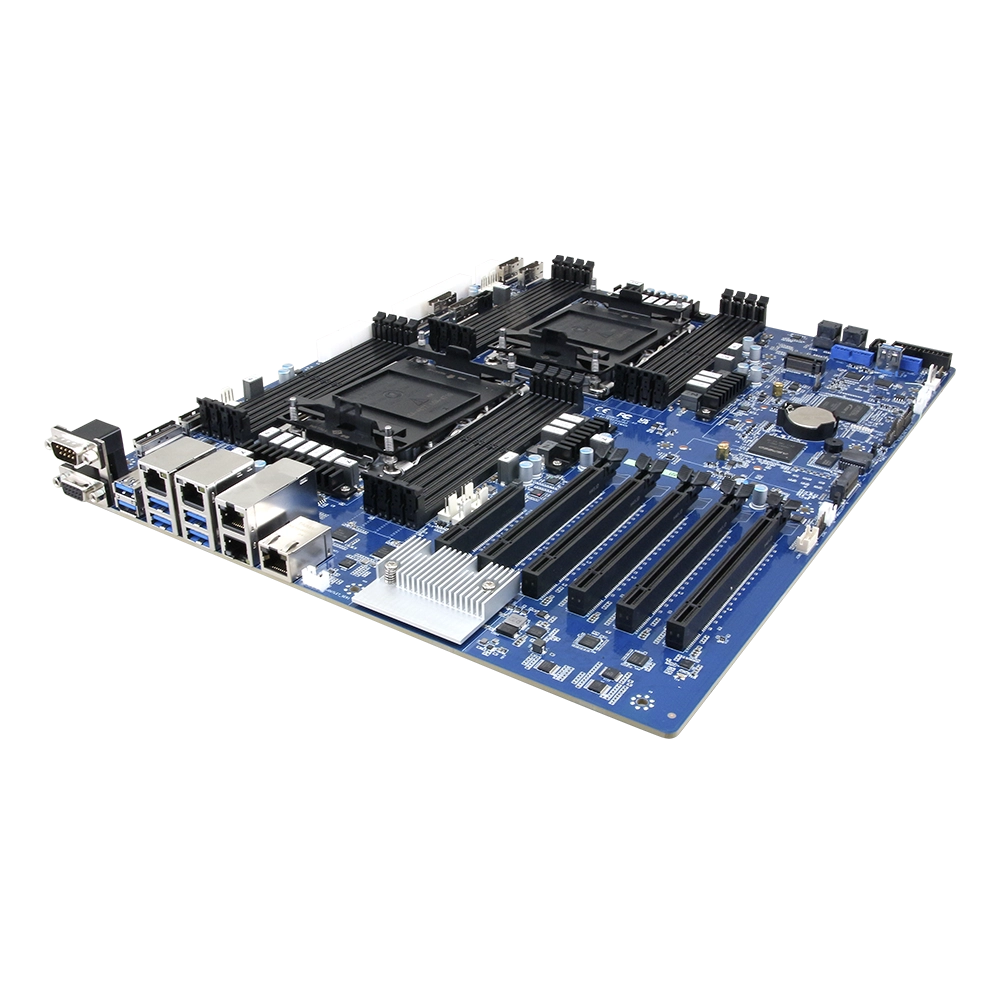

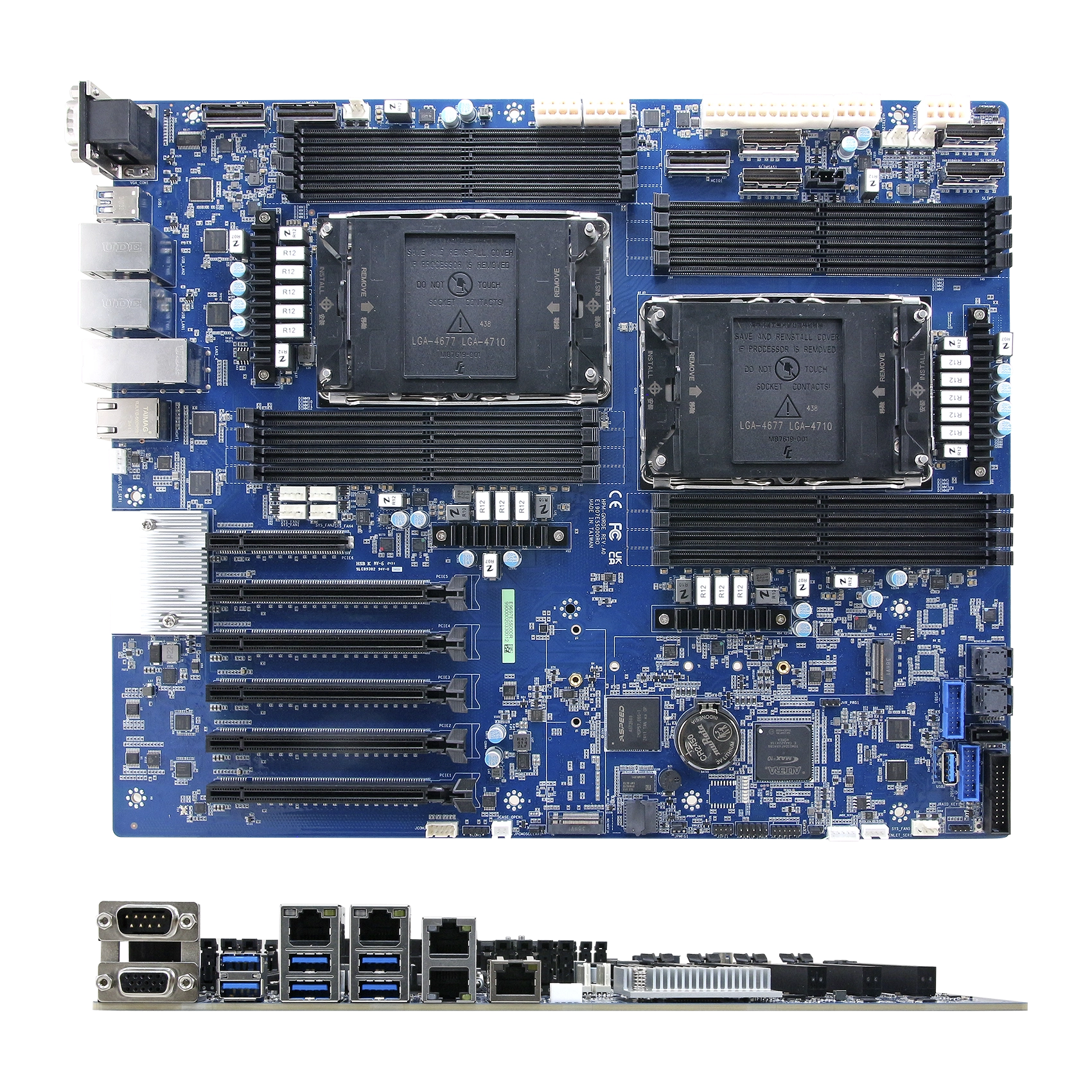

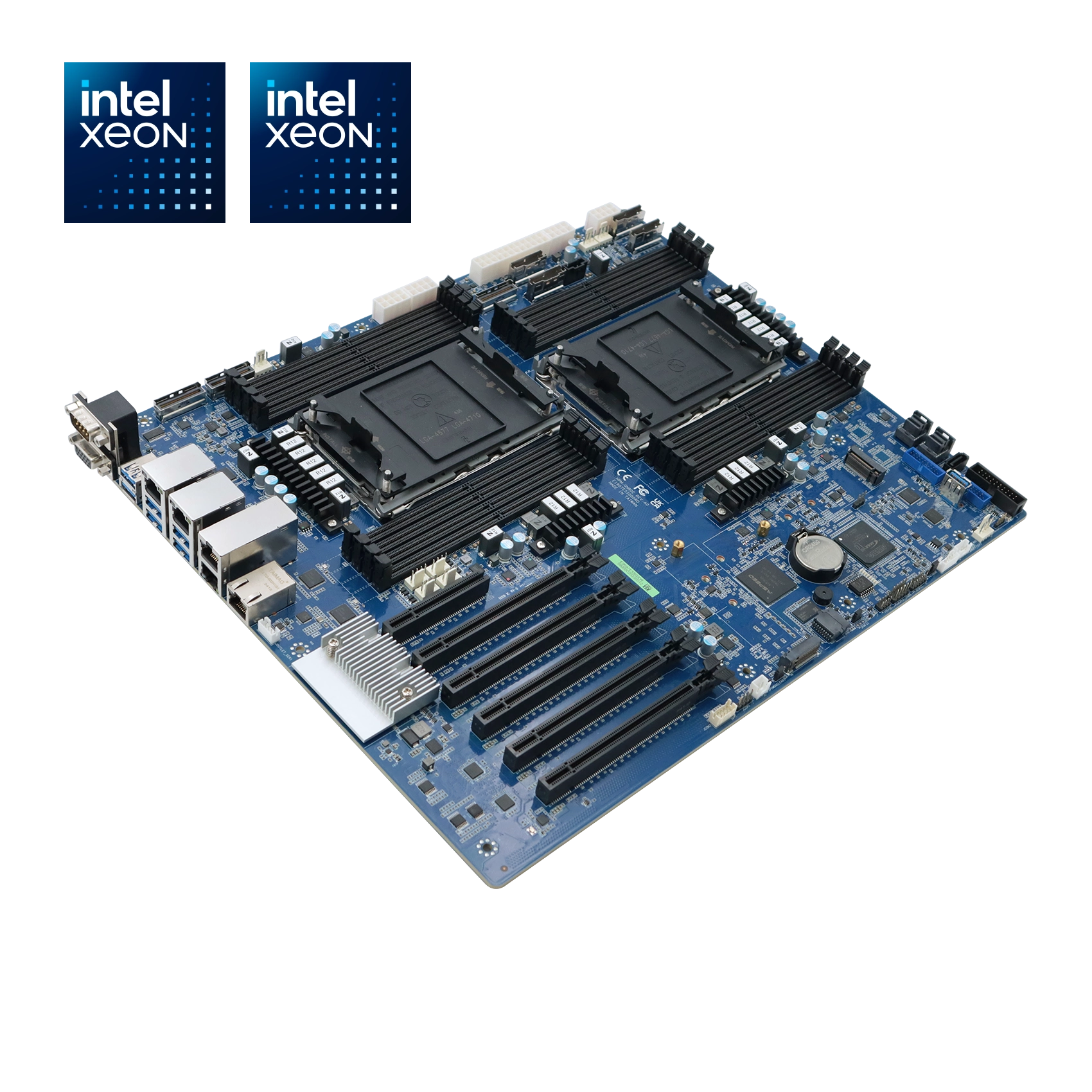

HPM-GNRDE Coming Soon
High-performance Server Class EATX Motherboard supports Dual 6th Gen Intel® Xeon 6500P & 6700P Series Processor
- Extended Lifecycle
- 2 x LGA4710 sockets support two 6th Gen Intel® Xeon® 6500P & 6700P series Processor (formerly Granite Rapids) up to 350W TDP
- Intel® C741 Chipset
- 16 x DIMM slots support DDR5 6400MT/s RDIMM and 8000MT/s MRDIMM up to 4TB
- 5 x PCIe Gen5 x16 and 1 x PCIe Gen5 x8
- IPMI 2.0 supported by AST 2600 BMC controller onboard
- TPM 2.0 onboard
- 2 x Intel® Ethernet Controller I210-AT (1GbE)
- Optional 1 x Intel® E610-XAT2 Ethernet Controller (10GbE) supports dual ports (2 x RJ-45)
- 1 x M.2 M-Key socket supports PCIe 5.0 x4 NVMe SSD, 2242/2260/2280/22110 form factor
- 1 x M.2 M-Key socket supports PCIe 5.0 x4 NVMe SSD, 2242/2260/2280 form factor

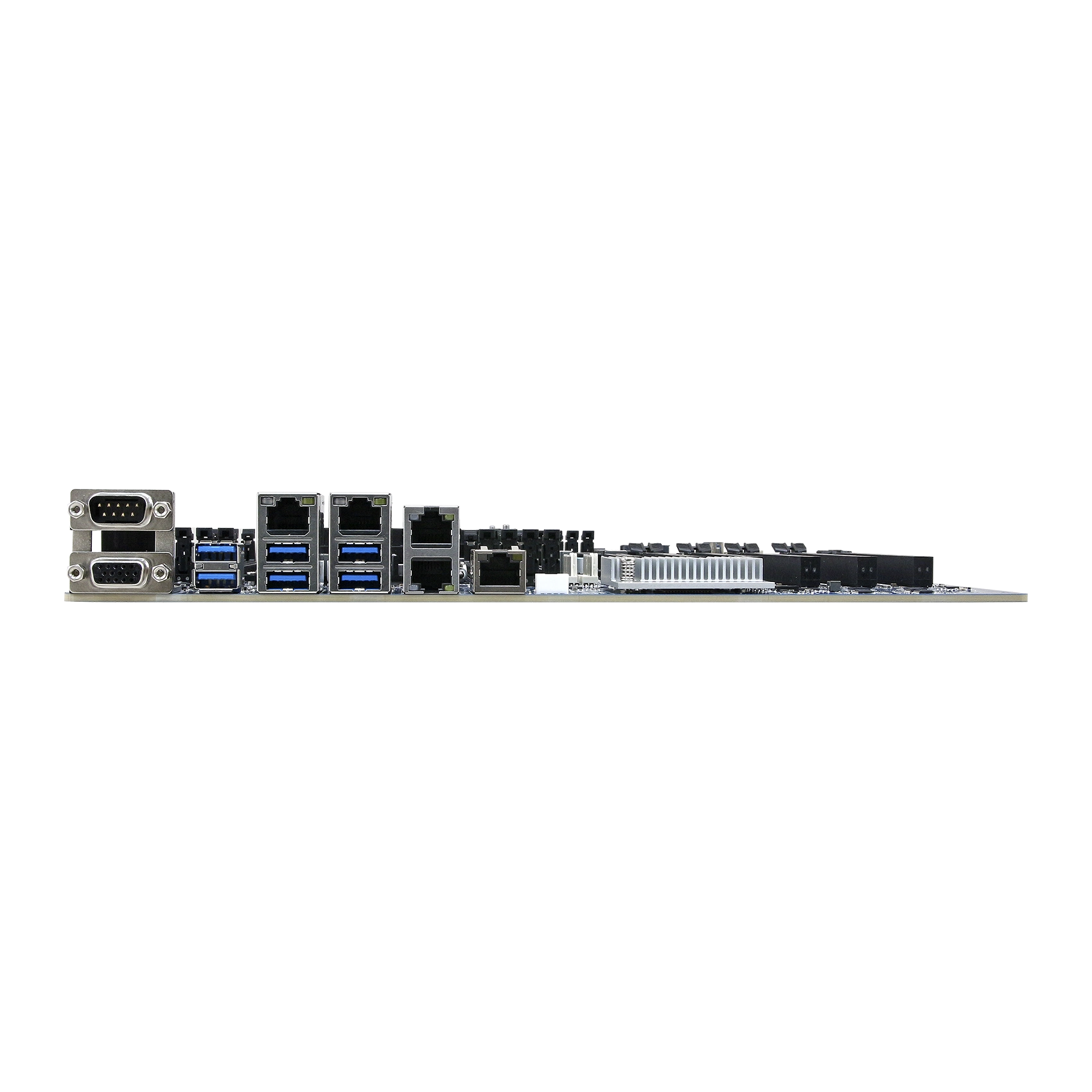

- 1 x RS-232 port, 6 x USB 3.2 Gen2 ports at Edge I/O
- 9 x SATA III: 2 x MiniSAS HD 4i (for 4 x SATA Only) & 1 x 7 pin SATA connector
- 4 x Slim SAS 8i Connectors
- 3 x MCIO x8 Connectors
- 2.8mm PCB Thickness
- LAN Ports and SKU:
- HPM-GNRDEA (4 LAN): 4 x RJ45 (2 x 1GbE + 2 x 10GbE)
- HPM-GNRDEL (2 LAN): 2 x RJ45 (2 x 1GbE)

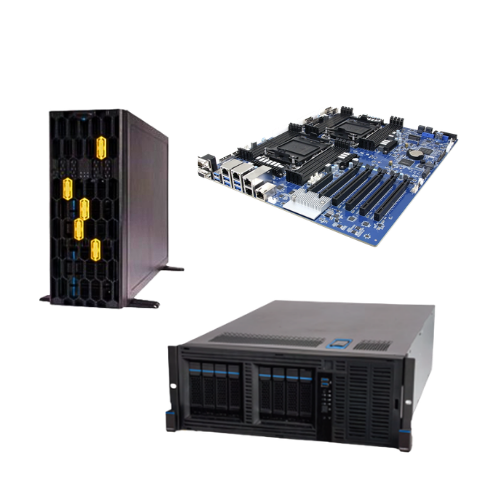

Related Systems
HPM-GNRDE: High-Performance Server Motherboard for AI, HPC, cloud data centers, and enterprise applications
Introducing the HPM-GNRDE server motherboard in EATX form factor: Supporting dual Intel® Xeon® 6 Scalable Processors for Ultimate Computing Power
We're excited to announce our newest high-performance server motherboard solution - the HPM-GNRDE. This powerful platform is designed for AI workloads, high-performance computing (HPC), cloud data centers, and enterprise applications, offering excellent performance and flexibility.
Powered by 6th Gen Intel® Xeon® 6500P or 6700P Series Scalable Processors
Each supporting up to 350W TDP. Built on the Granite Rapids-SP architecture, these processors provide:
- Enhanced Core Performance: The 6th Gen Intel® Xeon P-Core architecture increases Instructions per Cycle (IPC), supporting big data analytics, cloud processing, and AI inference
- Enhanced Core Performance: The 6th Gen Intel® Xeon P-Core architecture increases Instructions per Cycle (IPC), supporting big data analytics, cloud processing, and AI inference
- Advanced Memory Capabilities: Support for DDR5 6400/8000MT/s memory with up to 16 DDR5 RDIMM/MRDIMM slots and maximum capacity of 4TB
- Improved Bandwidth: 30% higher bandwidth compared to standard DDR5 6400MT/s for data-intensive workloads
IPMI Support
The IPMI (Intelligent Platform Management Interface) is a set of industry-standard specifications for hardware-based subsystems that provide management and monitoring capabilities independently of the host system's CPU, firmware, and operating system. Used together with a BMC (Baseboard Management Controller), IPMI allows a system administrator to perform many different monitoring and management tasks remotely without having to be physically located next to and connected to the system – such as power cycling a server, installing BIOS or firmware updates, and monitoring fan speeds and temperatures. BCM HPC solutions have built-in onboard BMC/IPMI technology with real-time system monitoring and provide preventive maintenance to minimize system downtime and field service cost.
IPMI Advantages:
- Reducing high cost for downtime and repair
- Reducing TTM and development cost for platform management
- Enabling “Always Accessible” management
- Enabling cross-platform manageability across server classes
- Enabling secure remote management
- Multi-OS Support
IPMI Features:
- Server Hardware Monitoring
- Remote Power Control
- Remote Control
- Out Of Band (OOB) BIOS & Firmware Updates
- Asset Tracking
