HPS-621D4A
19" 4U HPC Workstation/Server System supports dual 2nd Gen. Intel® Xeon® SP processors
- Extended Lifecycle Server System
- Lockable Front Cover
- Support 2 x Intel® Xeon® SP Processor
- Intel® C621 Chipset
- Supports 12 x DDR4 2933/ 2666/ 2400/ 2133 ECC RDIMM/ LRDIMM up to 1.5TB
- 4 x PCIe x16 slots, 2 x PCIe x8 slots, 1 x PCI 3.0 slot
- 1 x ATX 1300W PS2 PSU
- 3 x Front Accessible 2.5” storage bay
- 4 x Intel® I210-AT Gigabit Ethernet
- 4 x DDR4 2666 16GB RDIMM (Optional)
- 1 x 2.5" SATA3 SSD 240GB (Optional)
- 1 x Super Multi DVD Rewriter (Optional)
- Supports IPMI 2.0 with AST 2500 BMC Controller Onboard
- Front fans and rear fans
- TPM 2.0 Onboard

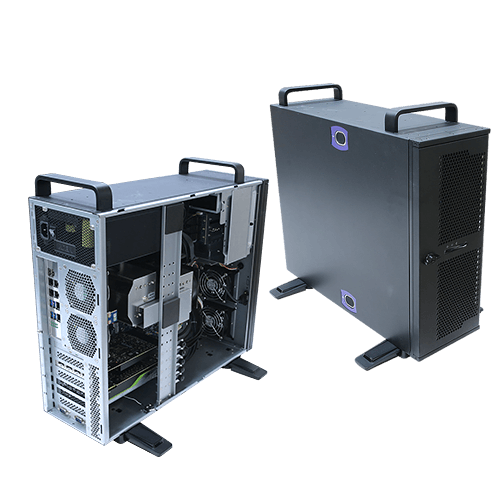

- Also available in Tower Type Server System
- L6 Barebone or L10 Fully Integrated System
- Custom configurations: Redundant Power Supply
High-performance Server System with Extended Lifecycle for AI, 5G, IoT, Medical Precision Imaging, Industrial Machine Vision applications and more
BCM’s powerful computing platform series provides server-class performance with extended lifecycle and revision control not available from the typical providers of these types of server motherboards and systems. BCM’s HPC products are the ideal balance between performance and hardware lifecycle continuity. They offer a broad spectrum of HPC motherboard products in different form factors providing extended lifecycle, traceability, remote access, and exceptional reliability our industrial products are known for.
Lightning-fast, real-time analysis and extreme reliability
HPC series is the next era of high performance computing products that bring lightning-fast, real-time analysis and extreme reliability performance. It is optimized for AI, 5G, IoT, ML (machine learning), edge computing, medical precision computing and other applications that require real-time and faster performance and high reliability.
Flexible Configurations, Custom Design
- Available in Barebone (Level 6) or Fully Integrated System (Level 10 - with CPU, memory, storage ready to ship)
- Available in Rackmount and Tower type chassis design
- Redundant Power Supply customization
- Low MOQ requirement
Lockable Front Door
Lockable Front Door Maintenance Access Control. Two keys included.
3 x Front Accessible 2.5” storage bay
Providing easy access for replacing the storage hard drives without the need of opening the top cover. Total 3 HDD/SSD slots.
User Friendly Design
- 2 x USB 3.1 Gen 1
- 2 x Front System Fans designed with tool free service window
- Power status indicator
- Disk drive activity indicator
- Network activity indicator
Rich PCI/PCIe Expansion Interfaces
- Central bar designed to secure CPU fans and graphic/expansion cards in places
- Additional adjustable fastener mechanism design for securing graphics cards or add-on cards in places
- Capable to support at lease 2 Nvidia Quadro GPU cards - RTX 5000 and P2200
HPM-621DE Faster Time-to-Market for SI, VAR and ISVs
We provide flexible volume per order and lab certification services making it easy for our system integrators (SI), value-added resellers (VAR), and independent software vendors (ISVs) customers to help get their products to market faster.
System Integrators, VARs, and ISVs now have a product capable to provide system level design, testing, for embedded computing products and also extending the products’ lifecycle to allow them and their customers to focus more on marketing their products and less time and expense re-qualifying and re-certifying their products every 2 to 3 years.
IPMI Support
The IPMI (Intelligent Platform Management Interface) is a set of industry-standard specifications for hardware-based subsystems that provide management and monitoring capabilities independently of the host system's CPU, firmware, and operating system. Used together with a BMC (Baseboard Management Controller), IPMI allows a system administrator to perform many different monitoring and management tasks remotely without having to be physically located next to and connected to the system – such as power cycling a server, installing BIOS or firmware updates, and monitoring fan speeds and temperatures. BCM HPC solutions have built-in onboard BMC/IPMI technology with real-time system monitoring and provide preventive maintenance to minimize system downtime and field service cost.
IPMI Advantages:
- Reducing high cost for downtime and repair
- Reducing TTM and development cost for platform management
- Enabling “Always Accessible” management
- Enabling cross-platform manageability across server classes
- Enabling secure remote management
- Multi-OS Support
IPMI Features:
- Server Hardware Monitoring
- Remote Power Control
- Remote Control
- Out Of Band (OOB) BIOS & Firmware Updates
- Asset Tracking
Contact us at BCMSales@bcmcom.com or give us a call 949-470-1888
