HPS-GNR1U HPS-GNR1U HPS-GNR1U HPS-GNR1U

HPS-GNR1U Coming Soon

Short Depth 1U Rackmount Server System HPC with Up to 3 PCI Express
Expansion Slots

  • Motherboard: HPM-GNR1U
  • 1U 19” Rackmount Chassis
  • Supports 6th Gen Intel® Xeon® Scalable Processor up to 350W TDP
  • 8 x DDR5 6400MT/s RDIMM and 8000MT/s MRDIMM Up to 2TB
  • Intel® VROC RAID 0/1/5/10 with Optionall VROC Key
  • 2 x PCIe Gen5 x16 FHFL Single Width Slot or 1 x PCIe Gen5 x16 FHFL Double Width Slot
  • 1 x PCIe Gen5 x8 HHHL Slot (In x16 Physical Slot)
  • Optional 2 x LAN by Intel® Ethernet Controller E610-XAT2
  • IPMI 2.0
  • 1 x Mini-DisplayPort, 2 x USB 3.0 (Front), 2 x USB 3.2 (Rear)
  • Drive Bay Options: 2 or 4 Hot-Swappable 2.5” U.2/U.3 drive bays, or 10 x Hot-Swappable E1.S NVMe Drive Bays
Related Product(s)
System

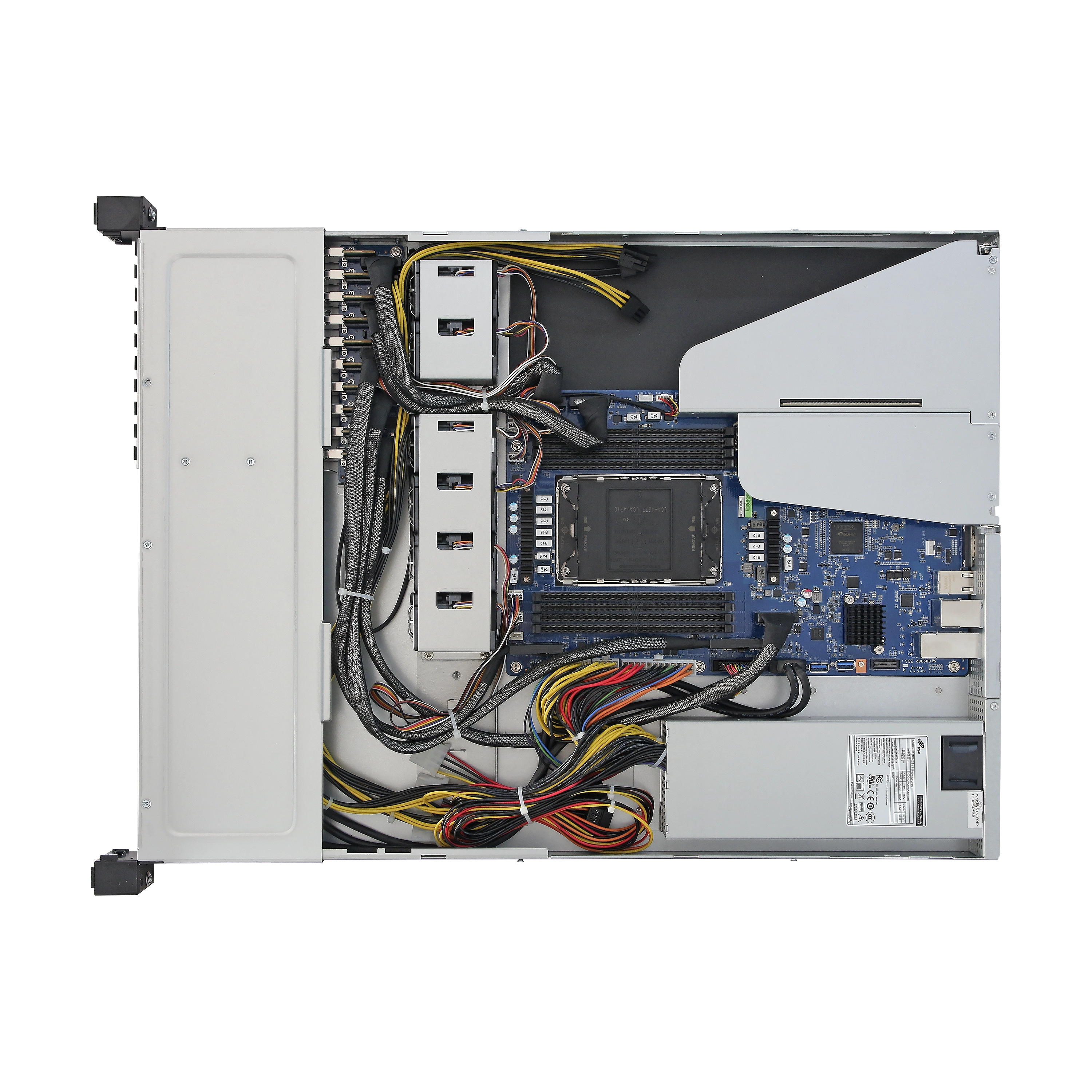

Motherboard Inside HPM-GNR1U
CPU LGA 4710 socket supports single 6th Gen Intel® Xeon® Scalable Processor up to 350W TDP
System Memory 8 x DDR5 6400MT/s RDIMM and 8000MT/s MRDIMM Up to 2TB
Supported OS Windows 11
Windows Server 2019
Red Hat Enterprise Linux (RHEL) 8.2 and later
Ubuntu
Expansion and Storage Interfaces
PCI Express 2 x PCIe Gen5 x16 FHFL Single Width Slot or 1 x PCIe Gen5 x16 FHFL Double Width Slot
1 x PCIe Gen5 x8 HHHL Slot (In x16 Physical Slot)
Storage
M.2 2 x 2280 M.2 NVMe (Optional Through Daughter Board)

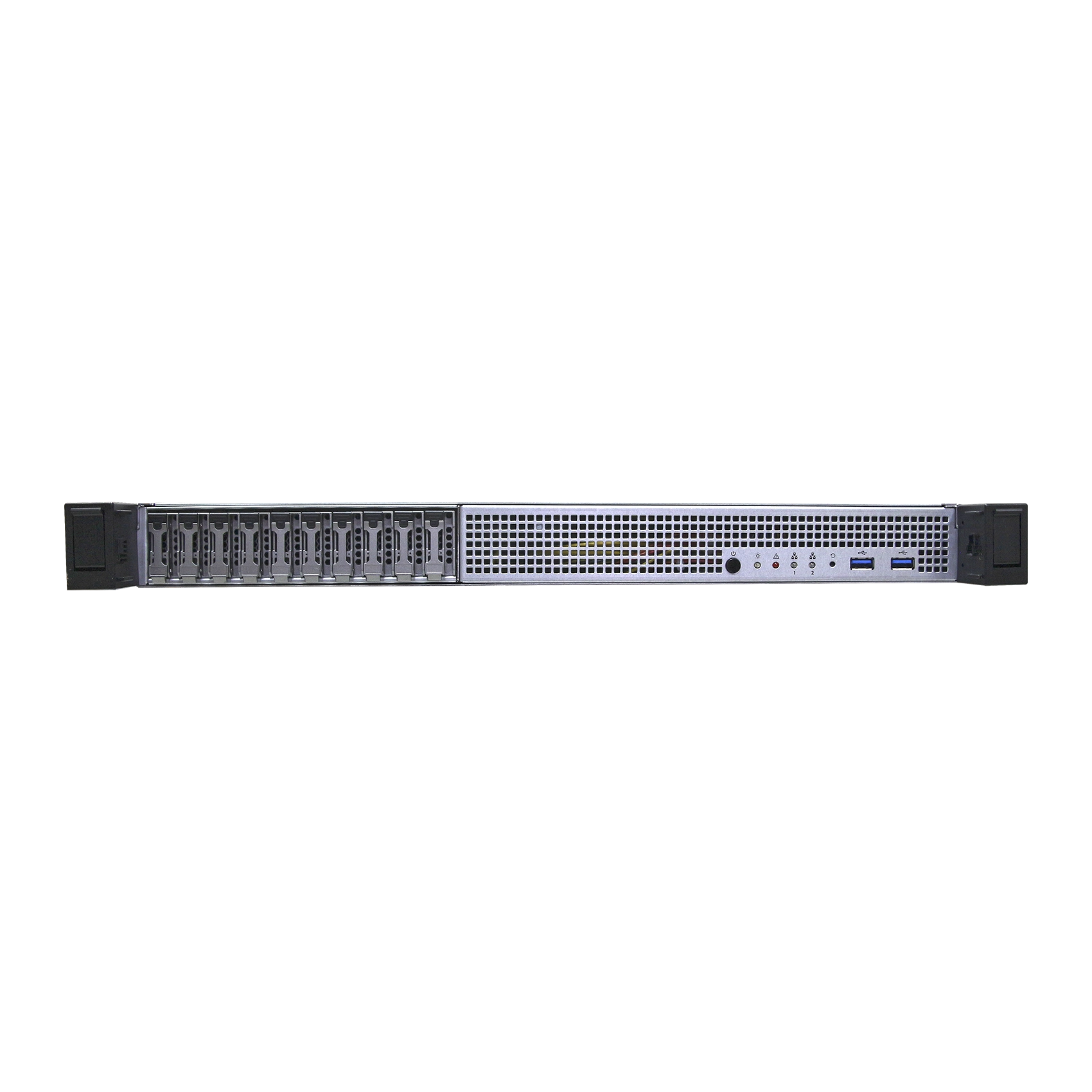

Drive Bay 10 x Hot-Swappable E1.S NVMe Drive Bays
2 x Hot-Swappable 2.5” U.2 NVMe Drive Bays (Optional)

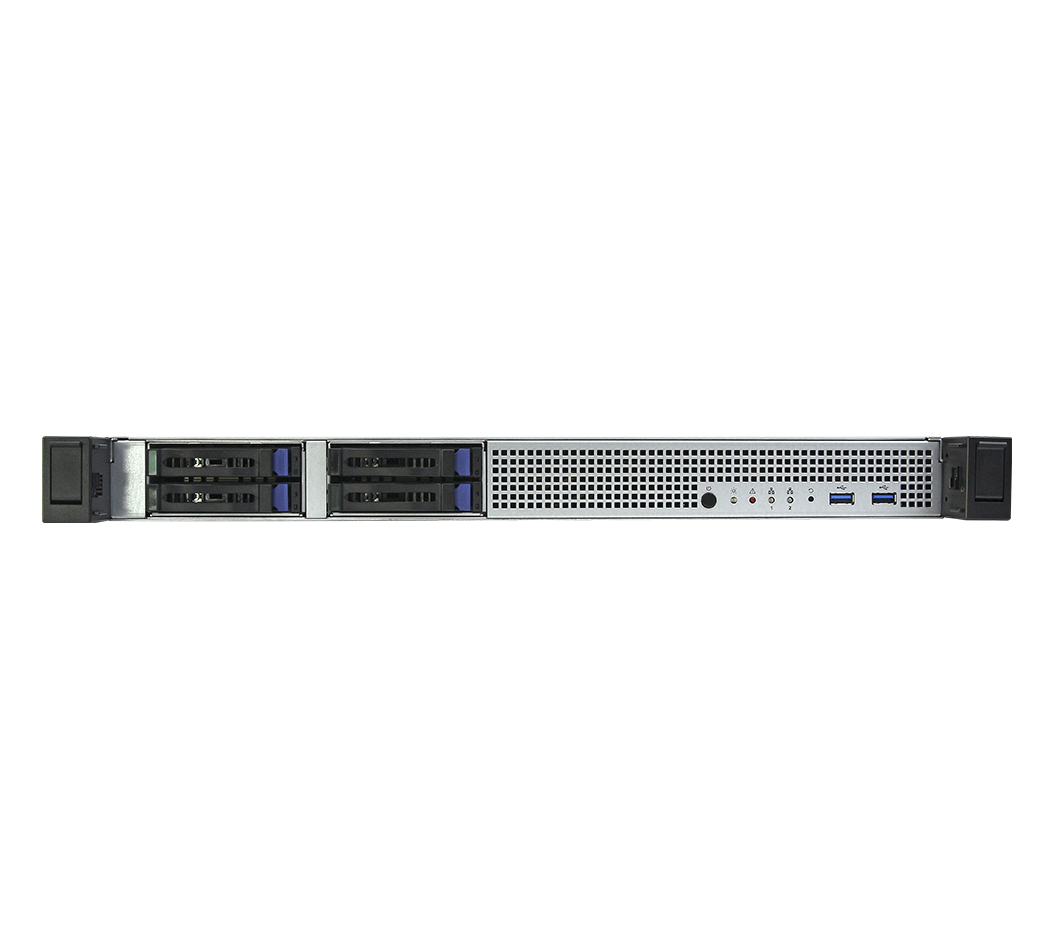

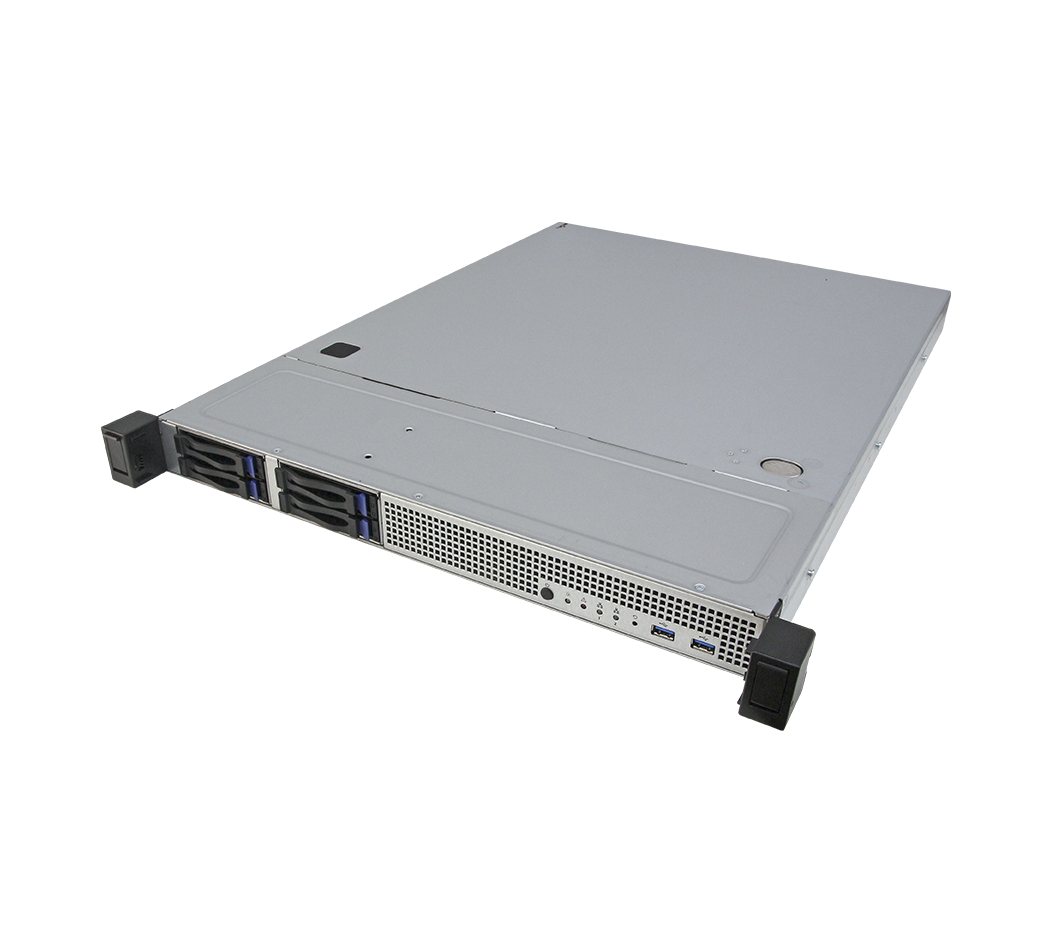

4 x Hot-Swappable 2.5” U.2 NVMe Drive Bays (Optional)
Edge I/O (Front)
USB 2 x USB 3.0 Type A Connectors
Power Button 1 x Momentary Power Switch
Reset Button 1 x Reset Button
LED Indicator 1 x Power LED, 1 x Status LED TBD,
2 x LAN LED (1 for I210-AT, 1 for E610-XAT2)
1 x Power Status LED

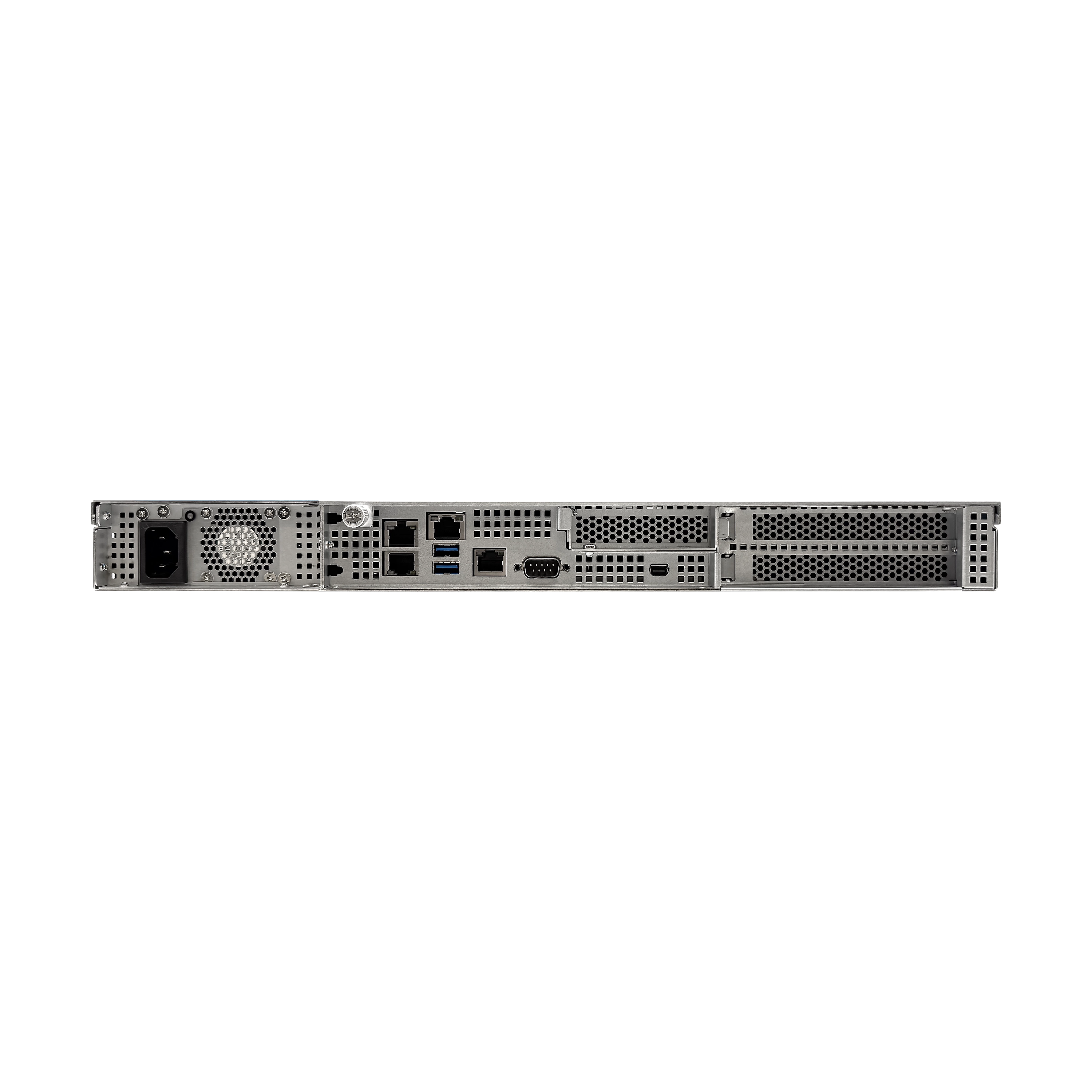

Edge I/O (Rear)
Display 1 x Mini-DisplayPort Connector
USB 2 x USB 3.2 Type A Connectors
IPMI 1 x RJ-45 Connector for IPMI
LAN 1 x RJ-45 for Intel® I210-AT GbE LAN (Shared with IPMI)
1 x RJ-45 MLAN
2 x RJ-45 for Intel® E610-XAT2 10GbE LAN (Optional)
COM Port 1 x COM Port Console
Power Requirement
Power Supply Single 1U Power Supply
Redundant Power Supply (Optional)
Voltage 100VAC to 240VAC
Frequency 50Hz/60Hz
Power Rating 850W
Regulatory Compliance
Design to Comply with CE/FCC
Mechanical and Environment
Operating Temperature 0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Operating Humidity 5% to 90% Relative Humidity, Non-condensing
Form Factor 1U 19” Rackmount Chassis
Chassis Fan 6 x 40x56mm PWM FAN
Color Black
Airflow/Cooling Front-to-Back or Back-to-Front
Dimensions (L) x (W) 19”W x 24.65”D x 1.75”H (System only)
23.62”W x 32.28”D x 7.50”H (Packaging)
Weight approx. 22lbs

* All product specifications and product images are subject to change without notice. Last update: 01/21/2026

Document
Datasheet
BIOS Version Revision Note Download
Please refer to HPM-GNR1U motherboard page for BIOS.
Driver Type Operating System Download
Please refer to HPM-GNR1U motherboard page for drivers.
Date Description Download
Please refer to HPM-GNR1U motherboard page for PCN releases.
Model Name Description
HPS-GNR1U High-performance motherboard for 1U Rackmount System
