HPS-GNRU4A

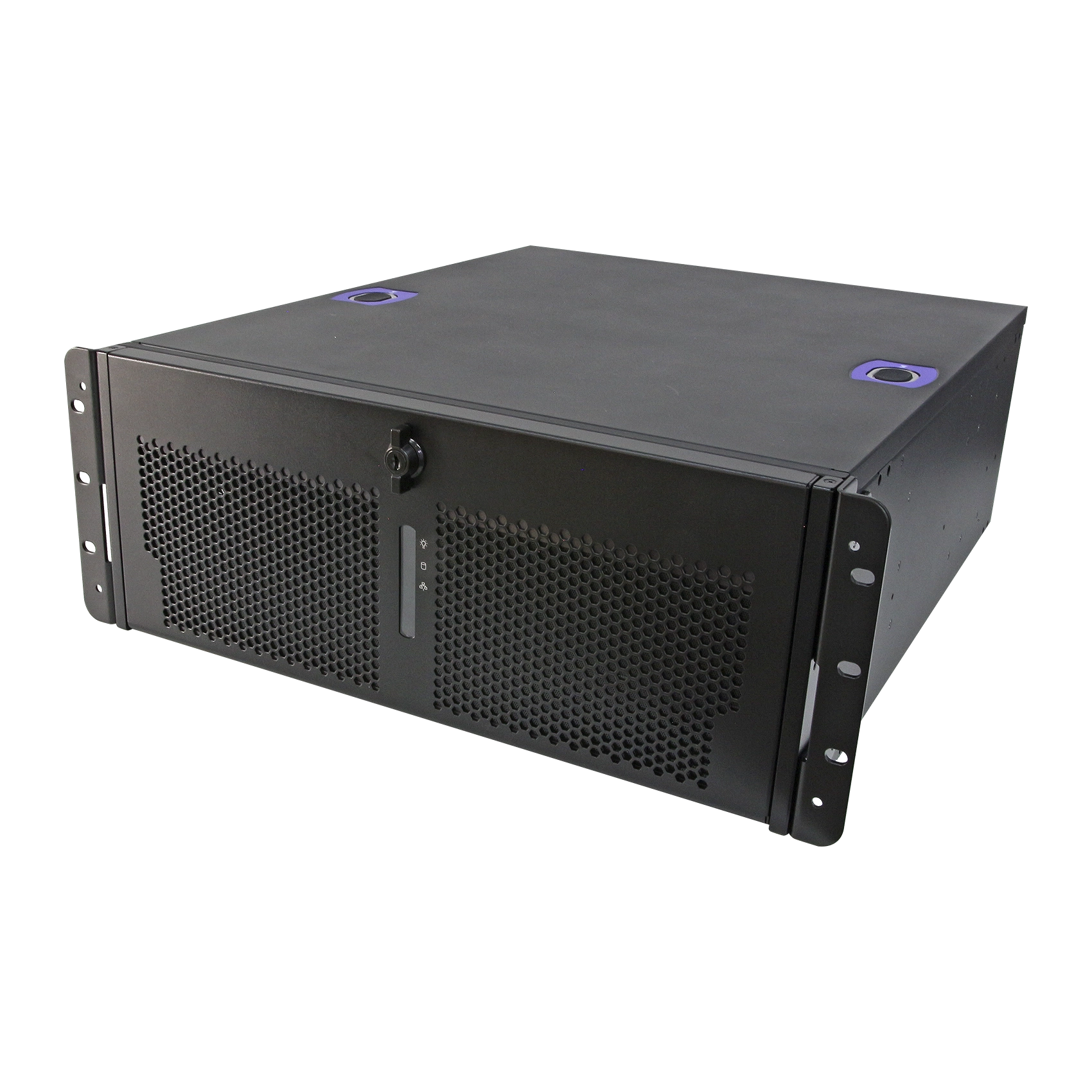

19" 4U Rackmount Workstation with HPM-GNRUA Server Grade Motherboard inside

  • Extended Lifecycle Server-grade Workstation

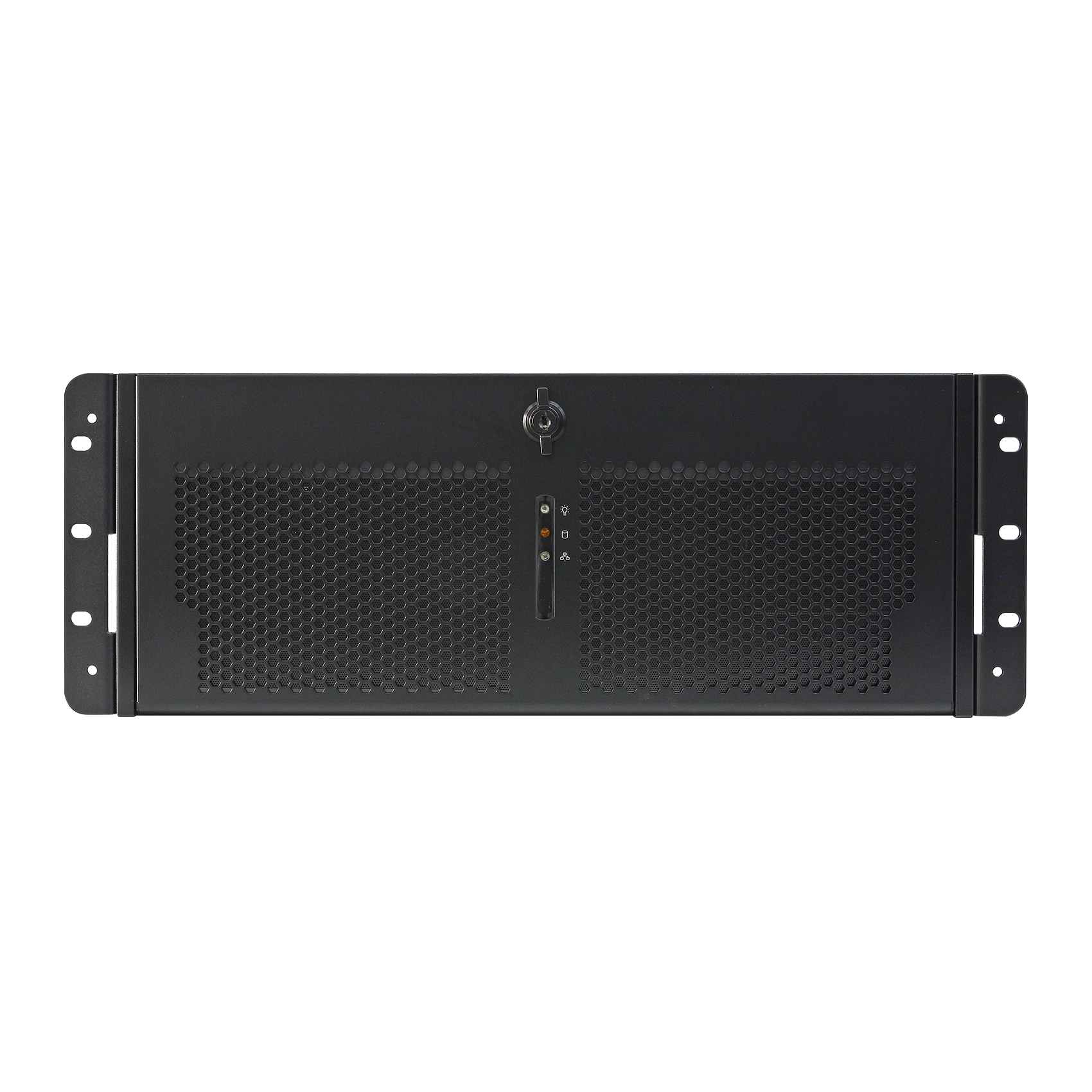

  • Lockable Front Cover
  • 19" 4U Chassis, L6 Barebone
  • 1 x LGA4710 sockets supports 6th Gen Intel® Xeon® 6500P or 6700P series Processor (formerly Granite Rapids) up to 350W TDP
  • 8 x DIMM slots support DDR5 6400MT/s RDIMM and 8000MT/s MRDIMM up to 2TB
  • 4 x PCIe Gen5 x16
  • Intel VMD and VROC (PCIe NVMe only, requires RAID key)
  • IPMI 2.0 with AST 2600 BMC controller onboard
  • 1 x Intel® Ethernet Controller I210-AT (1GbE)
  • 1 x Intel® Ethernet Controller E610-XAT2 (2 x 10GbE)
  • 2 x M.2 M-Key sockets support PCIe Gen5 x4 NVMe SSD, 2242/2260/2280/22110 form factor
  • 2 x COM Ports
  • 1 x Slim SAS 4i Connector
  • 1 x Mini-SAS HD 4i Connector
  • TPM 2.0 Onboard
  • L10 Fully Integrated (CPU, memory, storage) System available through OEM/ODM
Related Motherboard Inside
System
Motherboard Inside HPM-GNRUA
CPU 1 x LGA4710  Socket supports 6th Gen Intel® Xeon® 6500P or 6700P series scalable processors up to 350W TDP
System Chipset Intel® C741 Chipset
System Memory 8 x DIMM slots support DDR5 6400MT/s RDIMM and 8000MT/s MRDIMM up to 2TB
BMC/IPMI IPMI 2.0 supported by AST 2600 BMC controller onboard
Watchdog Timer System reset event 0 ~ 6553 seconds
H/W Status Monitor CPU temperature
Fan speed and voltage monitoring
Fan speed control
Case open detection
TPM Onboard TPM 2.0
RAID Intel VMD and VROC (PCIe NVMe only, requires RAID key)
System Fan 1 x front fan, 120×120×25 mm, 12V, 4-pin, 2200 RPM, 30 cm cable
2 x rear PWM fans, 80×80×38 mm, 12V, 4-pin, 8300 RPM, 18 cm cable
Supported OS Windows 11 SAC and LTSC
Windows Server 2025
Ubuntu 24.04
Red Hat Enterprise Linux (RHEL) 8.0 or above
Ethernet
Controller 1 x Intel® Ethernet Controller I210-AT (1 x 1GbE)
1 x Intel® Ethernet Controller E610-XAT2 (2 x 10GbE)
LAN Interface 4 x RJ-45
Expansion Slots
PCI Express 4 x PCIe Gen5 x16 Slots
Storage
M.2 2 x M.2 M-Key sockets support 1 x PCIe Gen5 x4 NVMe SSD 2242/2260/2280/22110 form factor
Drive Bay 3 x Front Accessible 2.5” Drive Bay
Other 1 x Slim SAS 4i connector (SFF-8654)
1 x Mini SAS-HD 4i connector (SFF-TA-1016)
Display
Chipset AST 2600 BMC Controller
Resolution VGA: 1920 x 1200 @ 60Hz 32bpp

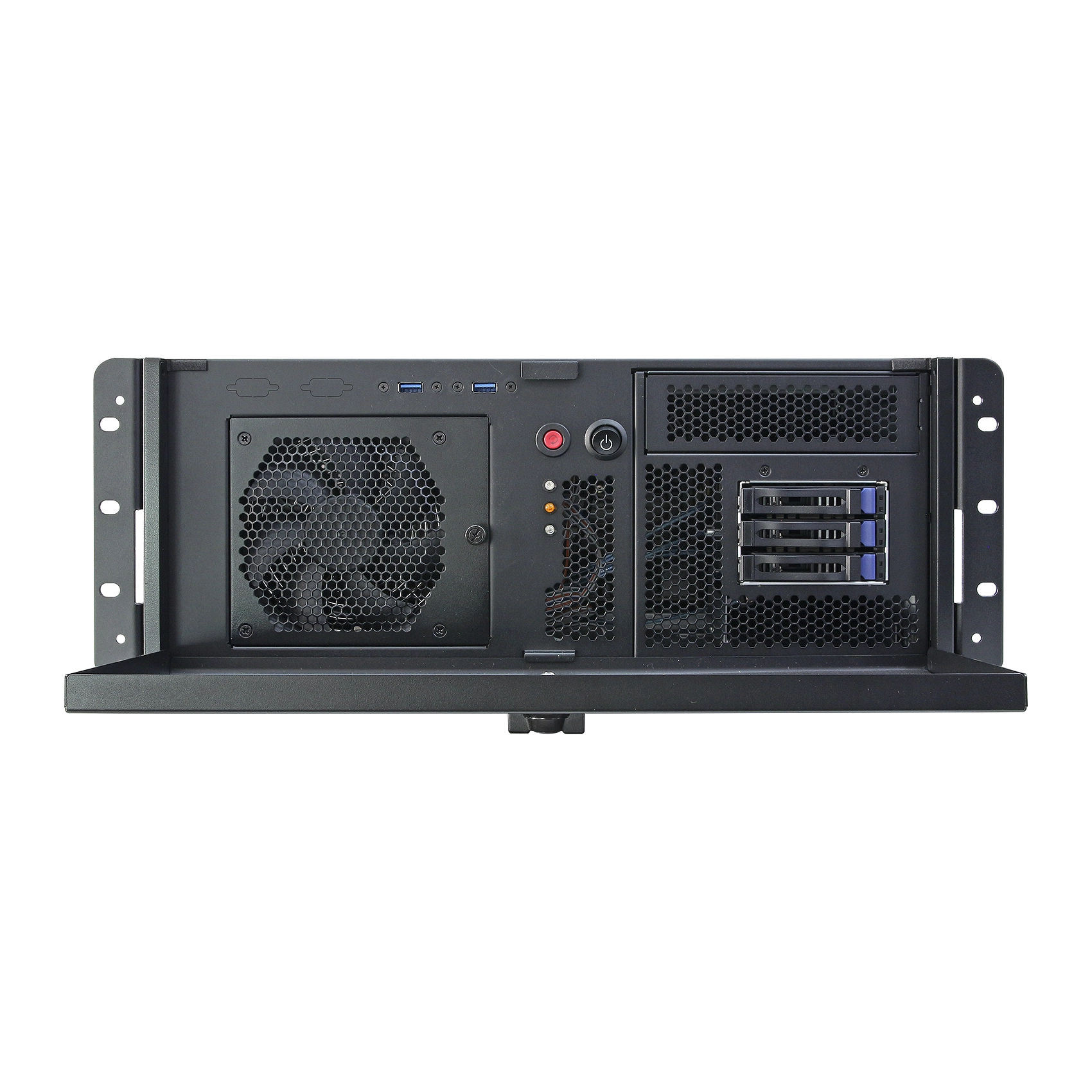

Edge I/O (Front)
USB 2 x USB 3.2 Gen 1 Port
Power Button 1 x Power Button
Reset Button 1 x Reset Button
LED Indicator 1 x Power status indicator
1 x Disk activity indicator
1 x Network activity indicator

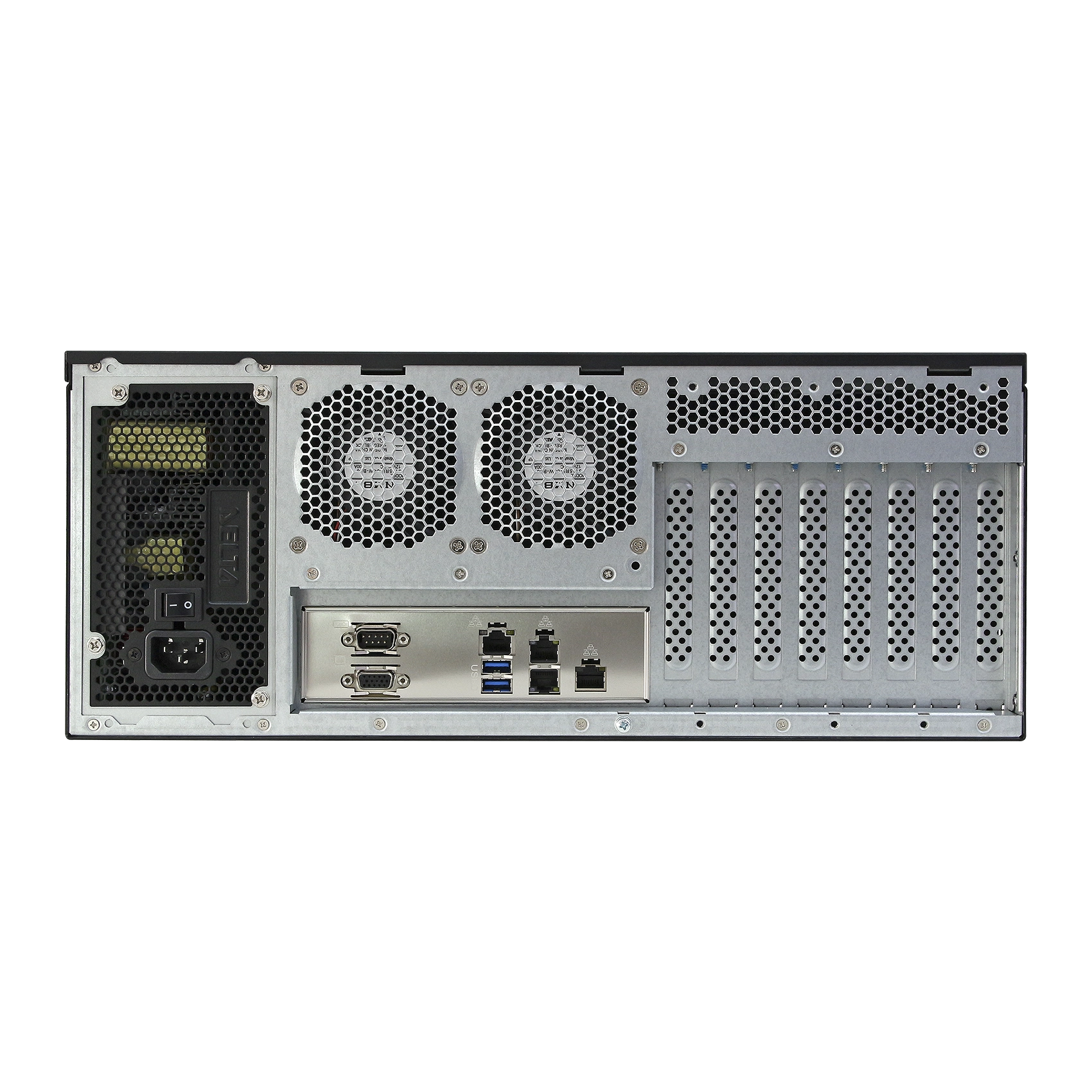

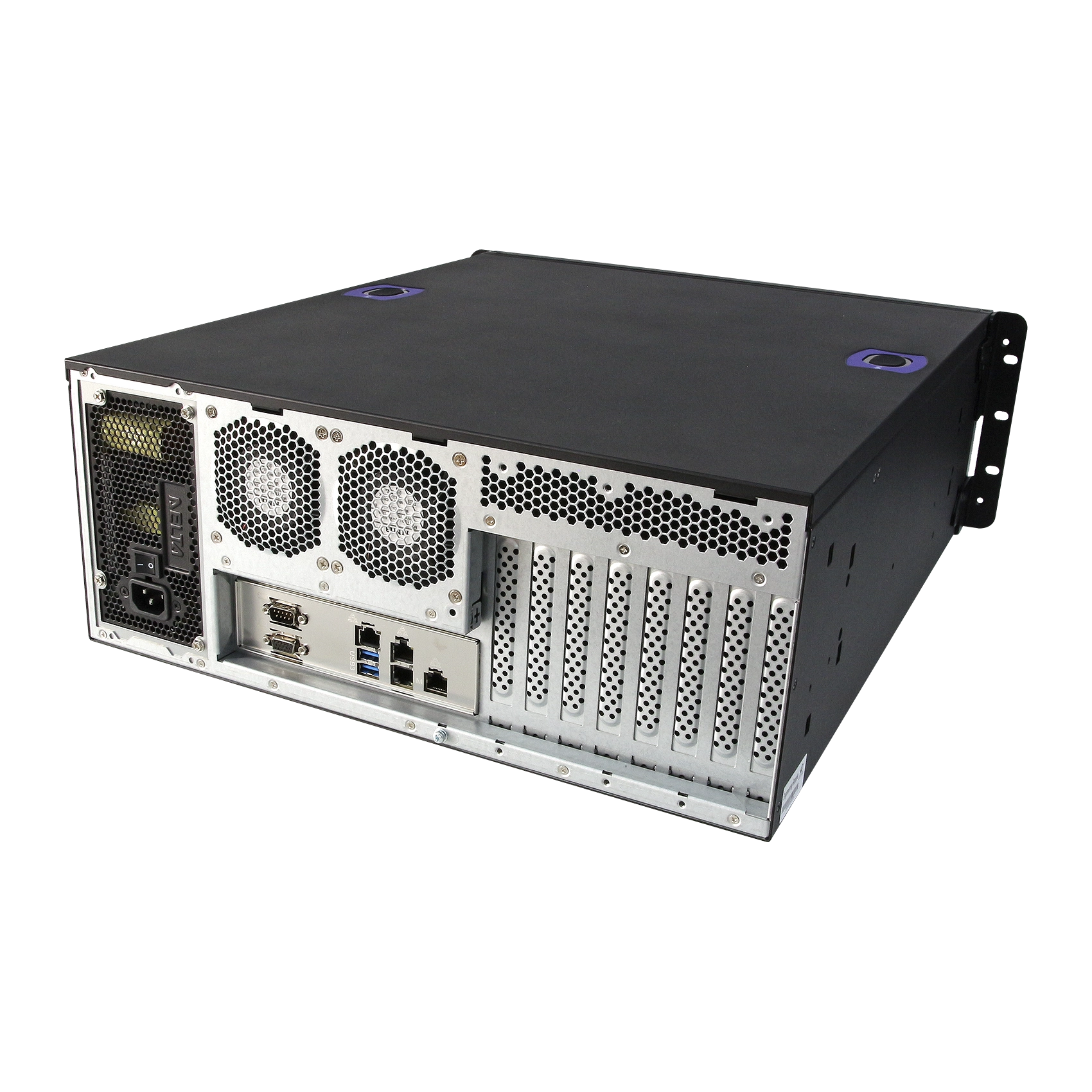

Edge I/O (Rear)
Display 1 x VGA Port
USB 2 x USB 3.2 Gen1 ports
COM Port 1 x RS232 Port
LAN 4 x RJ-45 LAN Ports:
1 x RJ-45 for Dedicated IPMI management port
1 x RJ-45 (1GbE)
2 x RJ-45 (10GbE)
AC Input 1 x AC-in (1300W ATX, default), 2 x AC-in (1600W CRPS, optional)
Internal I/O
VROC 1 x Intel® VROC Header
USB 4 x USB 3.1 Gen2
1 x USB Hub to 4 x USB
COM 1 x RS-232 Header
Fan 2 x 4-Pin CPU Fan Headers and 6 x 4-Pin Chassis Fan Headers
Front Panel 1 x Front Panel Header
Buzzer 1 x Onboard Buzzer
Clear CMOS 1 x Clear CMOS Header (2.0mm pitch Header)
CMOS Battery 1 x Horizontal Socket Type CMOS Battery Holder with CR2450
Temperature Sensor 1 x Inlet Sensor, 1 x Outlet Sensor, 1 x Inlet Sensor Header,
1 x Outlet Sensor Header
Power Requirement
Power & Connector 1 x Std. 24 pin ATX Controller
5 x 8-Pin SSI 12V Connector
ATX Mode
ACPI Support (S0 and S5)
Power Supply Unit Delta 1300W ATX PSU (Default)
Zippy 1600W CRPS PSU (Optional)
Mechanical and Environment
Operating Temperature L6 Barebone: 0 ~ 35°C (32°F ~ 95°F)
Storage Temperature -40°C 24hrs IEC60068-2-1 Cold test Test: Ab
70°C/ RH95% 24hrs IEC 60068-2-3 Test: Ca
Operating Humidity 35°C @95% Relative Humidity, Non-condensing
Dimensions (L) x (W) 19" 4U Chassis
16.93" x 6.88" x 20.79" / 430mm(W) x 174.8mm(H) x 528mm(D)
19" x 6.88" x 20.79" (with ear mount) /482.6mm(W) x 174.8mm(H) x 528mm(D)
Weight 42.99 lbs (19.5KG)

* All product specifications and product images are subject to change without notice. Last update: 12/02/2025

Document
Datasheet
Quick Reference Guide
BIOS Version Revision Note Download
This system is equipped with the HPM-GNRUA Emotherboard. For BIOS updates, drivers, and PCN details, please visit the HPM-GNRUA product page.
Driver Type Download
This system is equipped with the HPM-GNRUA Emotherboard. For BIOS updates, drivers, and PCN details, please visit the HPM-GNRUA product page.
Date Description Download
This system is equipped with the HPM-GNRUA Emotherboard. For BIOS updates, drivers, and PCN details, please visit the HPM-GNRUA product page.
Model Name Description
HPS-GNRU4A-A1R Barebone Only. L6 19" 4U Rackmount HPC System. Please contact BCMSales@bcmcom.com for more information.
