MX-PTL SeriesSampling Now

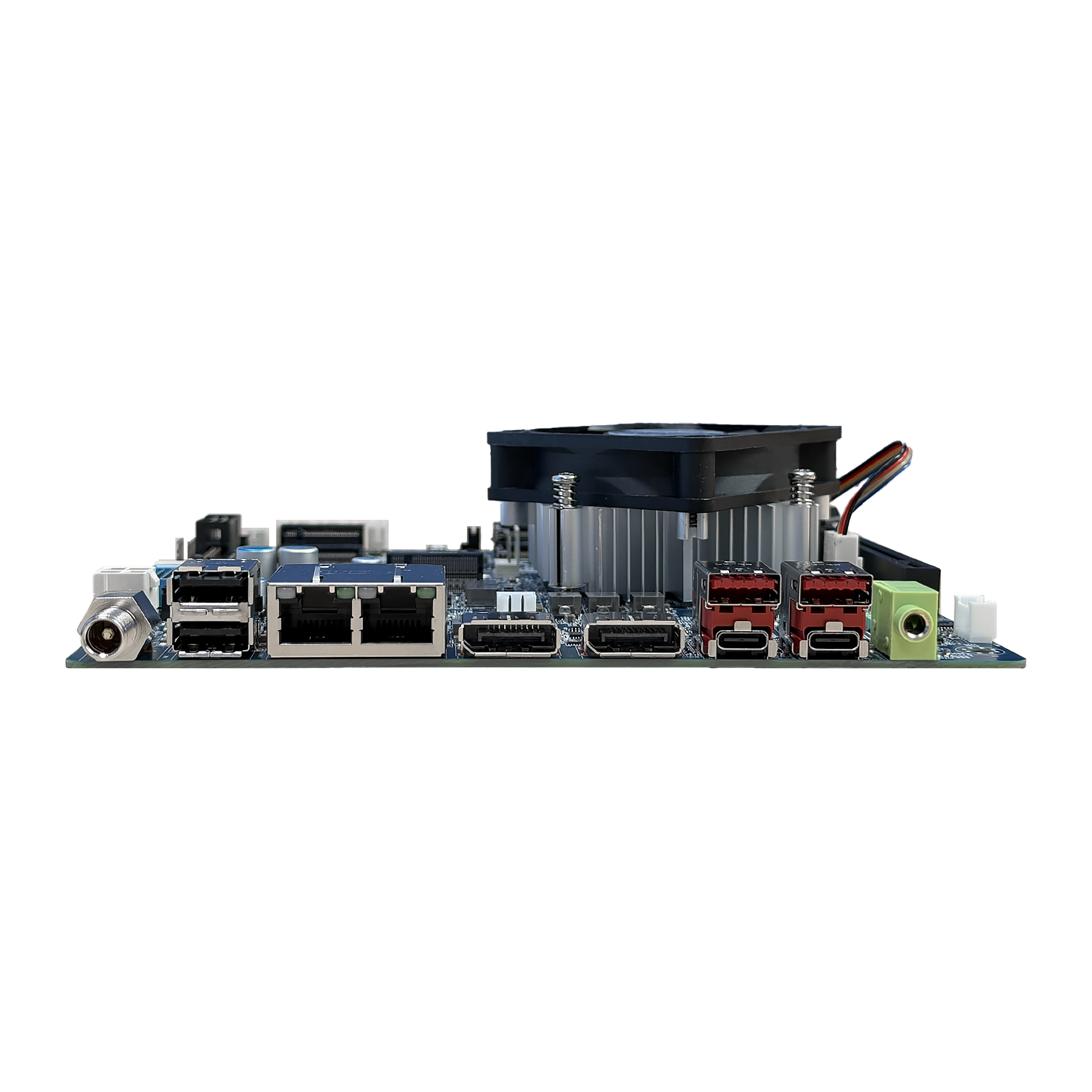

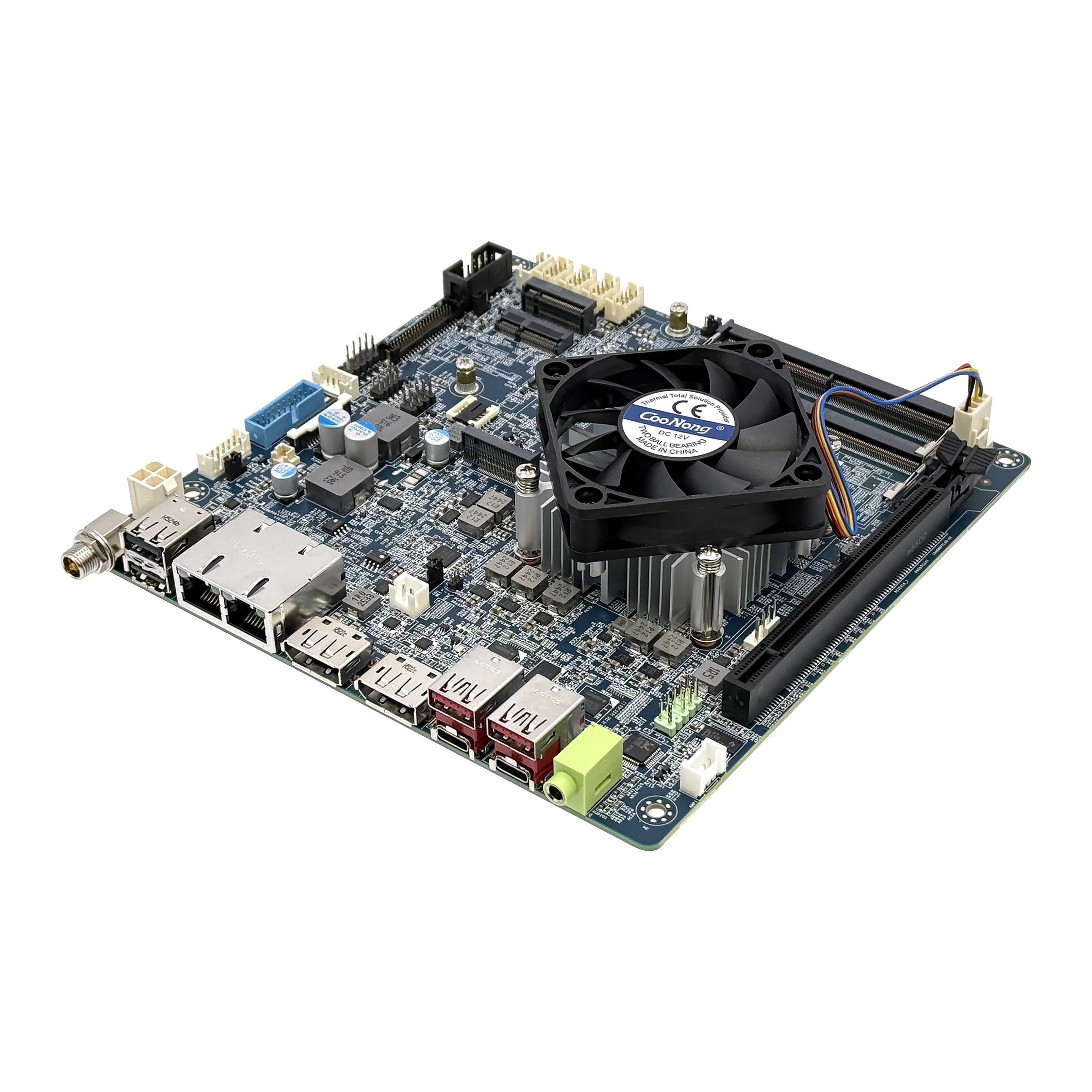

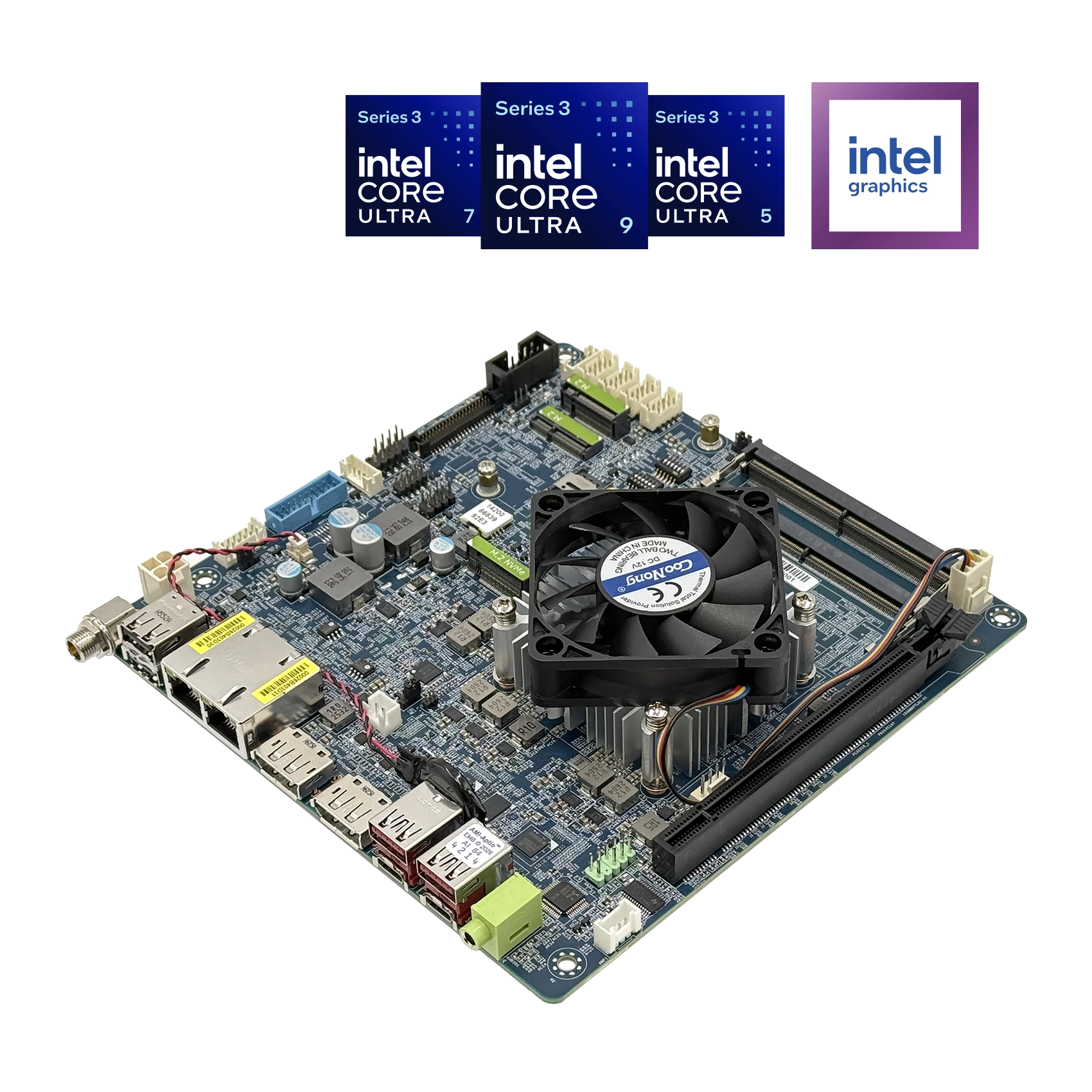

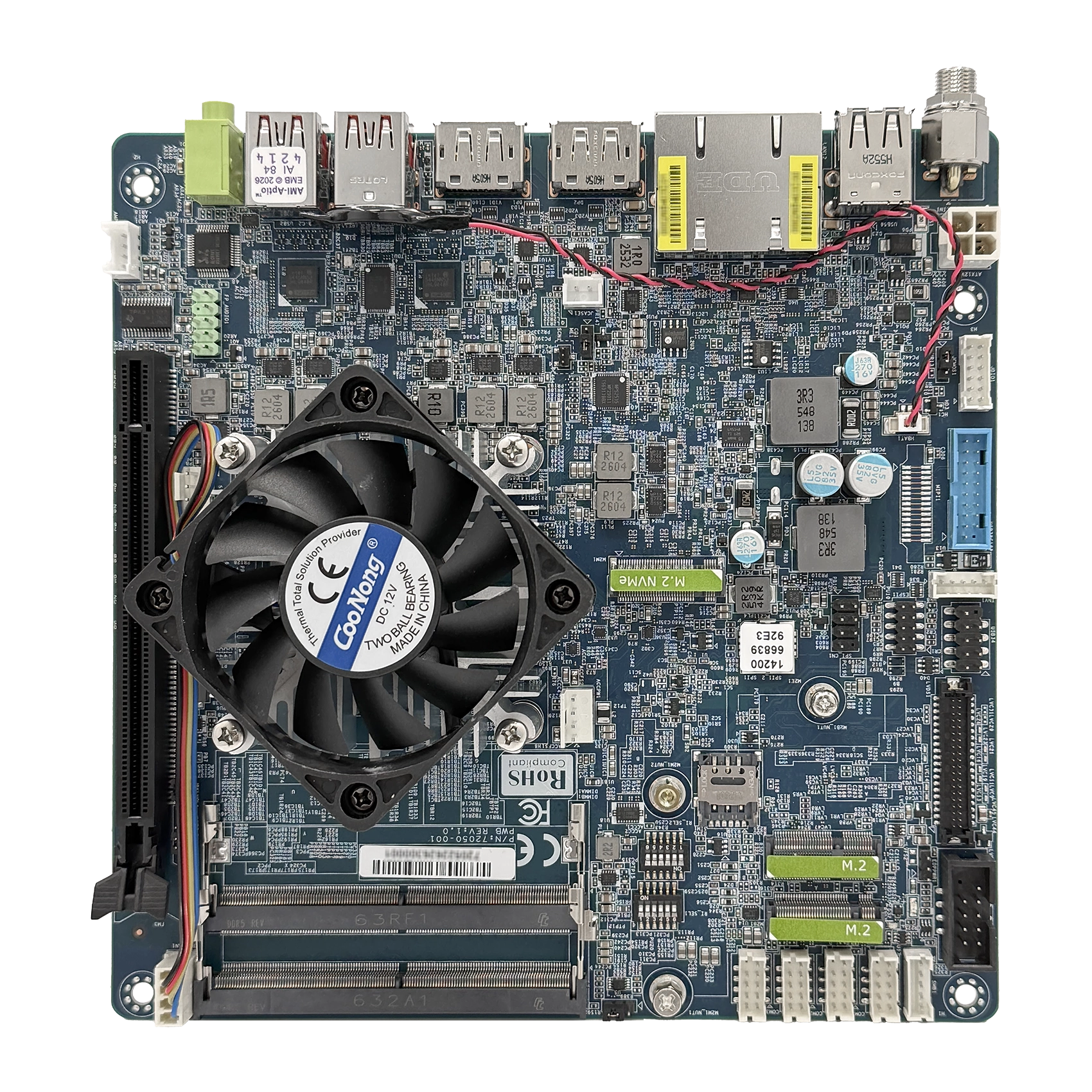

Mini ITX Motherboard built with the Intel® Core™ Ultra Processor Series 3 onboard
- Intel® Core™ Ultra Series 3 Processor onboard, formerly the Panther Lake H Platform
- 2 x DDR5 SODIMM sockets support up to DDR5 7200 MT/s using CSODIMM modules; supports up to DDR5 6400 MT/s using SODIMM modules.
- 1 x Gen5 PCIe x8 (x16 Physical Slot) (NOT available on processor SKUs with a 12 Xe-core GPU)
- 3 x M.2: E-Key, M-Key, B-Key
- Integrated Intel® Arc™ B390 GPU (X7/X9 series), Intel® Graphics (5/7/9 series)
- Supports 4 Independent Displays: 2 x DP, LVDS/eDP optional, 2 x Type C Thunderbolt 4
- 2 x USB Type C Thunderbolt 4
- Dual LAN: 2 x Intel® Ethernet Controller I226-LM
- 4 x COM Ports
- 12V~24V DC-In
The New Peak of Intel Edge AI
The MX-PTL is powered by the latest Intel® Core™ Ultra Series 3 (Panther Lake-H) processors. As a leading industrial platform adopting Intel 18A process technology, it is purpose-built to handle the most demanding AI vision, smart manufacturing, and edge inference workloads.
The XPU Trinity Hybrid Architecture
The MX-PTL maximizes the hybrid compute potential of the Panther Lake-H platform. Through deep hardware-level optimization, it achieves up to 180 TOPS of total platform AI power, enabling real-time decision-making for generative AI tasks at the edge without relying on the cloud.
-
1
Next-Gen NPU 5 Engine
A dedicated AI accelerator optimized for low-power, sustained inference, delivering an outstanding 50 TOPS on the NPU alone.
-
2
Xe3 (Battlemage) Graphics
Featuring the Intel® Arc™ B390 GPU with up to 12 Xe-cores, providing a 50%+ leap in graphics and AI-enhanced imaging performance.
-
3
18A Process Power Efficiency
Delivers unparalleled performance-per-watt, supporting up to 65W TDP processors in compact, thermally-constrained environments.
Ultimate Connectivity & Transfer Performance
To match its immense compute power, the MX-PTL offers unprecedented data throughput, perfectly supporting external accelerators, precision sensors, and high-speed networking environments.

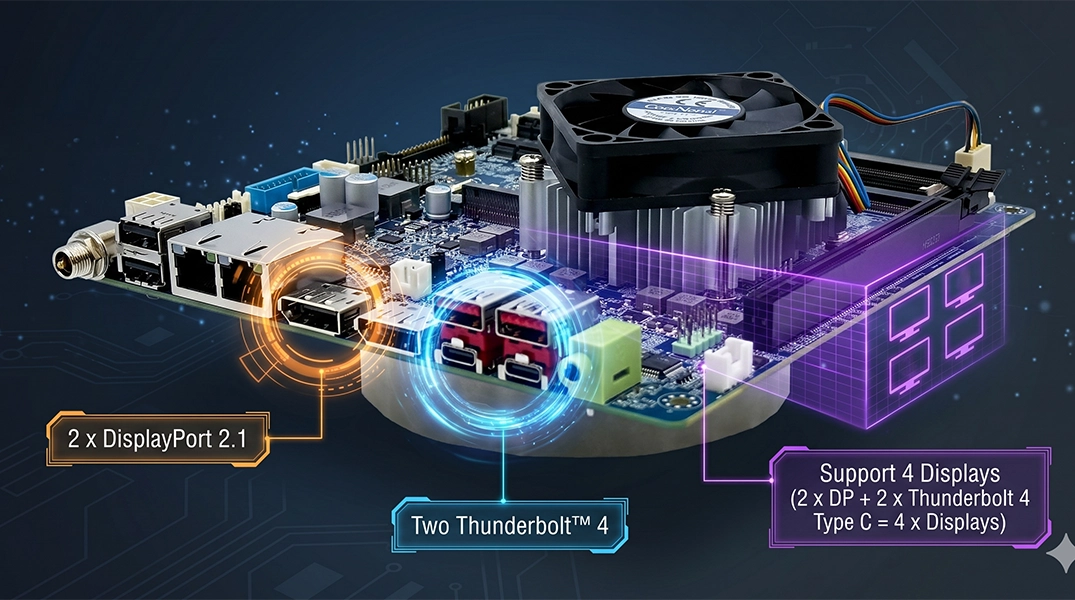

Thunderbolt™ 4
Provides ultra-fast data transfer and supports up to 4 independent displays (including 2x DP 2.1).

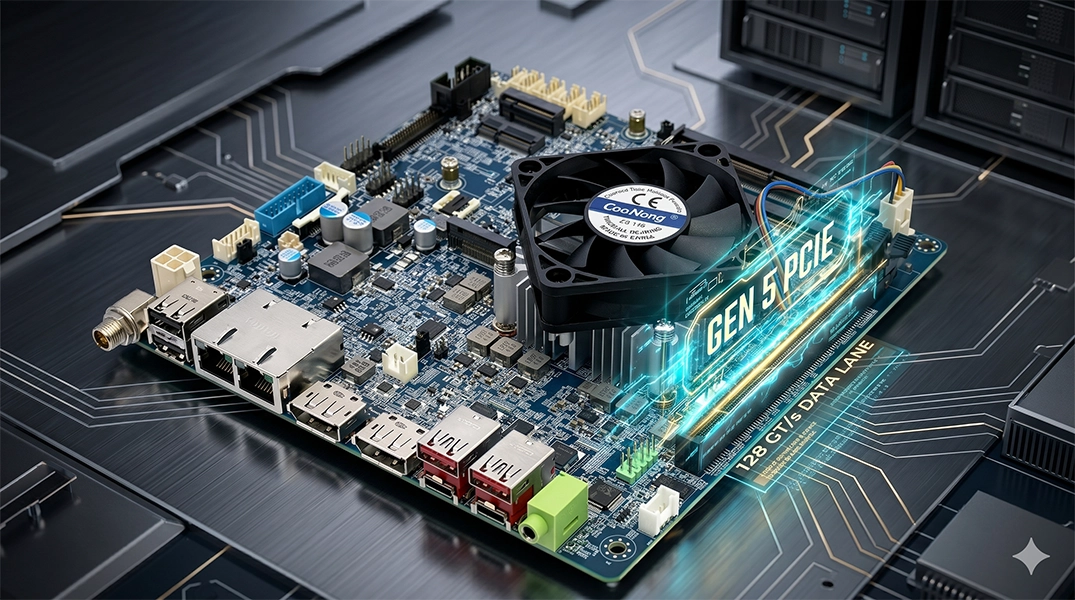

PCIe 5.0 Bandwidth
Features 1x Gen5 PCIe x8 slot and an M.2 M-Key (Gen5 PCIe x4), enabling zero-latency NVMe storage speeds. (PCIe slot is NOT available on processor SKUs with a 12 Xe-core GPU)

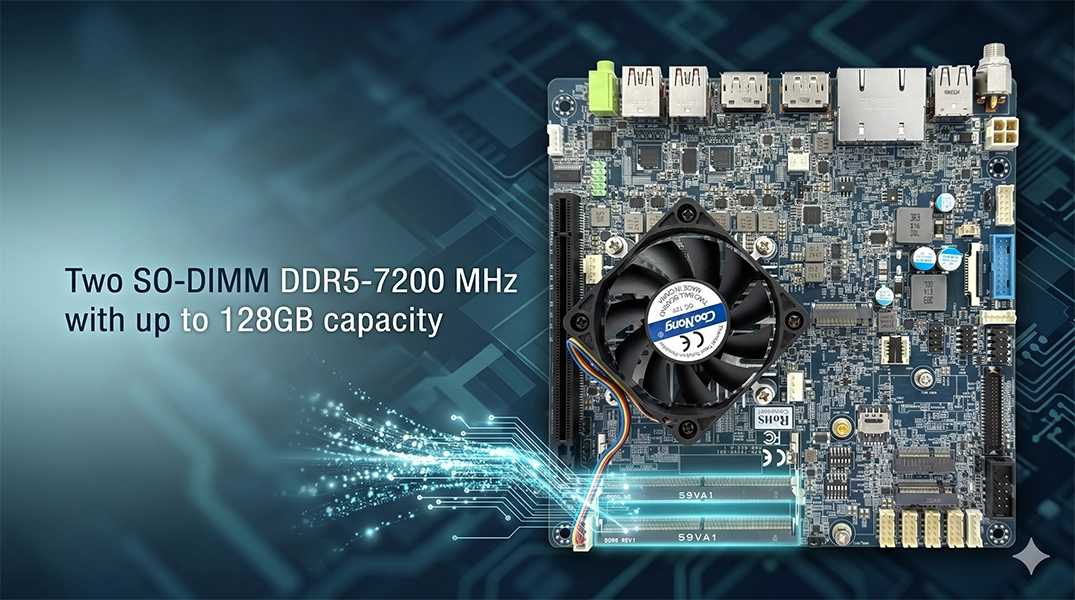

High-Speed DDR5
Supports dual-channel SODIMM DDR5-7200 MHz with up to 128GB capacity, easily handling massive AI datasets.

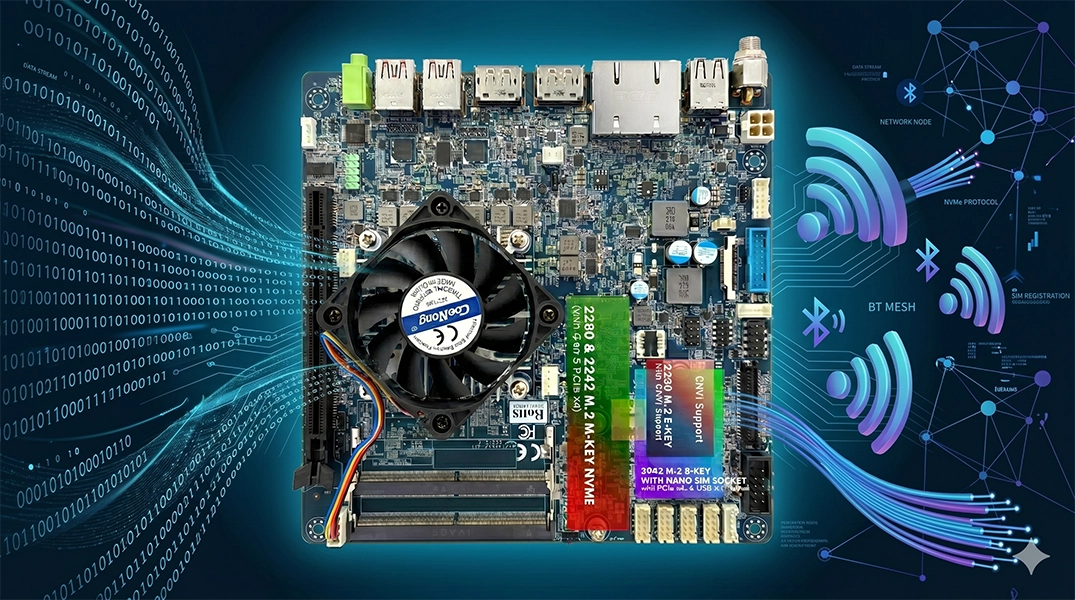

Wireless & Cellular
Equipped with an M.2 E-Key with CNVi support and an M.2 B-Key with a Nano SIM socket for 4G/5G connectivity.
Industrial-Grade Stability & Protection
Engineered for continuous, high-efficiency operation at the edge, the MX-PTL inherits BCM's profound industrial manufacturing DNA, ensuring maximum system availability.
-
Flexible Power Design
Supports 12V ~ 24V Wide-Range DC-in, flexibly adapting to diverse power environments from factory floors to mobile equipment.
-
Long Product Lifecycle
We guarantee long-term product availability, drastically reducing re-certification costs for medical equipment caused by hardware end-of-life.
-
Robust Network Architecture
Equipped with Dual Intel® I226-LM 2.5GbE LAN, providing high-bandwidth and redundant network stability.
-
Hardware-Level Security
Select models support Intel vPro® Enterprise and onboard TPM, enabling remote out-of-band management.
MX-PTL Performance Selection Guide
Tailored for diverse industrial needs, fully supporting the entire Core™ Ultra (Series 3) BGA processor lineup.
| Processor Tier | Max Cores | Graphics / AI Features | Ideal Application |
|---|---|---|---|
| Ultra X9 / X7 | 16 Cores | Arc B390 (12 Xe3 Cores) | High-end Robotics, 8K Real-time Vision Processing |
| Ultra 5 (e.g., 338H) | 12 Cores | Arc B370 (10 Xe3 Cores) | Smart Factory AOI, Edge AI Servers |
| Ultra 9 / 7 / 5 (Standard) | Up to 16 Cores | Intel® Graphics (Up to 4 Xe3 Cores) | Smart Retail, Medical Information Gateways |
*Note: Select SKUs feature Intel vPro® Enterprise for hardware-level remote management and enhanced security capabilities.
Empowering Edge Intelligence
Designed to excel in demanding environments requiring real-time inference, high-bandwidth processing, and robust stability.
High-end Robotics
Real-time kinematics, advanced motion control, and multi-sensor fusion for automated manufacturing and AGVs.
8K Vision Processing
High-resolution real-time video analytics and AI-enhanced imaging utilizing the integrated Xe3 Battlemage Graphics.
Smart Factory AOI
Automated Optical Inspection relying on high-speed PCIe Gen 5 bandwidth for zero-latency defect detection. * PCIe slot is NOT available on processor SKUs with a 12 Xe-core GPU.
Edge AI Servers
On-premises LLM and GenAI inferencing via the NPU 5 engine, safeguarding data sovereignty without cloud latency.
Smart Retail
Intelligent digital signage, behavior analytics, and multi-display setups driven by Thunderbolt™ 4 capabilities.
Medical Gateways
Secure, certified edge nodes for medical imaging and patient data aggregation backed by hardware-level security.
Ready to Build the Future of Edge AI?
Partner with our US-based engineering team to bring your vision to life. Whether you need MX-PTL evaluation samples for immediate testing or require a custom design based on the MX-PTL architecture, we are here to accelerate your time-to-market.
Please fill out the inquiry form below to connect with us!
| Product Image | Model Name | Description |
|---|---|---|
|
|

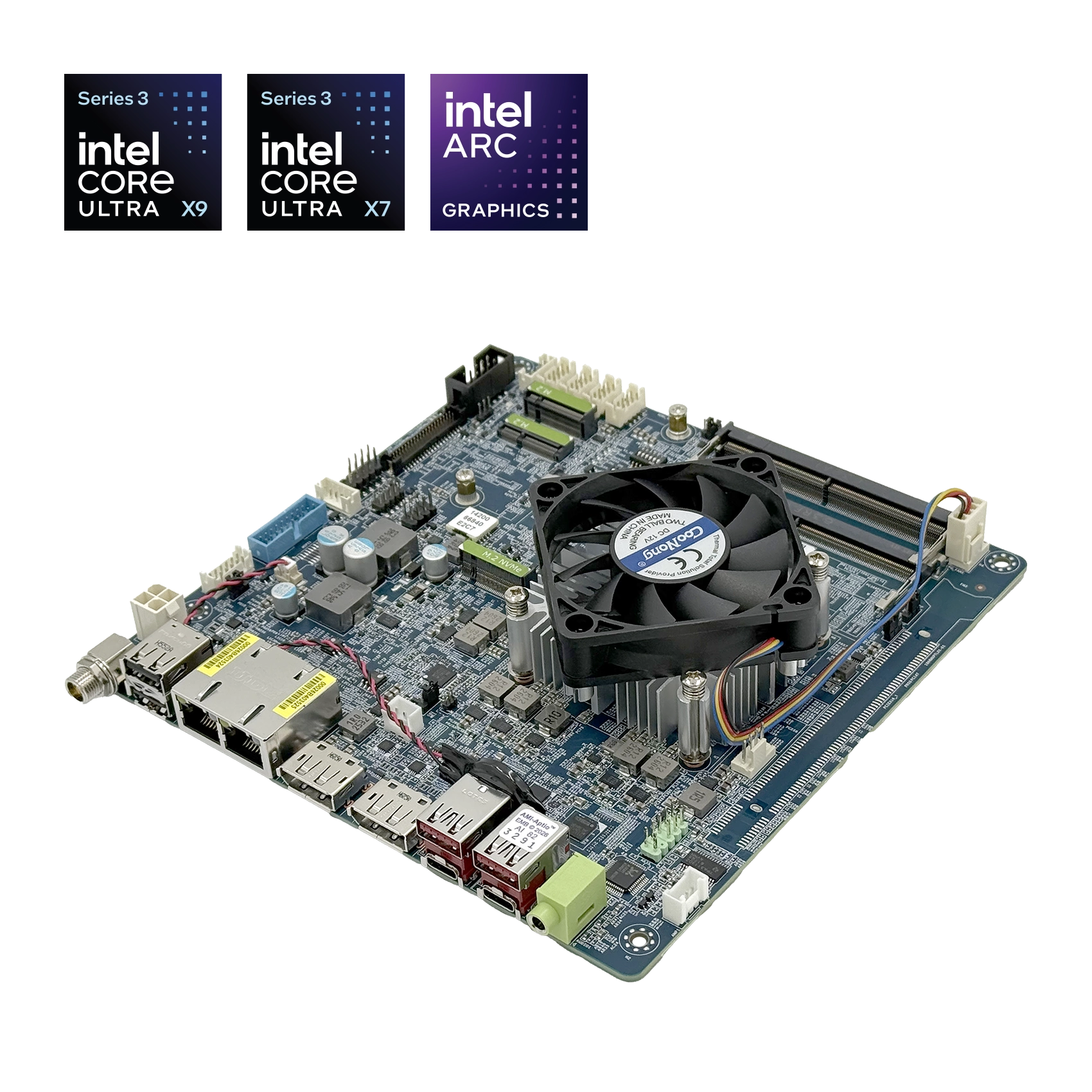

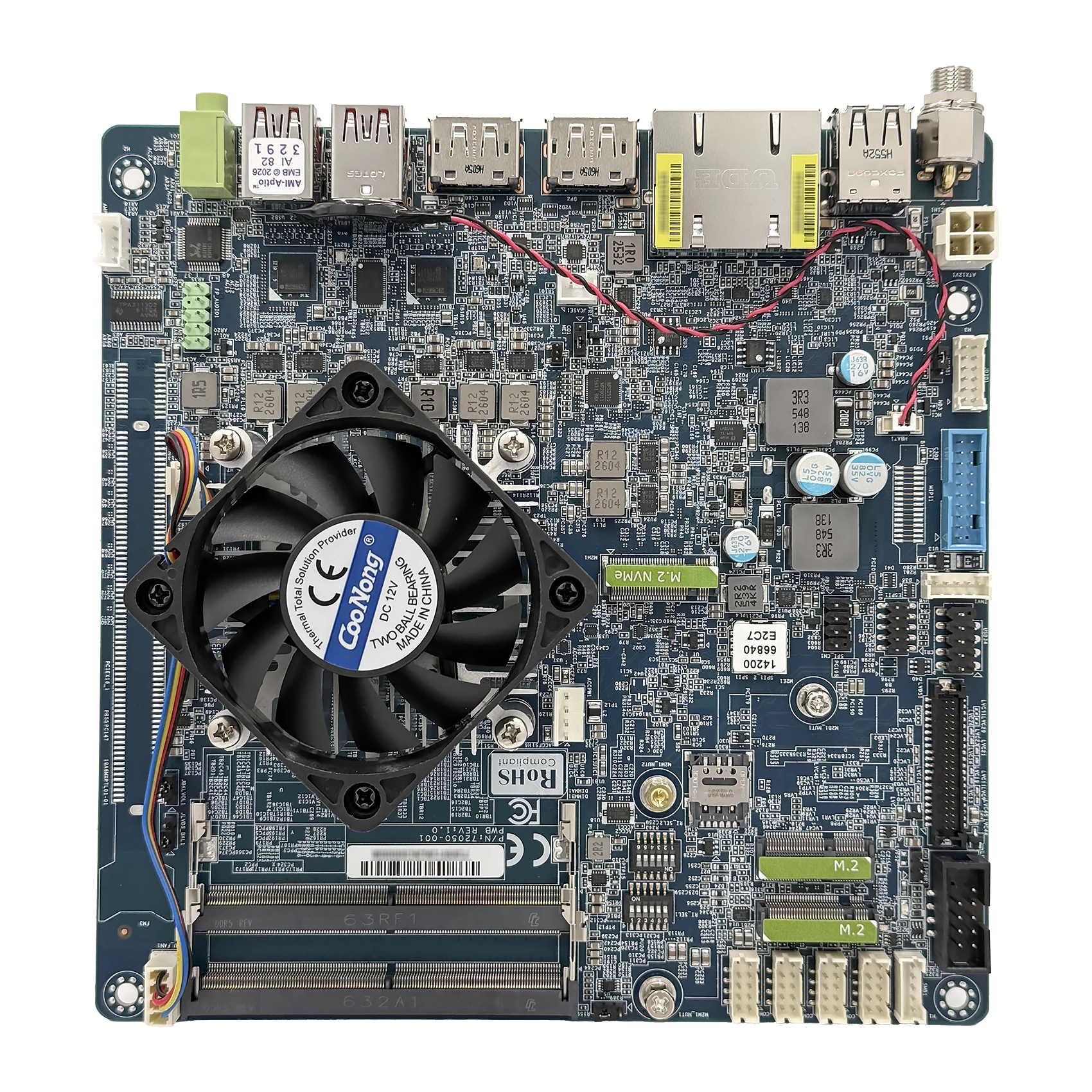

MX368H (72051) | Intel® Core™ Ultra 7-368H Processor Onboard, 12Xe GPU, up to 45W Max. Without PCIe slot. |
|
|
MX356H (72052) | Intel® Core™ Ultra 7-356H Processor Onboard, 4Xe GPU, up to 45W Max, PCIe x8 (x16 Physical Slot) |
| For other processors, please contact our team BCMSales@bcmcom.com. | ||
| Accessory Included | 1 x SATA Power Cable for Two Devices 1 x Full Height I/O Shield 1 x Low-profile I/O Shield |
|
