NUC-RPLP Sampling Now

Motherboard Inside: ECM-RPLP 3.5" SBC
Intel® Core™ i7/i5/i3 Mobile Processor supports up to 12 Cores, Intel® Raptor Lake P Platform
2 x DDR5 SODIMM sockets support up to 64GB
Intel® Iris Xe Graphic/ Intel® UHD Graphics (CPU Dependent)
2 x DP++ support Dual Displays
Integrated USB Type C Thunderbolt 4
2 x Intel® I226-LM Ethernet Controller (2.5 GbE), 2 x LAN Ports
M.2 E-Key CNVi, M.2 M-Key NVMe, M.2 B-Key with Nano SIM Card Slot
4 x USB 3.2 (rear), 2 x USB 2.0 (front)
1 x COM Port
12V-24V DC-In
Fanless Operation

System
Motherboard	ECM-RPLP3.5" SBC
CPU	Intel® Raptor Lake P Mobile Platform Intel® Core™ i7-1365UE (15W) Intel® Core™ i5-1335UE (15W) Intel® Core™ i3-1315UE (15W)
System Memory	2 x SODIMM sockets support DDR5 4800MHz up to 64GB
BIOS	AMI 256Mb uEFI BIOS
Display Chipset	Intel® Iris Xe Graphic: select Intel® Core™ i7 and i5 Processors Intel® UHD Graphics: select Intel® Core™ i3 Processor
Ethernet	2 x Intel® I226-LM Ethernet Controller (2.5 GbE)
Audio	Realtek HD Audio Codec
Expansion	1 x M.2 E-Key 2230, CNVi Support (PCIe x1 Channel & USB Signal) 1 x M.2 M-Key 2280 NVMe (Gen4 PCIe x4) 1 x M.2 B-Key 3042 with Nano SIM Card Socket (with PCIe x2, SATA, & USB Signal)
System Fan	Fanless
TPM	TPM 2.0
OS Support	Win 10 Win 11 64-bit Linux Ubuntu

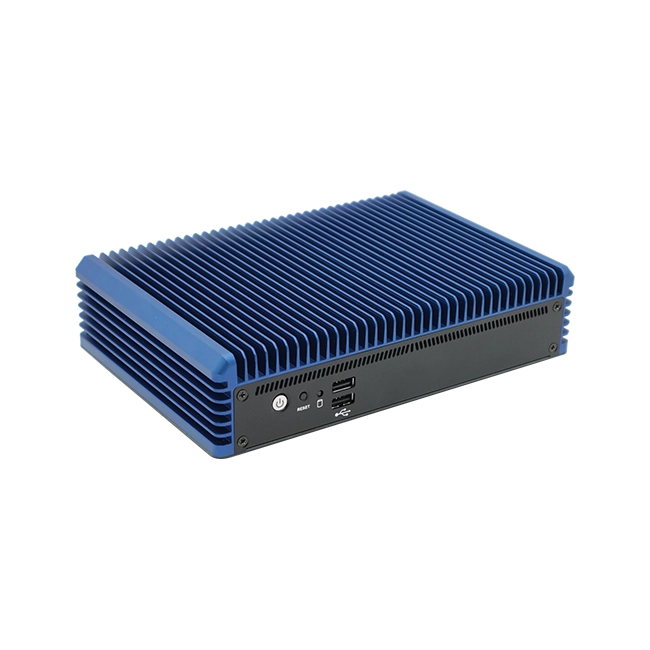

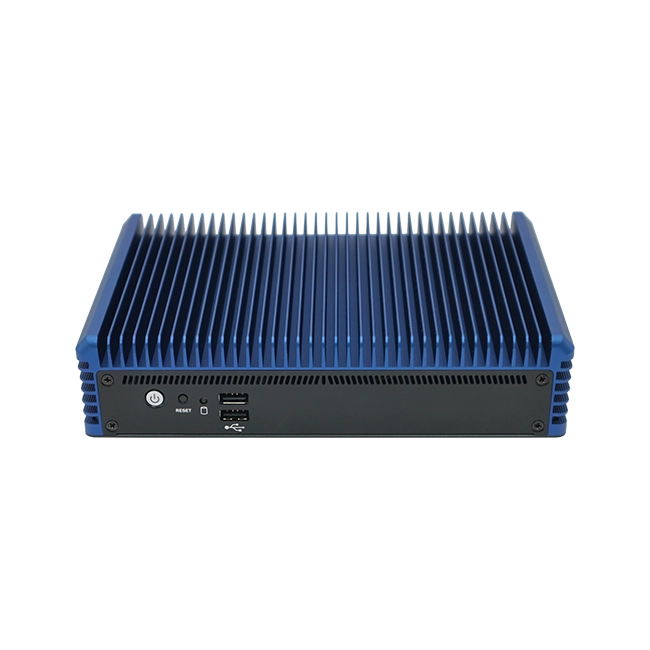

I/O - Front
USB	2 x USB 2.0
Power	1 x Power Button
Reset	1 x Reset Button
LED	1 x HDD LED

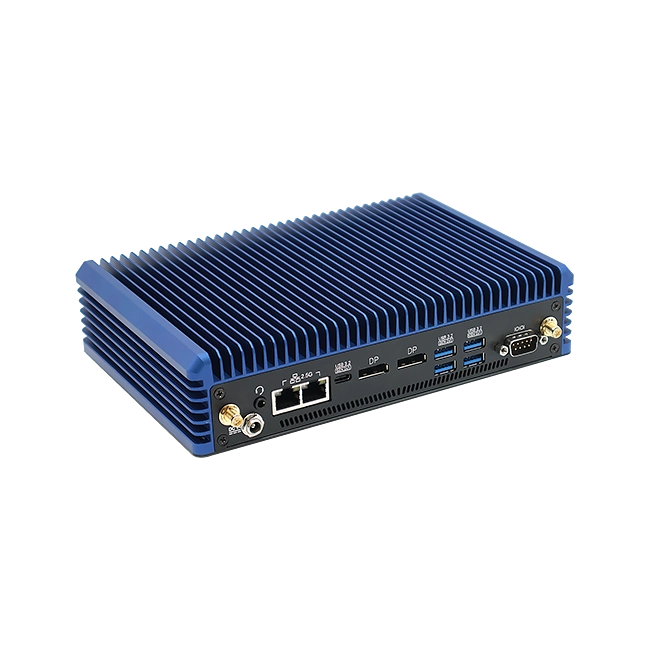

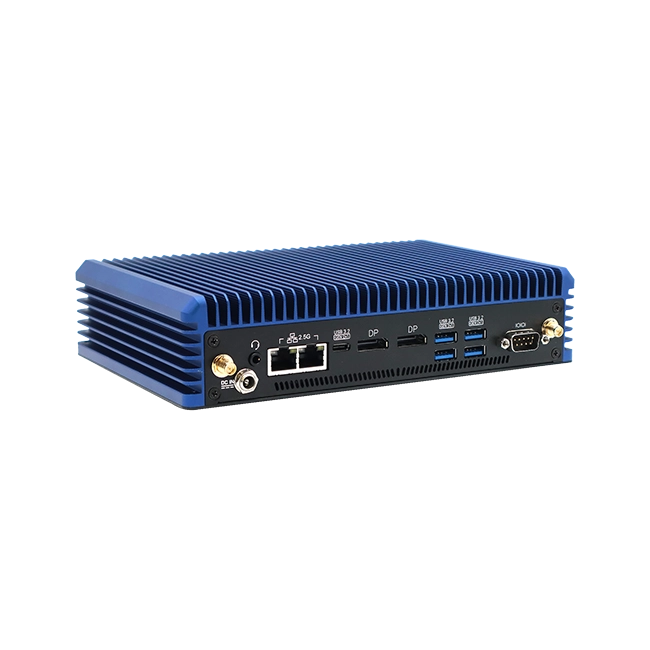

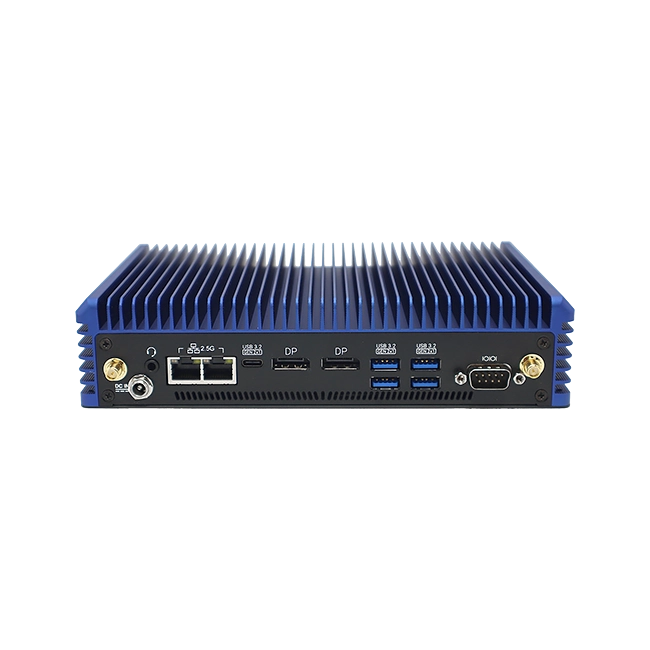

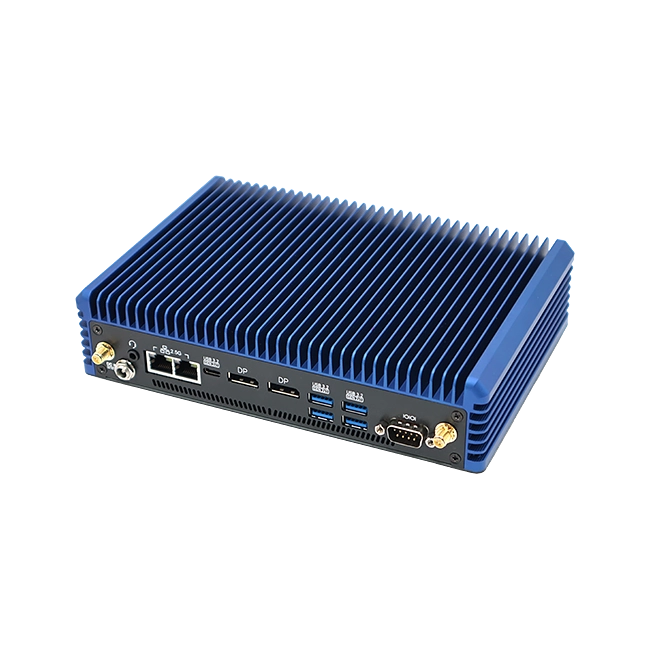

I/O - Rear
Display	2 x DisplayPort++
USB	4 x USB 3.2
Thunderbolt	1 x USB Type C Thunderbolt 4
LAN	2 x RJ45
DC	1 x Barrel Type DC-In
SMA	2 x Knockout for SMA Connectors
COM	1 x COM Port
Mechanical and Environment
Power Requirement	12V-24V Wide Range DC-In
Power Adapter	19V 120W Power Adapter
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20° C ~ 75° C (-14°F ~ 167°F)
Operating Humidity	5% to 85% non-condensing
Cooling Design	Fanless through Aluminum Fin
Dimensions	8.46" x 5.75" x 1.97" (215x146x50mm)
Weight	4 lbs (1.8 kgs)
Certification Information	CE, FCC Class B Pending, RoHS Compliant

* All product specifications and product images are subject to change without notice. Last update: 07/25/2024

Please Note - By downloading the files from BCM website, you agree to accept the terms and conditions.

Document
Datasheet

BIOS	Description
Note	This product is equipped with the ECM-RPLP 3.5" SBC motherboard inside. Please check ECM-RPLP product page for BIOS.

Driver	Description
Note	This product is equipped with the ECM-RPLP 3.5" SBC motherboard inside. Please check ECM-RPLP product page for drivers and manual.

Product Change Notice (PCN)

Date	Description	Download
Note	This product is equipped with the ECM-RPLP 3.5" SBC motherboard inside. Please check ECM-RPLP product page for Product Change Notice.

Model Name	Description
NUC-RPLP-65U	Intel® Core™ i7-1365UE (15W) Processor Onboard
NUC-RPLP-35U	Intel® Core™ i5-1335UE (15W) Processor Onboard
NUC-RPLP-15U	Intel® Core™ i3-1315UE (15W) Processor Onboard
Included	19V 120W Power Adapter US Power Cord
