Product End of Life (EOL) Notification

THIS PRODUCT IS ON THE PHASE-OUT LIST. BCM is accepting last time buy (LTB) orders through September 15, 2021. At BCM’s discretion, last time by orders may be scheduled to ship through January 31, 2022 with a non-cancellable and non-returnable (NCNR) PO. For NCNR orders BCM may require an advanced deposit covering material costs. For a replacement product please consider OFT-07W03 / OFT-10W02(POE) / OFT-10W03 / OFT-15W03 (EOL estimated in 2024) or OFT-07W04 / OFT-10W04 / OFT-15W04 (currently under development). For detail, please CLICK HERE to read the official release.

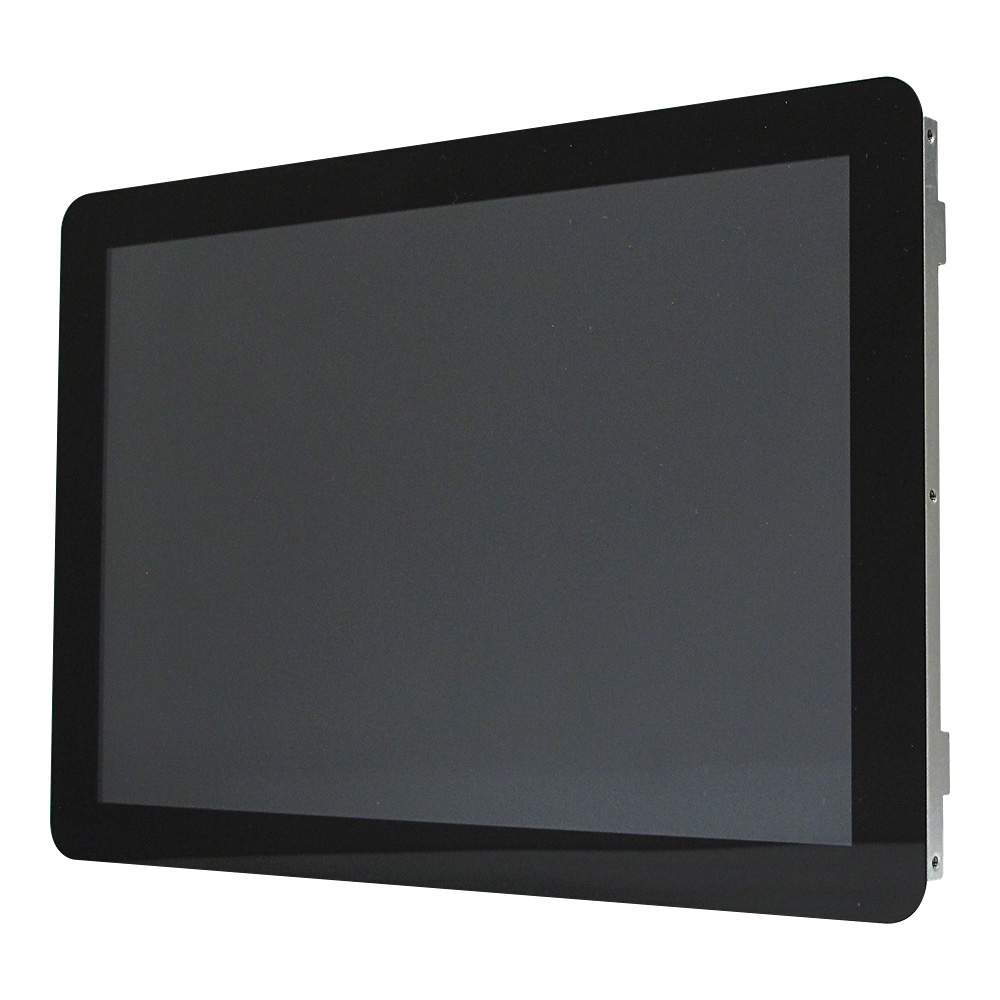

OFT-10W01 10 in Open Frame Tablet with Touch Screen OFT-10W01 10 in Open Frame Tablet with Touch Screen OFT-10W01 10 in Open Frame Tablet with Touch Screen

OFT-10W01

10" Intel Atom Quad Core Open Frame Tablet

Built based on the Intel BayTrail-T/CR Z3735F Quad Core processor providing high performance but lower cost and only 2W power consumption. This processor is optimized for tablet computing and brings valuable features such as ultra slim mechanism design, fanless, low power consumption, multi-OS compatibility (Windows, Linux and Android), and easy integration.

  • Intel® Atom™ Processor Z3735F Processor onboard
  • 10 inch PCAP Touch Screen
  • Flat screen with PCAP touch giving users fast touch response
  • Easy installation for In-Wall & Kiosk Applications
  • 2GB DDR3L RAM and 32GB eMMC Onboard
  • 10/100 Ethernet (PXE Boot)
  • Touch board interface (Power/ Brightness/ Volume/ LED)
  • 16Bit programmable GPIO
  • Wi-Fi (802.11b/g/n) & Bluetooth 4.0
  • 12V-24V DC Input
  • RS232(TX/RX) or RS485
OFT Optimized for Tablet Computing

Slim and Touch Interface

Intel Atom quad-core processor onboard. Optimized for tablet computing. High performance with cost effective solution. Plug-in and play. Slim and fanless operation design.

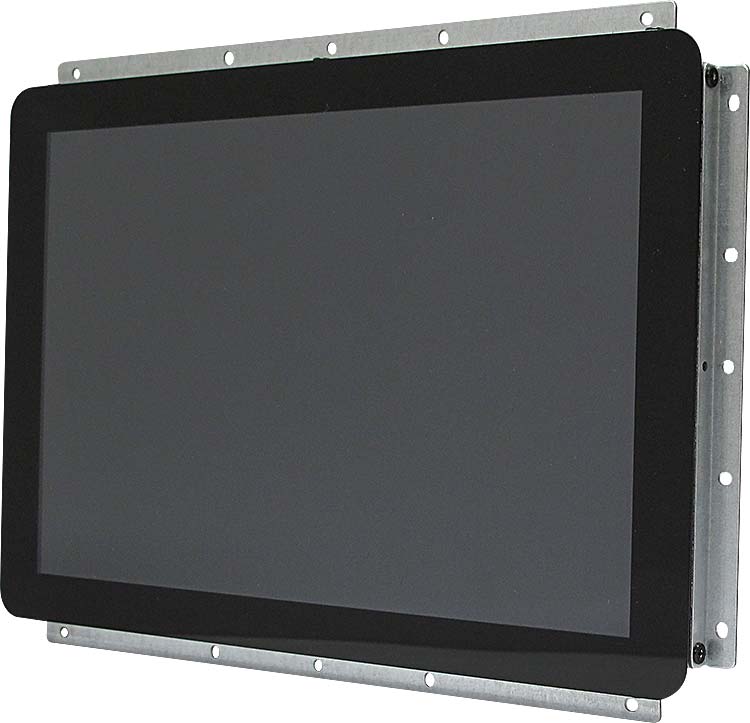

Easy Mounting with Kits

Mounting brackets are optional items. These mounting brackets speed up wall mount or kiosk enclosure integration in just a few steps.

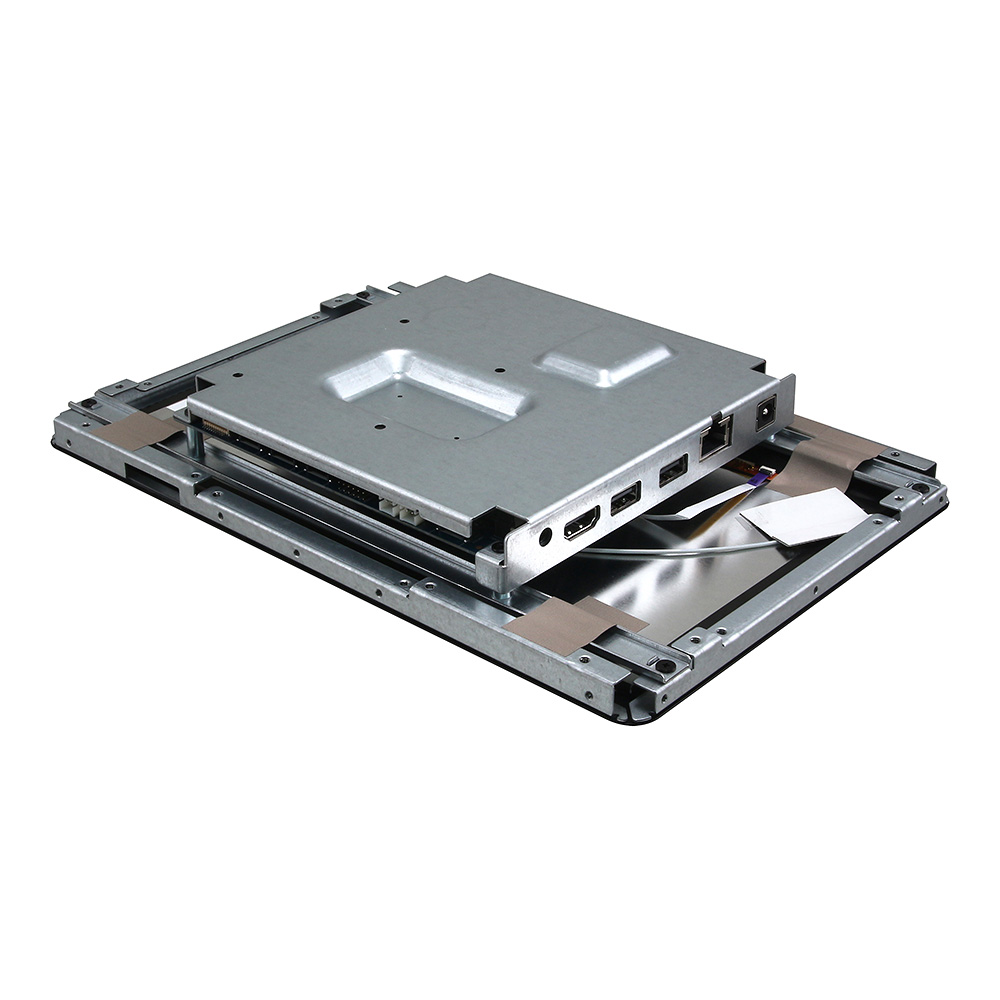

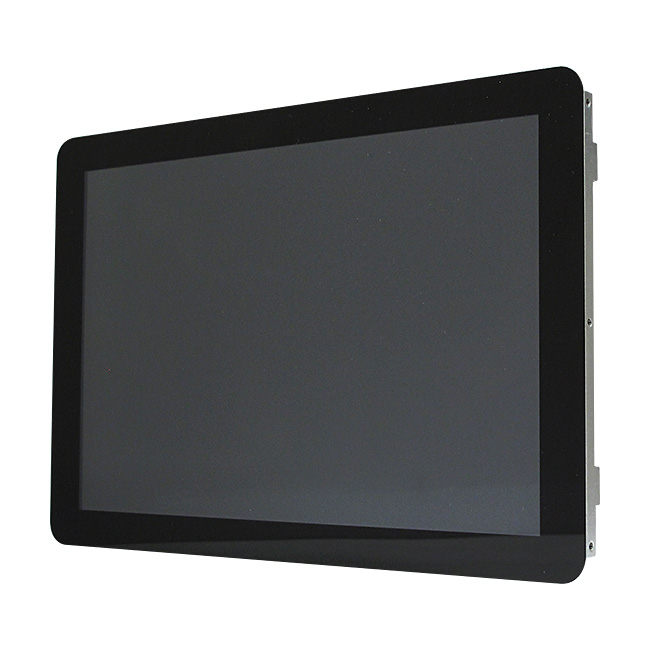

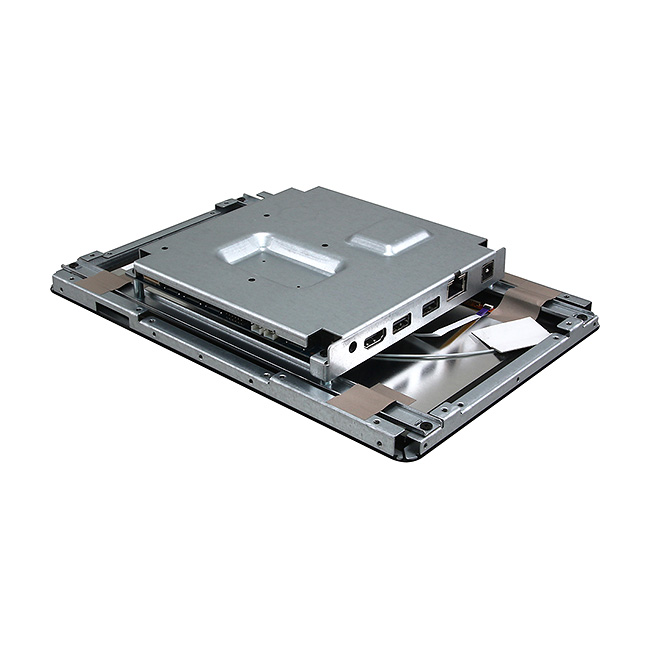

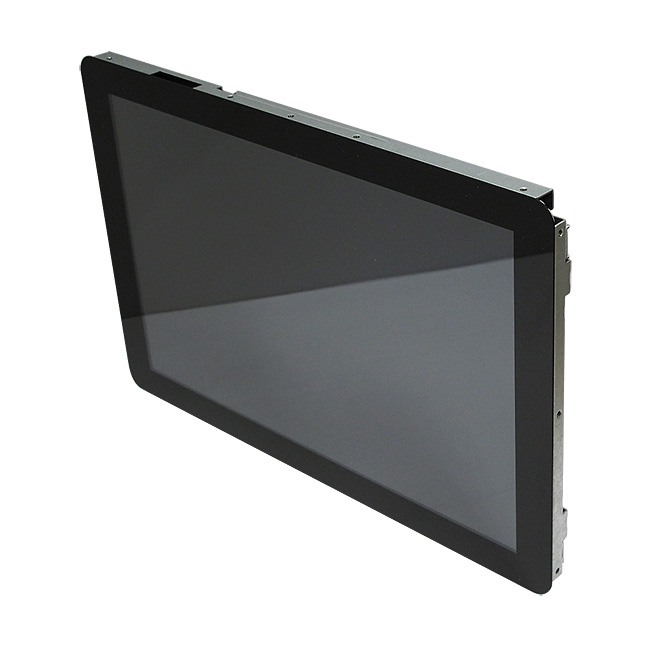

OFT Front and Back View
Image Description

Faster Time-to-Market Integration

A faster Time-to-Market solution for almost all types of applications that requires touch screen, CPU, memory, storage, Wi-Fi and Bluetooth in one unit.

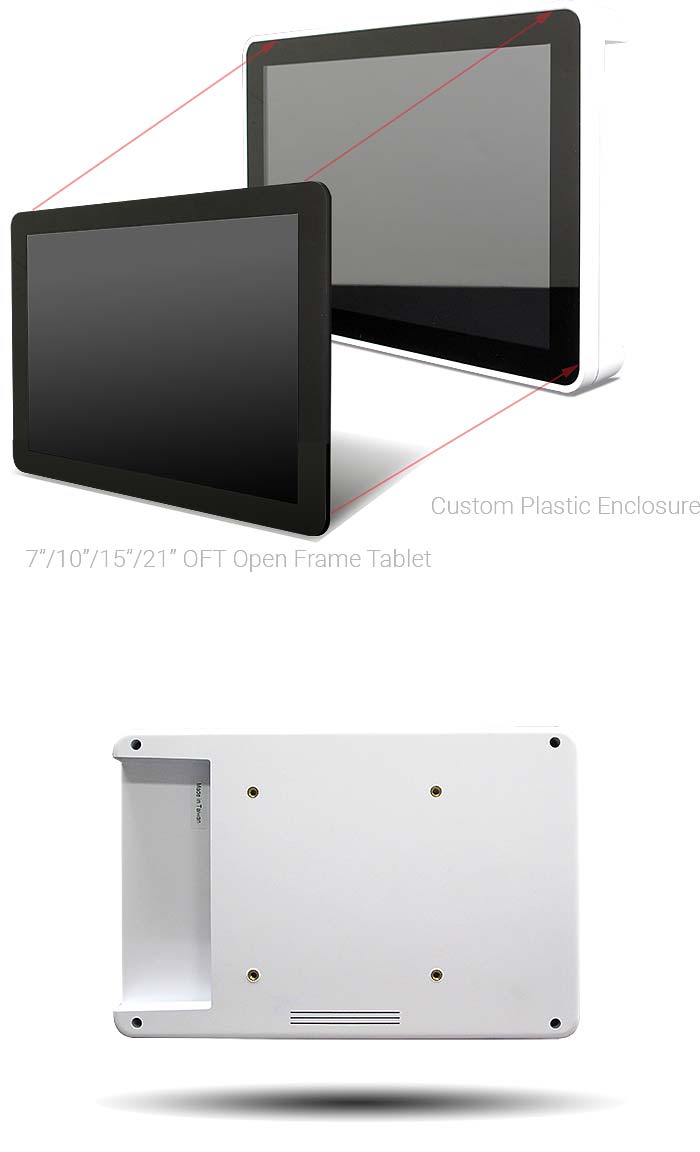

Adding a back cover to an OFT is easy

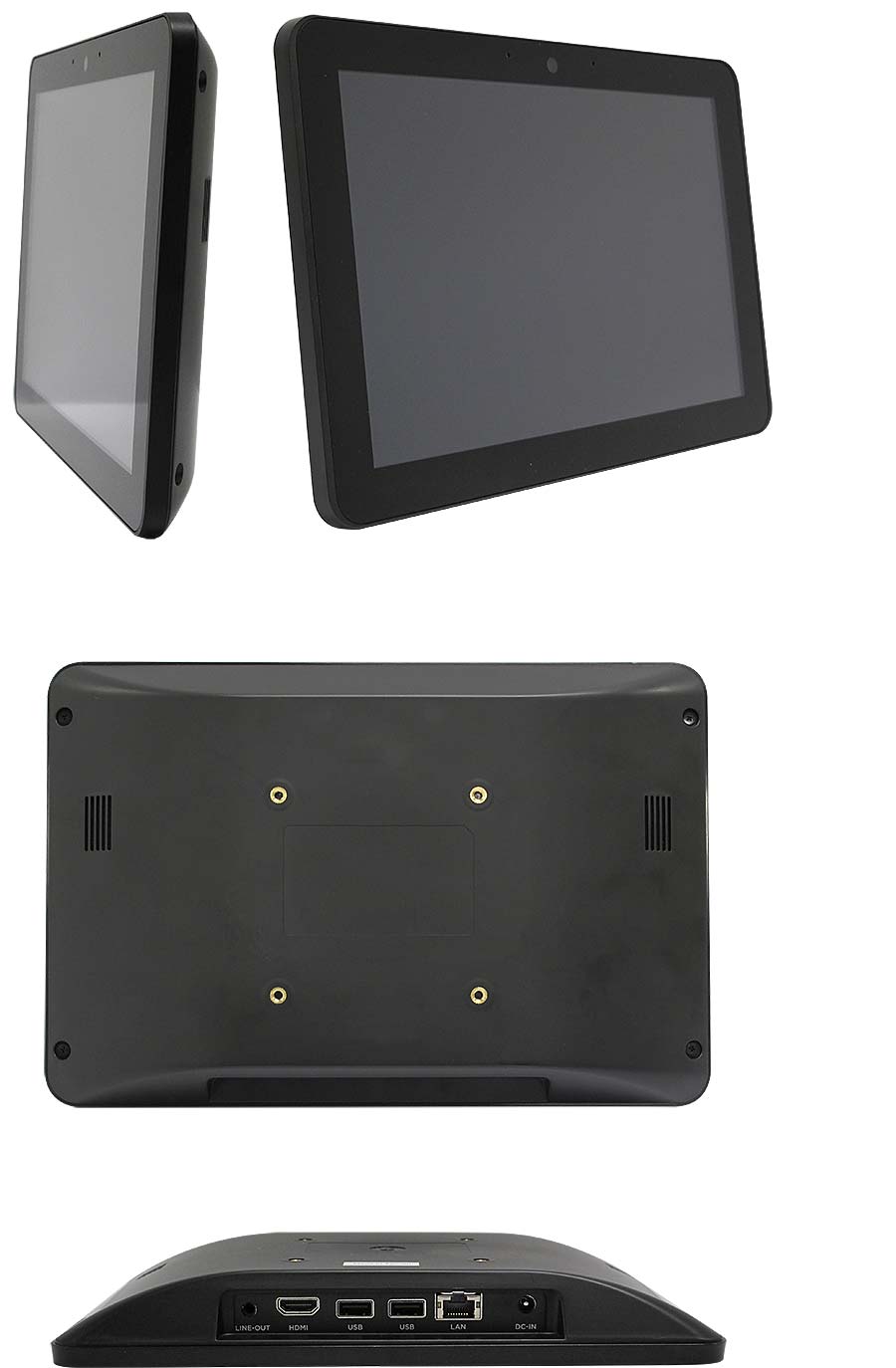

Our professional R&D and PM team can help you turn the OFT unit into a light weight Panel PC by adding a plastic back cover. Options of plastic colors or shapes of the enclosure are available via our custom design service.

Image Description
OFT Front and Back View
Image Description

Custom Design Possibility

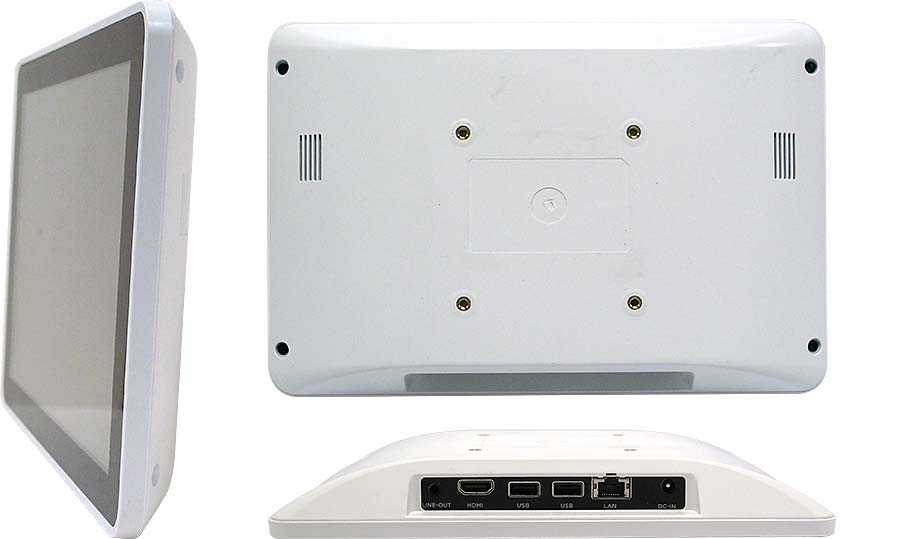

Some applications may have different requirements, for example, the plastic color for the back cover can be black for a traditional industrial look. Or it can be white for a clean elegant look for use in the clinic or hospital environment. Some requires battery operated mobile device, or with the add-on of built-in camera. Depends on your requirement, we can always come up a solution for you.

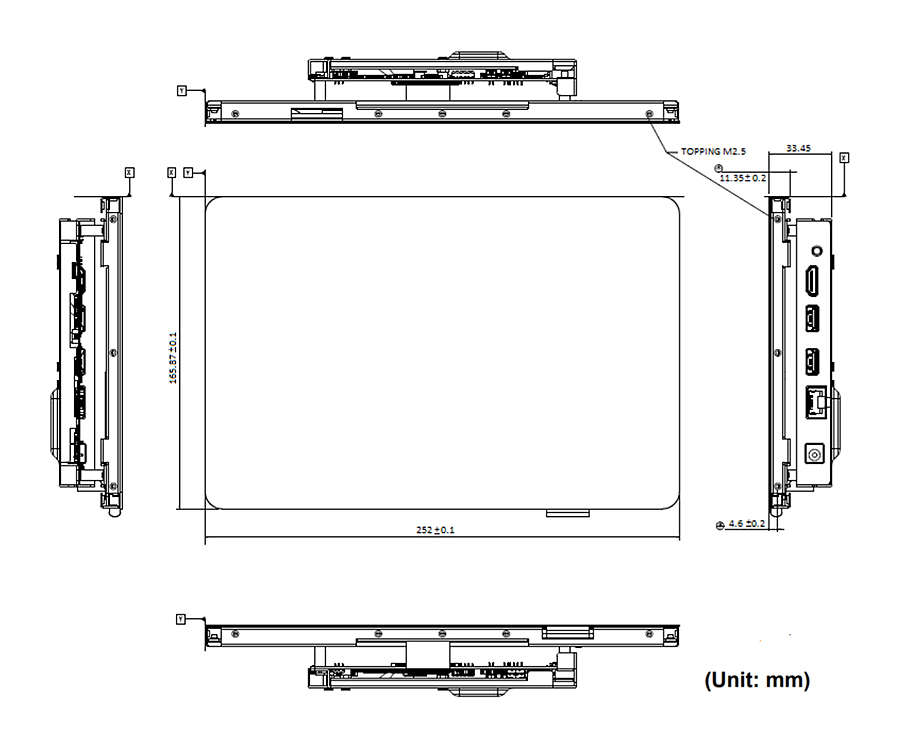

OFT-10W01 System Dimensions

OFT-07W01 System Dimensions
System
CPU Intel® Atom™ Z3735F 1.33 GHz Quad Core Processor
System Chipset SoC
System Memory 2GB DDR3L RAM
Storage 32GB eMMC Onboard
Wi-Fi Wi-Fi (802.11b/g/n) & Bluetooth 4.0
Multiple Display Windows/ Linux support extended mode
Android support clone mode only
OS Support Windows 10(32 bit)
Android 4.4(64 bit)
Android 5.1(64 bit
Ubuntu 16.04(64 bit)
Panel Display
LCD Size 10.1"
Display Type LCD
Resolution 1280 x 800
Luminance 350cd/m²
View Angle(H+-/V+-) 85°/85° (H/V)
Touch Type PCAP
External I/O
Audio 1 x Head phone jack
LAN 1 x 10/100 Ethernet
Display Interface 1 x HDMI
USB 2 x USB 2.0
1 x micro-USB Client (Android only)
Power Input 1 x DC Jack
SD 1 x Micro SD slot
Internal I/O
GPIO 1 x 16 bit GPIO interface
USB 2 x USB interface
eDP/LVDS 1 x eDP & Dual channel 24bit LVDS
1 x backlight control & power
Audio 2 x speaker interface (1.2W stereo)
1 x A-MIC interface
Touch 1 x Touch Button connector
I2C 1 x I2C interface(optional)
DC 1 x input 4-pin header
COM (Serial) 1 x RS232(TX/RX) or RS485
Mechanical and Environment
Power Requirement 12 to 24V DC Input
Power Type DC Jack, DC input 4pin header
Operating Temp 0°C ~ 40°C
Storage Temp -20°C ~ 60°C
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Mounting Mounting Bracket Kits
Certification Information CE, FCC Class A
Product Dimension 9.92” x 6.53” x 1.32”
(252 x 166 x 33.45 mm)
Product Weight 1.18kg/ 2.60lbs
Packaging Dimension 15.9” x 9.8” x 3.7” (405 x 250 x 93mm)
Packaging Weight 3.11 lbs

* All product specifications and product images are subject to change without notice. Last update: 2020/01/09

OFT for Automated Vending Machines

7"/10" OFT for Automated Vending Machines

Company A develops commercial coffee vending solutions. They are modernizing and revitalizing their system by replacing their traditional mechanical interface and single color display with a digital touch screen. The new machine is expected to accommodate a wider range of product options and higher value specialty drinks, both hot and iced, in addition to the typical coffee or cocoa, strong or light, sugar or cream, merchandise selections.

These new vending machines will be placed in public areas such as work place break rooms, public cafeterias, auto dealer waiting rooms, hotel lobbies, shopping centers, train stations, airports, and other public venues. This next generation automated vending machine offers customers vivid images of the various product options along with a user-friendly P-CAP touch interface similar to the customers’ tablets or smartphones making purchases a simple and pleasant experience.

For the vendor, adding this technology to their machines may help to expand same-store sales by delivering meaningful and attractive product information and providing a platform for delivering promotional content on the screens.

OFT for Beverage Dispenser

7"/10" OFT for Next Gen Beverage Dispenser

The next generation beverage dispenser in restaurant or fast food stores implemented with 7 or 10 inch touch screen panel computer provide dine in consumers or dispenser operators with new user experiences.

The OFT-07W01 open frame tablet is a all-in-one deployment-ready falness panel computer built-in with Intel Atom quad core processor. It is also equipped with onboard memory and storage as well as PCAP touch, Wi-Fi and Bluetooth capabilities. All these features enable beverage dispenser suppliers easier implementation and shorten product development time and cost.

10/15 inch OFT for Fitness Equipment

10"/15" OFT for Fitness Equipment

The next generation fitness equipment provides users the smarter and more modern and high-tech fitness experience. OFT-10W01 and OFT-15W01 are ideal solutions for these types of applications due to its all-in-one fanless and easy mounting integration features. Contact our sales team for more information.

OFT for 3D Printers

10" OFT for Large Scale 3D Printers

With the easy hardware and software integration features, many of the 3D printer suppliers adopt our 7" and 10" open frame tablets into their industrial grade 3D printer products as its main control console interface. The benefits include faster time to market, easy Android OS and app software implementation, fanless operation, PCAP and flat screen touch interface, sleek design, and easy mounting integration.

OFT for Video Conferencing Console

OFT for Video Conferencing System Console

7 inch flat touch screen, supports Win, Android and Linux OS. Fanless design, quiet operation. Custom enclosure design, easy mounting integration, faster time-to-market solution.

Medical Analysis Devices

OFT for Medical Analysis Devices

7/10 inch flat screen with PCAP touch. Fanless design, quiet operation. Supports Win, Android and Linux OS. Custom enclosure design. DC-in power.

Medical Analysis Devices

OFT for Smart Office/Building Control Console

7/10 inch flat screen with PCAP touch. Fanless design, quiet operation. Easy mounting integration, low power consumption, easy software integration. Capabilities of adding camera and speakers.

Document
OFT Series Brochure
Quick Reference Guide
Date Description Download
08/10/2021 End of life (EOL) notification for BCM OFT Series (generation 1) and replacement options.
10/30/2018 Hardware PCN for the OFT-10W01 (all models) replacing the touch screen controller due to obsolescence of the current controller as well as adding resistance to false screen touches due to moisture on the touch screen. This change will impact the current touch controller driver and O/S image.
Model Name Description
OFT-10W01 10 inch Intel Atom Z3735F Open Frame Tablet. Power adapter and power cord are NOT included.
