OFT for Video Conferencing System Console
10.1 inch flat touch screen, supports Win, Android and Linux OS. Fanless design, quiet operation. Custom enclosure design, easy mounting integration, faster time-to-market solution.
Product End of Life (EOL) Notification
THIS PRODUCT IS ON THE PHASE-OUT LIST. BCM is accepting last time buy (LTB) orders through February 26, 2024. At BCM’s discretion, last time by orders may be scheduled to ship through August 31, 2024 with a non-cancellable and non-returnable (NCNR) PO. For a replacement product please consider our OFT10W-3455J / OFT-15W04. For detail, please read Official Release.

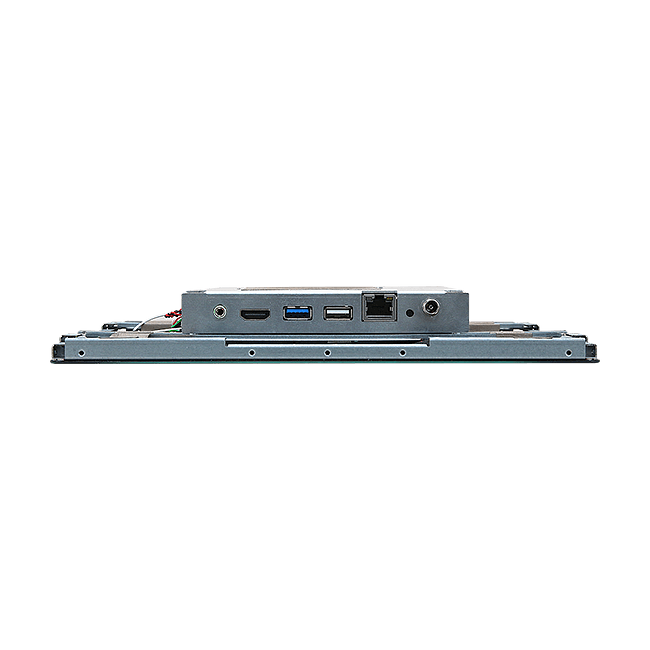

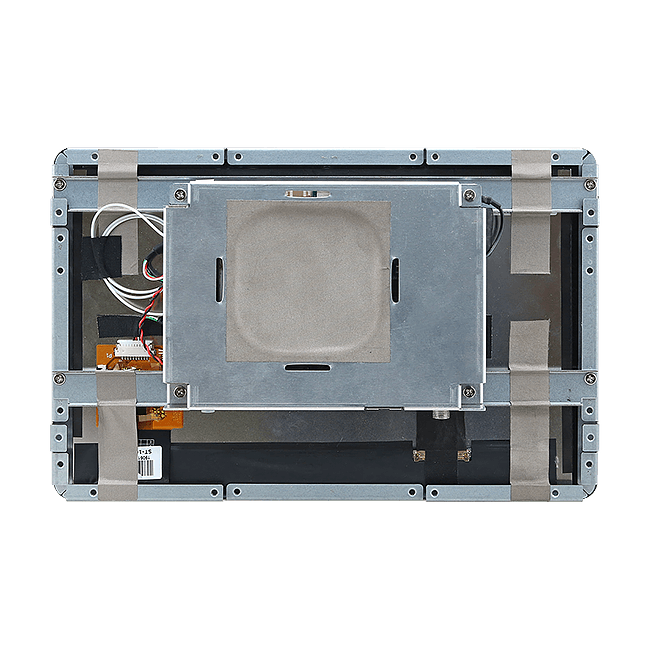

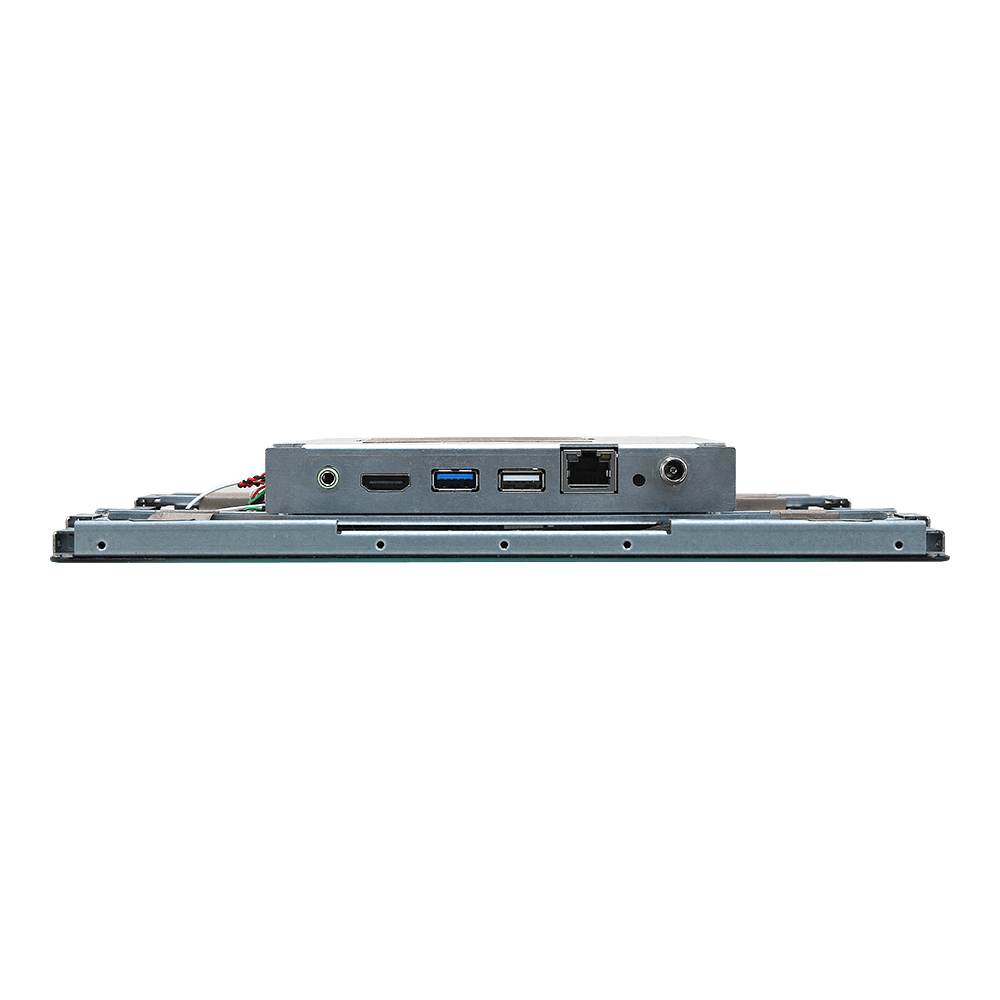

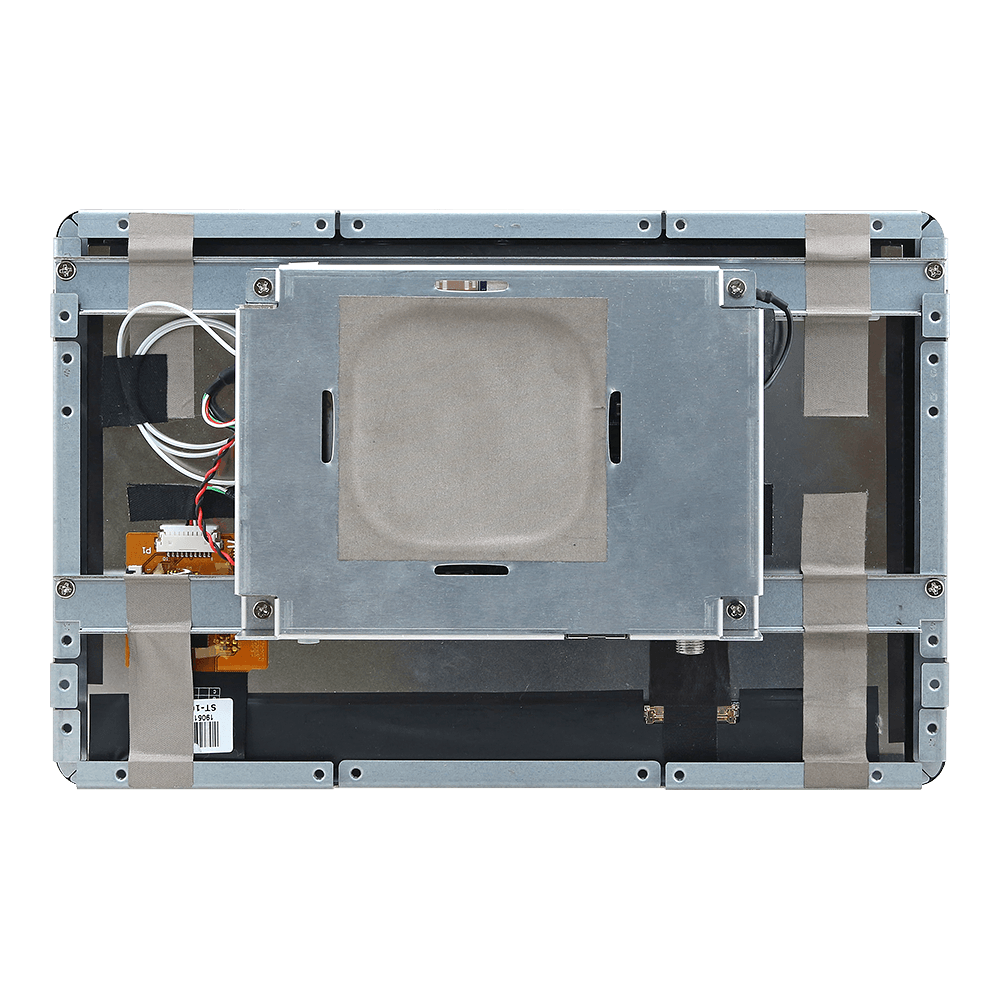

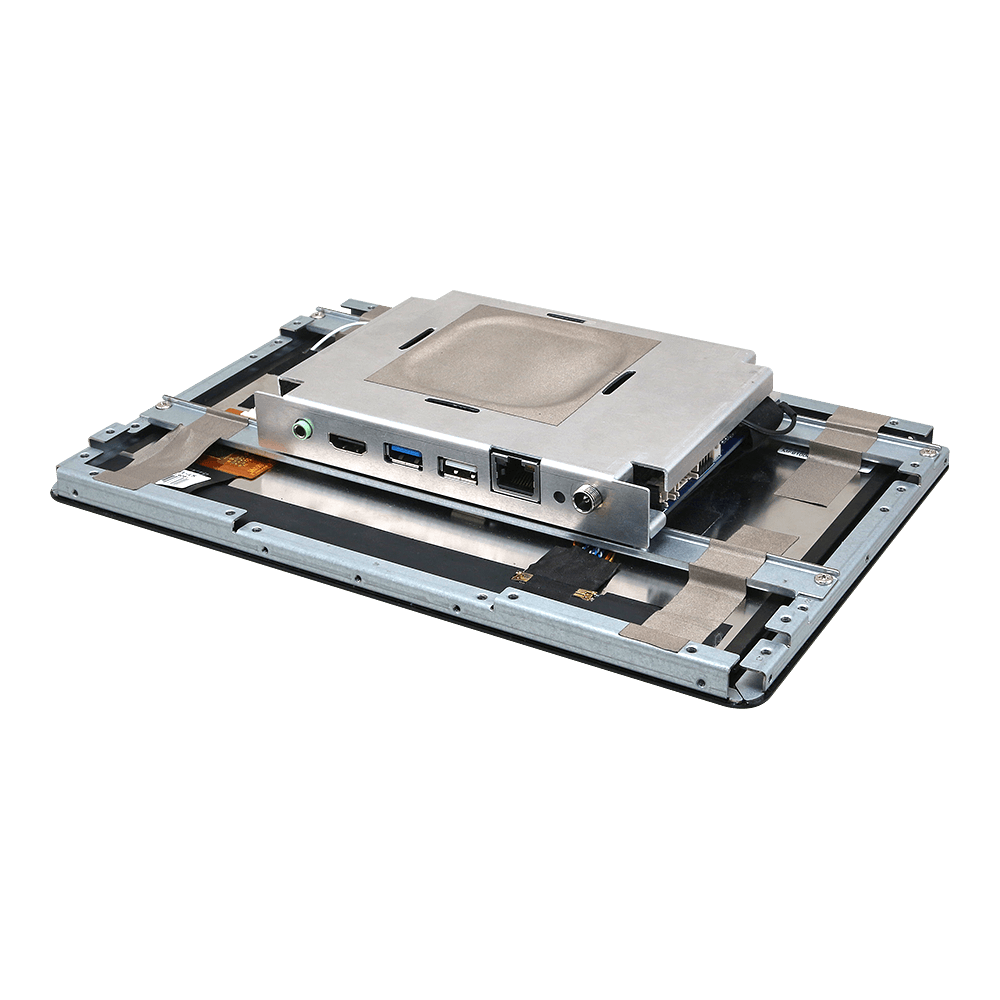

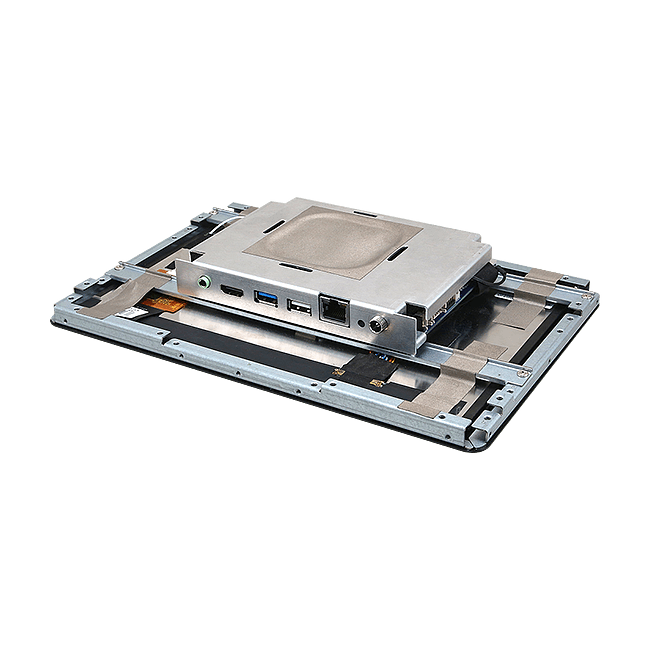

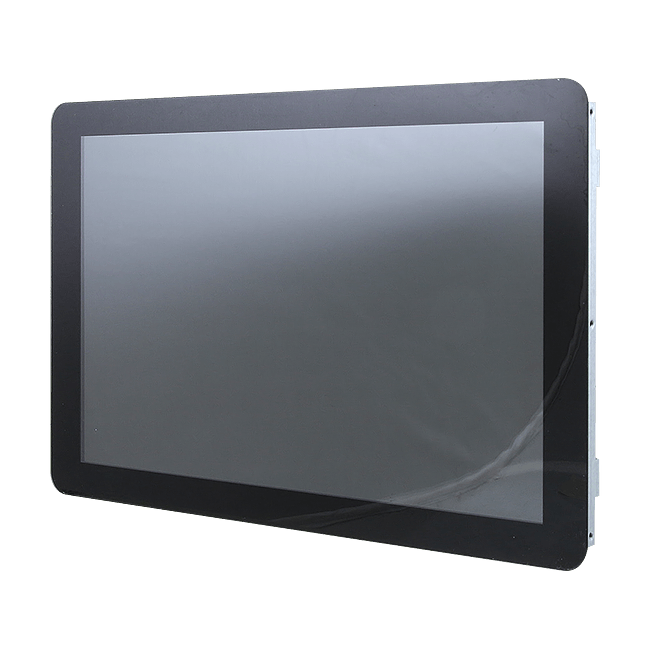

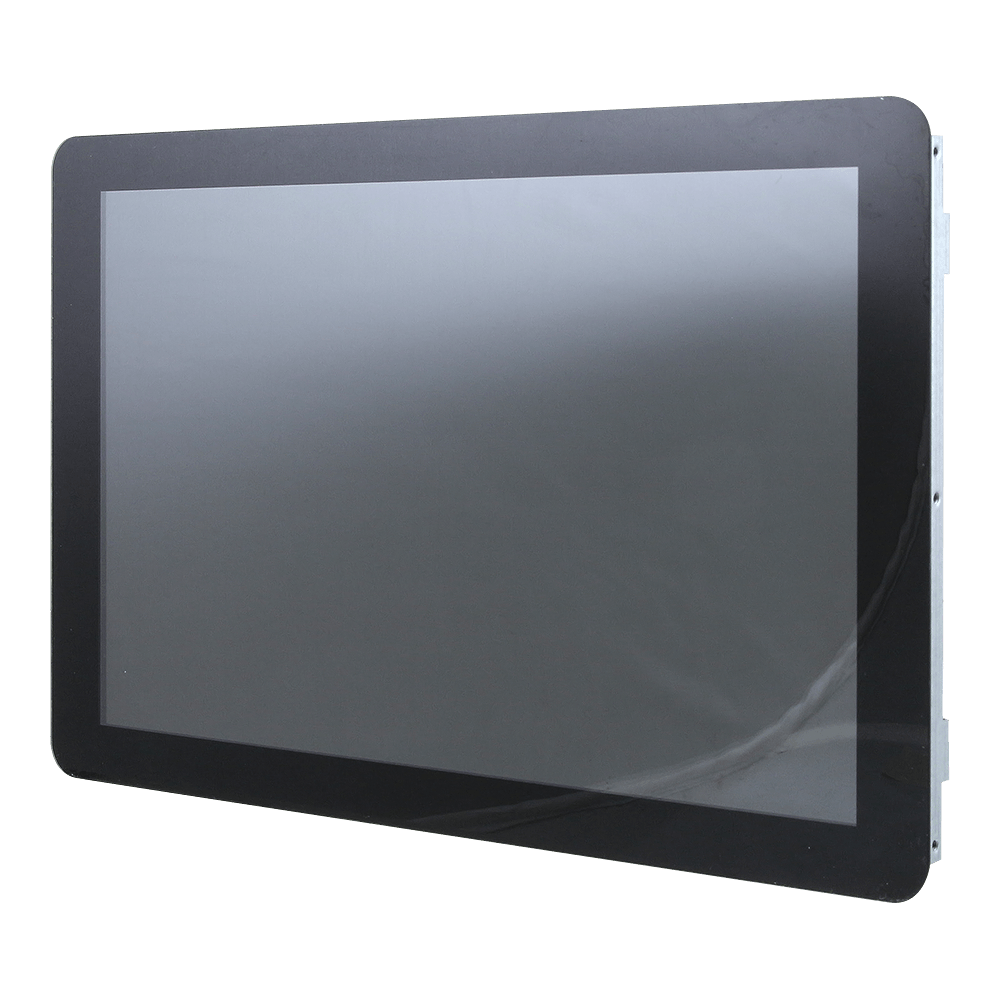

OFT-10W03
10.1" Intel® Atom™ x5-Z8350 Quad Core Open Frame Tablet
- 10.1 inch PCAP Touch Panel
- Intel® Atom™ x5-Z8350 Quad Core 1.44GHz Processor Onboard
- 2GB RAM or 4GB RAM Onboard
- 32GB or 64GB eMMC Onboard
- 10/100 Ethernet
- M.2 B-Key (3042) Slot
- Micro SD Card Slot
- SIM Card Slot for LTE Module
- USB 3.0, USB 2.0, Micro USB
- 802.11 b/g/n/ac Wi-Fi
- Support Windows 10 or Ubuntu OS
- DC 12~24V input
Slim and Touch Interface
Intel Atom quad-core processor onboard. Optimized for tablet computing. High performance with cost effective solution. Plug-in and play. Slim and fanless operation design.
Easy Mounting Integration
A faster Time-to-Market solution for almost all types of applications that requires touch screen, CPU, memory, storage, Wi-Fi and Bluetooth in one unit. Mounting Kits speed up enclosure integration just in a few steps.
7"/10.1" OFT for Automated Vending Machines
Company A develops commercial coffee vending solutions. They are modernizing and revitalizing their system by replacing their traditional mechanical interface and single color display with a digital touch screen. The new machine is expected to accommodate a wider range of product options and higher value specialty drinks, both hot and iced, in addition to the typical coffee or cocoa, strong or light, sugar or cream, merchandise selections.
These new vending machines will be placed in public areas such as work place break rooms, public cafeterias, auto dealer waiting rooms, hotel lobbies, shopping centers, train stations, airports, and other public venues. This next generation automated vending machine offers customers vivid images of the various product options along with a user-friendly P-CAP touch interface similar to the customers’ tablets or smartphones making purchases a simple and pleasant experience.
For the vendor, adding this technology to their machines may help to expand same-store sales by delivering meaningful and attractive product information and providing a platform for delivering promotional content on the screens.
7"/10.1" OFT for Next Gen Beverage Dispenser
The next generation beverage dispenser in restaurant or fast food stores implemented with 7 or 10 inch touch screen panel computer provide dine in consumers or dispenser operators with new user experiences.
The OFT-10W03 open frame tablet is a all-in-one deployment-ready falness panel computer built-in with Intel Atom quad core processor. It is also equipped with onboard memory and storage as well as PCAP touch, Wi-Fi and Bluetooth capabilities. All these features enable beverage dispenser suppliers easier implementation and shorten product development time and cost.
OFT for Medical Analysis Devices
7/10 inch flat screen with PCAP touch. Fanless design, quiet operation. Supports Win, Android and Linux OS. Custom enclosure design. DC-in power.
OFT for Smart Office/Building Control Console
7/10 inch flat screen with PCAP touch. Fanless design, quiet operation. Easy mounting integration, low power consumption, easy software integration. Capabilities of adding camera and speakers.
