OFT07W-ADLN

System
CPU	Intel® Processor N50 dual-core onbaord, 6M Cache, up to 3.4 GHz, 6W TDP. Alder Lake N Platform
System Memory	1 x 8GB LPDDR5 Onboard
Ethernet	1 x Realtek RTL811H-CG Gigabit Ethernet
Audio Codec	Realtek HD Audio 2W Per Channel Onboard Audio Amp
Expansion Interface	1 x M.2 E-Key 2230 (for Wi-Fi/Bluetooth) 1 x MicroSD Socket
Storage	64GB eMMC Onboard
OS Support	Windows 10/11 Ubuntu 22.04
Panel Display
LCD Size	7”
Resolution	800x1280
Interface	MIPI-DSI
Luminance	350cd/m²
Viewing Angle	175°(H)/175°(V)
Touch Type	PCAP Touch
Wireless Communication
Wi-Fi Module	BL-M8852BP4 802.11 a/b/g/n/ac/ax

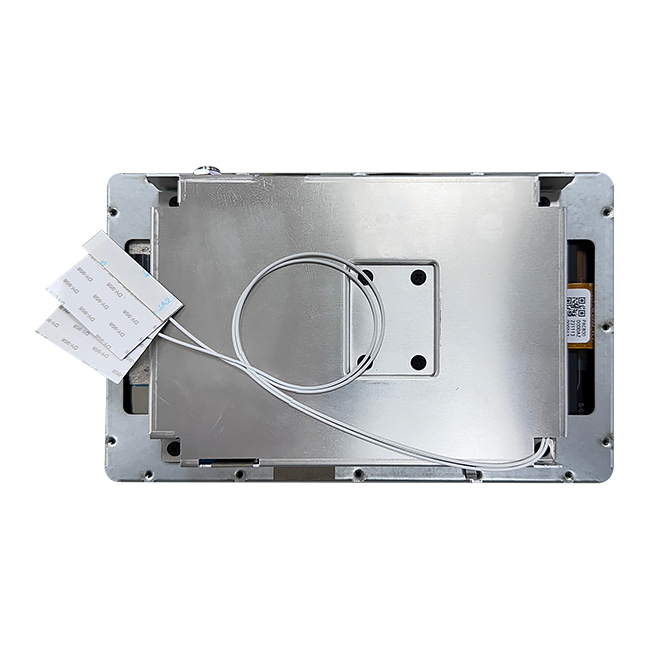

Antenna	2 x Internal Antenna

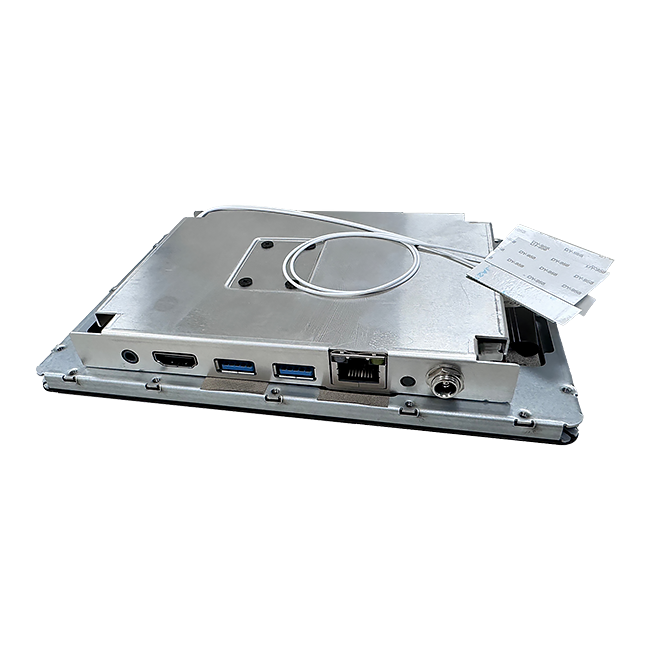

External I/O
Display	1 x HDMI 2.0a
USB	2 x USB 3.0
LAN	1 x RJ45
Audio	3 Ring Audio Jack
DC-in	1 x DC-In, Lockable DC Jack
Internal I/O
USB	2 x USB 2.0 Headers (4 Ports)
COM Port	1 x RS-485/232
Audio	1 x A-MIC, 1 x Speaker Stereo
Touch Button	1 x Touch Button connector header
Other	1 x GPIO, 1 x I²C
Mechanical and Environment
Power Input	12V to 24V Wide Range DC Input
Operating Temp	0°C ~ 40°C (32°F ~ 104°F)
Storage Temp	-20°C ~ 60°C (-4°F ~ 140°F)
Operating Humidity	5% to 90% non-condensing
Certification Information	CE, FCC Class B, RoHS
Dimension	7.2” x 4.57” x 0.94” (183x 116 x 24mm)
Weight	1.15 lbs

* All product specifications and product images are subject to change without notice. Last update: 12/12/2024

Please Note - By downloading the files from BCM website, you agree to accept the terms and conditions.

Document
Datasheet

Driver	Description

Product Change Notice (PCN) Click Here to receive future PCN notifications automatically.

Date	Description	Download

Model Name	Description
OFT07W-ADLN	7” OFT, Intel® Alder Lake-N, 8GB DDR5, 64GB eMMC, Wi-Fi/BT
