OFT10W-ADLN: A Cost-Effective, All-in-One Embedded Open Frame HMI Solutions

Ready to deploy, simple to install, BCM’s certified all-in-one, open frame touch LCD computers with tablet-like usability

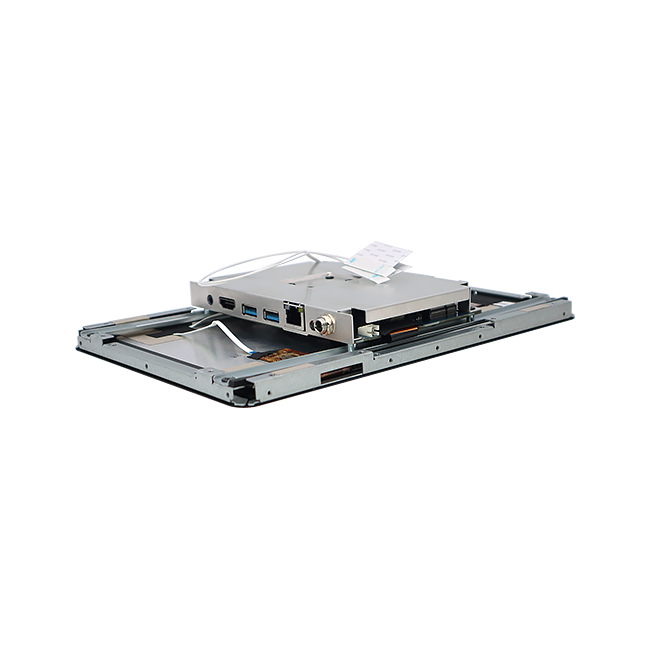

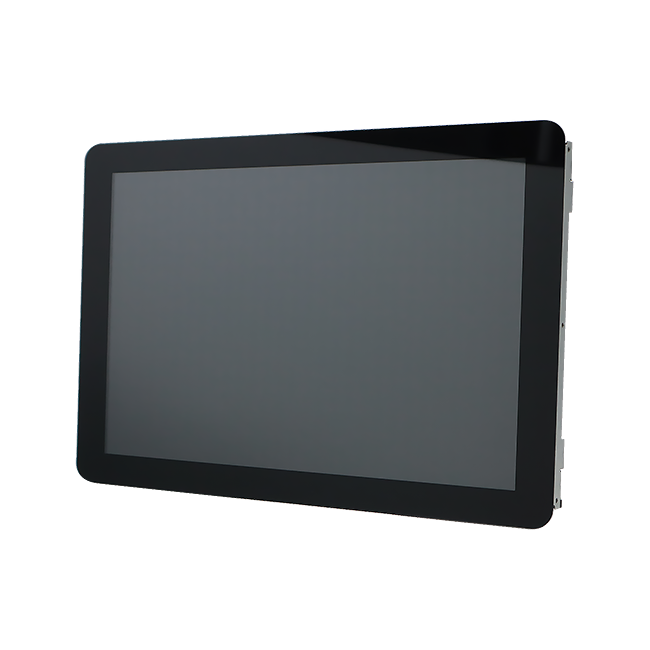

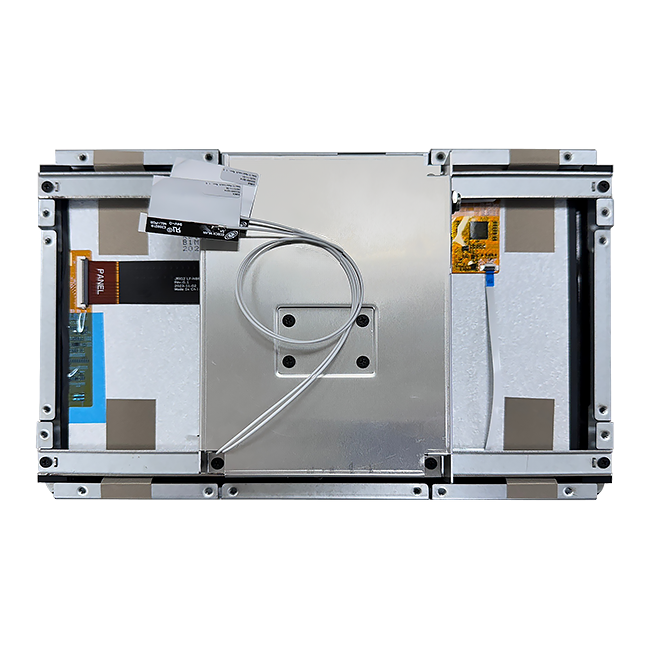

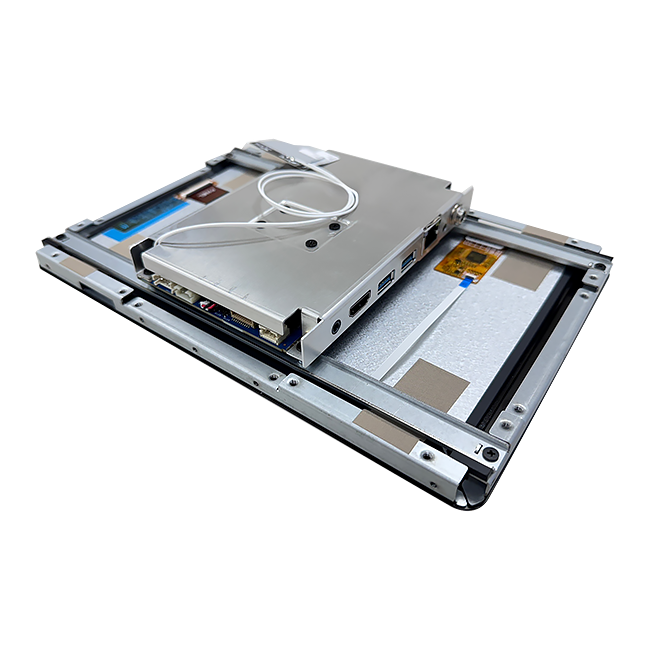

BCM is pleased to introduce our new OFT07W-ADLN (7") and OFT10W-ADLN (10") Open Frame Touch Panel PCs, designed as cost-effective, all-in-one embedded computing solutions with tablet-like usability. These fanless systems integrate Intel’s latest low-power processor technology integrating the Intel® Processor N50. They are ready to use out the box and include onboard memory, storage, Wi-Fi/BT—combined with a vibrant touchscreen, all attached to an easily mountable steel frame with CAD drawings.

	OFT10W-ADLN	OFT07W-ADLN
Panel	10.1" LCD,  1200x1920, PCAP Touch	7" LCD,  800x1280,  PCAP Touch
Interface / Luminance	MIPI-DSI / 350cd/m²	The Same

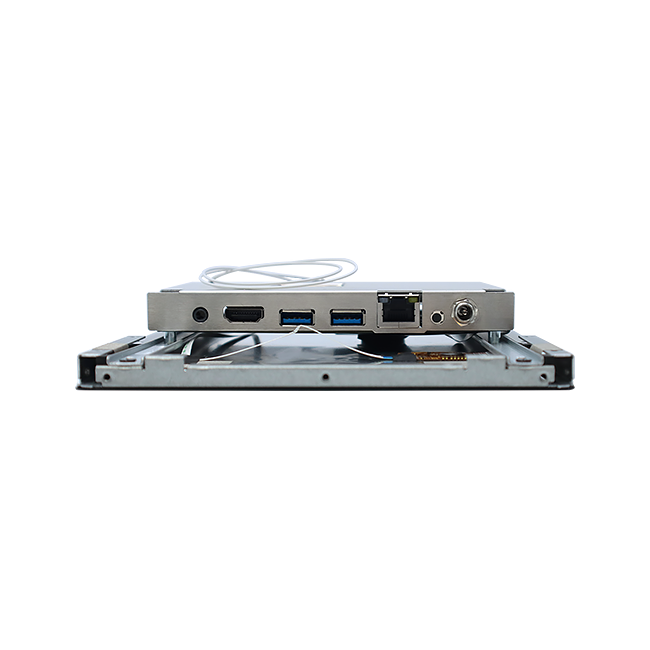

External I/O	HDMI 2.0a, 2 x USB 3.0, 1 x RJ-45, 3 Ring Audio Jack, 1 x DC-in	The Same
Internal I/O	2 x USB 2.0, 1 x RS-485/232, 1 x Touch Button connector, GPIO, I2C	The Same
Power Info	12V to 24V Wide Range DC Input	The Same
Dimension	252 x 165.8 x 30.6mm	183.1 x 115.9 x 24.3mm
Weight	1.72 lbs (780g)	1.15 lbs (520g)

Why Choose Our 7” or 10" Open Frame Table (OFT) for HMI?

• All-in-One Integration:
  Simplify your design and deployment. Each unit bundles Intel® Processor N50 CPU, 8GB LPDDR5 memory, 64GB eMMC storage, and an M.2 E-key slot for Wi-Fi/Bluetooth modules, reducing the complexity of sourcing and integrating multiple components, cables, connectors, and mounting them.
• Value Computing for Essential Tasks:
  Powered by the Intel® Processor N50 (dual-core, up to 3.40 GHz, 6M cache), these panel PCs deliver reliable, low-power performance ideal for applications—like HMIs, product user consoles, self-service kiosks, or POS application. They strike the right balance between capability and cost.
• Extend Your Visual Workspace with HDMI 2.0A:
  Need a second display? The HDMI 2.0A output lets you add an external screen to enhance your user interface or present additional content side-by-side.
• Flexible Connectivity & Environment-Friendly:
  Benefit from USB 3.0 ports, Gigabit LAN, and RS-485/RS-232 connectivity for industrial integration. The 12-24V DC input and fanless operation make these panel PCs reliable and easy to install, suited for indoor or controlled environments.
• Straightforward OS Compatibility:
  Support for Windows 10 IoT, Windows 11, and Linux ensures you can run the software that meets your needs without unnecessary overhead.

Ideal Applications for BCM’s OFT07W-ADLN and OFT10W-ADLN:

Applications	Compact Industrial HMIs (Human-Machine Interfaces)		Self-Service Kiosks, Transportation Ticketing Systems
Use Case	Operator control panels for compact machinery, 3D Printers, basic diagnostics, and simple parameter adjustments.		Ticketing, self-checkout counters, or compact information kiosks in retail or public spaces.
Why These Fit:	Intel® Processor N50: Offers reliable performance for essential tasks like real-time monitoring and control. Versatile Connectivity: RS-232/485 ports for legacy systems, plus USB 3.0 and Gigabit LAN for modern industrial equipment. Lightweight Design: The 7" model’s weight of 1.15 lbs ensures easy mounting even on movable equipment.		PCAP Touchscreen Technology: Ensures a smooth and responsive user experience. High-Resolution Displays: The 800x1280 (7") and 1200x1920 (10") resolutions provide sharp, clear images for interactive applications. Onboard 8GB LPDDR5 Memory: Ensures smooth operation of kiosk software. M.2 E-Key Slot: Enables Wi-Fi/Bluetooth connectivity for wireless interaction with back-end systems.
Applications	Medical Terminals, Medicine Dispenser, Portable Device		Smart Vending Machines
Use Case	Patient data entry, mobile medical carts, nurse call stations, or bedside terminals.		Product selection interfaces and payment modules in compact vending systems.
Why These Fit:	Silent and Hygienic Fanless Cooling: Keeps operation quiet and contamination-free. MicroSD Slot for Data Expansion: Allows easy local storage of patient or medical data for quick reference. Compact Size: Allows seamless integration into carts or wall-mounted enclosures.		Efficient Intel® N50 Processor: Handles vending system software efficiently while keeping power consumption low. 12-24V DC Input: Compatible with a wide range of power supplies commonly found in vending setups. Compact Form Factor: Allows the touchscreen interface to fit neatly into vending machine designs.
Applications	Gaming Consoles (Arcade or Compact Systems)		Small Digital Signage Displays, Meeting Room Scheduler
Use Case	Embedded panels for interactive gaming machines or slot machines in smaller setups.		Counter-top product advertisements or small interactive displays in boutique stores.
Why These Fit:	Vivid High-Resolution Screens: Enhance gaming experiences with sharp, clear visuals. Responsive Touchscreen Technology: Ensures smooth gameplay or navigation of menus. Durable Design: Built for continuous operation, reducing downtime in entertainment environments.		Compact and Lightweight Design: Perfect for small spaces where larger displays would be impractical. Sharp Image Quality: High pixel density provides stunning visuals for targeted promotions. Wireless Connectivity Options: Add Wi-Fi or Bluetooth for easy remote management of signage content.
