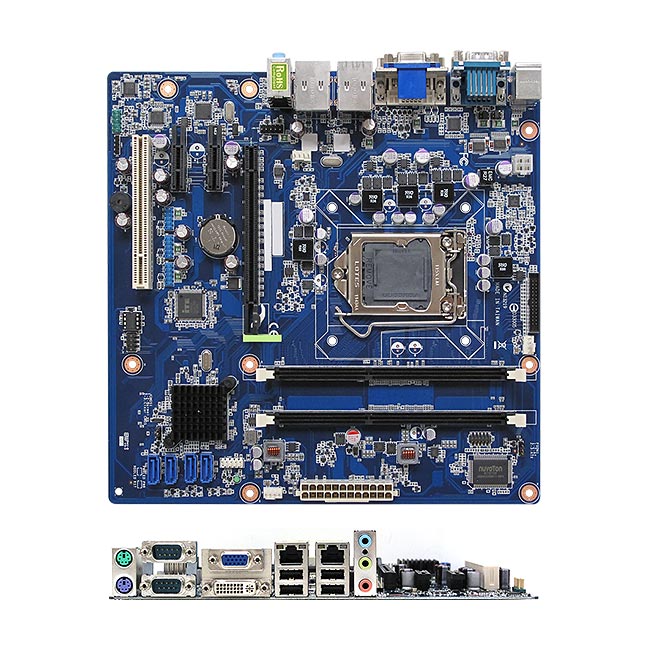

RX61H Intel H61 Micro ATX uATX Motherboard Ivy Bridge Sandy Bridge Platform

RX61H

Intel H61 Micro ATX uATX Motherboard

  • Entry Level Cost Effective Micro ATX Motherboard supports Sandy Bridge/Ivy Bridge Processors
  • Intel® H61 Chipset
  • Rich PCI/PCIe expansion interfaces
  • Supports dual display via DVI-D and VGA
  • 4 x SATA II
  • 1 x LPT
  • 2 x RS-232
  • 10 x USB

RX61H is a cost optimized uATX motherboard for applications requiring more I/O expandability and also supports 2nd and 3rd generation Intel® Core™ i7/i5/i3 and Celeron® processors. The RX61H supports dual display via onboard DVI-D and VGA interfaces, as well as provides I/O interfaces including four SATA II (3.0 Gb/s), two COM ports, ten USB 2.0, one Intel® Gigabit LAN port and legacy LPT header. For expansion it has one PCI Express x16 slot, two PCI Express x1 slots, and one PCI slot. The RX61H delivers extraordinary embedded/industrial computing value yet still meets the standard performance requirements for everyday industrial computing systems for retail, Kiosk, medical, and industrial control industries.

System
CPU Socket H2 LGA 1155 supports 22nm/32nm Intel® Core™ i7/i5/i3 (Ivy Bridge/Sandy Bridge Processors) and Celeron® Processors up to 95W
System Chipset Intel® H61 Chipset
System Memory Two 240-pin DIMM slots support up to 16 GB dual channel 1066/1333 MHz DDR3 memory modules
Audio Realtek® ALC892 HD Audio Codec
Ethernet LAN1: Intel® 82579LM PHY Gigabit Ethernet Controller
LAN2: Intel 82583V Gigabit Ethernet Controller (Optional)
BIOS AMI 32 Mb SPI BIOS
I/O Chip Nuvoton NCT6776F
Expansion 1 x PCI Express x16 slot
2 x PCI Express x1
1 x PCI
Watchdog Timer Reset: 1 sec. ~ 255min. and 1sec. or 1min./step
H/W Status Monitor Monitoring System Temperature, Voltage, with Auto Throttling Control
Display
Graphics Engine Intel® HD Graphics 2000/3000/4000 Integrated
Display Memory DVMT Support up to 1.7GB Memory
Display Interfaces VGA, DVI-D
Display Capability Dual Display
External I/O
KB/MS 1 PS/2 Keyboard, 1 PS/2 Mouse
Audio Line-in, Line-out, Mic-in, Front Audio Header
USB 4 x USB 2.0
COM (Serial Port) 2 x RS-232
LAN 1 x RJ45
VGA 1 x DB-15
DVI 1 x DVI-D
Internal I/O
USB 3 x USB (6 Ports)
SATA 4 x SATA II
MIO 1 x 8-bit GPIO, 1 x Front Audio, 1 x Front Panel, 1 x 4-pin CPU Fan, 2 x 4-pin Chassis Fan, 1 x LPT Header, 1 x Amplifier Header
Mechanical and Environment
Power Type 1 x 24-pin ATX Connector, 1 x 4-pin ATX 12 Connector, AT/ ATX Mode Jumper
Operating Temperature 0 ～ 60°C （32 ～ 140°F）
Storage Temperature -20 ～ 80°C （-4 ～ 176°F）
Operating Humidity 5 ～ 90％ Relative Humidity, Non-condensing
Storage Humidity 0 ～ 90％ Relative Humidity, Non-condensing
Form Factor Micro ATX
Dimensions (L) x (W) 9.6" (L) x 9.6" (W)
Weight 1.45 lbs

* All product specifications and product images are subject to change without notice. Last update: 2/21/2014

BCM Advanced Research announces two new embedded Value-Line products supporting 2nd (Sandy Bridge) and 3rd (Ivy Bridge) generation Intel® Core™ i7/i5/i3 desktop processors

Irvine, California, July 26, 2012 - BCM has launched two new Value-Line products offering significant savings based on the Intel® H61 Express Chipset in mini-ITX and uATX form factors. Distributors and customers are urged to check their Q3 pricing guides to understand the full extent of the savings these Value-Line products offer.

The MX61H and RX61H support both the Intel® Sandy Bridge (2nd generation) and Ivy Bridge (3rd generation) Core™ i7/i5/i3 desktop processors providing budget flexibility and performance scalability required by customers seeking to extend their industrial/embedded computing dollars in industries such as retail, self service kiosk, industrial automation, gaming, and digital signage....

Document
Datasheet
Manual
Quick Installation Guide (Quick Start Guide)
BIOS Version Revision Note Download
V1.01 BIOS Update for Meltdown and Spectra Issue. For P/N: 70881
V1.00 RX61H (70881) BIOS V1.00
Driver Description
Chipset Intel(R) Chipset Device Software
Video Intel(R) Graphics Drivers
Audio Realtek HD Audio Driver
Ethernet Intel(R) Network Connections Software
Others Intel(R) Management Engine
  Microsoft .NET Framework 3.5 levitra generic
  RX61H DRIVER UTILITY Instructions Readme file
Date Description Download
09/18/2018 End of Life notification for multiple BCM products based on the Intel® product families formerly referenced as Sandy Bridge and Ivy Bridge. In the EOL document you will find important information regarding the BCM model names to be discontinued as well as key last time order dates and last time delivery dates.

EOL Product List: MX67QMD, MX67QMD-LC, BI255-67QMD, MX61H, BOX-MX61H series, BC206C, BC67Q, RX61H, RX67Q series, BC77Q, ESM-QM77 series and EMX-QM77. Multi_Product_EOL_Notification_Sandy_Bridge_Ivy Bridge_091818.pdf
04/24/2018 BIOS change notification addressing the Meltdown and Spectre security issue previous communicated by BCM in a product security bulletin sent out in January of this year  http://www.bcmcom.com/download/PCN/BCM_Product_Security_Bulletin_Meltdown-Spectre_011818.pdf

Please contact your BCM representative with any questions pertaining to this PCN.
08/25/2016 In order to comply with the latest product labeling regulatory requirements for shipping products with a Lithium battery installed, please find the attached packaging change notice from BCM covering multiple products.  This label is required to make transporters aware that the contents they are transporting do contain Lithium batteries.  This notification may result in the transporter requesting additional data for goods that will require air transport.

For Products: MX67QMD, MX67QMD-LC, MX255D, MX87QD, MX280NI, MX81H, MX81H-VS, MX1900J, MX110H, MX67QM, MX67QM-QC, MX61H, RX77Q, RX61H-U, RX87Q, RX87Q-TK, RX170Q, RX110H, RX67QV, RX67QV-LC, RX67QS, RX67Q, BC67Q, BC77Q, BC77Q-P, BC87Q, QS3845E, Others
Model Name Description
RX61H Intel H61 mATX Motherboard
Accessories Included 2 x SATA Cables (with latch), 1 x I/O Shield, 1 x Driver CD (Manual/Drivers), 1 x User’s Quick Start Card
