VNS-15W01 15.6 inch Intel Atom Z8350 Panel PC with NFC, Camera, WLAN, AMIC VNS-15W01 15.6 inch Intel Atom Z8350 Panel PC with NFC, Camera, WLAN, AMIC

VNS-15W01

15.6 inch Panel PC with Intel® Atom™ x5-Z8350 Processor Onboard

  • Intel® Atom™ x5-Z8350 Processor: 2M Cache, up to 1.92 GHz
  • 2GB / 4GB RAM
  • 32GB / 64G eMMC
  • PCAP Touch
  • 10/100/1000 Ethernet (PXE Boot)
  • Touch button (Power/ Brightness/ Volume/ LED)
  • RS232 or RS422 or RS485
  • DC 12~24V Input or Powered LAN 802.3AT
  • NFC Reader
  • Smart Card Reader
  • AMIC
  • 2.0MP Camera
  • Speak 4Ω 2.0W/2.5W (MAX)

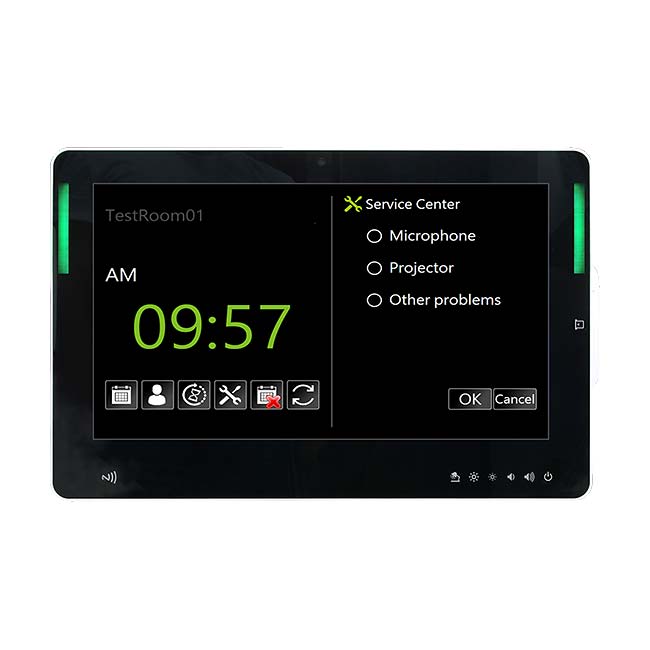

  • LED Indicating Light Bar (Light color: Green and Red, Illuminating area: 70*8mm (front), 70*5mm (side)

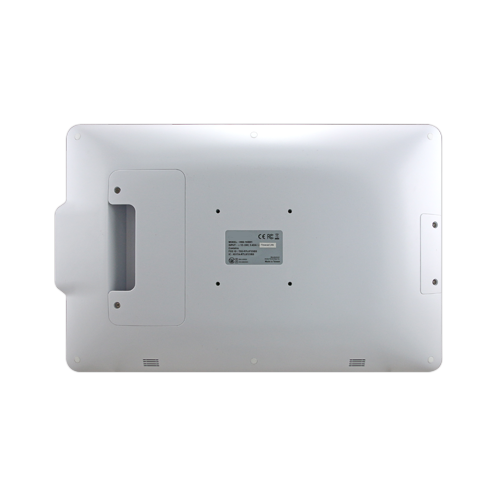

  • 75 x 75mm VESA Mount
  • Antibacterial Plastic
  • Optional Handset
System
CPU Intel® Atom™ x5-Z8350: 2M Cache, up to 1.92 GHz
System Chipset Intel® x5-Z8350
System Memory 2GB / 4GB DDR3L RAM
Wireless Communication 802.11 b/g/n
Storage 32GB eMMC / 64GB eMMC
OS Information Windows 10 IoT (64-bit)
Android 5.1 (64-bit)
Linux (64-bit)
Display
Resolution LVDS: Max. resolution 1920x1280 @ 60Hz
Multiple Display Windows support extended mode
Data Collection
Camera 2M Pixel
NFC NFC Reader
Panel
LCD Size 15.6"
Resolution 1920x1080
Luminance 220 cd/m2
Viewing angle 178° (H/V)
Touch Type PCAP
Audio
Speaker Output 4Ω 2.0W/2.5W (MAX)
Ethernet
Chipset Realtek RTL8111H(S)-CG
LAN Port 1 x RJ45
I/O
External I/O Connector 1 x RJ45 for RS232 or RS422 or RS485
2 x USB 2.0 Type A
1 x 10/100/1000 Ethernet
1 x 4-Pin 3.5mm Audio Jack
Internal I/O Connector 1 x Touch Button interface
1 x eDP & Dual channel 24-bit LVDS
1 x I2C interface for PCAP
5 x USB interface for PCAP, Camera and others
1 x Micro USB2.0 client (reserved)
1 x Micro SD connector
2 x LED Bar interface
1 x AMIC
Camera 2.0MP Camera
Power Requirement
Power Requirement DC Input, 12~24V
Power Type DC Jack
Adapter Input: 100~240 Vac/50~60 Hz
Output: 60W Adapter (12V @ 5A Adapter)
Mechanical and Environment
Operating Temp 0°C ~ 40°C (32°F ~ 104°F)
Storage Temp -10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Weight 5.5 lbs/ 2.5 Kgs
Dimension (L x W x H) 18.63" x 10.6" x 2.76" (472.1 x 269 x 70.1 mm)
Mounting VESA 75x75mm
Certification CE
FCC Class B

* All product specifications product images are subject to change without notice. Last update: 2021/02/19

Document
Datasheet
Manual
Model Name Description
VNS-15W01 15.6 inch Panel PC with Intel Atom Z8350 Processor
