Introducing Fast, Extended Access to the 4th Gen Intel® Xeon® Scalable Platform Innovations

“We’ve aligned with Intel on the 4th Gen Intel® Xeon® Scalable processor launch so that customers can maximize the life-cycle value of their deployments and avoid premature obsolescence.”

—Tom Skibinski, senior vice president of Sales and Marketing at BCM

The 4th Gen Intel® Xeon® Scalable processor-enabled solutions by BCM deliver AI acceleration, DDR5, PCIe 5.0, and CXL 1.1 over extended product life cycles

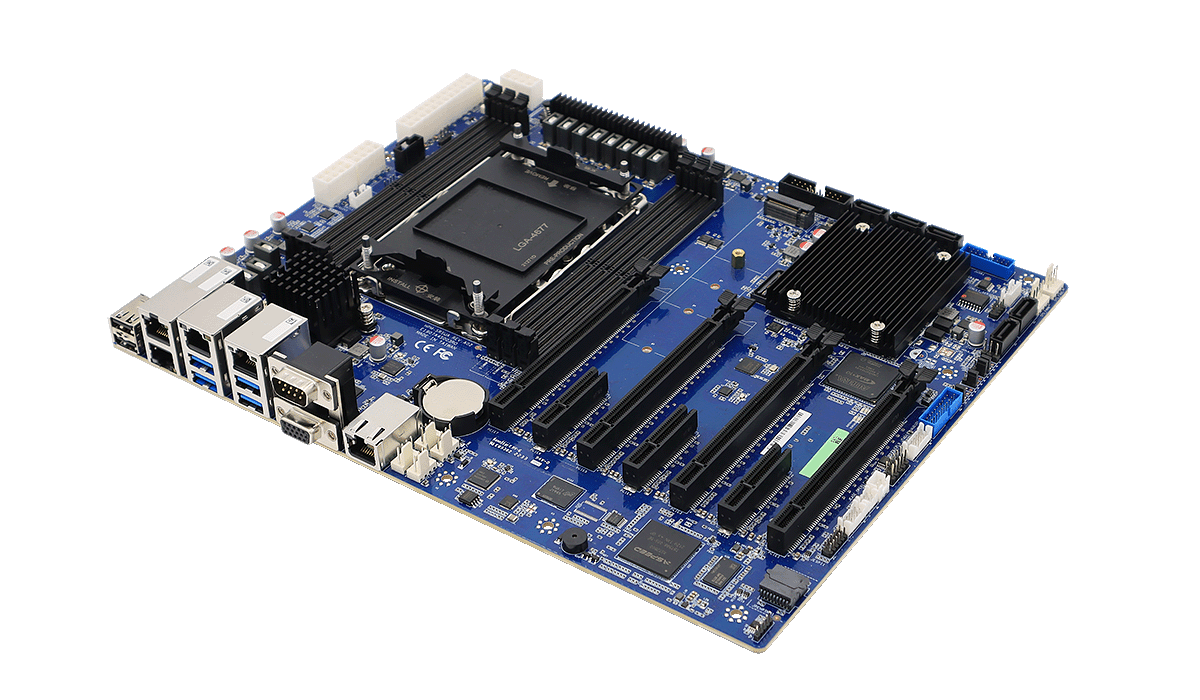

HPM-SRSUA Intel Sapphire Rapids Platform ATX

HPM-SRSUA

ATX Motherboard supports 4nd Gen. Intel® Xeon® Scalable Processors with Intel® PCH (Single CPU)

HPM-SRSDE supports Dual Xeon CPU

HPM-SRSDE Sampling Now

EATX Motherboard supports 2 x Intel® 4th Gen Xeon® Scalable Processors (Dual CPU)

HPS-SRSUA/SRSDE Coming Soon

HPC computer available in barebone or fully integrated systems (CPU, memory, storage onboard)

HPM-SRSUA Highlights

Server Class ATX Motherboard LGA 4677 Socket supports 4th Gen. Intel® Xeon® Scalable Processor

4th Gen. Intel® Xeon® Platform

Intel® LGA4677 CPU socket supports single 4th Gen. Intel® Xeon® Scalable Processors up to 250W TDP. 7 Gen5 PCIe expansion slots. Intel® I226-LM 2.5GbE. Optional 1 x Intel® X550-AT2 10GbE LAN ports. 6 x DDR5 slots support 4800/ 4400 MHz RDIMM up to 1.5TB. IPMI 2.0, TPM 2.0.

HPM-SRSUA ATX Motherboard

Extended Product Life-cycle, long term support

Minimum of 5 years. Quality, traceability, customization. CUSTOMIZATION Stabilize NPI refresh rates, maximize ROI for certification costs.

Intel Solution Brief IoT for Regulated Industries

Solution Brief IoT for Regulated Industries

BCM Delivers Fast, Extended Access to 4th Gen Intel® Xeon® Scalable Platform Innovations

Learn what benefits BCM can bring to the table for customers in regulated industries, including manufacturing, healthcare, digital safety, government, and avionics using our computing solutions with 4th Gen Intel Xeon Scalable processors.

More cores where performance is a priority

Designed with innovative Intel 7 process technology, 4th Gen Intel Xeon Scalable processors offer up to 52 cores1 for exceptional performance. Our motherboards enabled by 4th Gen introduce several key technologies that customers have been waiting for. “The 4th Gen Intel Xeon Scalable platform is what we call a milestone generation. Higher core counts with the introduction of PCIe 5.0, DDR5, and CXL 1.1 check all the boxes for our customers.” - Tom Skibinski, Sr. VP Sales and Marketing.

HPM-SRSUA

Long-life availability

Stabilize NPI refresh rates, maximize ROI for certification costs, and reduce the risk of unexpected changes.

HPM-SRSUA

More performance up to 52 cores

Handle more demanding workloads and consolidate many older systems into fewer, more-powerful systems.

HPM-SRSUA

Built-in AI acceleration

Deploy advanced AI more cost-efficiently, with the potential to reduce the need for discrete GPUs.

HPM-SRSUA

DDR5 memory, PCIe 5.0, CXL 1.1

Move more data faster, run more simultaneous apps, and enable efficient memory sharing between CPUs and PCIe-connected devices.

HPM-SRSUA

Built-in security capabilities

Help protect vulnerable systems in the field or sensitive data that’s leaving the network perimeter.

Easier innovation with built-in AI acceleration

AI and machine learning are major growth areas for IoT implementations such as medical diagnostics, robotics, and object recognition in computer vision use cases. 4th Gen Intel Xeon Scalable processors empower our solutions with built-in AI acceleration and Intel® Advanced Matrix Extensions (Intel® AMX)—a new AI engine for Intel® Deep Learning Boost (Intel® DL Boost). This engine integrates extensive hardware and software optimization as well as support for int8 and BF16 data types to drive fast AI inference performance. High performance for AI workloads in the CPU can also reduce the need for discrete GPUs, for potentially leaner configurations and lower hardware costs.
HPM-SRSUA

More efficient multitasking, bigger data pipelines, and data coherency

Platforms can handle bigger workloads and move more data faster with the introduction of DDR5 memory, PCIe 5.0 with Intel® Data Streaming Accelerator (Intel® DSA), and CXL 1.1. The single-socket HPM-SRSUA motherboard supports up to six DDR5 4,800 MT/s modules, while its dual-socket counterpart the HPM-SRSDE supports up to 12 DDR5 modules. PCIe 5.0 interconnects enhanced with Intel DSA offer high-bandwidth, low-latency expansion to add in customized FPGA accelerators, video capture cards, NVMe SSDs, and RAID controllers.
With all those add-in cards, CXL will help by boosting data flow efficiency and memory usage. CXL 1.1 is an open interconnect standard that enables memory pooling and cache coherency across the host and external devices connected over PCIe 5.0, enabling all CPUs and devices in a configuration to see and act on the same data pools for more efficient memory allocation and fewer idle memory blocks. The introduction of CXL with this latest generation opens up new possibilities for system optimization and cost reduction.
HPM-SRSUA security

Robust platform hardening starts at the chip level

Data security is a major concern for IoT deployments where critical systems are out in the field and can be vulnerable to physical tampering. Security is also becoming more important for use cases where businesses capture data and send it elsewhere for processing and analysis, such as in medical environments where pathology scans are transferred to laboratories for research purposes. In these cases, hardware-enabled security in 4th Gen Intel Xeon Scalable processors helps harden our configurations with protection that starts below the operating system (OS).

  • Intel® Software Guard Extensions (Intel® SGX) isolates workloads in trusted memory enclaves to help secure data at rest and data in flight.
  • Intel® Total Memory Encryption (Intel® TME) fully encrypts all data in memory, including security keys, which helps prevent data breaches from physical DIMM removal.
  • Intel® Platform Firmware Resilience (Intel® PFR) helps protect against below-the-OS attacks by monitoring system bus traffic, verifying platform integrity, and restoring corrupted firmware.

The Example of Use Cases

Smart Manufacturing, Automation

Manufacturing

Robotics, assembly line defect detection, and quality control

Medical Imaging Processing

Healthcare

Ultrasound, medical diagnostics, AI-enabled pathology or radiology

Luggage Scan X-Ray, Digital Safety

Digital Safety

Smart facilities, entry control and monitoring, checkpoint systems

Government, Aviation, Smart Transportation

Government/Aviation

Onboard computers and ruggedized field equipment

BCM's HPC Value Proposition -
LOWER Total Cost of Ownership for Customers

BCM's HPC is a powerful computing platform that provides server-class performance but with the extended life-cycle and revision control not available from the typical providers of these types of server motherboards and systems. BCM’s HPC products are the ideal balance between performance and hardware life-cycle continuity for those customers that are satisfied with the computing power of their current platform and wish to step off the technology hamster-wheel offered by their present suppliers. Our HPC products are design with following Key Features:

Extended Product Life-cycle

Our HPC product life-cycle is minimum of 5 years. It is revision control to minimize BOM changes so customers can get 2-3 technology cycles out of it.

Quality, Traceability, Customization

BCM's HPC products are designed based on IPC standards. It’s 100% functional tested. And Product traceability especially for medical customers.

Reliability, Great Support

Our HPC products are designed and manufactured with IPC reliability, supports 60℃ operating temperature. MTBF up to 50,000 hours. We use lifetime RTC battery and industrial grade power solution. PCB board is 2 mm thickness adding more durability. 15U gold plated high speed connectors.

Customer Benefits

Customers can save money on products and R&D Re-Certifications by just getting one product for multiple product cycles. The built-in BMC/IPMI real-time system monitoring and remote management capabilities help to reduce system downtime and save cost on field services.

BMC+IPMI Remote Monitoring & Remote Management

IPMI = Intelligent Management Platform Interface. Our HPC server class motherboards and computers are equipped with built-in Baseboard Management Controller (BMC) which enables IPMI out-of-band (OOB) Remote Monitoring & Remote Management to help minimize system downtime and reduce cost of technician field services.

What system administrators can do in IPMI?

IPMI is a user interface (software) of a set of computer specifications that runs on the server motherboard’s “Baseboard Management Controller” (BMC). It allows administrators to out-of-band (OOB) remotely manage and monitor the server’s settings and performance, without the permission from the computer’s operating system.

  • System Power On/Off (even in shutdown mode)
  • Install BIOS or Firmware Updates
  • Monitor/Troubleshoot Fan Speeds and Temperatures
  • Monitor Sensor Status, change settings, and more...

HPC System-Level Features

L6/L10 System Integration

L6/L10 System Integration

Level 6 is barebone Computers allowing customers to choose and add their own hardware configurations. Level 10 is fully Integrated Systems which we assemble CPU, memory, storage and other components based on customer's requirements.

Rackmount, tower type workstation

Flexibility

Available in 2U/4U Rackmount, and tower type workstation with foldable stands

Smart City, Smart Transportation

Customizations

For example, replacing with Redundant Power Supply. Acoustic, Thermal and Air Flow Design / Simulation, MTBF calculation and prediction

Contact us at BCMSales@bcmcom.com or give us a call 949-470-1888
