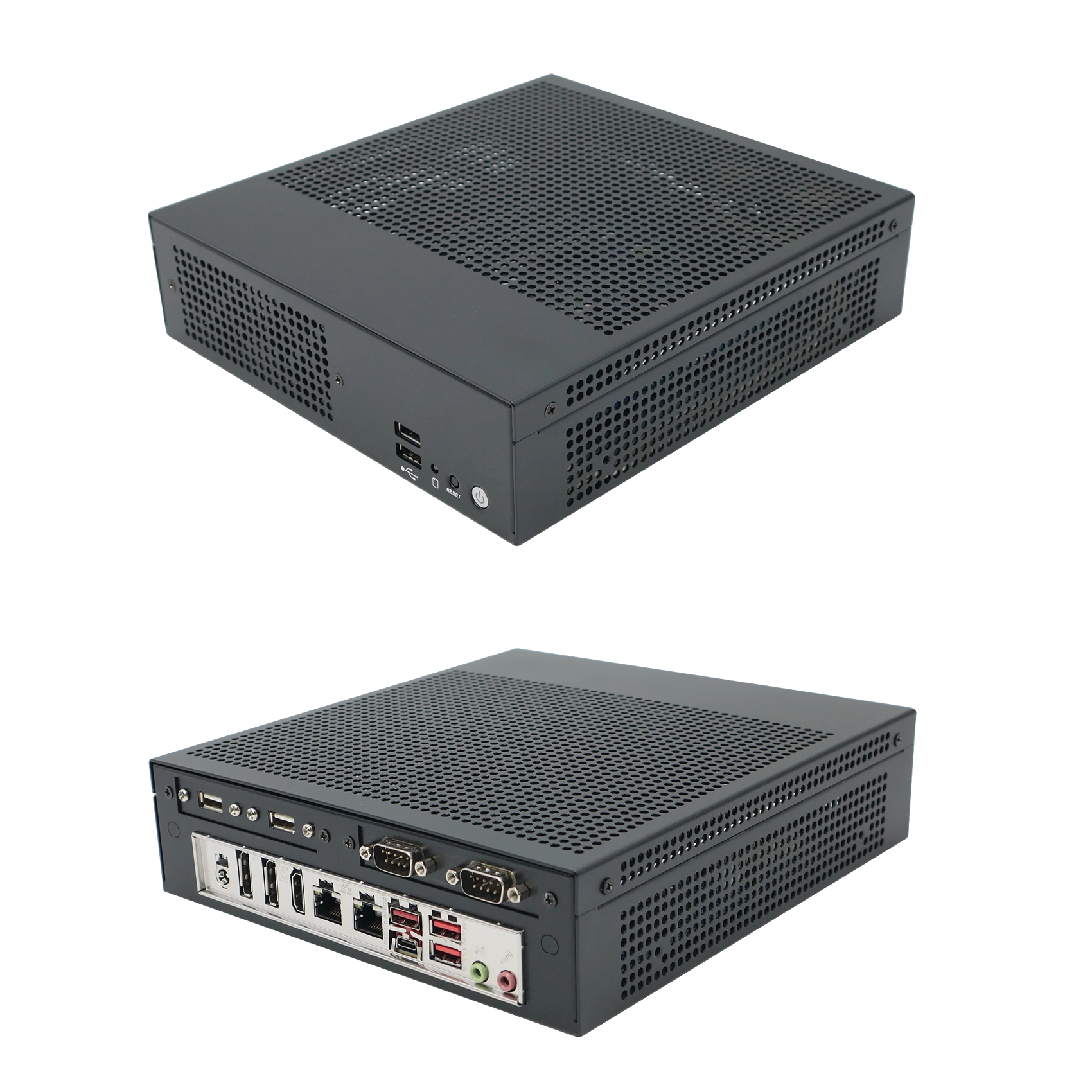

BI270-97N Coming Soon

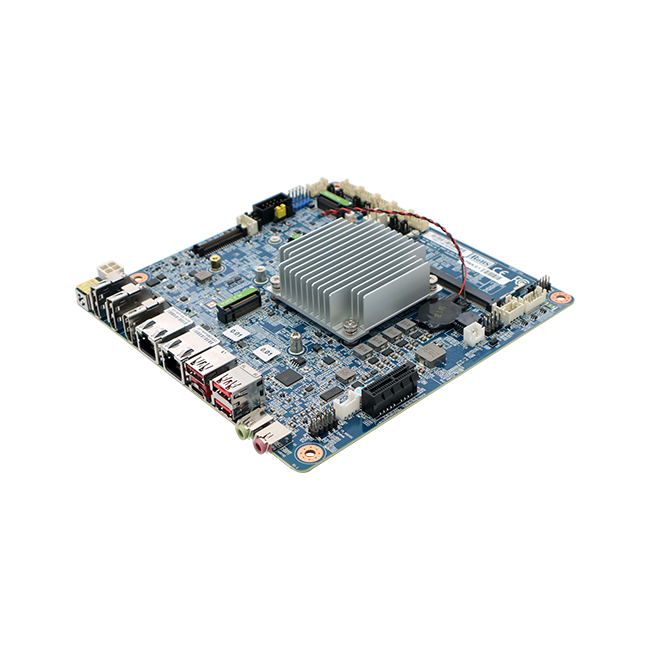

Motherboard: MX97N Mini ITX Motherboard Inside
Intel® Processor N97, low power Quad-core Soc (12W TDP), Intel® Alder Lake N platform
Integrated Intel® UHD Graphic, supports 3 Independent Displays: 2 x DP 1.4a 4K, 1 x HDMI 1.4b, LVDS/eDP
Supports Triple Display via 2 x DP and 1 x HDMI
Dual 2.5GbE LAN: 2 x Intel® Ethernet Controller I226-V
Expansion Slots: M.2 E-Key, M-Key, B-Key, PCIe x1
TPM 2.0
12-24V DC-in
Thin and Compact 8.6” L x 8” W x 2.2” H
Optional COM port(s) at rear I/O

System
Motherboard Inside	MX97N Mini-ITX
CPU	Intel® Processor N97, Quad-core SoC processor (12W TDP), formerly Alder Lake N Platform
System Memory	1 x SODIMM socket supports DDR5 4800MHz up to 16GB, non-ECC Support
Ethernet	2 x Intel® Ethernet Controller I226-V (2.5GbE)
Expansion	1 x PCIe x1 Open Ended 1 x M.2 E-Key 2230 supports CNVi (PCIe x1 & USB 2.0) 1 x M.2 M-Key 2280/2242 supports NVMe (PCIe x2) 1 x M.2 B-Key 3042 with Nano SIM Socket (SATA III & USB 3.2)
TPM	TPM 2.0
Supported OS	Win 10, Win 11, Linux
Display
Chipset	Integrated Intel® UHD Graphic
Resolution	2 x DisplayPorts 1.4a 4K @ 60Hz 1 x HDMI 1.4b 1 x LVDS, optional eDP
Multi-Display	Supports 3 Independent Displays
External I/O - Front
USB	2 x USB 2.0
Power	1 x Power Button with LED
Other	1 x Reset Switch
External I/O - Rear
Display	2 x DisplayPorts (DP++) 1 x HDMI
USB	3 x USB 3.2 Gen2 Type A 1 x USB 3.2 Gen2 Type C
LAN	2 x RJ45
Audio	Line-out/Mic-in
DC-in	1 x DC-In
Optional Ports	Optional 2 x COM Ports Optional 2 x USB 3.0 Type A
Mechanical and Environment
Power Type	12V-24V Wide Range DC-In
Power Adapter	Input: 100~240 Vac/50~60Hz Output: 120W Adapter
Operating Temperature	0°C ~ 60°C (32°F ~ 140°F)
Storage Temperature	-20°C ~ 80°C (-4°F ~ 176°F)
Operation Humidity	5% ~ 90% Relative Humidity, Non-condensing
Certification Information	CE, FCC Class B, RoHS and REACH Compliant
Dimensions	8.6” L x 8” W x 2.2” H (218.1mm L x 203.2mm W x 55mm H)
Weight	TBD lbs

* All product specifications and product images are subject to change without notice. Last update: 12/19/2024

Please Note - By downloading the files from BCM website, you agree to accept the terms and conditions.

Document
Datasheet

Driver	Description
Note	The BI270-97N is equipped with the MX97N Mini-ITX motherboard inside. Please check MX97N product page for drivers and manual.

Product Change Notice (PCN) Click Here to receive future PCN notifications automatically.

Date	Description	Download
Note	The BI270-97N is equipped with the MX97N Mini-ITX motherboard inside. Please check MX97N product page for Product Change Notice.

Model Name	Description
BI270-97N	Mini-ITX Barebone Computer with MX97N Thin Mini ITX inside, Intel® Processor N97 onboard, Power Adapter
