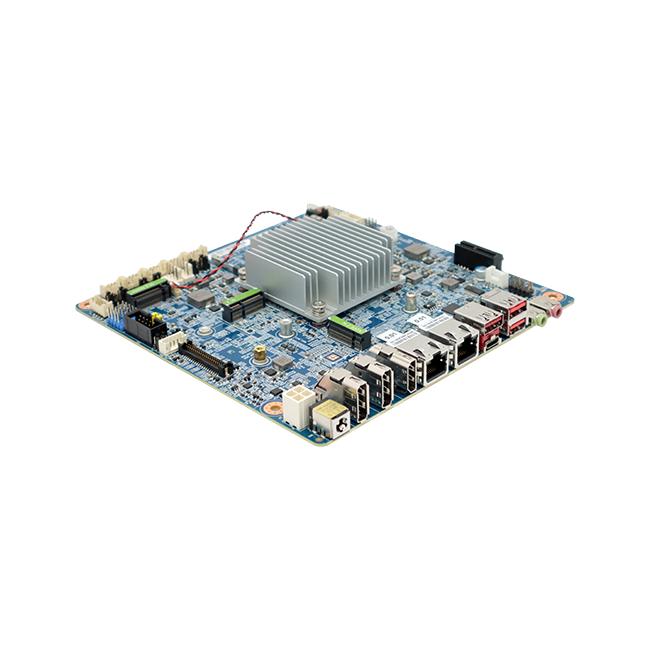

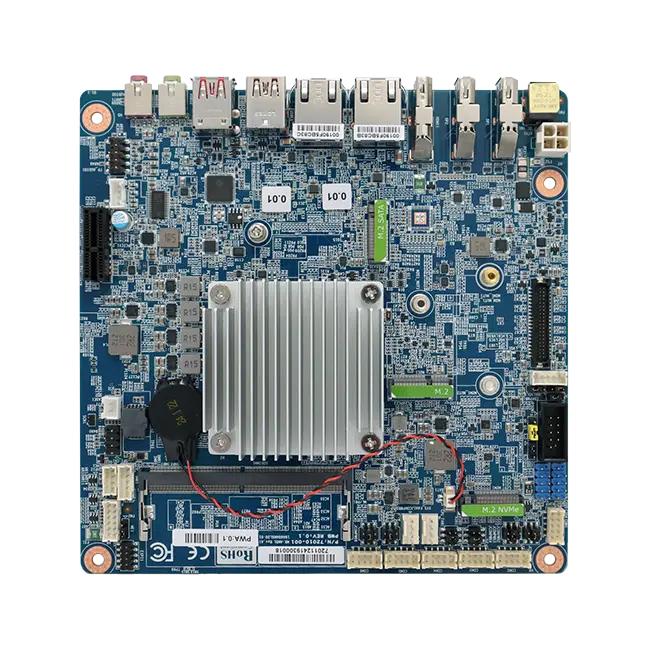

Unlock uncompromising performance with our Intel® Alder Lake-N Quad-Core Mini ITX Motherboard. Featuring a low power 12W TDP Intel® Processor N97, integrated UHD Graphics, dual 2.5GbE LAN, USB 3.2 Gen2, USB-C, 6 COM, and extensive expansion options – all in a compact, single stack, value-packed design perfect for industrial, embedded, and edge computing applications.
Quad-core, 12W TDP, 6M Cache, up to 3.60 GHz computing performance. Processor integrated Intel® UHD Graphics driven by Intel® Xe architecture with up to 32 execution units, supports up to one 4K60HDR or three 4K60 SDR displays. Ideal for video and imaging-intensive applications that demand a small footprint and low power consumption.
Delivers 2.5G data rate per port. Supports IEEE 1588, aka the Precision Time Protocol (PTP) is a protocol used to synchronize clocks throughout a computer network. Making the Mini ITX suitable for measurement and control systems.

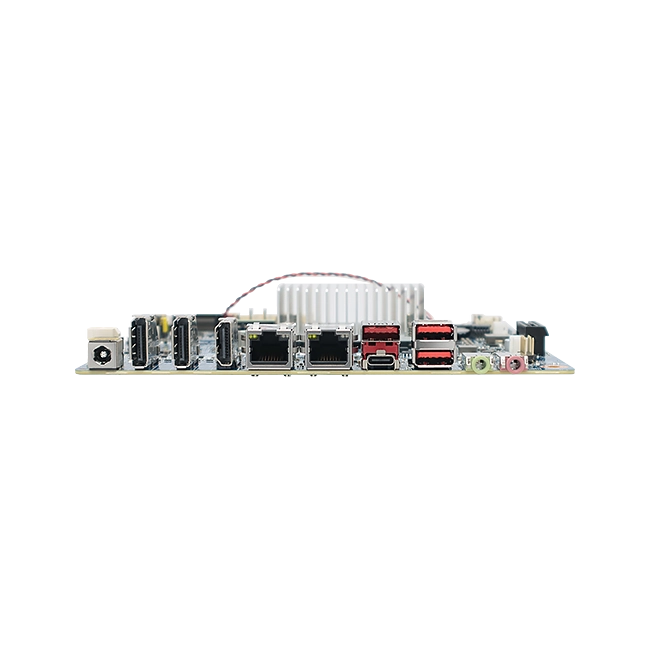

A low-profile, single stack I/O design, providing a compact and efficient layout suitable for applications where space is limited and high performance is required.
If you are looking for a platform using the Intel® Atom® Amston Lake Platform SoC Processor, we offer a customizable solution through our build-to-order services. The x7000RE Series is designed to support ruggedized, deep learning inference and compute capabilities, making it ideal for Industry 4.0 applications.
Select processor supports Up to eight CPU cores and Intel® UHD Graphics with up to 32execution units can drive graphics, media processing, and deep learning inference AI simultaneously.
Select processor supports for up to 3 4K@60 SDR or one 4K@60 HDR displays with Pipelock synchronization on two displays. Programmable graphics, codecs, and media accelerators on the CPU and GPU all controlled via the Intel® oneAPI Video Processing Library.
15W TDP with low-power standby mode is ideal for sealed, fanless, easy-to-disinfect designs for hospital and healthcare environment where quiet operation is required. Flexible, high-bandwidth I/Os deliver high-speed data transfer and support legacy interfaces.
Programmable graphics, codecs, and media accelerators on the CPU and GPU all controlled via the Intel® oneAPI Video Processing Library.
Network video recorders; autonomous mobile robots (AMRs) for security, way-finding, and delivery; road and traffic management, parking, and smart city AI and sustainability.
AI automated tending, sorting, picking, parallelizing, warehouse AMR, in-line visual inspection for quality control, ruggedized industrial PC.
Understand more about our Custom Industrial Motherboards and Open Frame Tablets
