BI280-RPLPS Coming Soon

Motherboard: MX-RPLPS Mini ITX Motherboard Inside
LGA 1700 socket supports Intel® Core™ 7/5/3 Processor, formerly the Raptor Lake PS (RPL-PS) Platform
2 x DDR5 5200MHz SODIMM sockets support up to 96GB
4 x DP++, supports 4 Independent Displays
Dual LAN, 2 x Intel® I226-LM 2.5GbE Ethernet Controllers
4 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0
1 x USB Type C Thunderbolt® 4
Gen4 PCIe x4 Slot (x16 Physical Slot)
1 x M.2 M-Key 2242/2280 NVMe
1 x M.2 B-Key 3042/3052
1 x M.2 E-Key 2230
Optional 2 x COM Ports at rear I/O
12-24V Wide Range DC-in
TPM 2.0

System
Motherboard Inside	MX-RPLPS Mini-ITX
CPU	LGA 1700 Supports Intel® Core™ 7/5/3 Processor up to 45W, formerly Raptor Lake PS Platform
System Memory	2 x DDR5 5200MHz SODIMM Sockets support up to 96GB
Ethernet	2 x Intel® Ethernet Controller I226-LM (2.5GbE)
Expansion	1 x Gen 4 PCIe x4 (x16 Physical Slot) 1 x M.2 E-Key 2230 (PCIe x1 Channel & USB Signal) 1 x M.2 M-Key 2280 & 2242 NVMe ( Gen4 PCIe) 1 x M.2 B-Key 3052 & 3042 (PCIe x2 & USB Signal)
TPM	TPM 2.0
Supported OS	Win 10, Win 11, Linux Ubuntu
Display
Chipset	Integrated Intel® Graphic
Resolution	4 x DisplayPort 1.4a @ 60Hz
Multi-Display	Supports 4 Independent Displays

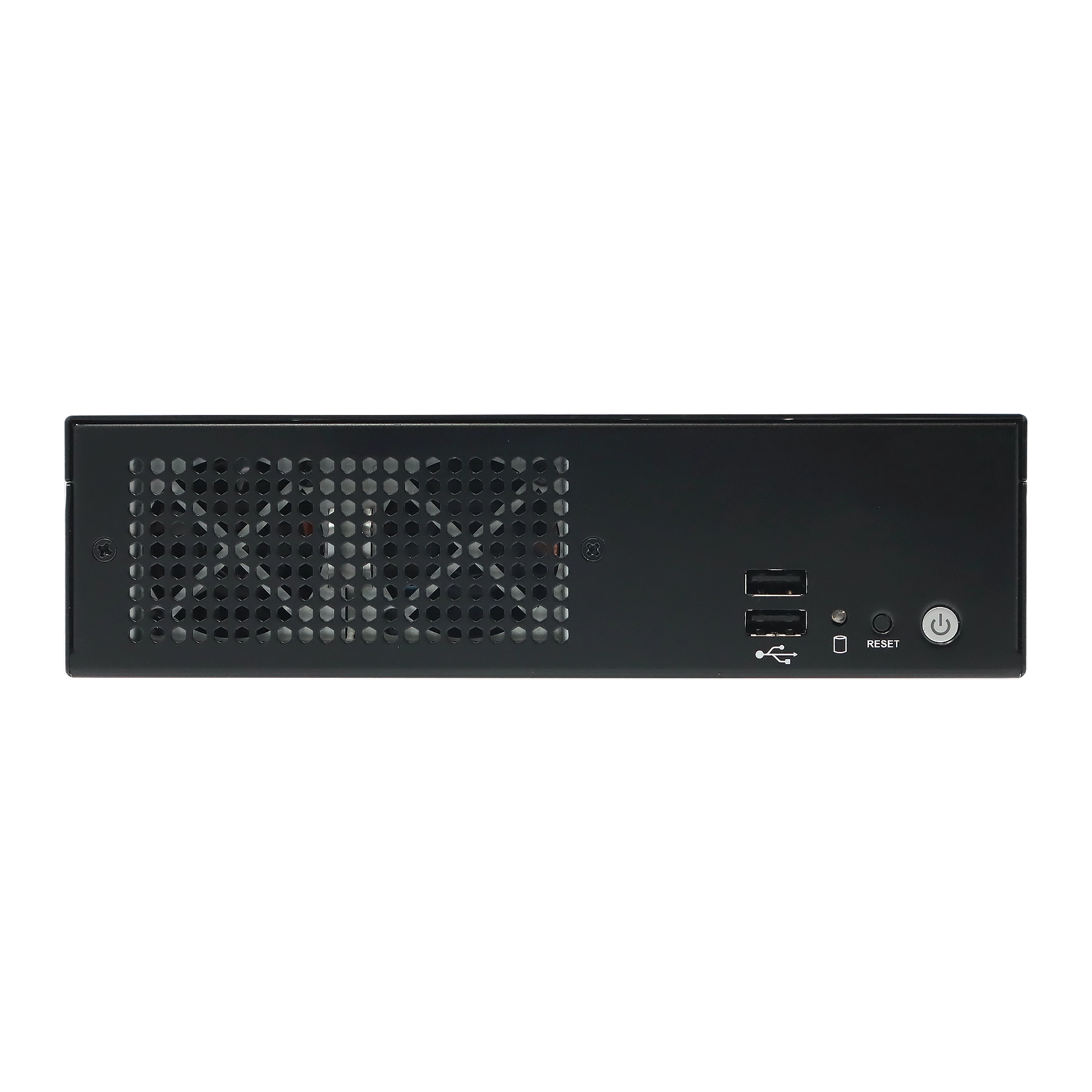

External I/O - Front
USB	2 x USB 2.0
Power	1 x Power Button with LED
Other	1 x Reset Switch

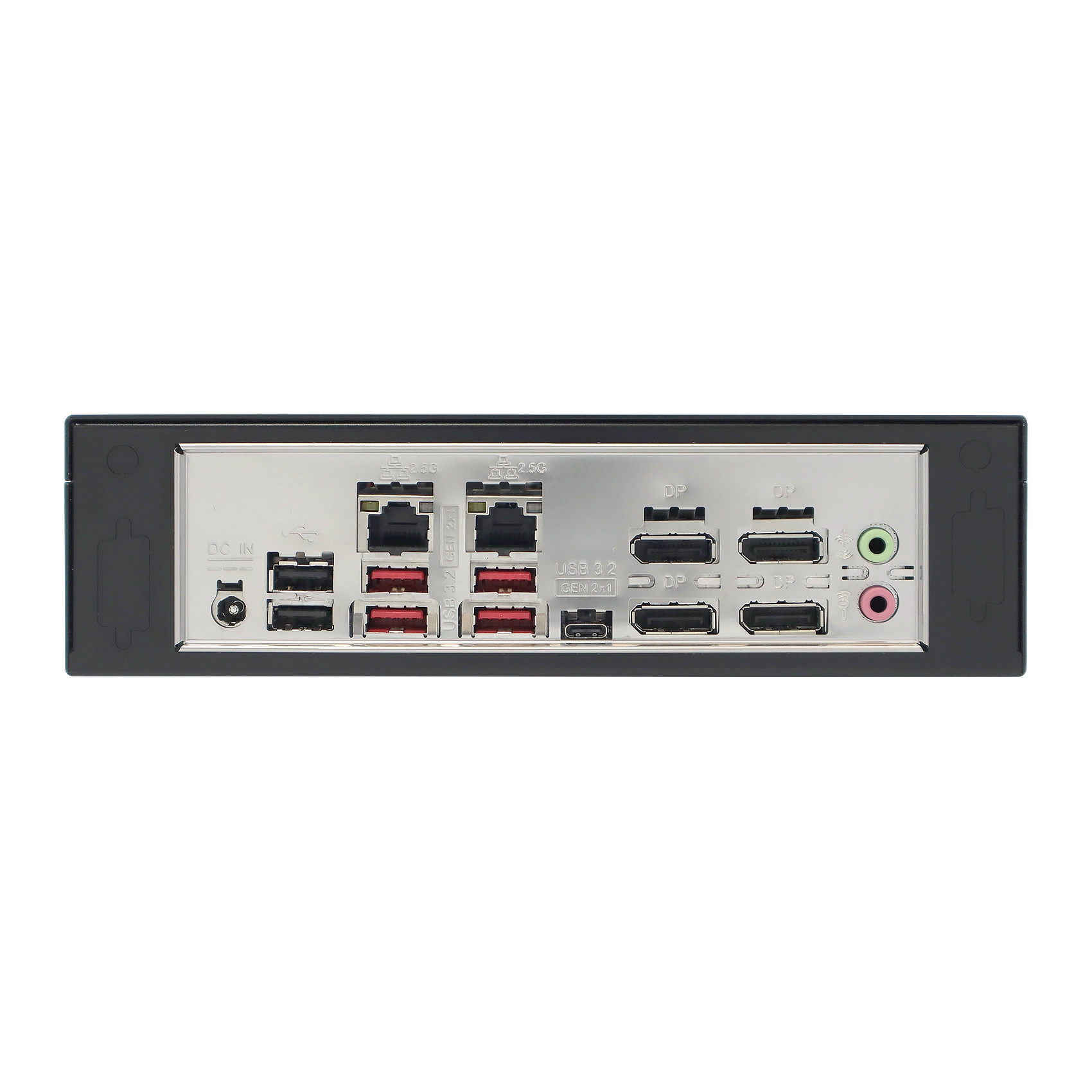

External I/O - Rear
Display	4 x DisplayPort 1.4a @ 60Hz
USB	4 x USB 3.2 Gen 2 Type A 2 x USB 2.0 Type A 1 x USB Type C Thunderbolt 4
LAN	2 x RJ45
Audio	Line-out, Mic-in
DC-in	1 x Barrel Type DC-in Connector
Optional Ports	Optional 2 x COM Ports Optional 2 x SMA Jacks for Antenna
Mechanical and Environment
Power Type	12V-24V Wide Range DC-In
Power Adapter	Input: 100~240 Vac/50~60Hz Output: 200W Adapter
Operating Temperature	0°C ~ 35°C (32°F ~ 95°F)
Storage Temperature	-20°C ~ 80°C (-4°F ~ 176°F)
Operation Humidity	10% ~ 86% Relative Humidity, Non-condensing
Certification Information	CE, FCC Class B, RoHS Compliant
Dimensions	8.59” L x 8” W x 2.17” H (218.18mm L x 203.20mm W x 55.01mm H)
Weight	approx. 4 lbs (1.8 kg)

* All product specifications and product images are subject to change without notice. Last update: 01/20/2025

Please Note - By downloading the files from BCM website, you agree to accept the terms and conditions.

Document
Datasheet

Driver	Description
Note	The BI280-RPLPSis equipped with the MX-RPLPS Mini-ITX motherboard inside. Please check MX-RPLPS product page for drivers and manual.

Product Change Notice (PCN) Click Here to receive future PCN notifications automatically.

Date	Description	Download
Note	The BI280-RPLPSis equipped with the MX-RPLPS Mini-ITX motherboard inside. Please check MX-RPLPS product page for Product Change Notice.

Model Name	Description
BI280-RPLPS	Mini-ITX Barebone Computer with MX-RPLPS Mini ITX inside
