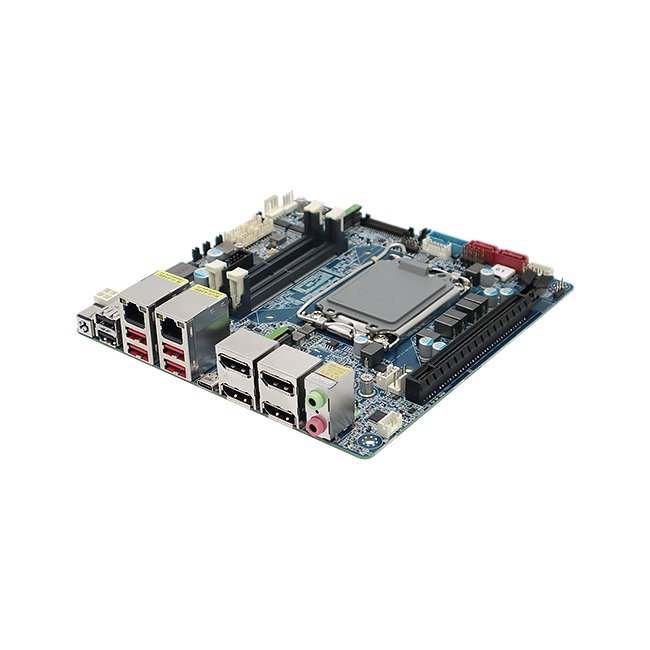

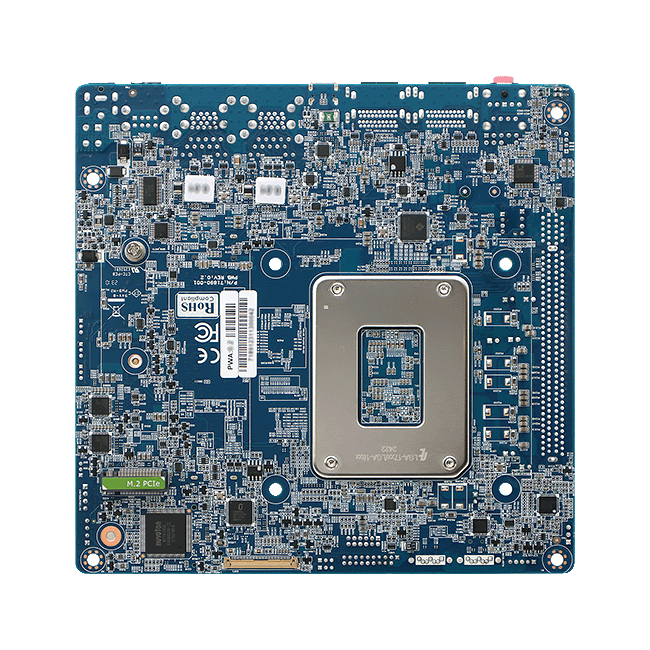

MX-RPLPS
Mini ITX Motherboard, CPU + PCH Multichip Package, LGA 1700 socket supports Intel® Core™ Processor
Buy from Mouser
Click Buy Now to find out the Availability schedule. Please note, you'll be redirected to mouser.com to complete your transaction.
- LGA 1700 socket supports Intel® Core™ 7/5/3 Processor, formerly the Raptor Lake PS (RPL-PS) Platform
- 2 x DDR5 5200MHz SO-DIMM sockets support up to 96GB
- Intel® Graphics with up to 96 graphics EUs (CPU Dependent)
- 4 x DP++, supports 4 Independent Displays
- Onboard LVDS, optional eDP
- Dual LAN, 2 x Intel® I226-LM 2.5GbE Ethernet Controllers
- 1 x USB Type C Thunderbolt® 4
- 4 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0
- Gen4 PCIe x4 Slot (x16 Physical Slot)
- 1 x M.2 M-Key 2242/2280 NVMe
- 1 x M.2 B-Key 3042/3052
- 1 x M.2 E-Key 2230 (PCIe x1 Channel & USB Signal)
- 4 x COM Ports
- 12-24V Wide Range DC-in
- TPM 2.0
Related Products
Support edge designs and use cases that require scalability alongside graphics and AI inferencing performance with Intel® Core processors.
Deploy faster edge AI and advanced graphics with LGA flexibility

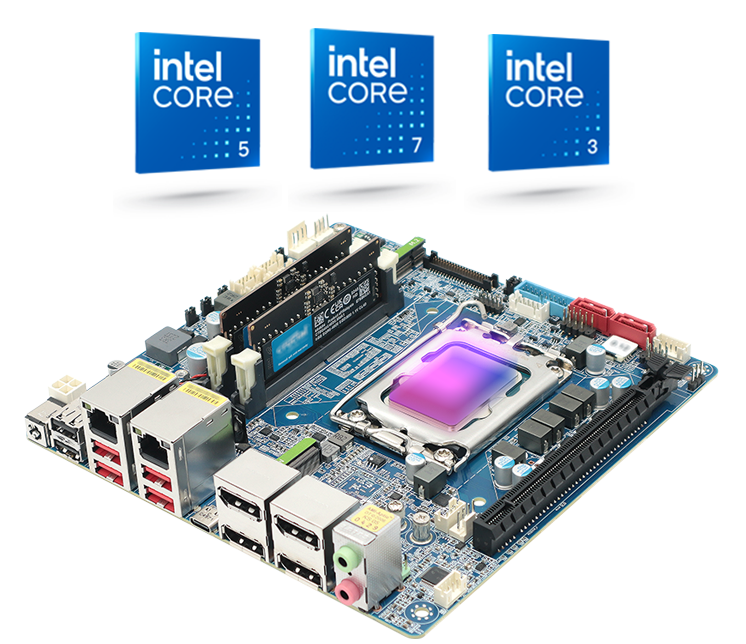

MX-RPLPS: An LGA 1700 socket motherboard that supports Intel’s new Core™ Processor for the Edge platform in a Mini ITX Form Factor.
The recently launched Intel® Core™ edge processors combine the performance profile and power ranges of 13th Gen Intel® Core™ mobile processors with LGA socket flexibility. This SoC features Intel’s performance hybrid architecture with Intel® Thread Director and an integrated PCH, along with integrated Intel® Graphics (on select SKUs).
When coupled with the Intel® Core™ processors, MX-RPLPS becomes an excellent computing option for developers who require enhanced AI and graphics performance without compromising LGA socket flexibility.
Power advanced visual workloads
MX-RPLPS supports 4 Independent Displays via 4 DisplayPorts (DP++) at external I/O and/or onboard LVDS. When coupled with select Intel® Core™ 7 processor featuring integrated Intel® Graphics with up to 96 EU, it delivers engaging visual experiences for demanding edge applications. These Intel® Core™ processors provide powerful graphics capabilities, making them ideal for rich digital signage and self-service kiosks..
Mini ITX Motherboard for Edge Computing with 4 DP++, Dual 2.5GbE LAN, USB 3.2 Gen2 and Thunderbolt 4
MX-RPLPS is a compact Mini-ITX motherboard designed for high-performance solutions. It features dual LAN with 2 x Intel® I226-LM 2.5GbE Ethernet Controllers for reliable networking. The board includes a USB Type C Thunderbolt® 4 port, 4 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, and 4 x USB 2.0 ports for versatile peripheral connections. With a Gen4 PCIe x4 Slot, M.2 for Wi-Fi/BT/storage slots, and support for 12-24V Wide Range DC-in, it offers versatile connectivity and expandability. Additionally, the onboard TPM 2.0 enhances security for edge applications.
Accelerate edge AI quickly and cost-effectively
Take advantage of the LGA socket‒based design to enable future upgrades and expandability. SoC in an LGA package allows for single-board design across the entire SKU stack, lowering R&D costs and accelerating time to market. In addition, shorten development time for AI with support for the Intel® Distribution of OpenVINO™ toolkit when pairing with select Intel® Core™ 7 processor.
Applications
Retail and Hospitality
Digital signage, interactive kiosks, in-store analytics, POS
With Intel® Core™ processors, MX-RPLPS empowers next-generation retail and hospitality experiences. It delivers powerful graphics, AI capabilities for rich in-store analytics or kiosk interactivity, and robust video-wall support.
Industrial
AI-augmented industrial PC for discrete and process manufacturing, microgrid controller, robotics management
With Intel® Core™ processors, MX-RPLPS is well-suited for light industrial applications for quality improvement, enhanced productivity, safety enhancements on shop floors, and Industry 4.0 use cases, including AI vision deployments.
Smart cities and infrastructure
License plate recognition, traffic management, crowd management
The MX-RPLPS Mini ITX, integrated with a selected high-performance Intel® Core™ processor system-on-chip (SoC), is engineered to cost-effectively bring intelligence and analytics to the forefront of smart cities.
Education and Enterprise
Interactive whiteboards, thin clients, remote classrooms
When pairing with Intel® Core™ processors, the MX-RPLPS empowers classrooms with engaging experiences. Its advanced integrated graphics capabilities deliver dynamic and rich experiences that meet the expectations of today’s learners.
