BCM NUC-Series Compact Systems Ready for Edge AI Deployment – Now with DIN-Rail Mounting Kit
When it comes to edge computing in industrial environments, compact hardware must not only be powerful—it must also install easily and fit into constrained spaces like control cabinets or equipment racks.
BCM’s NUC-Series embedded systems deliver performance from entry-level to AI-capable, all in fanless, space-saving enclosures. Now, with our new DIN-rail mounting kit, deployment is faster, neater, and more robust than ever before.

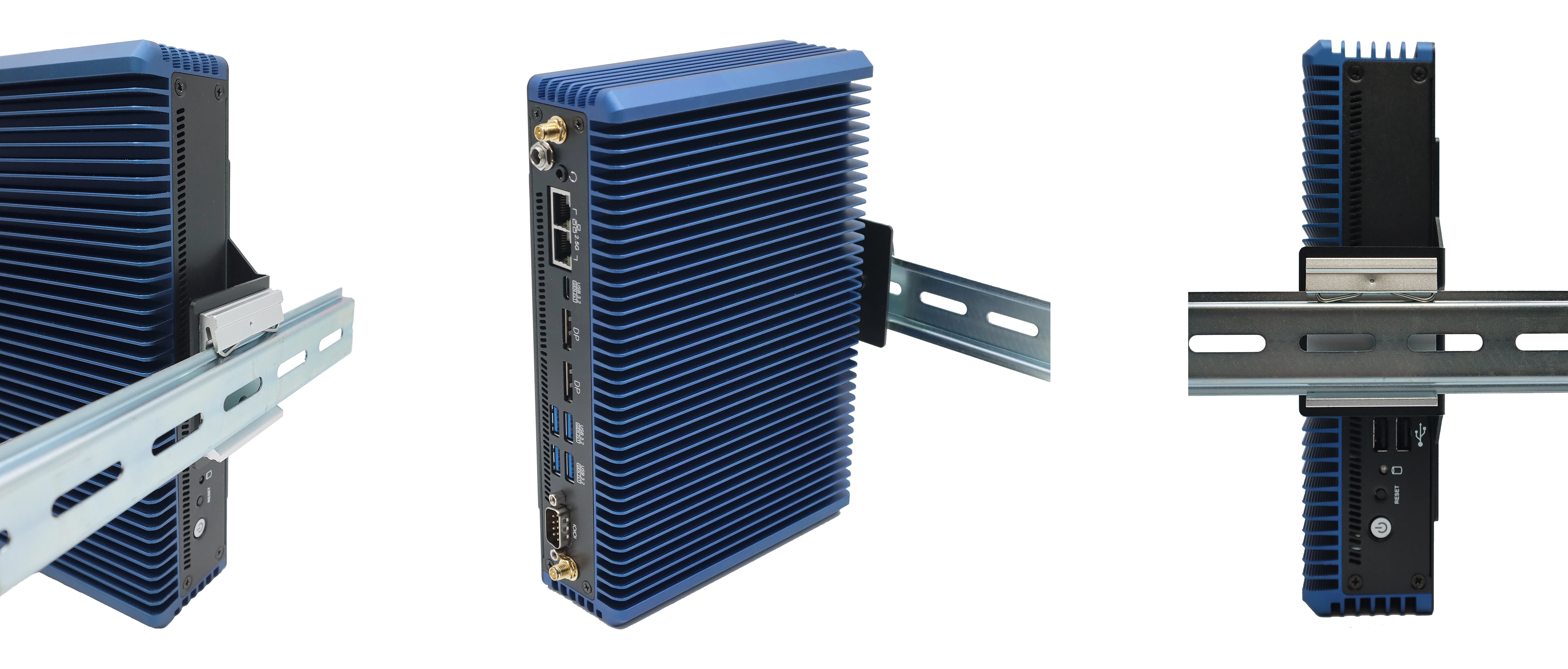

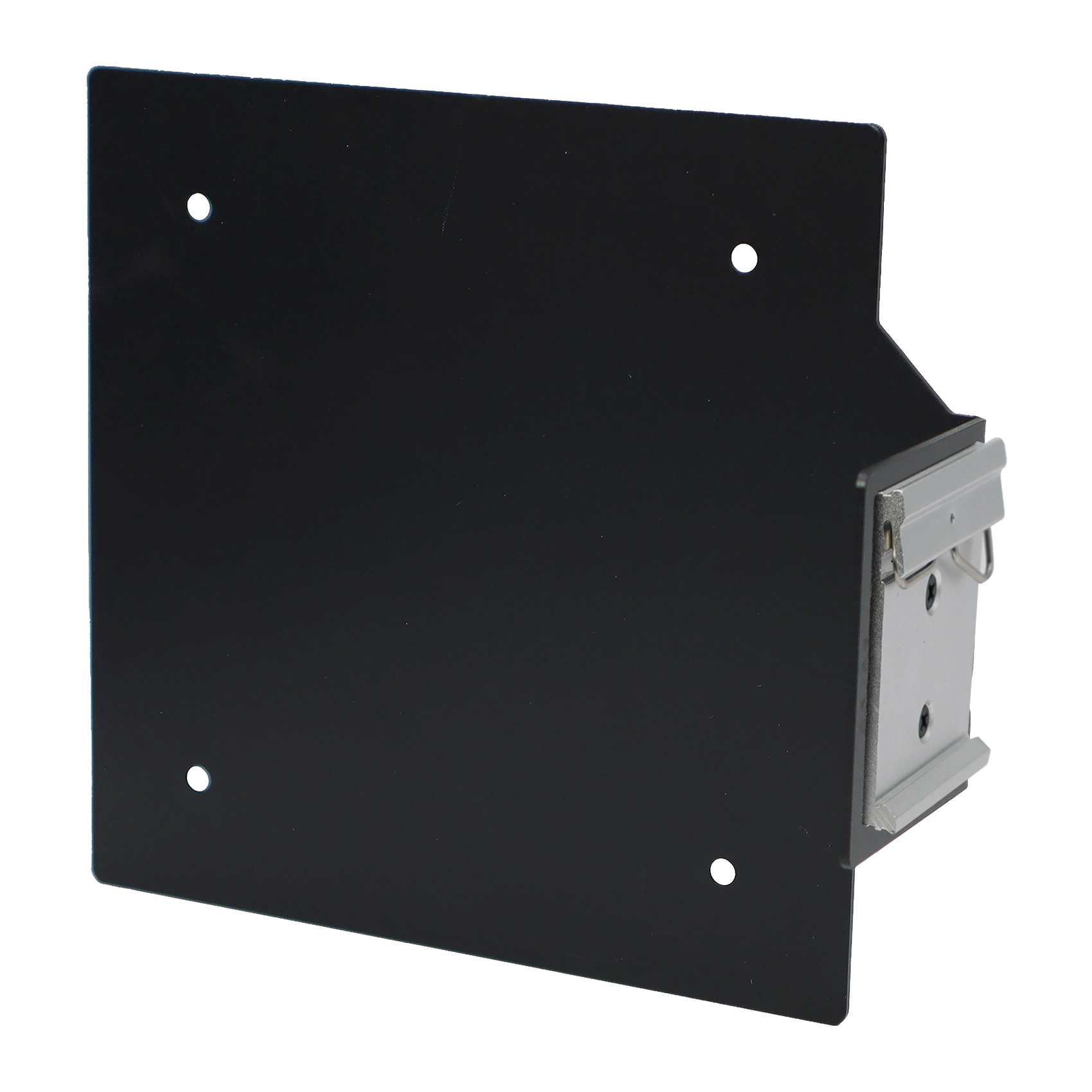

DIN-Rail Mounting Kit
Compatible with NUC-ADLN, NUC-RPLP, and NUC-AR3588RK
Smart Design. Space-Saving. Easy to Install.
Purpose-built for BCM’s NUC lineup, this DIN-rail kit enables direct mounting into standard industrial enclosures—without custom brackets or third-party solutions. ✅ Slim profile for tight spaces ✅ Snap-on installation, no tools required ✅ Built tough for industrial environments It’s a small add-on that makes a big difference—especially in control cabinets, factory walls, or kiosk interiors. |
 |
Choose Your NUC – All DIN-Rail Compatible
NUC-RPLP
Best for: Factory automation, industrial control and monitoring, machine vision systems
🧠 NUC-RPLP - Powered by Intel® Core™ i7/i5/i3 P-series (Raptor Lake-P)
- Up to 10 cores, up to 12M Cache, up to 4.90 GHz
- 2 x DDR5 SODIMM sockets support up to 64GB
- Supports Intel® Iris Xe Graphic: select Intel® Core™ i7 and i5 Processors
- 2 x DP++ support Dual Displays
- 2 x Intel® I226-LM Ethernet Controller (2.5 GbE), 2 x LAN Ports
- Integrated USB Type C Thunderbolt 4
- 1 x COM port
- 12V-24V DC-In
- TPM 2.0
- Fanless thermal design
DIN-Rail Advantage: Simplifies integration into factory-floor equipment or automation cabinets—ready for serious workloads.
NUC-ADLN
Best for: Smart kiosks and terminals, light-duty automation interfaces, entry-level edge gateways
🧠 NUC-ADLN - Powered by Intel® Processor N97 (Alder Lake-N)
- 64GB eMMC Onboard
- 2 x Intel® I226-LM Ethernet Controller (2.5 GbE), 2 x LAN Ports
- USB 3.2, dual DP, USB Type C OTG, 1 x COM port
- Fanless, low power (12W TDP)
- TPM 2.0
- 12V-24V DC-In
- Compact footprint for tight deployments
DIN-Rail Advantage: Perfect for kiosks or display enclosures where space is at a premium.
NUC-AR3588RK
Best for: AI-powered video analytics, smart surveillance, intelligent retail and signage
🧠 Powered by Rockchip RK3588 with built-in 6 TOPS NPU
- HDMI input for video capture
- Quad Core Cortex-A76 & Quad Core Cortex-A55
- 8GB LPDDR4 Memory Onboard
- 64GB eMMC Onboard
- Mali G610 MP4 Integrated Graphic
- 2 x DisplayPort 1.3 4K@60Hz
- Dual LAN, USB 3.1, USB Type C OTG
- Ideal for AI inference at the edge
DIN-Rail Advantage: Enables fast deployment near cameras or sensors for edge AI processing.
🚀 Built to Deploy, Engineered to Last
All BCM NUC models + DIN-rail mounting kit offer:
✔️ Fanless, silent operation
✔️ Industrial-grade I/O options
✔️ 9–36V wide voltage support (model dependent)
✔️ Long lifecycle support for embedded use
✔️ Secure, tool-free cabinet installation
Interested in a sample or evaluation unit? Contact us today to discuss your project needs.
Why BCM - ODM Customization
BCM offers flexible customization and ODM services for clients seeking tailored solutions—whether modifying a standard product or designing from concept. From electrical and mechanical design to regulatory and production support, our experienced engineering team minimizes risk, cost, and time-to-market.
Looking for a medical AI workstation platform? Contact BCM for evaluation units or custom ODM options.
📧 Email: BCMSales@bcmcom.com
