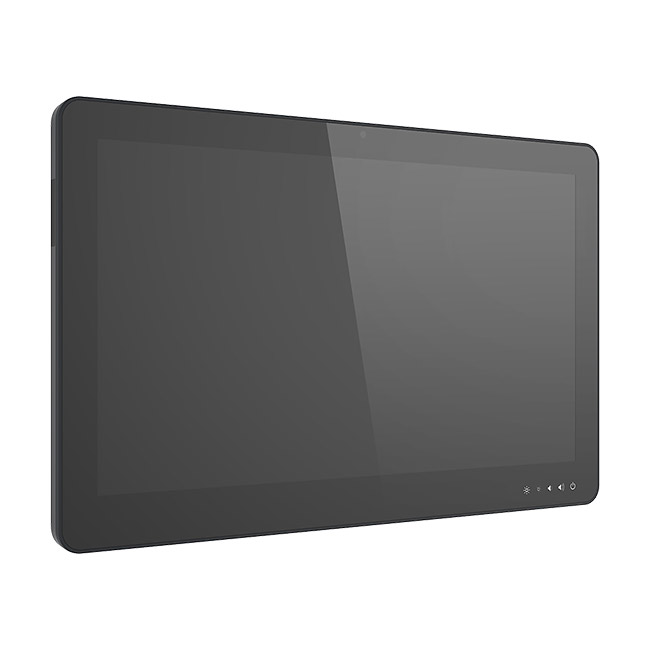

APC-2132 21.5 in Intel Core i7/i5/i3/Celeron Ultra light Multi-Touch Fanless Panel PC

APC-2132

21.5" Intel® Core™ i7/i5/i3/Celeron Ultra light Multi-Touch Fanless Panel PC

Onboard Intel® Core™ i7/i5/i3/Celeron BGA Processor
10 points PCAP multi-touch support
4 x USB 3.0, 2 x COM Ports, 2 x LAN
Infineon TPM 2.0
HDMI, 2 USB2.0, Line-out, Mic-in, Half size mini-PCIe via IET Module
Front IP65
Fanless Operation
VESA Mount Compliance
Wide Voltage +12V ~ +26V Input, ErP Power
Multi-function Front OSD Touch Key
Optional NFC/ LED Reading Light Bar/ Smart Battery
Optional Wi-Fi/Bluetooth Module
Optional Expansion I/O port via IET Module

Quick Turnkey Ultra-light Multi-purpose Touch Panel PC for Interactive Kiosk and Digital Signage. APC-2132 All-in-One Panel PC is a perfect solution for Retail, Medical, Healthcare, Education, Casino & Gaming applications.

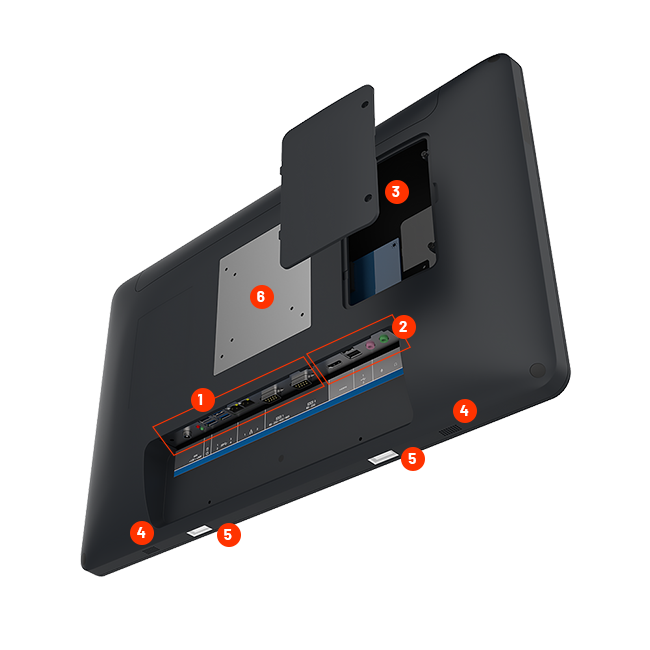

Rich I/O and Smart Design

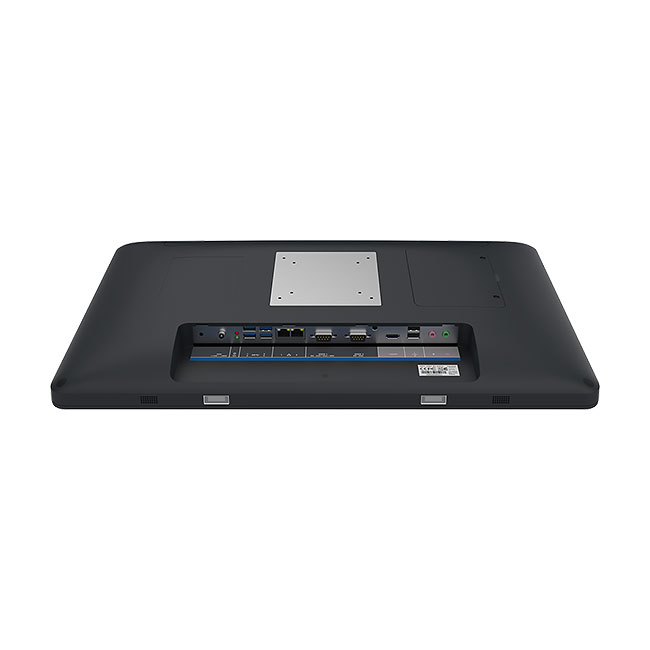

Rear I/O: DC-in, 4 x USB 3.0, 2 x LAN, 2 x COM Ports
Additional I/O via IET Module: HDMI, 2 x USB 2.0, Mic-in, Line-out
Service Window allowing Easy Access for Storage Device
Stereo Speakers
Reading Lights

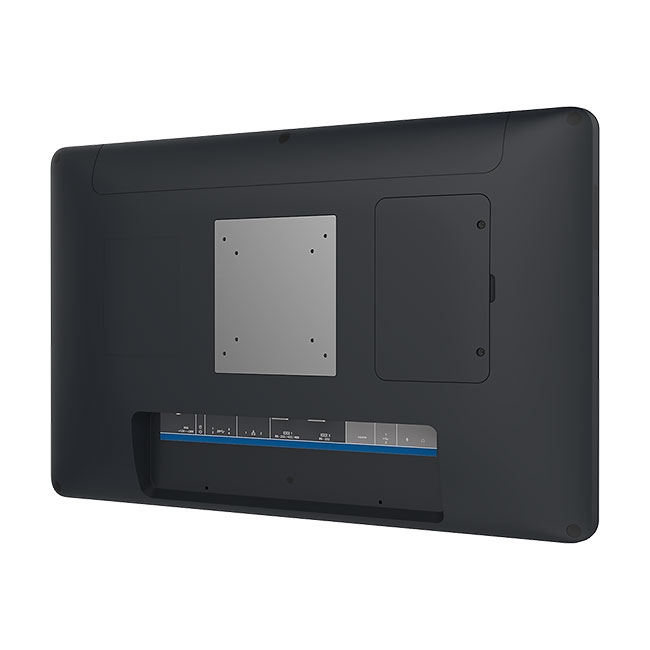

VESA Mount Compliance for 75x75mm or 100x100mm

Full Flat PCAP Multi-Touch with User Friendly Interfaces

21.5" Full Flat PCAP Multi-Touch supports up to 10 points
IP 65 Front Bezel
Optional AG/AR/AF Coating
Optioinal 2MP WebCam/WebCam Cover
Optional NFC/RFID Module
Touch Keypad Setting for: Screen Backlight, Volume and Power Button

Flexible Customization

Change the olor of the plastic enclosure
I/O interface customization such as adding/replacing the mini-PCIe, USB, COM, LAN, HDMI, Audio ports via IET Modules at the rear I/O
OEM for Customer Logo Printing on the Panel PC

Optional Smart Features

Reserved for USB devices:

Smart Card Reader
Magnetic Stripe Reader
Finger Print Reader

Dimensions

System
CPU	Intel® Core™ i7/ i5/ i3 / Celeron Processor
System Chipset	Intel® Skylake U SoC Integrated
System Memory	1 x 260-Pin DDR4 2133MHz SODIMM up to 16GB
I/O Chip	EC ITE IT8528VG/FX
Watchdog Timer	H/W Reset: 1sec.~255min. and 1sec. or 1min./step
H/W Status Monitor	Monitoring System Temperature and Voltage with Auto Throttling Control
TPM	Infineon TPM 2.0
Expansion	1 x Full size mini-PCIe supports mSATA, PCIe & USB signal 1 x Half size mini-PCIe supports PCIe & USB signal via IET Module
Storage	1 x 2.5" Drive Bay 1 x mSATA (via mini-PCIe)
OS Information	Win 7 Win 8.1 Win 10 Linux
Display
Chipset	Intel® Skylake SoC Integrated Graphics Supports Dual Display
Resolution	HDMI: Max. resolution 3840x2160 @ 24Hz LVDS: Max. resolution 1920x1080 @ 60Hz
Panel
LCD Size	21.5", Full HD
Resolution	1920 x 1080
Pixel Pitch	248.25um (H) x248.25um (V)
Luminance	250 Cd/m2
Contrast Ratio	3000
Viewing Angle	89 (U), 89 (D), 89 (L), 89 (R)
Response Time	18ms
Backlight	LED
Touch Type	Projective Capacitive
Touch Light Transmission	89%
Touch Controller	USB touch (EETI)
Audio
Chipset	Realtek HD Audio support 7.1 channel sound playback
Interface	1 x Line-out 1 x Mic-in (via IET Module)
Speaker Output	2 x 2W
Ethernet
LAN 1	Intel® I210-AT Gigabit Ethernet Controller
LAN 2	Intel® I219-LM Gigabit Ethernet Controller
External I/O
Display	1 x HDMI (via IET Module)
USB	4 x USB 3.0 2 x USB 2.0 (via IET Module)
COM Port	1 x RS-232/422/485 1 x RS-232
LAN	2 x RJ45
Audio	1 x Line-out (via IET Module) 1 x Mic-in (via IET Module)
DC-in	DC-in Power Jack
Other	Reset Button and HDD, Power LED Indicators
Power Requirement
Power Connector	Lockable DC Jack
Power Requirement	+12V ~ +26V
Power Mode	AT/ATX
Adapter	Input:100 ~ 240Vac/ 50 ~ 60Hz Output: 72W Adapter (19V @ 3.78A Adapter)
Mechanical and Environment
Operating Temp	0°C ~ 40°C (32°F ~ 104°F)
Storage Temp	-10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity	0% ~ 90% Relative Humidity, Non-condensing
Mounting Kit	Wall Mount, Stand, VESA Mount - 75x75mm, 100x100mm
IP Rating	Front IP65
Vibration Test	With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis
Shock Test	With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms
System Fan	Fanless
Construction	Front: Plastic - Black Rear: Plastic - Black
Certification	CE FCC Class B
Dimension	21.25" x 13.46" x 1.8" (539.6mm x 342.6mm x 45.5mm)
Weight	13.9lbs (6.3Kgs)

* All product specifications and product images are subject to change without notice. Last update: 08/01/2023

Document
Datasheet
Quick Reference Guide

Model Name	Description
APC-2132-610-A2R	21.5" FHD PCT Panel PC, Intel Core i3-6100U, Black Plastic, 4GB MMY, 4xUSB 3.0, 2xCOM, HDMI, SPK, Power Adapter Please contact BCMSales@bcmcom.com for custom requirements.
