Extended Product Life-cycle
Our HPC product life-cycle is minimum of 5 years. It is revision control to minimize BOM changes so customers can get 2-3 technology cycles out of it.
High-Performance Computing (HPC)
Delivering lightning-fast server-class performance with embedded, extended life-cycle, traceability, IPMI real-time system monitoring, remote management and exceptional reliability.
Dual Sockets Server Board
The 4th and 5th Gen Intel® Xeon® Scalable processor-enabled solutions by BCM deliver AI acceleration, DDR5, PCIe 5.0, and CXL 1.1 over extended product life cycles
HPM-ERSDE New
Proprietary Server Motherboard supports two 5th Gen Intel® Xeon® Scalable Processors (formerly Emerald Rapids) up to 270W TDP
HPM-SRSDE Sampling Now
Proprietary Server Motherboard supports two 4th Gen Intel® Xeon® Scalable Processors (formerly Sapphire Rapids) 270W TDP
Single Socket Server Board
HPM-ERSUA New
ATX Server Motherboard supports single 5th Gen Intel® Xeon® Scalable Processor (formerly Emerald Rapids) up to 270W TDP
HPM-SRSUA
ATX Motherboard supports 4th Gen Intel® Xeon® Scalable Processors (formerly Sapphire Rapids) up to 270W TDP
HPM-621UA
ATX Motherboard supports 2nd Gen Intel® Xeon® Scalable Processors with Intel® C621 Chipset
HPC Level 6 Barebone System

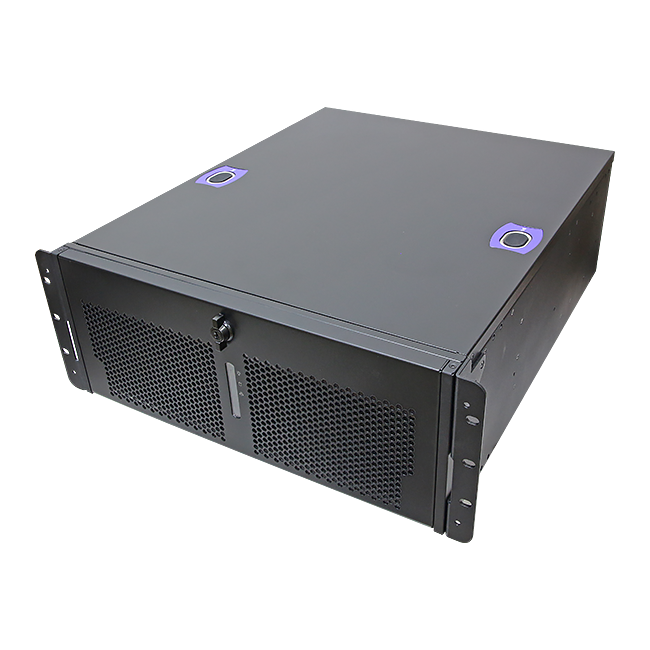

HPS-SRSU4A Sampling Now
19" 4U Workstation, supports single 4nd Gen Intel® Xeon® SP Processor, 1300W, 5x RJ-45, IPMI2.0

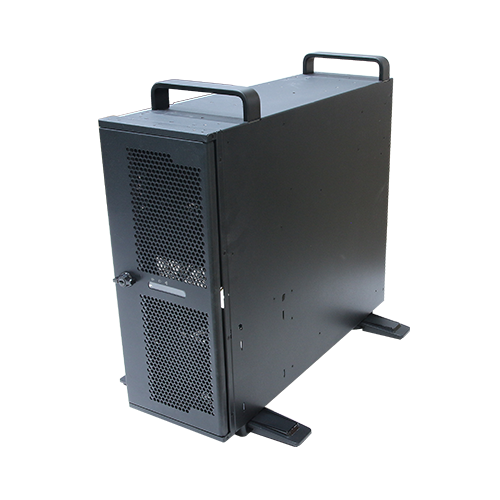

HPS-SRSUTA Sampling Now
Tower Workstation, supports single 4th Gen Intel® Xeon® SP Processor, 1300W, 5x RJ-45, IPMI2.0
Solution Brief IoT for Regulated Industries
BCM Delivers Fast, Extended Access to 4th Gen Intel® Xeon® Scalable Platform Innovations
Learn what benefits BCM can bring to the table for customers in regulated industries, including manufacturing, healthcare, digital safety, government, and avionics using our computing solutions with 4th Gen Intel Xeon Scalable processors.
HPM-SRSUA Highlights
Server Class ATX Motherboard LGA 4677 Socket supports 4th Gen. Intel® Xeon® Scalable Processor
4th Gen. Intel® Xeon® Platform
Intel® LGA4677 CPU socket supports single 4th Gen. Intel® Xeon® Scalable Processors up to 250W TDP. 7 Gen5 PCIe expansion slots. Intel® I226-LM 2.5GbE. Optional 1 x Intel® X550-AT2 10GbE LAN ports. 6 x DDR5 slots support 4800/ 4400 MHz RDIMM up to 1.5TB. IPMI 2.0, TPM 2.0.
Extended Product Life-cycle, long term support
Minimum of 5 years. Quality, traceability, customization. CUSTOMIZATION Stabilize NPI refresh rates, maximize ROI for certification costs.
BCM's HPC Value Proposition -
LOWER Total Cost of Ownership for Customers
BCM's HPC is a powerful computing platform that provides server-class performance but with the extended life-cycle and revision control not available from the typical providers of these types of server motherboards and systems. BCM’s HPC products are the ideal balance between performance and hardware life-cycle continuity for those customers that are satisfied with the computing power of their current platform and wish to step off the technology hamster-wheel offered by their present suppliers. Our HPC products are design with following Key Features:
Quality, Traceability, Customization
BCM's HPC products are designed based on IPC standards. It’s 100% functional tested. And Product traceability especially for medical customers.
Reliability, Great Support
Our HPC products are designed and manufactured with IPC reliability, supports 60℃ operating temperature. MTBF up to 50,000 hours. We use lifetime RTC battery and industrial grade power solution. PCB board is 2 mm thickness adding more durability. 15U gold plated high speed connectors.
Customer Benefits
Customers can save money on products and R&D Re-Certifications by just getting one product for multiple product cycles. The built-in BMC/IPMI real-time system monitoring and remote management capabilities help to reduce system downtime and save cost on field services.
Server Class HPC Motherboard & System Products
Our HPC product line covers from server class motherboards in ATX and EATX form factors, level-6 barebone computers and level-10 fully integrated rackmount or tower type server systems. These products support single or dual of the 2nd generation and/or next generation Intel® Xeon processors delivering lighting-fast computing performances.
This series of products are equipped with lifetime RTC battery and industrial grade power solution. PCB board is 2 mm thickness adding more durability. 15U gold plated high speed connectors to ensure quality and reliable data transfer and communications.

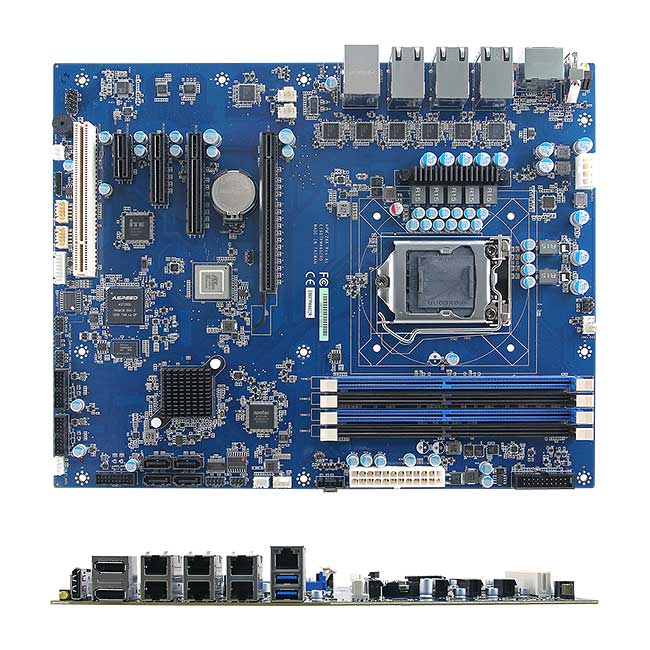

HPM-246UA
ATX Motherboard supports Intel® 8/9th Gen. Core™ i7/i5/i3/Pentium®/Celeron®/Xeon® E Processor
BMC+IPMI Remote Monitoring & Remote Management
What is IPMI?
IPMI = Intelligent Management Platform Interface.
IPMI is a user interface (software) of a set of computer specifications that runs on the server motherboard’s “Baseboard Management Controller” (BMC). It allows administrators to out-of-band (OOB) remotely manage and monitor the server’s settings and performance, without the permission from the computer’s operating system.
BCM HPC server class motherboards and computers are equipped with built-in Baseboard Management Controller (BMC) which enables IPMI out-of-band (OOB) Remote Monitoring & Remote Management to help minimize system downtime and reduce cost of technician field services.
What system administrators can do in IPMI?
IPMI allows a system administrators to perform out-of-band (OOB) management anytime anywhere. Watch the video to learn more about the IPMI user interface and functions of remote monitoring and remote management?
- System Power On/Off (even in shutdown mode)
- Install BIOS or Firmware Updates
- Monitor/Troubleshoot Fan Speeds and Temperatures
- Monitor Sensor Status, change settings, and more...
HPC System-Level Features
L6/L10 System Integration
Level 6 is barebone Computers allowing customers to choose and add their own hardware configurations. Level 10 is fully Integrated Systems which we assemble CPU, memory, storage and other components based on customer's requirements.
Flexibility
Available in 2U/4U Rackmount, and tower type workstation with foldable stands
Customizations
For example, replacing with Redundant Power Supply. Acoustic, Thermal and Air Flow Design / Simulation, MTBF calculation and prediction
HPS Tool Free Accessible Design
- Lockable front door for better access control
- Three accessible storage bays
- Tool-free removable fan
- Tool-free removable top cover
Supports Rich High Speed I/O Interfaces
- Supports maximum 3 double-wide GPU cards
- Supports different PCIe card - RAID, SSD, etc
- Compatible with the following add-on cards:
- Nvidia Quadro: RTX A4000, RTX 5000, RTX 4000, P2200, P620, Tesla T4
- Huawei Atlas 3000/3010
- Blaize Xplorer X1600P
HPS System Design Features
Intrusion detection sensor
Event log generated while any intrusion activities occurs (e.g. top cover is open)
Inlet & Outlet Sensor Board
Real-time monitoring the airflow status of the inlet and outlet
Thermal Design
Multiple system fans at the front and rear side of the panels
Focused Applications
Precise Medical Imaging Processing
Medical and HealthcareCT (Computed Tomography), MRI (Magnetic Resonance Imaging), X-Ray, 3D Scan, Precision Diagnosis Image-guided Therapy, Life Science
Machine Vision
Smart Manufacturing, Automation, IndustrialAutomated Vision Inspection System, Luggage X-Ray Scanner, Test Instrument, Transformative Analytics
Real-time Surveillance Monitoring
Security, ITS, Smart CityVideo Surveillance, Traffic Monitoring, License Plate Scanning, Smart and Safety Enforcement Technology
AI, Machine Learning, Edge Computing
Retail, Gaming, CommunicationsSmart retail, facial recognition, live-streaming server, data center, superior accelerated workstation
Contact us at BCMSales@bcmcom.com or give us a call 949-470-1888
Understand more about our Custom Industrial Motherboards and Open Frame Tablets
