Rockchip® RK3588 SoC Cortex-A76 & Cortex-A55 Quad Core ARM SBC Rockchip® RK3588 SoC Cortex-A76 & Cortex-A55 Quad Core ARM SBC Rockchip® RK3588 SoC Cortex-A76 & Cortex-A55 Quad Core ARM SBC

AR3588RK

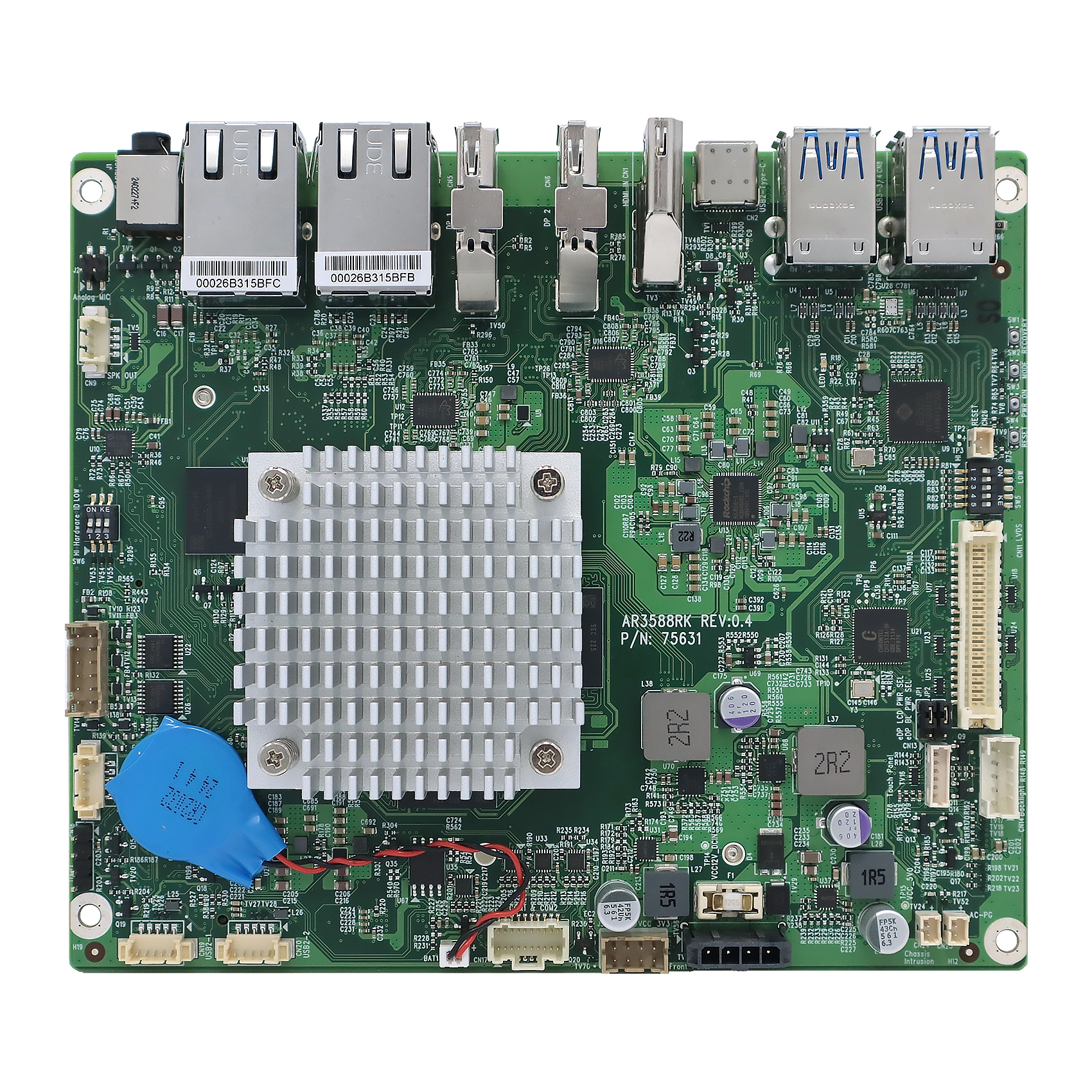

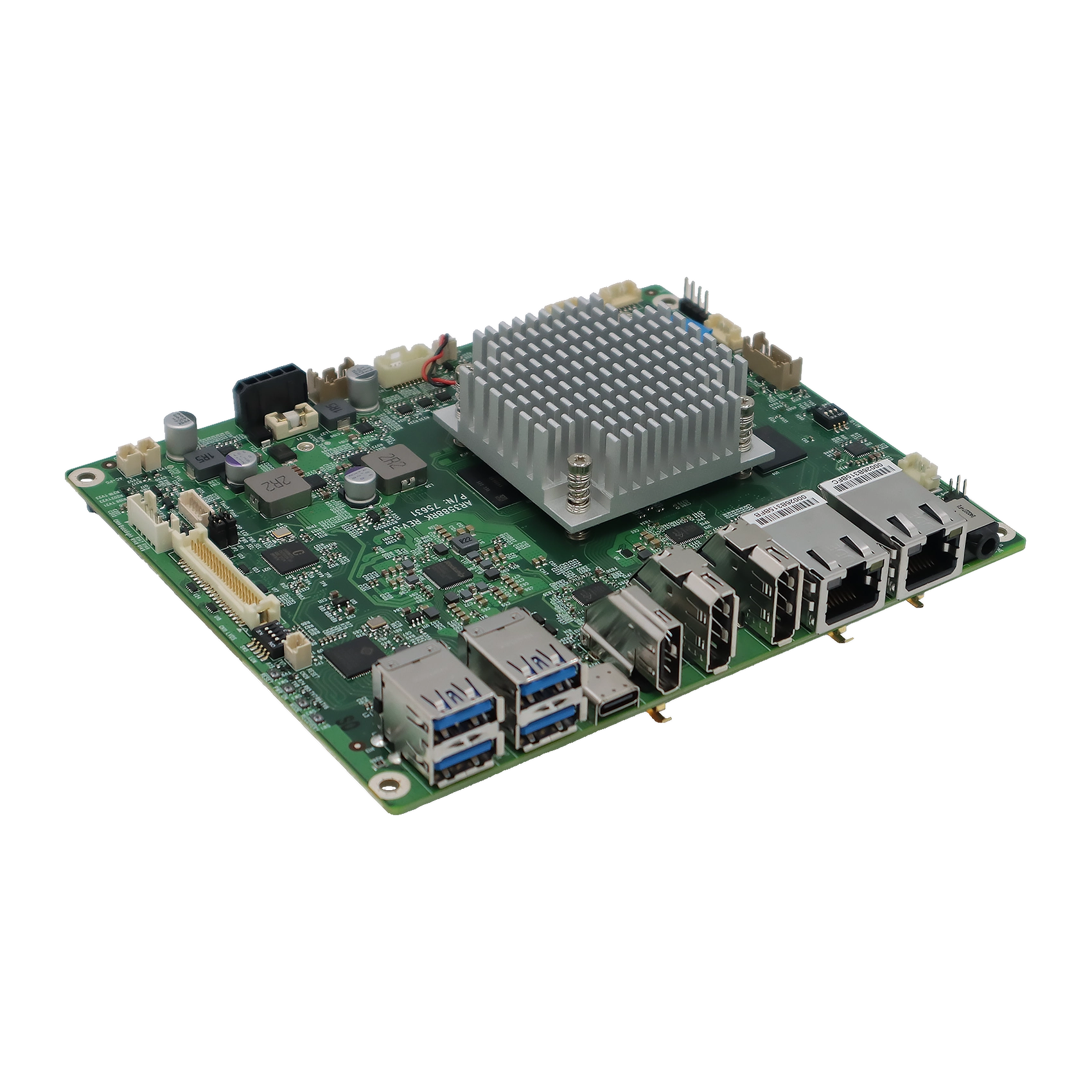

Rockchip® RK3588 SoC Cortex-A76 & Cortex-A55 Quad Core ARM SBC

  • Rockchip RK3588 Quad-Core Arm Cortex-A76 & A55 SoC
  • 8GB LPDDR4 RAM, Expandable up to 32GB
  • 32GB eMMC Storage & MicroSD Slot
  • Dual DisplayPort 1.3 (4K@60Hz) & HDMI Input
  • Mali-G610 MP4 GPU for 4K Video Processing
  • Dual Gigabit Ethernet, USB 3.1, M.2 NVMe/SATA
  • Wide 12-24V DC Input & 0°C to 70°C Operating Temp
  • Compact Size of 5.79” x 4.72”
  • Ultra lightweight, 5 oz board only

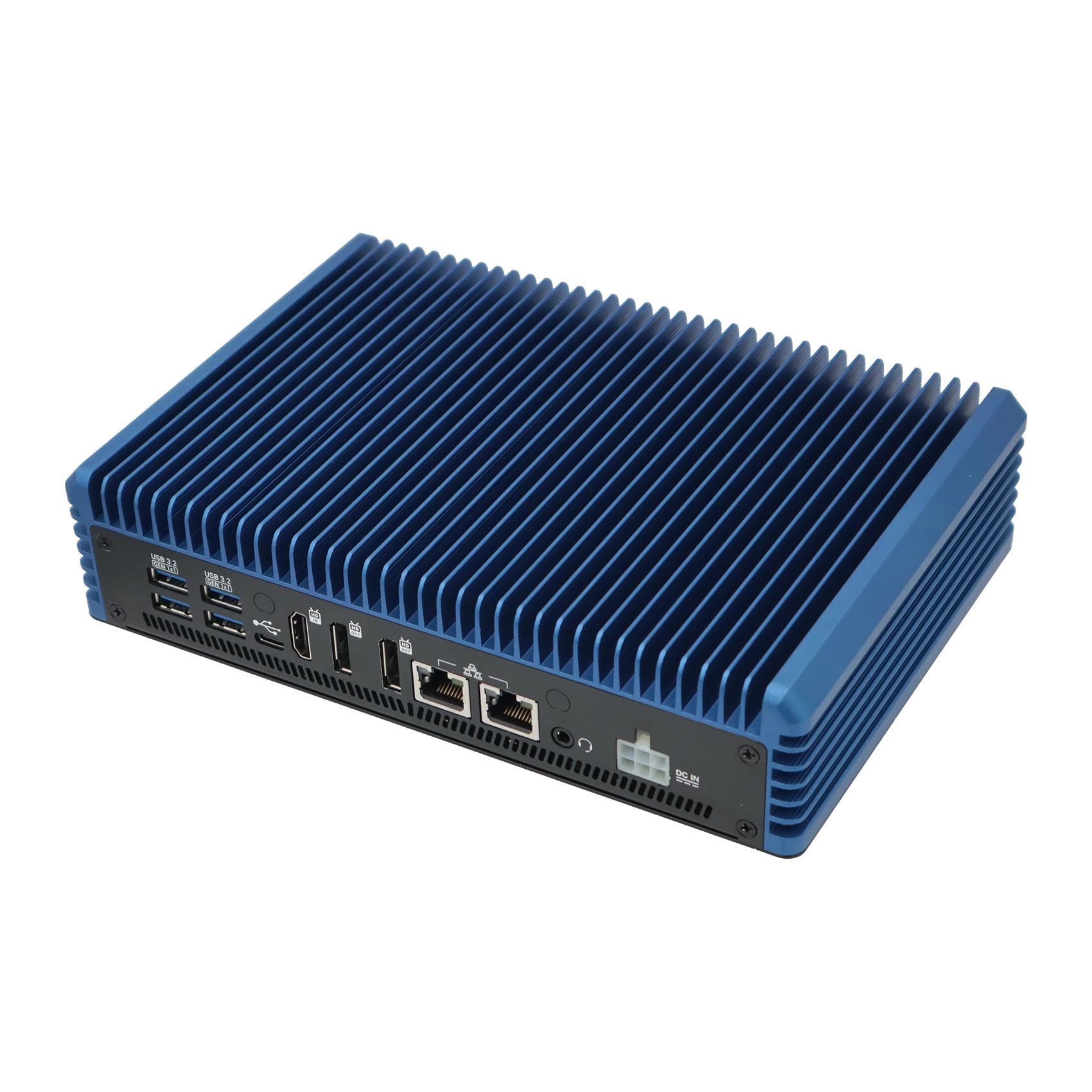

Embedded System with this motherboard inside:
AR3588RK ARM SBC Rockchip RK3588 SoC Quad-core performance

Rockchip RK3588 SoC Quad-core performance

The AR3588RK is a high-performance yet compact ARM single board computer powered by the Rockchip RK3588 SoC. This industrial-grade SBC features a powerful quad-core Arm Cortex-A76 and quad-core Cortex-A55 CPU cluster along with the Mali-G610 MP4 GPU to handle demanding multimedia and graphics workloads with ease.

Onboard Memory and eMMC Storage

With 8GB of LPDDR4 RAM and 32GB of eMMC storage onboard, the AR3588RK delivers ample memory and storage capacity right out of the box. For expanded storage needs, it also includes a microSD slot and an M.2 M-Key socket for NVMe SSDs.

Supports 5G Module
AR3588RK HDMI Input

Display and HDMI Input

The AR3588RK shines when it comes to display and video capabilities. It features dual DisplayPort 1.3 outputs capable of driving 4K displays at 60Hz. The Mali GPU enables ultra-high definition 4K video encoding and decoding at high frame rates.

The board also features HDMI input for receiving Audio and Visual signals. Examples of using an HDMI Input: The treadmill HMI with HDMI input allows to accept the audio and video signal from a user's device. Another example such as a Projector with HDMI Input allows to accept the audio and video signal from another source.

12-24V Wide Range DC-in

Built for reliable operation in industrial environments, the AR3588RK has a wide 12-24V DC input range and an operating temperature range of 0°C to 70°C. With its low-profile and compact 147 x 120 mm dimensions, it fits well into space-constrained embedded and IoT applications.

Cellular and Communication

Connectivity options on this SBC are plentiful with dual Gigabit Ethernet ports, four USB 3.1 ports, a USB 3.1 Type-C port, and three serial ports. For expandability, it includes an M.2 E-Key slot for wireless modules or SATA drives.

System
CPU Rockchip® RK3588 SoC
Quad Core Cortex-A76 & Quad Core Cortex-A55
System Memory 8GB Onboard LPDDR4 Memory (Expandable to 32GB Max)
Ethernet 1 x Realtek® RTL8211F
1 x Realtek® RTL8111H
Audio Everest® ES8388 Ultra-Low Power Audio Codec
Expansion 1 x M.2 M-Key 2280/2242 NVMe (PCIe Gen3 x4 Singal)
1 x M.2 E-Key 2230 (PCIe x1 + USB Signal)
1 x MicroSD Socket
Storage 32GB eMMC Onboard
OS Support Android, Linux
Display
Chipset Mali G610 MP4 Integrated Graphic
Vulkan 1.2, OpenGL ES 3.2, OpenCL 2.2, 4K 60fps Encoding,
4K 90fps Decoding, HEVC/H.264
Interface 1 x HDMI Input up to 4k 60Hz
2 x DisplayPort 1.3 4K@60Hz
1 x LVDS/eDP (Optional)

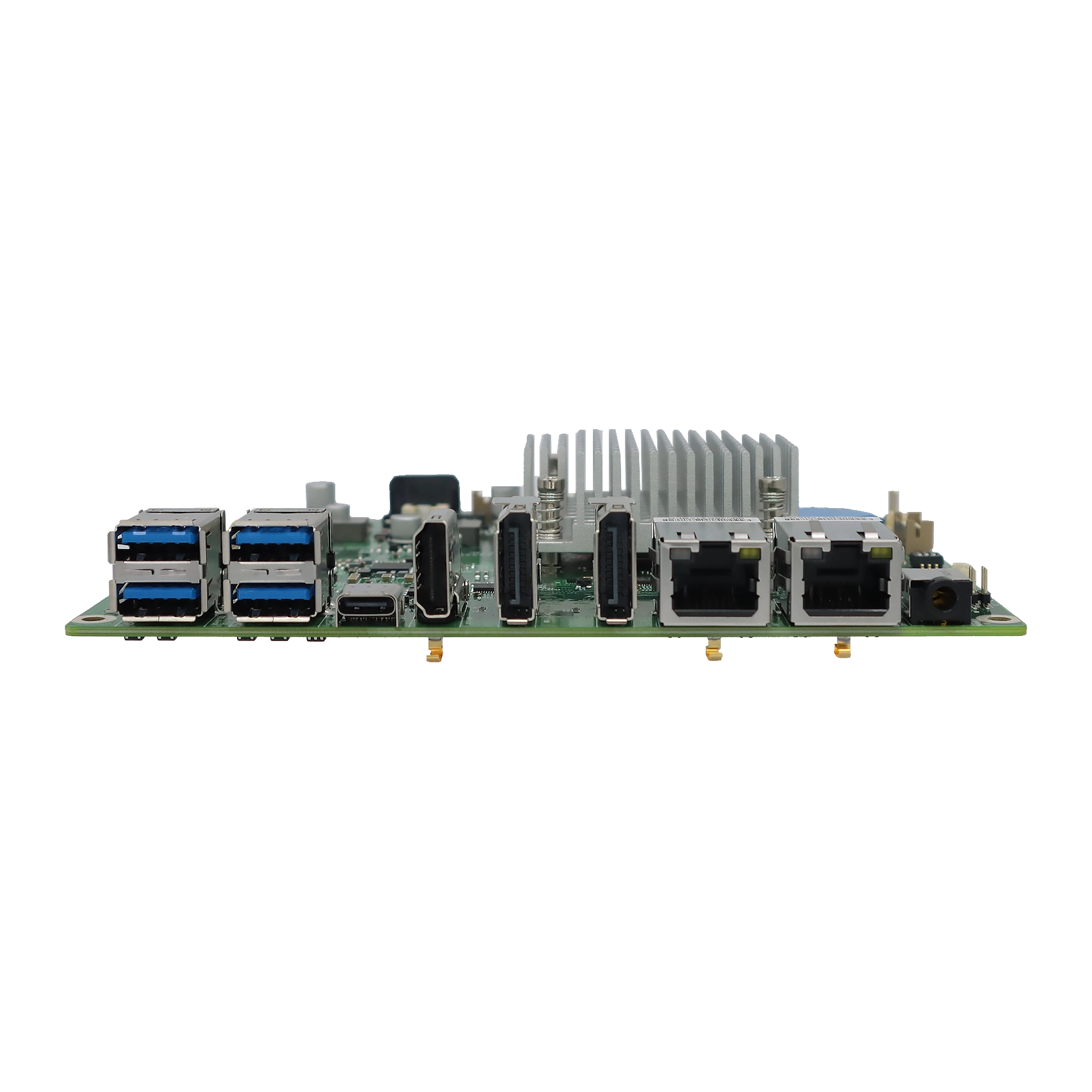

External I/O
Display 2 x DisplayPort
Display Input 1 x HDMI Input
USB 4 x USB 3.1
1 x USB 3.1 Type C OTG
LAN 2 x RJ45
Audio 1 x Headphone/Combo Jack
Internal I/O
Display 1 x LVDS/eDP (Optional)
USB 2 x USB 2.0
Audio 1 x Audio Header for Line-in & Mic-in
COM 2 x RS-232/422/485
1 x TTL UART Locking Type Header
GPIO 1 x 10-bit GPIO
DC-in 1 x 4-pin DC-in Header
Other 1 x I²C, 1 x SPI, 2 x CAN Bus Headers
Mechanical and Environment
Power 12-24V Wide Range DC-In
Operating Temperature 0° ~ 70°C (32° ~ 158°F)
Storage Temperature -10° ~ 85°C (14° ~ 185°F)
Operating Humidity 0% ~ 95% Relative Humidity, Non-condensing
Storage Humidity 5 ～ 90％ Relative Humidity, Non-condensing
Certification Information CE, FCC Class B
UL Compliant
RoHS & REACH Compliant
EN 55035, EN 55032 Class A, EN 61000-3-2 Class A,EN 61000-3-3 Compliant
Dimension 5.79” x 4.72” (147mm x 120mm)
Weight approx 5 oz

* All product specifications and product images are subject to change without notice. Last update: 03/12/2024

Document
Datasheet
Date Description Download
Model Name Description
AR3588RK Rockchip RK3588 SoC ARM Motherboard
