This is an OEM Only product!

This product is marked as "OEM Only". OEM products are designed for OEMs with ongoing and consistent order requirements and subject to minimum order quantities. Evaluation units are available without such restrictions. BCM has multiple stocking distributors that may be able to work with OEMs to streamline product deliveries. Please contact BCMSales@bcmcom.com Sales for more information.

EMX-TGLP supports Intel Tiger Lake Processors EMX-TGLP supports Intel Tiger Lake Processors EMX-TGLP supports Intel Tiger Lake Processors EMX-TGLP supports 4 Independent Displays

EMX-TGLP

11th Gen Intel® Core™ SoC i7/i5/i3 & Celeron BGA Mini-ITX Motherboard

  • Onboard Intel® Gen 11th Core™ SoC i7/i5/i3 & Celeron BGA Processor
  • 2 x 260-pin DDR4 3200 MHz SO-DIMM  supports up to 64GB (non ECC only)
  • Supports up to 4 Independent Displays via 2/4 DP++, LVDS/eDP
  • 1 x Intel® I225-IT 2.5 Gigabit Ethernet
  • 1 x Intel® I219-LM Gigabit Ethernet PHY
  • Optional 2 x Intel® I210-IT Gigabit Ethernet
  • Realtek HD Audio
  • TI TPA3113D2PWP Stereo Class-D 6W x 2 Audio Amplifier
  • 1 x M.2 B-Key 3042/3052/2242/2260/2280 (1 x PCIe x1 (Default) or SATA, USB 3.0 with 1 x SIM card slot, supports WWAN+GNSS or NVMe SSD
    * SATA 2 shared with M.2 B-Key SATA
  • 1 x M.2 E-Key 2230 supports Wi-Fi Module and CNVi (1 x PCIe x1 and USB 2.0 Signal)
  • 6 x COM Ports, 8 x USB
  • 16-bit GPIO
  • Onboard NuvoTon supports TPM 2.0
  • DC in +12V~24V



System
CPU Intel® Core™ i7-1185G7E, i7-1185GRE (up to 4.4GHz, quad-core, 12M Cache, TDP: 28/15/12W)*
Intel® Core™ i5-1145G7E, i5-1145GRE (up to 4.1GHz, quad-core, 8M Cache, TDP: 28/15/12W)*
Intel® Core™ i3-1115G4E, i3-1115GRE (up to 3.9GHz, dual-core, 6M Cache, TDP: 28/15/12W)*
Intel® Celeron® 6305E (up to 1.8GHz, dual-core, 4M Cache, TDP: 15W)
System Memory 2 x 260-pin DDR4 3200MHz SODIMM support up to 64GB
BIOS AMI uEFI BIOS, 256Mbit SPI Flash ROM
Expansion 1 x M.2 B-Key 3042/3052/2242/2260/2280 (1 x PCIe x1 (Default) or SATA, USB 3.0 with 1 x SIM card slot, supports WWAN+GNSS or NVMe SSD
*SATA 2 share with M.2 key B SATA
1 x M.2 E-Key 2230 supports Wi-Fi Module and CNVi (1 x PCIe x1 and USB 2.0 Signal)
TPM Onboard NuvoTon supports TPM 2.0
Watchdog Timer H/W Reset: 1sec. ~ 65535sec./min. and 1sec. or 1min./step
H/W Status Monitor CPU Temperature Monitoring
Voltages Monitoring
CPU Fan Speed Control
Supported OS Win10 64-bit
Linux
Display
Graphic Chipset Intel® 12th Generation CPU integrated
Resolution DP1+DP2 (DP1.4): Max: 7680 x 4329 @60 Hz
DP3+DP4 (DP1.4): Max: 7680 x 4329 @60 Hz
Single DP port (2021/2 Lab test): 5120 x 2160 @60 Hz, DVT check Max: 7680 x 4329 @60 Hz
Note: This resolution is from the actual test result.
Intel® resolution as below:
2 x DP++: 1920 x 1080 @60 Hz
2 x DP: 4096 x 2304 @60 Hz
LVDS: 1920 x 1080
eDP: 4096 x 2304 @60 Hz
LVDS Dual Channel 18/24bits LVDS 1920x1080
Chrontel. CH7511B eDP to LVDS Converter
Multi-Display Supports up to 4 Independent Display
Audio
Audio Codec Realtek HD
Interface Line-out, Mic-in, Front Audio Pin-header
Amplifier 2 x Stereo Class-D 6W Audio Amplifier
Ethernet
LAN 1 Intel® I219-LM (1GbE) Gigabit Ethernet Controller
LAN 2 Intel® I225-IT (2.5GbE) Ethernet Controller
LAN 3 (Optional) Intel® I210-IT (1GbE) Gigabit Ethernet Controller
LAN 4 (Optional) Intel® I210-IT (1GbE) Gigabit Ethernet Controller
External I/O - Single Stacked Version (Thin Mini-ITX)
Display 2 x DisplayPorts
USB 3 x USB 3.1 Gen2 and 1 x USB 3.1 Gen 1
LAN 2 x RJ45
DC-in 1 x DC-in

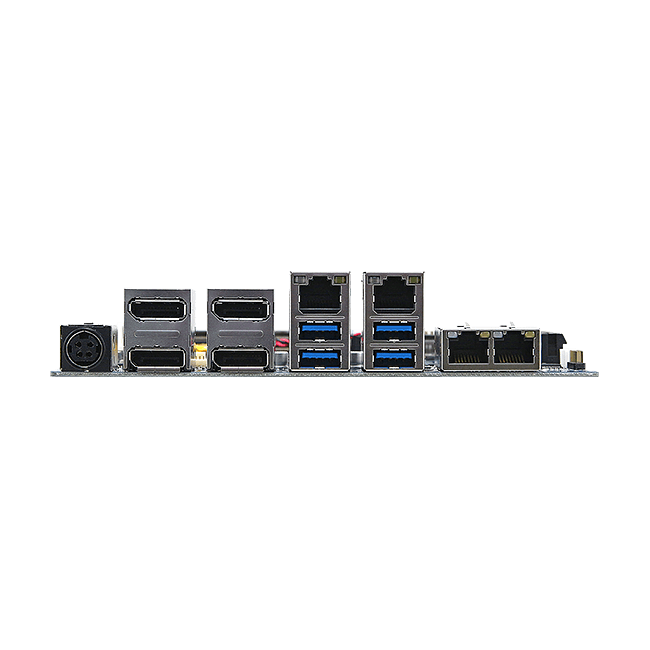

External I/O
Display 4 x DisplayPorts
USB 3 x USB 3.1 Gen2 and 1 x USB 3.1 Gen 1
LAN 4 x RJ45
DC-in 1 x DC-in
Internal I/O
LVDS/eDP 1 x LVDS connector, Optional eDP
USB 2 x USB 2.0 Headers (4 Ports)
COM Ports 4 x RS232 Headers
2 x RS232/422/485 Headers
GPIO 1 x 8-bit GPIO Header
SATA 2 x SATA III Connectors
Other 1 x LPC, 1 x SPI, 1 x Front Audio, 1 x Front Panel, 1 x 4-Pin CPU Fan, Audio AMP
Mechanical and Environment
Power Requirement 12V – 24V DC-In
Operating Temperature Intel® Wide Temp CPU SKU: -20°C ~ 60°C (-4°F ~ 140°F)
Intel® CPU SKU: 0°C to 60°C (32°F ~ 140°F)
Form Factor Mini-ITX
Dimensions (L) x (W) 6.7" x 6.7" (170mm x 170mm)
Certification Information CE, FCC Class B
Weight 0.88 lbs

* All product specifications and product images are subject to change without notice. Last update: 2022/04/12

Document
Datasheet
Manual
Model Name Description
EMX-TGLP-S15-A1R with Intel® Core-i3 Processor, Thin Mini-ITX, 2 x DP, 2 x LAN Ports, Standard Temp.
EMX-TGLP-S45-A1R with Intel® Core-i5 Processor, Thin Mini-ITX, 2 x DP, 2 x LAN Ports, Standard Temp.
EMX-TGLP-S85-A1R with Intel® Core-i7 Processor, Thin Mini-ITX, 2 x DP, 2 x LAN Ports, Standard Temp.
EMX-TGLP-W15-A1R with Intel® Core-i3 Processor, 4 x DP, 4 x LAN Ports, Wide Temp.
EMX-TGLP-W45-A1R with Intel® Core-i5 Processor, 4 x DP, 4 x LAN Ports, Wide Temp.
EMX-TGLP-W85-A1R with Intel® Core-i7 Processor, 4 x DP, 4 x LAN Ports, Wide Temp.
Included Accessory 1 x SATA Cable
1 x SATA Power Cable
1 x I/O Shield
