19U Rackmount HPC Server-grade System Xeon Scalable 19U Rackmount HPC Server-grade System Xeon Scalable 19U Rackmount HPC Server-grade System Xeon Scalable 19U Rackmount HPC Server-grade System Xeon Scalable 19U Rackmount HPC Server-grade System Xeon Scalable

HPS-SRSU4A Coming Soon

19" 4U Workstation, supports single 4th Gen. Intel® Xeon® SP Processor, 1300W, 5x RJ-45, IPMI2.0

  • Extended Lifecycle Server-grade Workstation

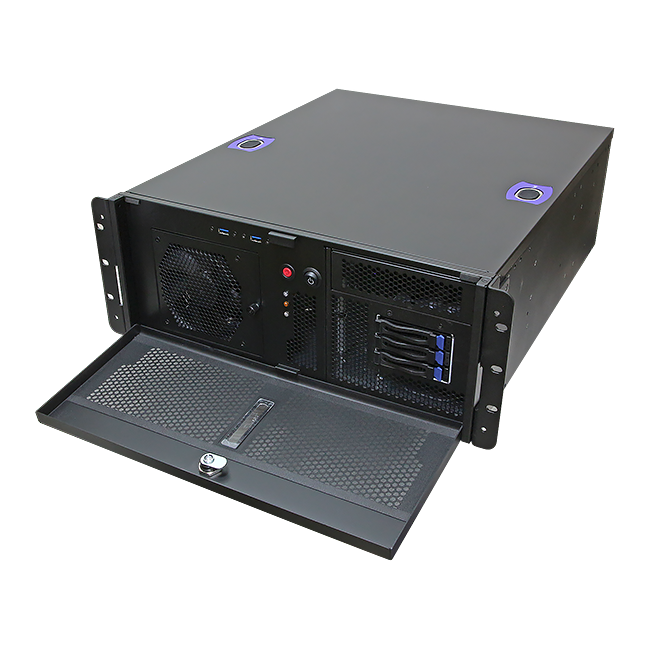

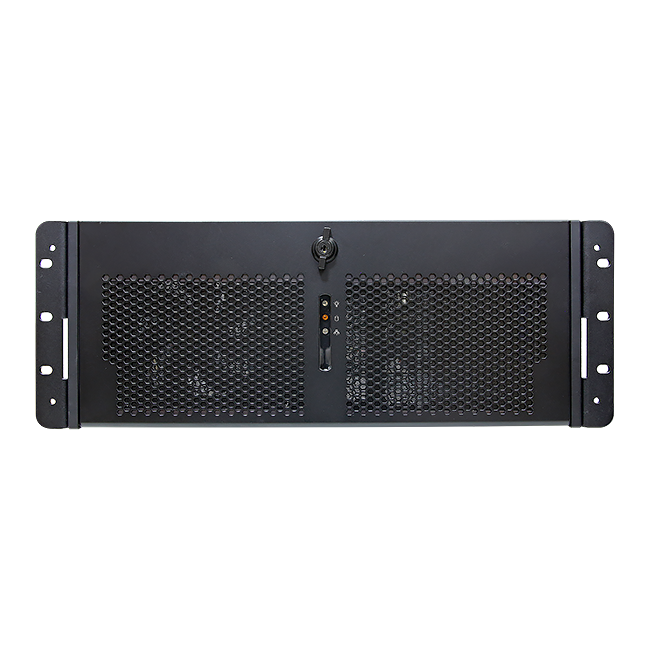

  • Lockable Front Cover
  • Intel® FCLGA4677 Socket supports 4th Gen. Intel® Xeon Scalable Processors (Max. TDP at 250W)
  • Intel® C741 Chipset
  • Supports 6 x DDR5 4800MT/s RDIMM up to 1.5TB
  • 4 x PCIe x16 slots, 2 x PCIe x8 slots, 1 x PCI 3.0 slot
  • 1 x 1300W PS2 ATX PSU
  • 3 x Front Accessible 2.5” storage bay
  • 1 x Intel® X550-AT2 10GbE Ethernet Controller supports 2 x RJ45 LAN ports, 10GbE each port
  • 4 x USB 3.2 Gen 1 port & 2 x USB 2.0 port at Edge I/O
  • Supports IPMI 2.0 with AST 2600 BMC Controller Onboard
  • TPM 2.0 Onboard
  • 19" 4U Chassis
  • L6 Barebone only
  • L10 Fully Integrated System available through OEM/ODM
  • Custom configurations: Redundant Power Supply
System
Motherboard Inside HPM-SRSUAA (4LAN)
CPU Intel® FCLGA4677 Socket supports 4th Gen. Intel® Xeon Scalable Processors (Max. TDP at 250W)
System Chipset Intel® C741 Chipset
System Memory Supports 6 x DDR5 4800MT/s RDIMM up to 1.5TB
BMC/IPMI IPMI 2.0 with AST 2600 BMC Controller Onboard
TPM Onboard TPM 2.0
Supported OS Windows 10 IoT Enterprise LTSC 2021
Windows 11 IoT Enterprise
Windows Server-grade IoT 2019 with VT-d disabled
Windows Server-grade IoT 2022
Ubuntu 20.04 LTS and later
Red Hat Enterprise Linux (RHEL) 8.2 and later
Ethernet
Chipset 1 x Intel® I210-AT Ethernet Controller (1GbE)
1 x Intel® I226-LM Ethernet Controller (2.5GbE)
1 x Intel® X550-AT2 Ethernet Controller supports 2 x 10GbE LAN Ports
LAN 5 x RJ45 (LAN1 Share IPMI Port)
Expansion Slots
PCI Express 4 x PCIe Gen5 x16 slots and 3 x PCIe Gen5 x4 slots
Storage
M.2 1 x M.2 M-Key 2242/2260/2280/22110 supports 1 x SATA or 1 x PCIe 3.0 x4 NVMe SSD
2.5” Drive Bay 3 x Front Accessible 2.5" Storage Bay
Display
Chipset AST 2600 BMC Controller
Resolution VGA: 1920 x 1200 @ 60Hz 32bpp
Edge I/O (Front)
USB 2 x USB 3.2 Gen 1
Power Button 1 x Power Button
Reset Button 1 x Reset Button
LED Indicator 1 x Power State Indicator
1 x Disk Drive Activity Indicator
1 x Network Activity Indicator

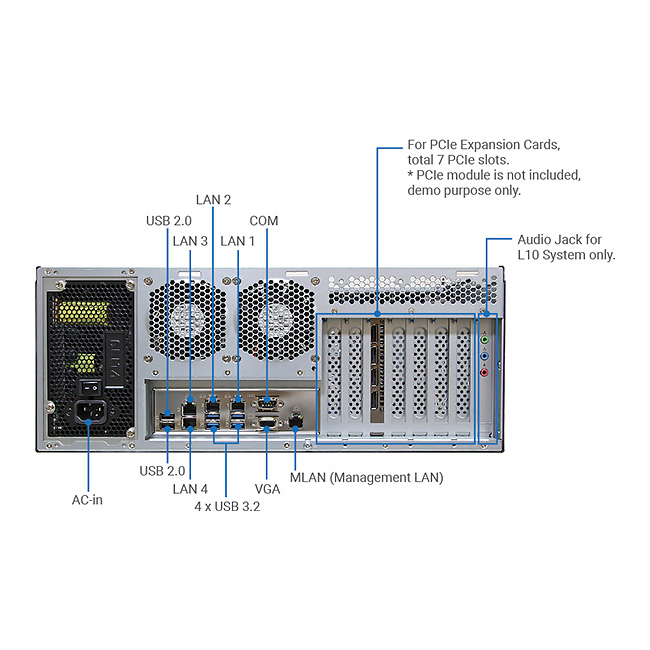

Edge I/O (Rear)
USB 4 x USB 3.2 Gen 1
2 x USB 2.0
COM Port 1 x RS232 Port
Display 1 x VGA Port
LAN 5 x RJ45 Interfaces
Management LAN Port (MLAN) for dedicated IPMI access only. Controlled by BMC Chip.
LAN1: Intel® 1GbE shared with IPMI access
LAN2: Intel® 2.5GbE
LAN3 and LAN 4: Intel® 10GbE
Power Requirement
Power Mode ATX
Power Supply Unit 1 x 1300W PS2 ATX PSU
Mechanical and Environment
Operating Temperature 0°C to 35°C (L6 system)
Storage Temperature -40°C 24hrs IEC60068-2-1 Cold Test : Ab
70°C/ RH95％ 24hrs IEC 60068-2-3 Test:Ca
Operating Humidity 35°C @ 95% Relative Humidity, Non-condensing
Certification CE/FCC Class B, safety: EN62368
Dimensions (L) x (W) 19" 4U Chassis
16.93"W x 6.88"H x 20.79" (430 x 174.8 x 528mm)
19"W x 6.88" x 20.79" (482.6 x 174.8 x 528mm) with ear mount
Weight 43lbs (19.5kg)

* All product specifications and product images are subject to change without notice. Last update: 07/27/2023

Document
Datasheet
User's Manual
BIOS Version Revision Note Download
Driver Type Download
Date Description Download
Model Name Description
HPS-SRSU4AD-A1R Barebone Only. L6 19" 4U Rackmount HPC System, HPM-SRSUAA/1300W/1x5.25"/3x2.5"
