Product End of Life (EOL) Notification

THIS PRODUCT IS ON THE PHASE-OUT LIST. BCM is accepting last time buy (LTB) orders through February 26, 2024. At BCM’s discretion, last time by orders may be scheduled to ship through August 31, 2024 with a non-cancellable and non-returnable (NCNR) PO. For a replacement product please consider our OFT10W-3455J / OFT-15W04. For detail, please read Official Release.

OFT-07W03 7 in Open Frame Tablet OFT-07W03 7 in Open Frame Tablet OFT-07W03 7 in Open Frame Tablet

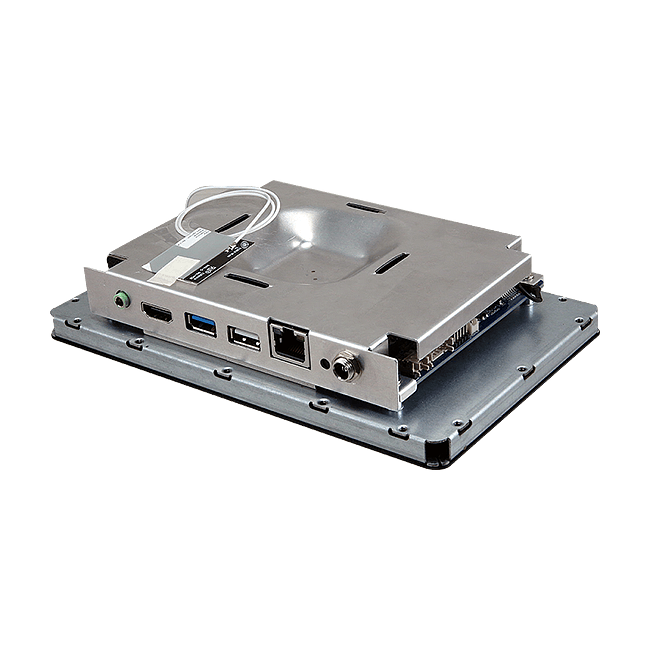

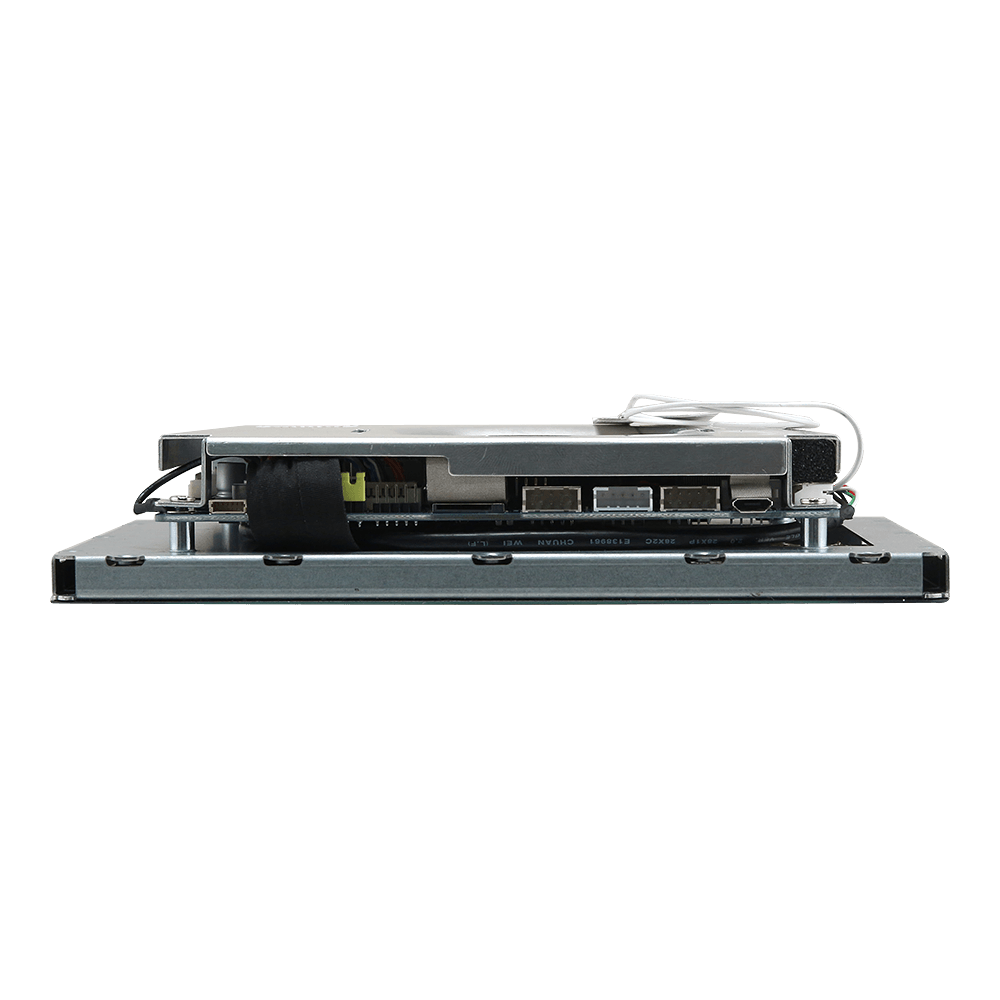

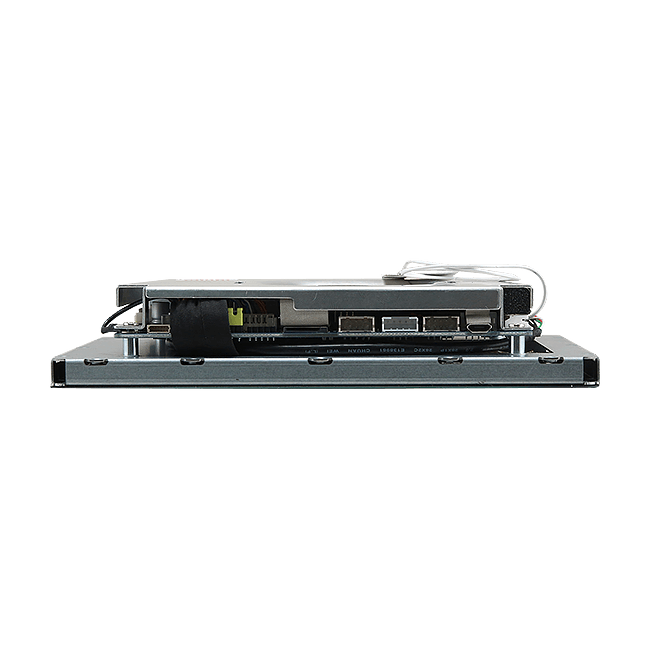

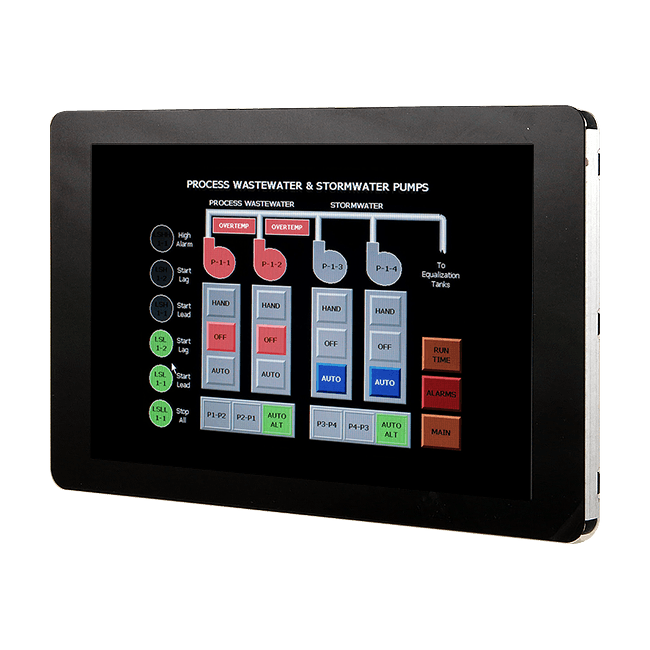

OFT-07W03

7" Intel® Atom™ x5-Z8350 Quad Core Open Frame Tablet

  • 7 inch PCAP Touch Panel
  • Intel® Atom™ x5-Z8350 Quad Core 1.44GHz Processor Onboard
  • 2GB RAM or 4GB RAM Onboard
  • 32GB or 64GB eMMC Onboard
  • 10/100 Ethernet
  • M.2 B-Key (3042) Slot
  • Micro SD Card Slot
  • SIM Card Slot for LTE Module
  • USB 3.0, USB 2.0, Micro USB
  • 802.11 b/g/n/ac Wi-Fi
  • Support Windows 10 or Ubuntu OS
  • DC 12~24V input
OFT Optimized for Tablet Computing

Slim and Touch Interface

Intel Atom quad-core processor onboard. Optimized for tablet computing. High performance with cost effective solution. Plug-in and play. Slim and fanless operation design.

Easy Mounting Integration

A faster Time-to-Market solution for almost all types of applications that requires touch screen, CPU, memory, storage, Wi-Fi and Bluetooth in one unit. Mounting Kits speed up enclosure integration just in a few steps.

Easy Mounting Integration
System
CPU Intel® Atom™ x5-Z8350 Quad Core 1.44 GHz Processor Onboard, up to 1.92 GHz
System Chipset SoC
System Memory 2GB or 4GB DDR3L RAM Onboard
Storage 32GB or 64GB eMMC Onboard
WLAN 802.11 b/g/n/ac
Multiple Display Supports 2nd Display via external HDMI
OS Support 2019 Windows 10 (64-bit)
Ubuntu 19.04 (64-bit)
Panel Display
LCD Size 7"
Display Type TFT LCD
Resolution 1280 x 800
Pixel Pitch 0.03925 (H) x 0.11775 (V)
Luminance 300cd/m²
View Angle (H+-/V+-) 89 (U), 89 (D), 89 (L), 89 (R)
Response Time 30ms
Backlight LED
Touch Type Projective Capacitive
Touch Light Transmission 86%
External I/O
Power 1 x Power Jack
HDMI 1 x HDMI
USB 1 x USB 2.0 Type A
1 x USB 3.0 Type A
LAN 1 x RJ45
Audio 1 x Headphone Jack
Other 1 x Reset Button
Internal I/O
USB 1 x Micro USB
1 x USB Interface
1 x USB Touch Interface
Expansion 1 x M.2 B-Key (3042)
1 x Micro SD Card Slot
SIM Socket 1 x Micro SIM Card Socket for LTE Module
Touch Button 1 x Touch Button Control (Power/Volume/Brightness)
Audio 1 x AMIC Interface
1 x DMIC Interface
1 x Speaker Interface
I2C 1 x JSEN1 Interface (I2C x2)
1 x JTP1 Interface (I2C)
COM Port 1 x RS232 (Tx/Rx/Rts/Cts) Interface
1 x RS232 (Tx/Rx/Rts/Cts), RS485(Tx/Rx/Rts/Cts)
GPIO 1 x 16-bit GPIO 16-bit
Power 1 x Power Interface (12~24V)
1 x RTC Battery interface
Other 1 x Debug port (Tx/Rx)
Mechanical and Environment
Power Requirement DC 12 ~ 24V Input
Power Type DC Jack, DC Input 4-pin Header
Operating Temp 0°C ~ 40°C
Storage Temp -20°C ~ 60°C
Operating Humidity 40% ~ 95% Relative Humidity, Non-condensing
Certification Information CE, FCC Class A
Product Dimension 7.21” x 4.56” x 1.32” (183.1 x 115.85 x 33.4mm)
Product Weight 1.2 lbs (0.5 kg)

* All product specifications and product images are subject to change without notice. Last update: 2021/08/30

OFT for Automated Vending Machines

7"/10" OFT for Automated Vending Machines

Company A develops commercial coffee vending solutions. They are modernizing and revitalizing their system by replacing their traditional mechanical interface and single color display with a digital touch screen. The new machine is expected to accommodate a wider range of product options and higher value specialty drinks, both hot and iced, in addition to the typical coffee or cocoa, strong or light, sugar or cream, merchandise selections.

These new vending machines will be placed in public areas such as work place break rooms, public cafeterias, auto dealer waiting rooms, hotel lobbies, shopping centers, train stations, airports, and other public venues. This next generation automated vending machine offers customers vivid images of the various product options along with a user-friendly P-CAP touch interface similar to the customers’ tablets or smartphones making purchases a simple and pleasant experience.

For the vendor, adding this technology to their machines may help to expand same-store sales by delivering meaningful and attractive product information and providing a platform for delivering promotional content on the screens.

OFT for Beverage Dispenser

7"/10" OFT for Next Gen Beverage Dispenser

The next generation beverage dispenser in restaurant or fast food stores implemented with 7 or 10 inch touch screen panel computer provide dine in consumers or dispenser operators with new user experiences.

The OFT-07W03 open frame tablet is a all-in-one deployment-ready falness panel computer built-in with Intel Atom quad core processor. It is also equipped with onboard memory and storage as well as PCAP touch, Wi-Fi and Bluetooth capabilities. All these features enable beverage dispenser suppliers easier implementation and shorten product development time and cost.

OFT for 3D Printers

7" OFT for 3D Printers

With the easy hardware and software integration features, many of the 3D printer suppliers adopt our 7" and 10" open frame tablets into their industrial grade 3D printer products as its main control console interface. The benefits include faster time to market, easy Android OS and app software implementation, fanless operation, PCAP and flat screen touch interface, sleek design, and easy mounting integration.

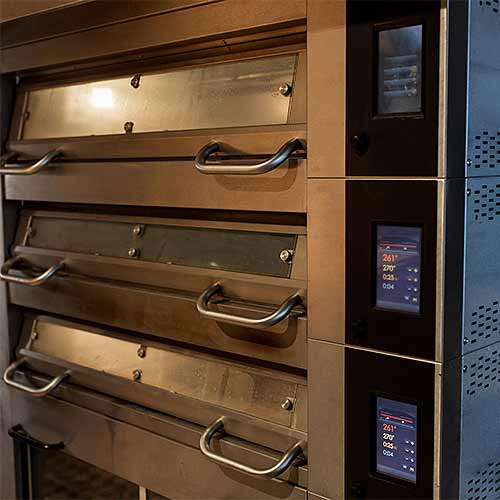

OFT for Industrial Grade Rack Oven

7" OFT for Industrial Grade Food Process Equipment

Many of the next generation industrial grade food process equipment are implemented and integrated with a touch screen as its control console replacing the traditional buttons. For example, the industrial grade rack oven, baker over, food warmer, and automated packaging machines.

OFT for Video Conferencing Console

OFT for Video Conferencing System Console

7 inch flat touch screen, supports Win, Android and Linux OS. Fanless design, quiet operation. Custom enclosure design, easy mounting integration, faster time-to-market solution.

Medical Analysis Devices

OFT for Medical Analysis Devices

7/10 inch flat screen with PCAP touch. Fanless design, quiet operation. Supports Win, Android and Linux OS. Custom enclosure design. DC-in power.

Medical Analysis Devices

OFT for Smart Office/Building Control Console

7/10 inch flat screen with PCAP touch. Fanless design, quiet operation. Easy mounting integration, low power consumption, easy software integration. Capabilities of adding camera and speakers.

Document
Datasheet
Quick Reference Guide
Date Description Download
10/19/2023 End of Life notification for BCM’s OFT-XXW02 and OFT-XXW03 products due to the discontinuance of the Intel® CPU used on these products.
Model Name Description
OFT-07W03-32WN 7” Open Frame Tablet, Intel Atom x5 Z8350 Quad Core, 2GB RAM, 32GB eMMC, PCAP, MicroSD, Wi-Fi/BT, 1 x Gb LAN, 2 x USB, USB OTG, 1 x HDMI, 12~24V DC Input, 2019 Windows 10 IoT LTSC
OFT-07W03-32LX 7” Open Frame Tablet, Intel Atom x5 Z8350 Quad Core, 2GB RAM, 32GB eMMC, PCAP, MicroSD, Wi-Fi/BT, 1 x Gb LAN, 2 x USB, USB OTG, 1 x HDMI, 12~24V DC Input, Ubuntu 19.04
