The next generation fitness equipment provides users the smarter and more modern and high-tech fitness experience. OFT-10W01 and OFT-15W01 are ideal solutions for these types of applications due to its all-in-one fanless and easy mounting integration features. Contact our sales team for more information.

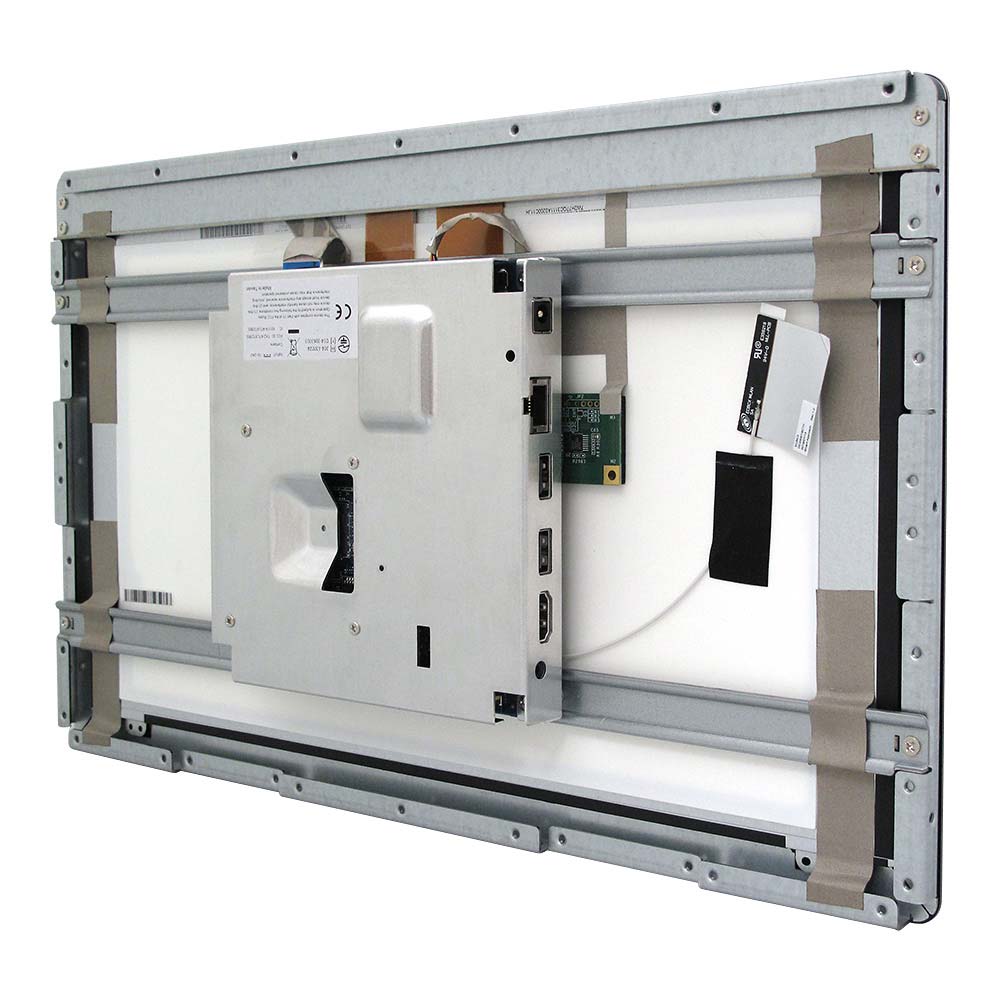

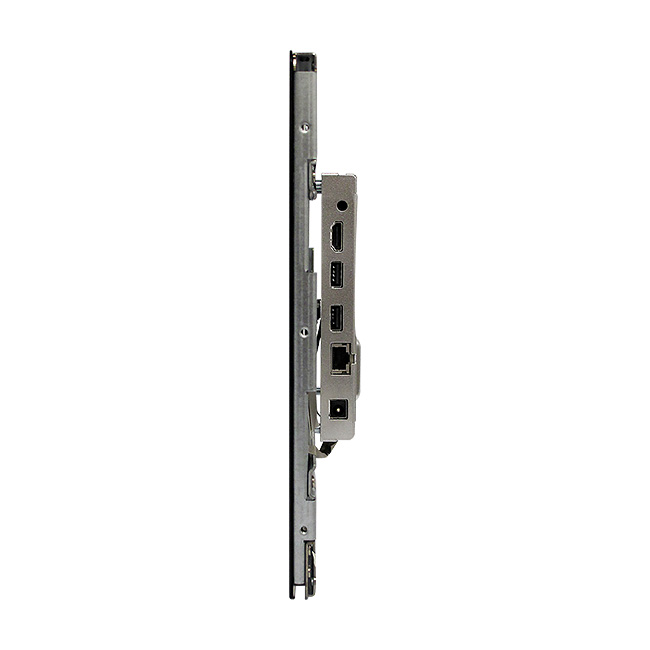

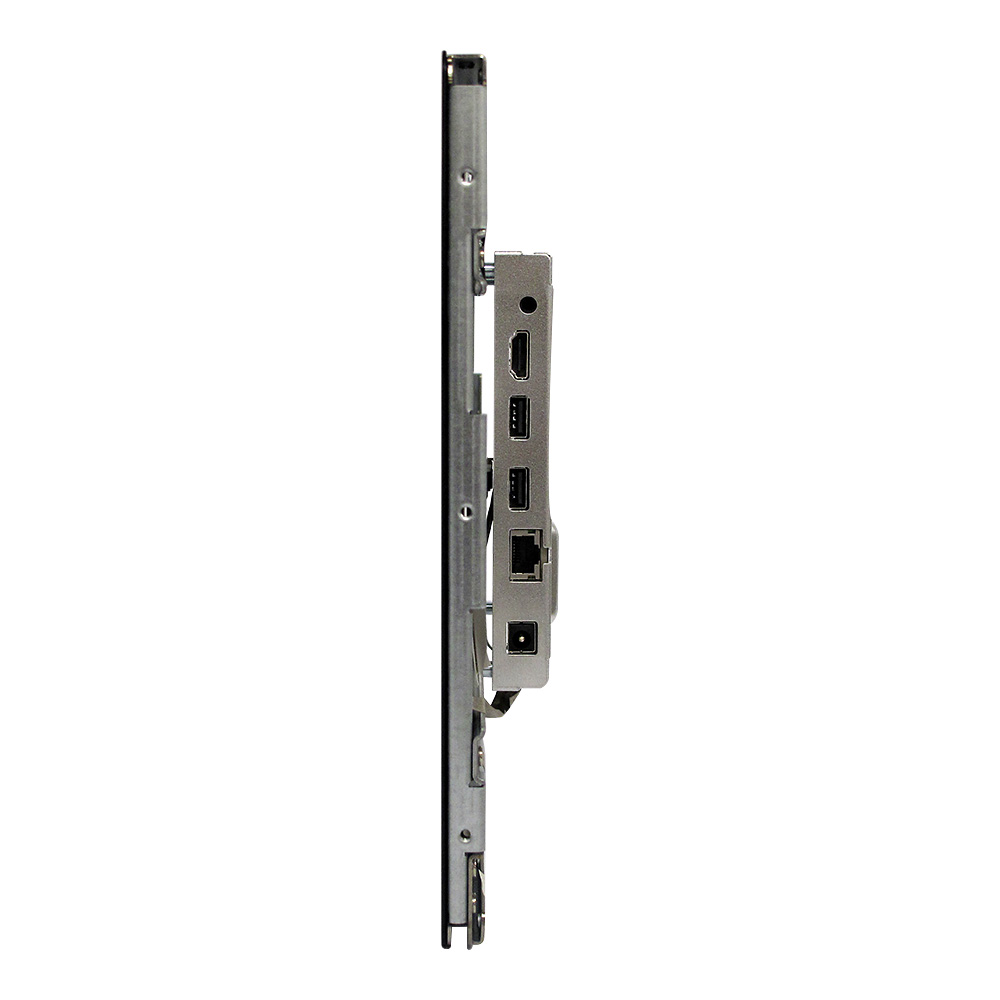

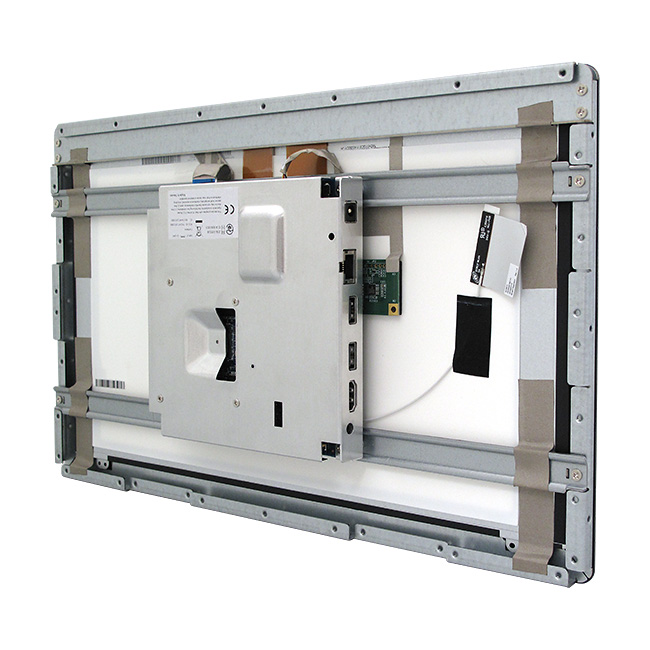

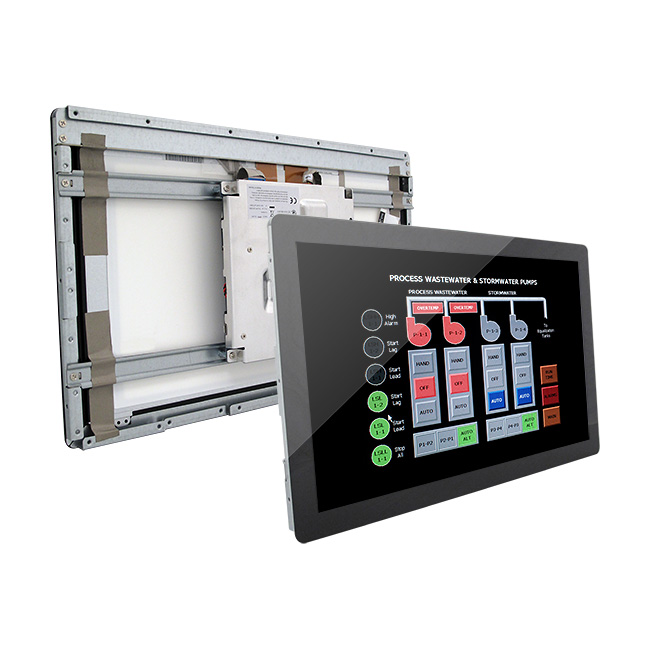

15" Intel Atom Quad Core Open Frame Tablet
Built based on the Intel BayTrail-T/CR Z3735F Quad Core processor providing high performance but lower cost and only 2W power consumption.
- Intel® Atom™ Z3735F 1.33 GHz Quad Core Processor
- 15 inch PCAP Touch Screen
- Flat screen with PCAP touch giving users fast touch response
- Easy installation for In-Wall & Kiosk Applications
- 2GB DDR3L RAM and 32GB eMMC Onboard
- 10/100 Ethernet (PXE Boot)
- Touch board interface (Power/ Brightness/ Volume/ LED)
- 16Bit programmable GPIO
- Wi-Fi (802.11b/g/n) & Bluetooth 4.0
- 12V-24V DC Input
- 1 x RS232 or 1 x RS485
- Supported OS: MS Windows, Android, Linux
